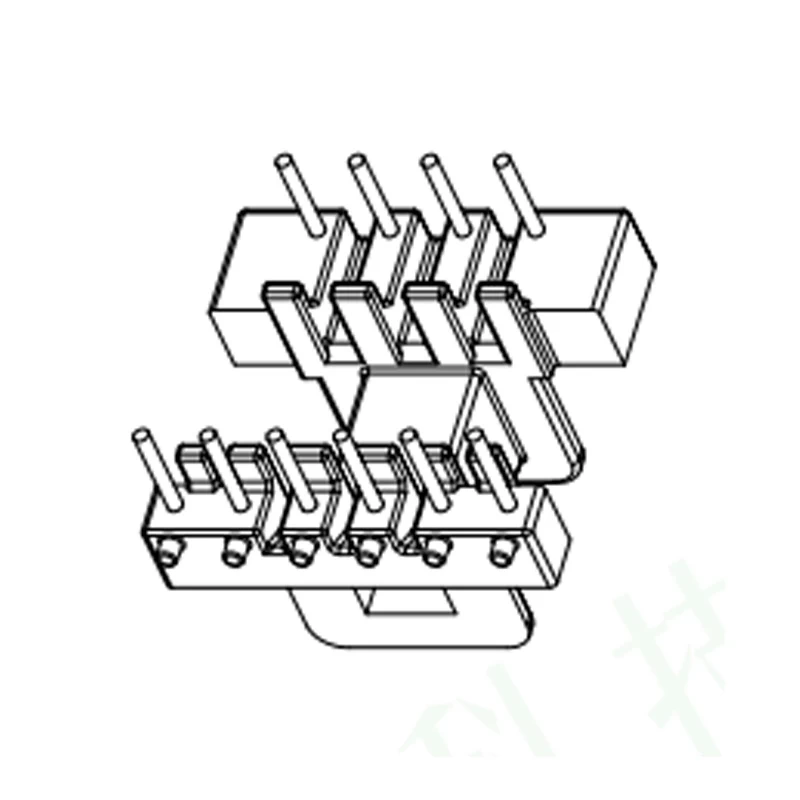

EE16 High Voltage Power Transformer 4+6 Pins Bobbin

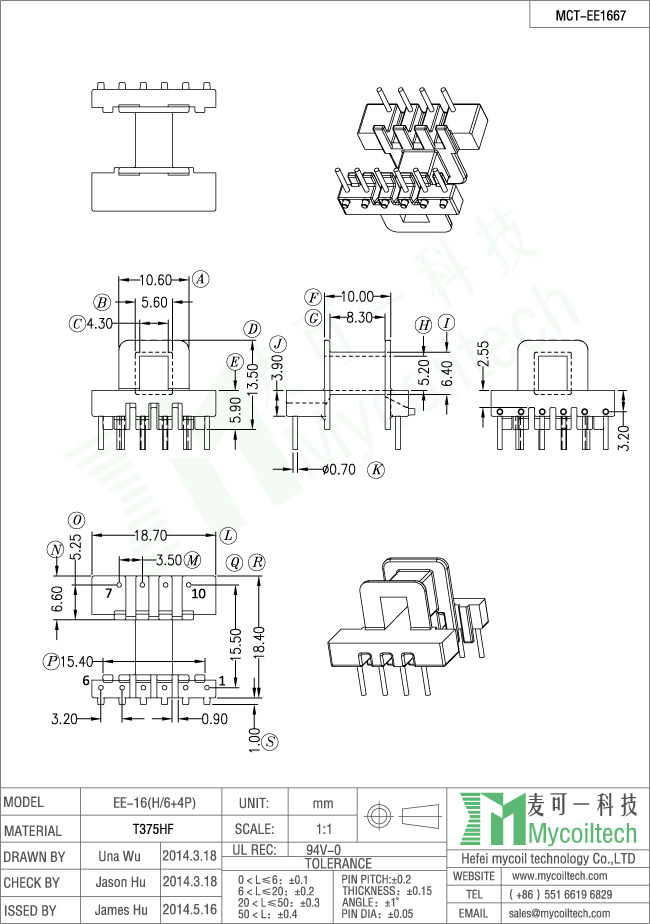

4+6 Pins Horizontal Bobbin, EE16 high frequency transformer. Bobbin Size=18.7mmX18.4mmX13.5mm,  We have bobbin tooling. Parallel Distance=15.5mm, pin pitch1=3.2mm, pin pitch2=3.5mm. Phenolic Material,UL REC:94V-0



ISO9001/2015 transformer bobbin factory, hot selling EE16 ferrite core bobbin, competitive price and high quality coil former, samples can be sent for testing.


Quick Details

Part Number: MCT-EE1667

Brand Name: MCT

Material: T375HF

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity


Part Information

Product Name: EE16 High Voltage Power Transformer 4+6 Pins Bobbin

Product Range: Transformers,Inductor,coil,bobbin,ferrite core.

Applications: SMPS transformer,power transformer,high frequency transformer,flyback transformer.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.


Product Specification

Switching Power Supply Transformer Bobbin
