EE19 Vertical Bobbin For Switching Power Transformer Pin 4+6

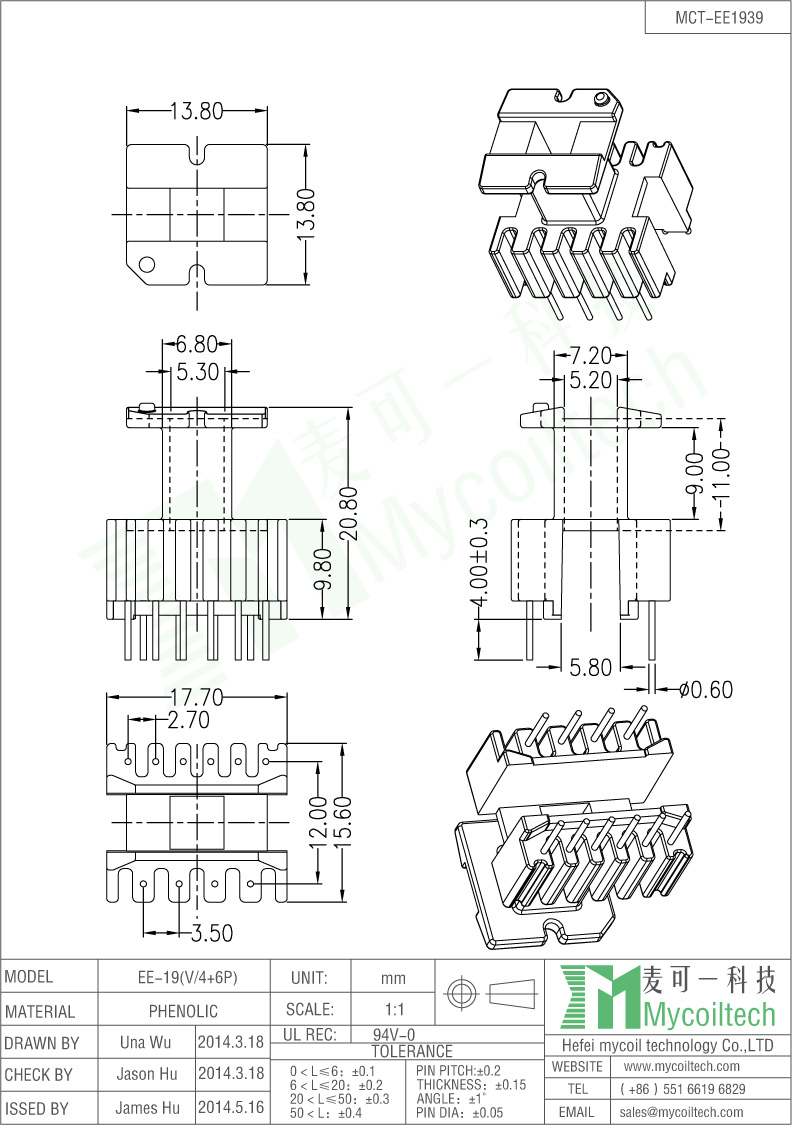

EE19 flyback transformer bobbin. 4+6 pin vertical coil bobbin. Phenolic material bobbin. Pin Pitch1=2.7mm. Pin Pitch2=3.5mm. Parallel Distance=12mm. DIP bobbin. Size=17.7mmX15.6mmX20.8mm. UL REC:94V-0.



Bobbin factory popular EE19 electronic transformer bobbins4+6 pin vertical EE19 transformer bobbin, hot selling and good quality, accept custom design, we can provide samples in 5 days, any requests, welcome to contact us.


Quick Details

Part Number: MCT-EE1939(V4+6P)

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity


Part Information

Product Name: EE19 Vertical Bobbin For Switching Power Transformer Pin 4+6

Product Range: Transformers, filter inductors, coils, bobbins, magnetic cores.

Applications: switching power supply transformers, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.


Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu


Product Specification

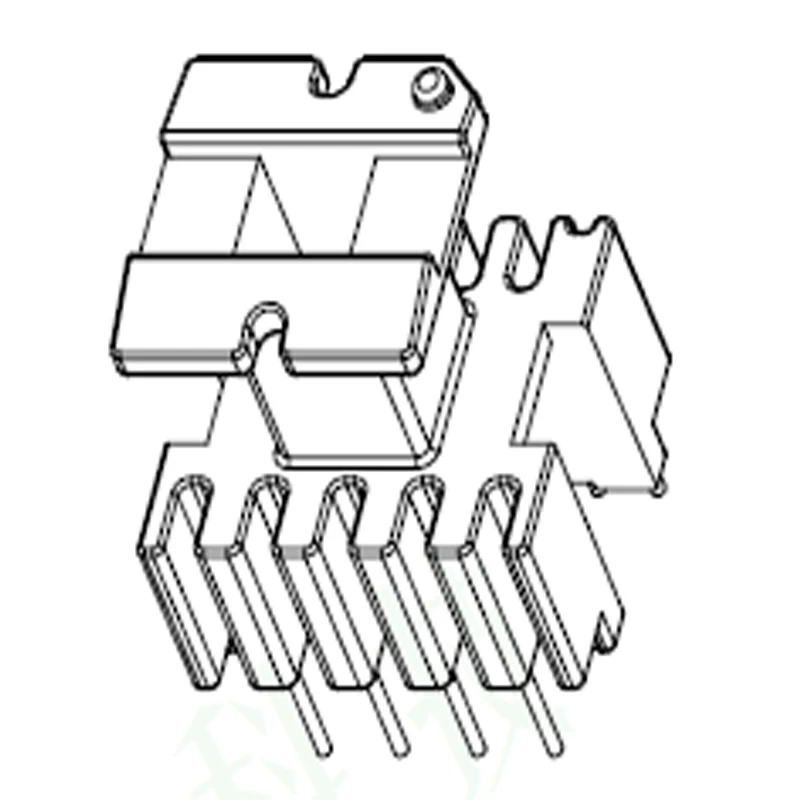

Single Slot EE19 Vertical Type Coil Former
