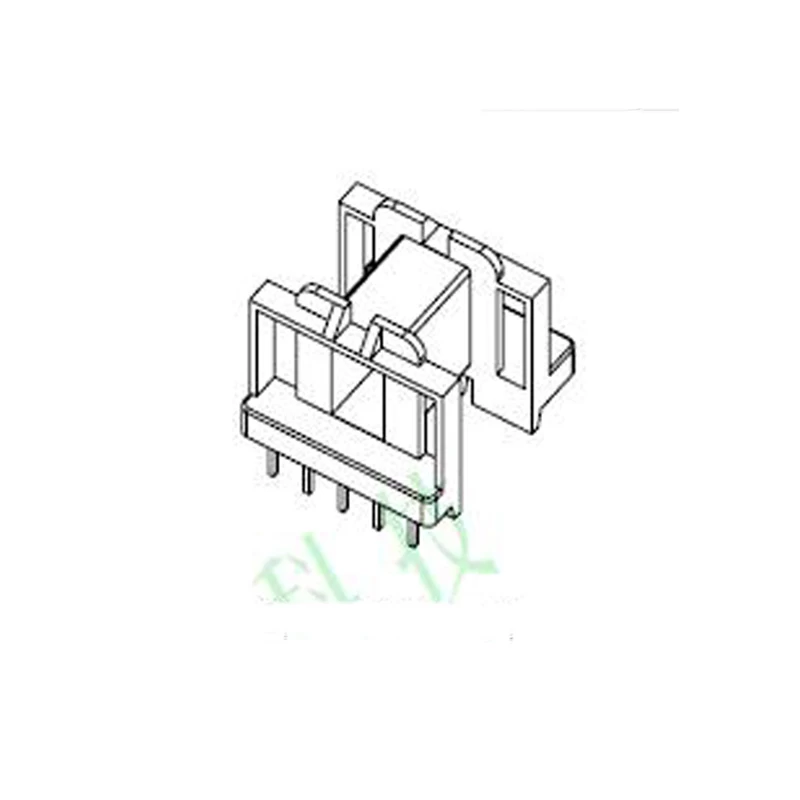

EE20 High Voltage Switching Transformer Bobbin

EE20 PCB mounted transformer. 5+3 pin horizontal EE20 transformer frame. Bobbin Size=27.0mmX22.8mmX20.5mm. Pin Pitch=4.0mm. Row distance=21.8mm. DIP transformer EE20 bobbin. Our EE series transformers usually used in switching power supply, LED lights, NC machine, measurement and control unit.



Hot selling EE20 horizontal transformer bobbin, 5+3 pin EE20 coil former, welcome customized EF20 high frequency transformer.


Quick Details

PNMCT-EE2005(H5+3P)

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity


Part Information

Product Name: EE20 High Voltage Switching Transformer Bobbin

Product Range: Transformers, filter inductors, coils, bobbins, magnetic cores.

Applications: SMPS transformer,LED drive transformer,high frequency transformer,encapsulated transformer.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

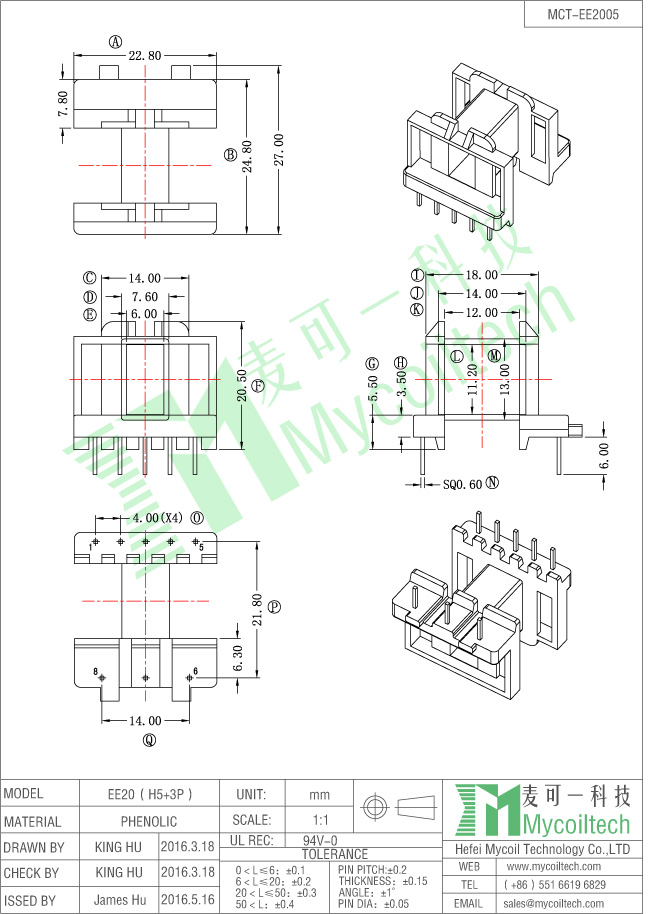

Product Specification

EE20 flyback transformer


For more details, welcome to contact us.

Email: sales003@mycoiltech.com

Skype: live:sales003_125

Contact: Miss Lily
