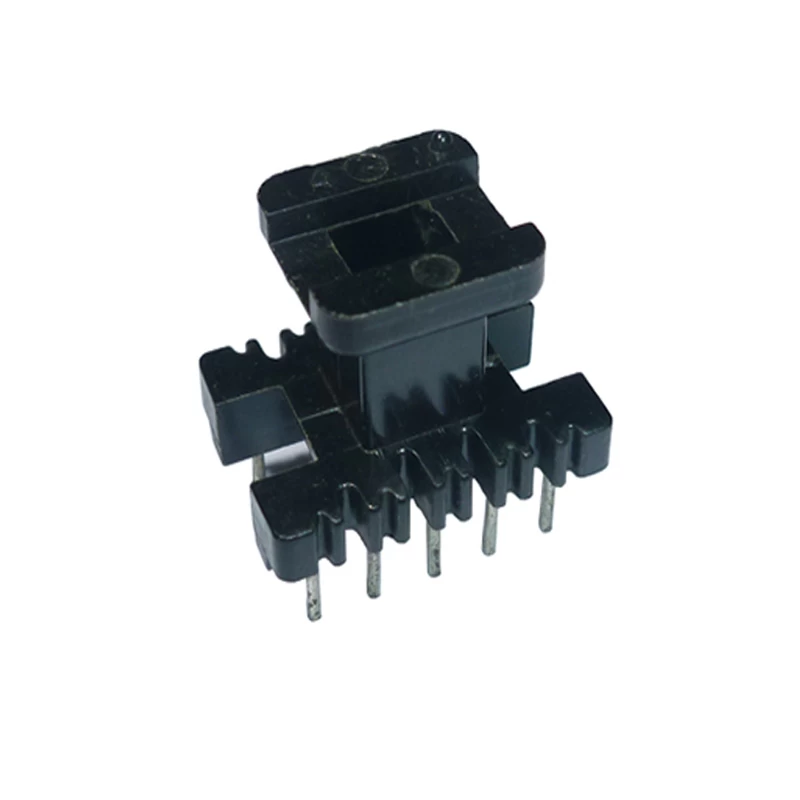

EE22 Switching Power Transformer Vertical Bobbin

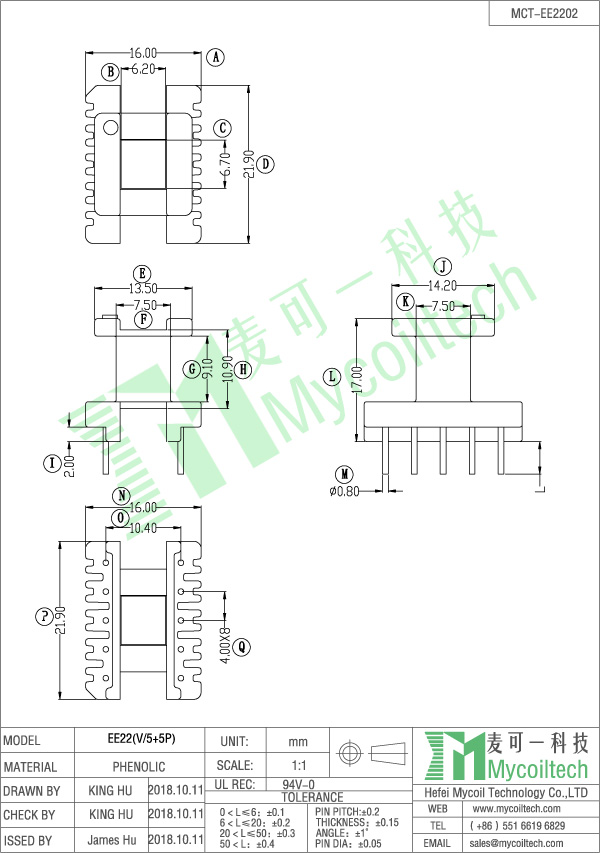

EE22 soft ferrite core bobbin. 5+5 pin vertical version EE22 coil former. Bobbin Size=21.9mmX16.0mmX17.0mm. Parallel Distance=10.4mm. Pin pitch=4.0mm. We have over 10 years in producing and selling bobbins, we have many type bobbin toolings. We also manufacture final high frequency transformers for power supply.

Facebook Twitter Pinterest LinkedIn 分享

Popular EE22 vertical coil bobbin, phenolic material EE22 5+5 pins bobbin, we supply matched ferrite cores, samples are available testing.


Product Specification
