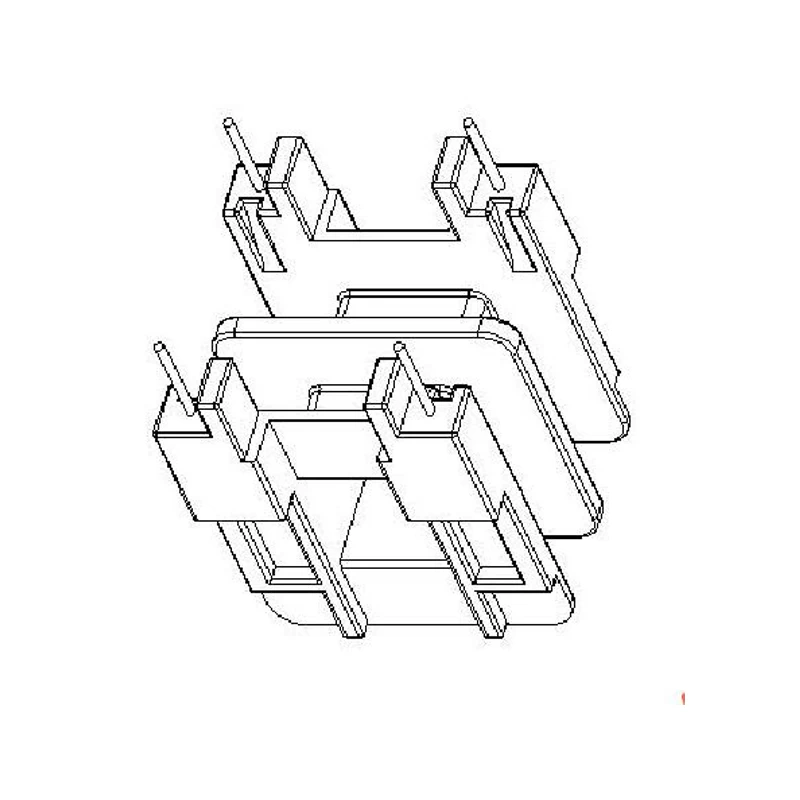

EE35 High Power Transformer Double Slots Bobbin

Double slots coil former EE35 transformer. Horizonttal EE35 2+2 pin bobbin. Parallel distance=22.0mm. Pin pitch=20.0mm. EE35 Bobbin Size=26.8mmX25.3mmX31.8mm. DIP pin transformer bobbin. EE35 PBT material bobbin.



High quality electronic transformer EE35 bobbin, horizontal two sections coil bobbin. We can provide samples for your testing.


Quick Details

Part Number: MCT-EE3504

Brand Name: MCT

Material: PBT

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EE35 High Power Transformer Double Slots Bobbin

Product Range: Transformers, filters, coils, bobbins, ferrite cores.

Applications: Power supply,household/medical equipment,energy saving,high frequency transformers.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

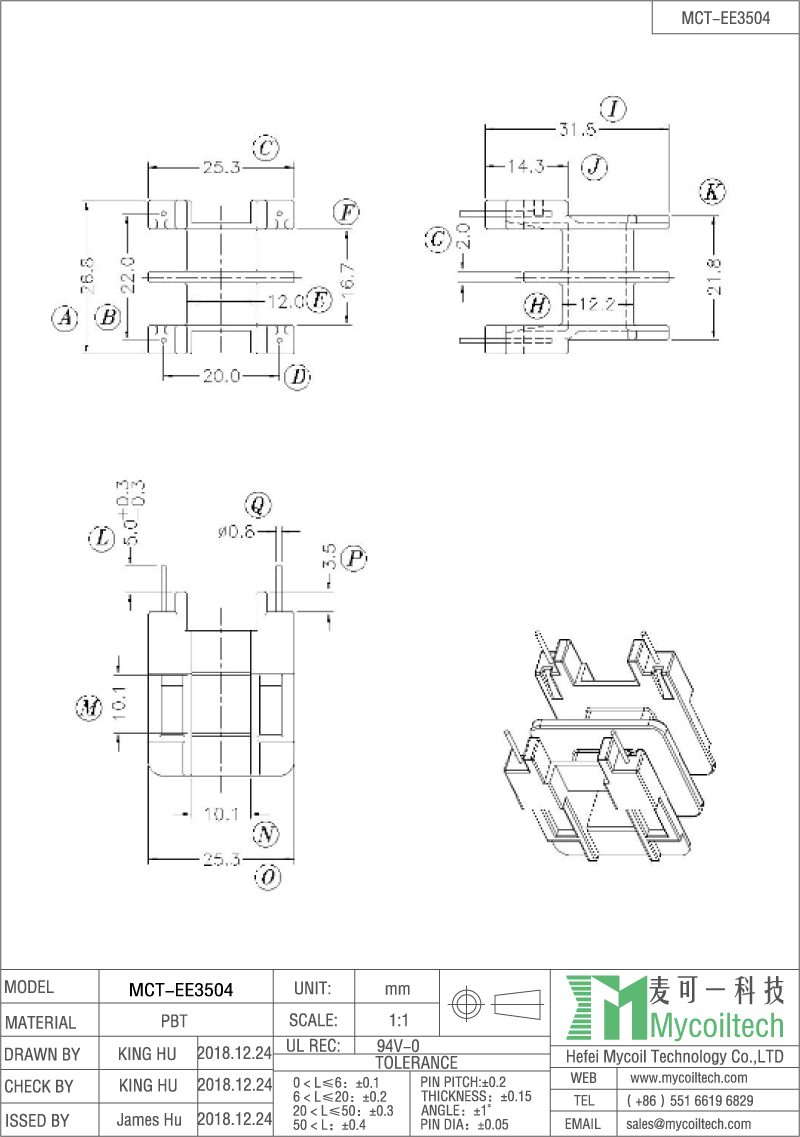

Product Specification

EE35 double slots bobbin
