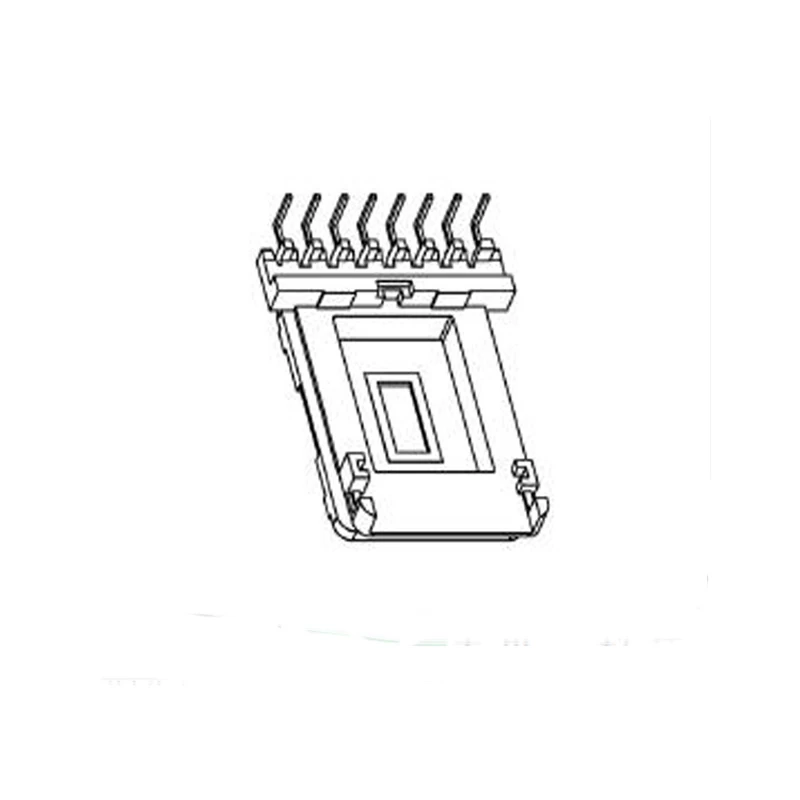

EE42 Ferrite Core Switch Power Transformer Vertical Bobbin

EE42 high frequency transformer. Vertical type EE42 8pin bobbin. Bobbin Size=55.95mmX46.2mmX4.95mm. Pin pitch=5.5mm. We can make bobbin tooling. EE42 electronic transformer can used for electrical equipment, medical equipment, communication equipment, UPS. AC/DC Converter, LED drive and vehicle electronic equipment industry.



Factory price vertical EE42 coil former, we supply matched ferrite cores, customized transformer also acceptable.


Quick Details

Part Number: MCT-EE4206

Brand Name: MCT

Material: PM9820

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EE42 Ferrite Core Switch Power Transformer Vertical Bobbin

Product Range: Transformers, filters, coils, bobbins, ferrite cores.

Applications: switching power supplies, Charges, UPS, Audio equipment, inverter products

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

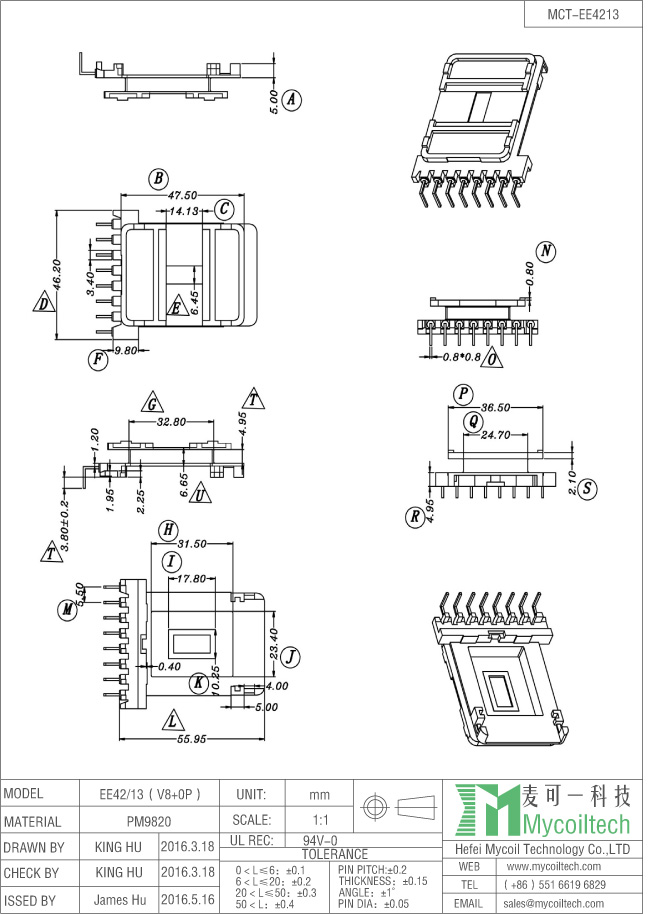

Product Specification

EE42 vertical transformer bobbin
