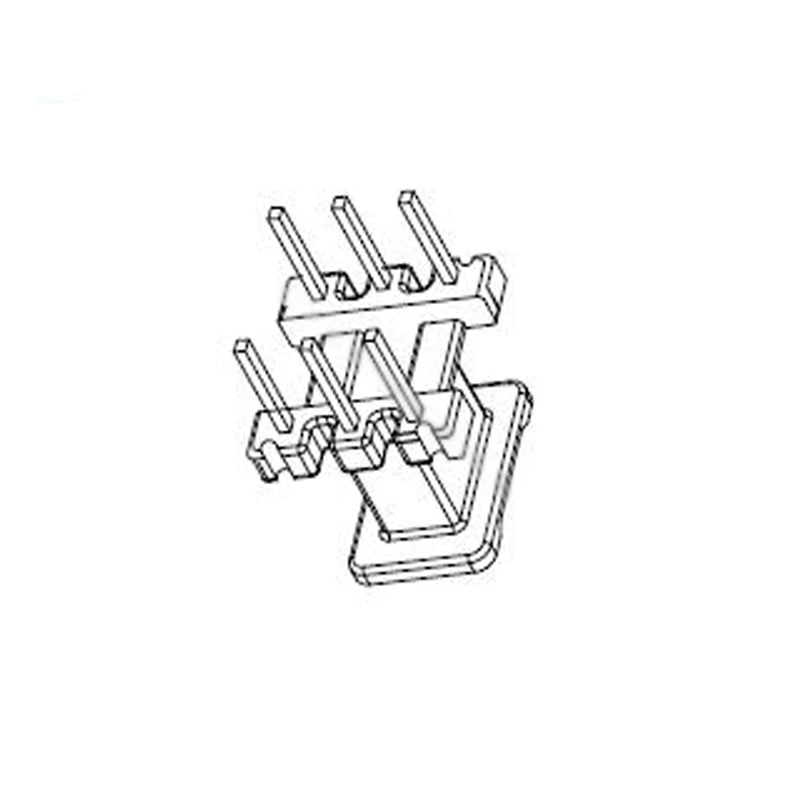

EE8.3 Vertical Power Transformer Bobbin Pin 3+3

EE8.3 transformer bobbin for LED light. Vertical EE8.3 3+3 pins bobbin. Pin Pitch=2.5mm Parallel Distance=8mm. EE8.3 phenolic material coil bobbin. We have bobbin tooling.



EE8.3 high frequency bobbin, 3+3 pins vertical shape, samples are available.


Quick Details

Part Number: MCT-EE8.3-12

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 15 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity


Part Information

Product Name: EE8.3 Vertical Power Transformer Bobbin Pin 3+3

Product Range: Transformers,Inductors,Coils,Filters,Ferrite cores.

Applications: SMPS transformer,common mode choke,flyback transformer,drive transformer.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.


Product Specification

Common Mode Choke Inductors


For more details, welcome to contact us.
