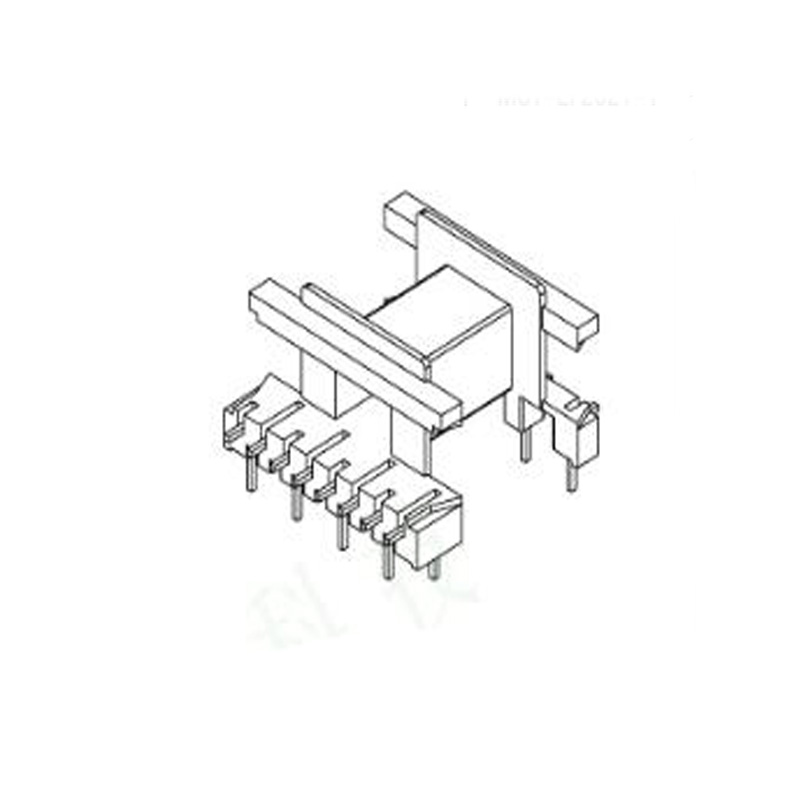

EF(5+5pin) Horizontal Transformer Ferrite Core Bobbin

EF20 5+5 pin horizontal bobbin. Customized final transformer. Bobbin Size=22.3mmX22.3mmX18.0mm. Pin pitch=3.8mm. Parallel Distance=15.0mm. PA66-70G33L material transformer bobbin wholesale.

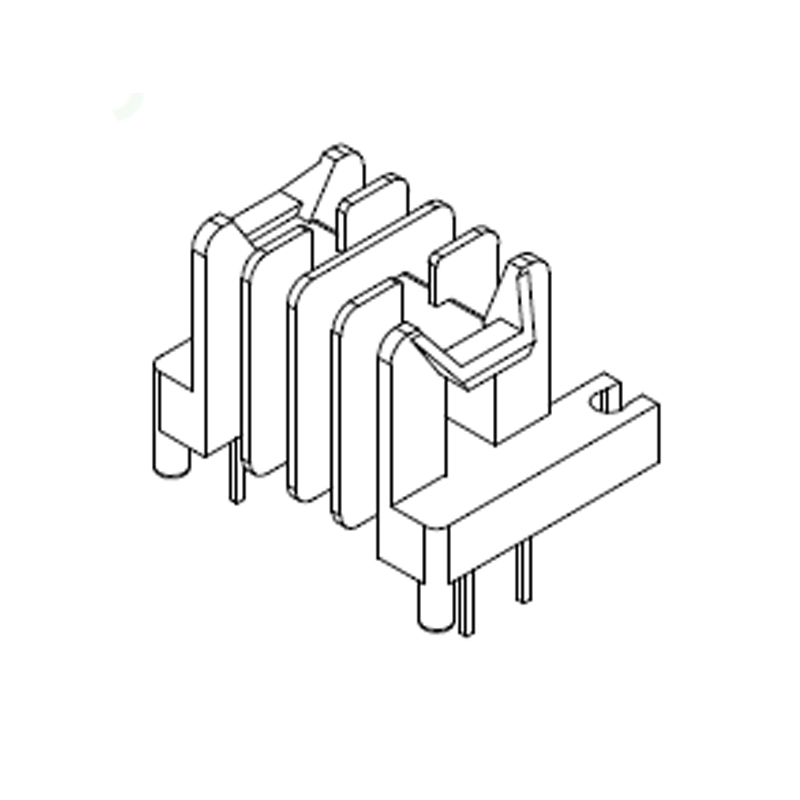

High Frequency EF20 Coil Former 5+5 Pin

Power supply bobbin pin 5+5. EF series high frequency transformer. Bobbin Size=22.0mmX21.0mmX16.65mm. Pin pitch=3.75mm. Parallel Distance=15.2mm. Transformer bobbin made of T375HF material.

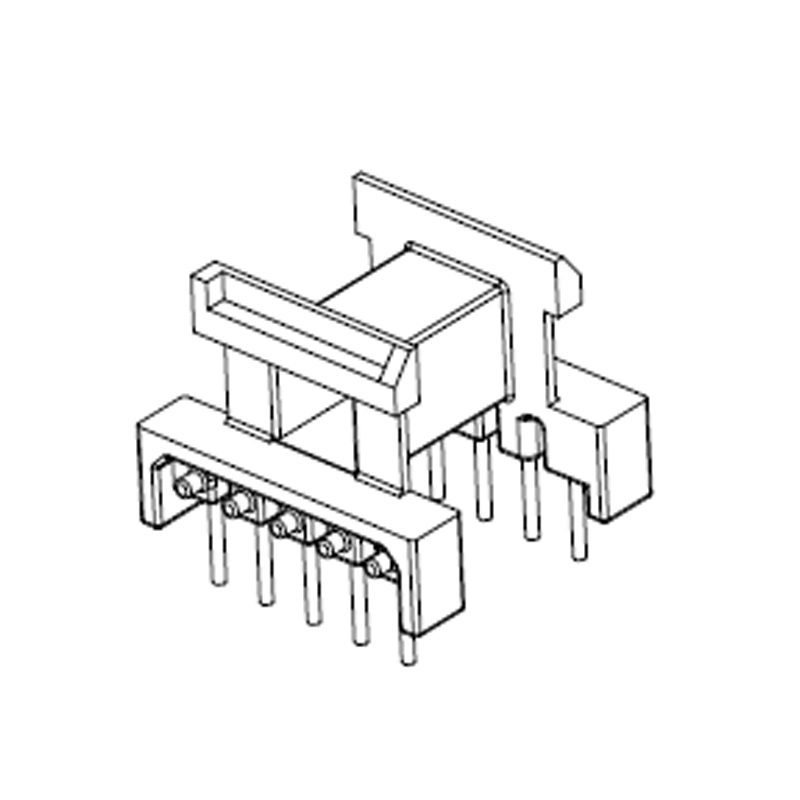

EF25 High Frequency Power Transformer Bobbin

Switching power transformer design. Horizontal bobbin EF25. Bobbin Size=26.0mmX25.6mmX25.1mm. Pin pitch=5.0mm. Parallel Distance=20.0mm. PA66 material transformer bobbin. DIP bobbin.

PCB Transformer EF25 Vertical Bobbin

Switching power transformer design. Horizontal bobbin EF25. Bobbin Size=26.0mmX25.6mmX25.1mm. Pin pitch=5.0mm. Parallel Distance=20.0mm. PA66 material transformer bobbin. DIP bobbin.

Transformer E25 Ferrite Core Four Slots Bobbin

EF(4+4pin) horizontal bobbin. Multi section coil former. Bobbin Size=26.2mmX25.4mmX21.0mm. Pin pitch=5.0mm. Parallel Distance=19.9mm. PA66 material transformer bobbin. DIP bobbin.

EF25 DIP Horizontal High Frequency Transformer

EF25 PC40 material core. Horizontal EF25 bobbin. Bobbin Size=26.2mmX25.4mmX21.5mm. Pin pitch=5.0mm. Parallel Distance=19.9mm. PET transformer bobbin. DIP bobbin.

EF25 Power Supply Horizontal Bobbin Three Slots

EF25 current transformer bobbin. Horizontal coil former 5+5 pin. Bobbin Size=25.8mmX25.1mmX21.7mm. Pin pitch=5.0mm. Parallel Distance=20.0mm. PA66 material transformer bobbin. DIP bobbin.

EF25 Bobbin For PCB Mounting Transformer

Horizontal high frequency transformer. EF25 4+4 pin coil former. Bobbin Size=26.0mmX25.4mmX27.8mm. Pin pitch=5.0mm. Parallel Distance=20.0mm. PA66 bobbin for transformer. DIP bobbin.

EF25 5+5Pin Horizontal Ferrite Core Bobbin

Durable transformer bobbin. Coil former EF25 8pin. Bobbin Size=31.7mmX26.2mmX19.35mm. Pin pitch=5.0mm. Parallel Distance=20.0mm. PA66 bobbin for transformer. DIP bobbin.

High Frequency EF25 Power Transformer Bobbin

High voltage bobbin. EF25 12pins oil former. Bobbin Size=31.7mmX25.0mmX19.2mm. Pin pitch=4.0mm. Parallel Distance=26.8mm. PA66 bobbin for transformer. DIP bobbin.

SMPS Power Transformer EF25 Bobbin Vertical

Transformer bobbin for surface mounting. Horizontal and vertical shape. Bobbin Size=42.0mmX27.0mmX16.8mm. Pin pitch=4.5mm. Parallel Distance=37.0mm. Phenolic material transformer bobbin. L pin bobbin.

EF25 Horizontal 2+3 Pin Bobbin Four Grooves

Small size transformer bobbin. Four slots coil former. Bobbin Size=25.3mmX19.3mmX16.5mm. Pin pitch=5.0mm. Parallel Distance=20.0mm. Phenolic material transformer bobbin. DIP bobbin.

EF25 10 Pin Flyback Transformer Bobbin

Ferrite horizontal transformer. 5+5 pin EF25 bobbin. Bobbin Size=28.1mmX25.2mmX19.5mm. Pin pitch=4.0mm. Parallel Distance=20.0mm. Phenolic bobbin for transformer. DIP bobbin.

PCB Board Transformer EF25 Bobbin Horizontal

Lead wire EF25 bobbin. Horizontal coil former 10 pins. Bobbin Size=25.5mmX25.1mmX19.3mm. Pin pitch=5.0mm. Parallel Distance=20.0mm. Phenolic bobbin for transformer. DIP bobbin.

High Power EF25 Transformer 7+7 Pin Bobbin

High voltage transformer EF25. 7+7 pin horizontal bobbin. Bobbin Size=30.9mmX27.2mmX19.8mm. Phenolic bobbin for transformer. Parallel Distance=20.7mm. DIP bobbin.

EF25 Bobbin For Customized Design Transformer

EF low power transformer. Horizontal 5+5 pin bobbin. Bobbin Size=25.5mmX25.1mmX20.7mm. Pin pitch=5.0mm. Parallel Distance=20.0mm. Phenolic bobbin for transformer. DIP bobbin.

High Frequency Power Transformer EF25 Bobbin

Horizontal type bobbin EF25. 7pin electronic transformer. Bobbin Size=26.0mmX24.5mmX21.0mm. Pin pitch=5.0mm. Parallel Distance=21.0mm. Phenolic bobbin for transformer. DIP bobbin.

Switching Transformer EF25 Horizontal Coil Former

High efficiency transformer bobbin, EF25 10 pins bobbin. Bobbin Size=26.1mmX25.0mmX18.7mm. Transformer bobbin made of phenolic material. Pin pitch=4.0mm. Parallel Distance=20.0mm. DIP transformer bobbin.

EF25 Transformer Two Slots Horizontal Bobbin

EF25 double slots winding bobbin. 5+5 pin coil former. Bobbin Size=25.7mmX22.5mmX20.5mm. Transformer bobbin made of phenolic material. Pin pitch=5.0mm. Parallel Distance=20.0mm. DIP transformer bobbin.

EF25 Vertical Bobbin For Step Down Transformer

Power transformer in horizontal and vertical type. EF25 coil former 5+5 pin. Bobbin Size=24.0mmX17.0mmX24.4mm. Pin pitch=5.0mm. Parallel Distance=12.5mm. Phenolic material transformer bobbin. DIP transformer bobbin.

High Frequency SMPS Transformer EF25 Bobbin

EF25 power transformer design. 5+5 pin coil former EF25. Bobbin Size=25.9mmX25.0mmX18.8mm. Transformer bobbin made of T375HF material. Pin pitch=4.0mm. Parallel Distance=20.0mm. DIP transformer bobbin.

EF36 Flyback Transformer Horizontal Bobbin

EF36 SMPS transformer has small size, high power and low cost, we design and manufacture high frequency transformer. 8+8 pins EF36 coil former. Bobbin Size=38.5mmX37.4mmX27.7mm. Pin pitch=3.5mm. Parallel Distance=30.0mm. DIP transformer bobbin.

EF30 Power Transformer Vertical Bobbin 6+6 Pin

EF30 rectifier transformer. 6+6 pins vertical EF30 coil former. Bobbin Size=35.3mmX19.0mmX34.8mm. Pin pitch=5.08mm. Parallel Distance=15.24mm. SMPS transformer has small size, high power and low cost, we design and manufacture high frequency transformer.

EF20 High Frequency Flyback Transformer Vertical Bobbin

EF20 flyback transformer with 5+5 pins. Vertical type EF20 single slot coil former for electronic transformer. Bobbin made of phenolic material. We accept custom design EF20 transformer.

EF12.6 Horizontal High Power Transformer Bobbin

EF12.6 high frequency current transformer for amplifier and electronics. 5+5 pins horizontal coil former. Bobbin Size=12.8mmX11.7mmX8.3mm. Pin pitch=5.0mm. Parallel Distance=10.0mm. We can make new tooling to meet special size. Use export standard carton with strong pallet to package.

EF20 Case For Power Charge Transformer Bobbin

Switching power transformer manufacture. EF20 coil former case. Case Size=16.0mmX14.0mmX3.0mm. EF20 bobbin and matched case are made of PM9820 material. We have bobbin tooling to meet customer's requirements.

EF25 Power Charger Transformer Horizontal Bobbin

EF25 SMPS transformer. 5+5 pin horizontal bobbin EF25. Bobbin Size=24.0mmX23.8mmX21.5mm. Pin pitch=2.5mm. Parallel Distance=20.5mm. PC40 material EF25 ferrite core. DIP type transformer bobbin.

High Current EF20 Flyback Transformer Vertical Bobbin

EF20 power transformer for PCB board. Supply EF20 coil former and matched ferrite cores. Parallel distance=10.16mm. Bobbin Size=20.8mmX16.0mmX21.3mm. Pin pitch=5.08mm. We can make bobbin tooling to meet customer's requirement.

EF12 Ferrite Core High Power Transformer Bobbin

High voltage EF12 transformer wholesale. 5+5 pin single slot EF12 transformer. Bobbin Size=14.3mmX13.5mmX10.3mm. Parallel distance=10mm. Pin pitch=2.5mm. We have bobbin tooling to meet customer's requirement.

EF12 Inverter Switching Power Supply Transformer Bobbin

EF12 high frequency transformer for lighting. Multi section EF12 power transformer. Bobbin Size=15.4mmX13.0mmX11.1mm. Parallel distance=10mm. Pin pitch=3.3mm. We have bobbin tooling to meet customer's requirement.

EF12 Double Slots Bobbin for FlyBack Transformer

Power transformer EF12 bobbin. 5+5 pin two slots EF12 coil bobbin. Bobbin Size=15.0mmX13.4mmX10.3mm. Parallel distance=10.2mm. Pin pitch=2.54mm. We have bobbin tooling to meet customer's requirement.

EF20 Flyback Transformer Horizontal 4+4+4 Pin Bobbin

EF20 MP4 ferrite core. Horizontal power transformer ef20 bobbin factory. Bobbin Size=19.5mmX12.78mmX20.1mm. Pin pitch=2.54mm. We have bobbin tooling to meet customer's requirement.

EF20 High Frequency Transformer for PCB Board

EF20 driver transformer. Horizontal/vertical shape EF20 coil former. 4+4+4 pin EF20 transformer frame. Bobbin Size=21.0mmX20.0mmX15.1mm. Pin pitch=2.5mm. Row distance=15.0mm. Our transformer widely used in light system, industrial power supplies, and audio-visual equipment.

High Current Flyback Transformer EF20 Bobbin

EF20 SMPS transformer wholesale. Horizontal type EF20 multi section transformer bobbin. Row distance=15.1mm. Pin pitch=3.8mm. Bobbin Size=22.0mmX22.0mmX13.0mm. EF20 transformer widely used in light system, industrial power supplies, and audio-visual equipment. We accept custom design and OEM service.

EF20 Switching Mode Power Supply Transformer Bobbin

EF20 power supply transformer. EF20 single slot bobbin pin 5+5. Bobbin Size=20.0mmX19.9mmX16.2mm. Horizontal/vertical EF20 bobbin factory. Parallel Distance=15.2mm. We have bobbin tooling. We manufacture final transformer for customer.
