EF20 Flyback High Frequency Transformer Bobbin

EF20 horizontal  three slots bobbin. Bobbin EF20 pin 4+4. Bobbin Size=20.75mmX20.00mmX17.8mm. Pin pitch=4.0mm. Pin pitch=6.0mm. Parallel Distance=15.0mm. EF20 three slots transformer bobbin. PA66 material transformer bobbin. DIP transformer bobbin.



Bobbin factory hot sale EF20 high frequency bobbins, good quality and competitive price, we can provide samples for the test, we can supply matched ferrite cores, if you are interested in our products, welcome to contact us.


Quick Details

Part No: MCT-EF2032

Brand Name: MCT

Material: PA66

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EF20 Flyback High Frequency Transformer Bobbin

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

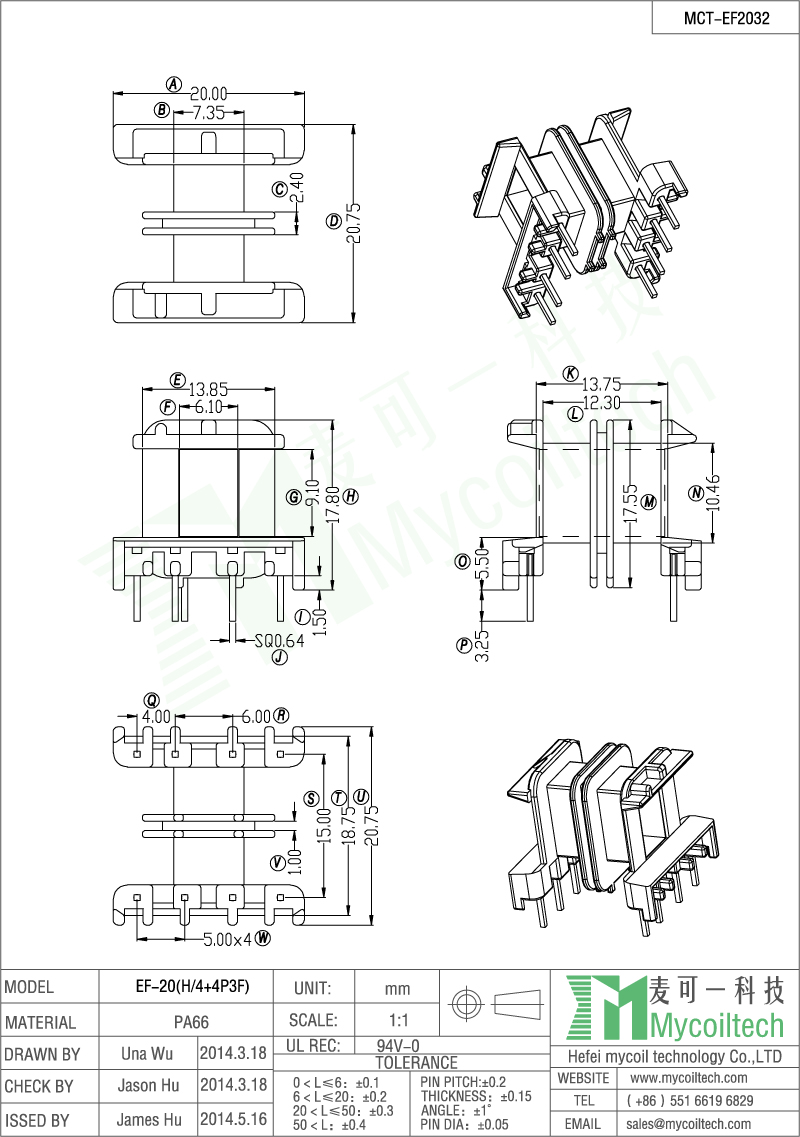

Product Specification

EF20 ferrite core bobbin supplier
