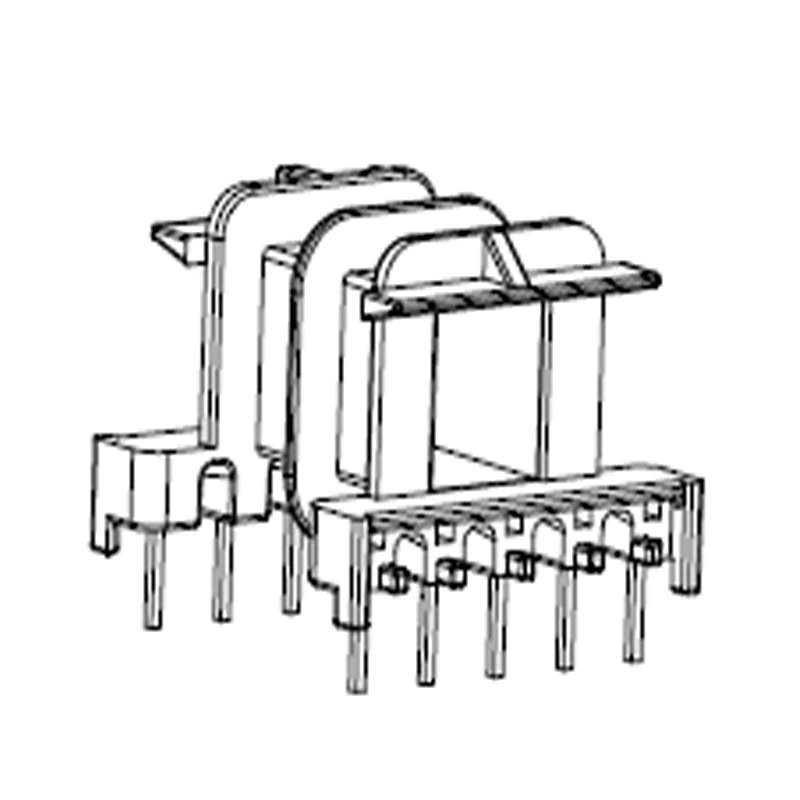

EF25 Bobbin 5+5 Pin Horizontal Double Slots

Horizontal coil bobbin EF25. Double slots coil former. Bobbin Size=25.8mmX25.2mmX19.2mm. Pin pitch=5.0mm. Parallel Distance=20.0mm. Transformer bobbin with PA66 material. DIP transformer bobbin.



China bobbin factory, hot sell EF25 ferrite core bobbin, customized transformer also available.


Quick Details

Part No: MCT-EF2556

Brand Name: MCT

Material: PA66

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EF25 Bobbin 5+5 Pin Horizontal Double Slots

Standard parts: Transformers, Inductor, Coils,current transformers, magnetic cores.

Applications: Consumer electronics, computer, TV parts, power supply. filters, etc.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air(TNT/Fedex/UPS/DHL/EMS), By ship, etc.


Product Specification

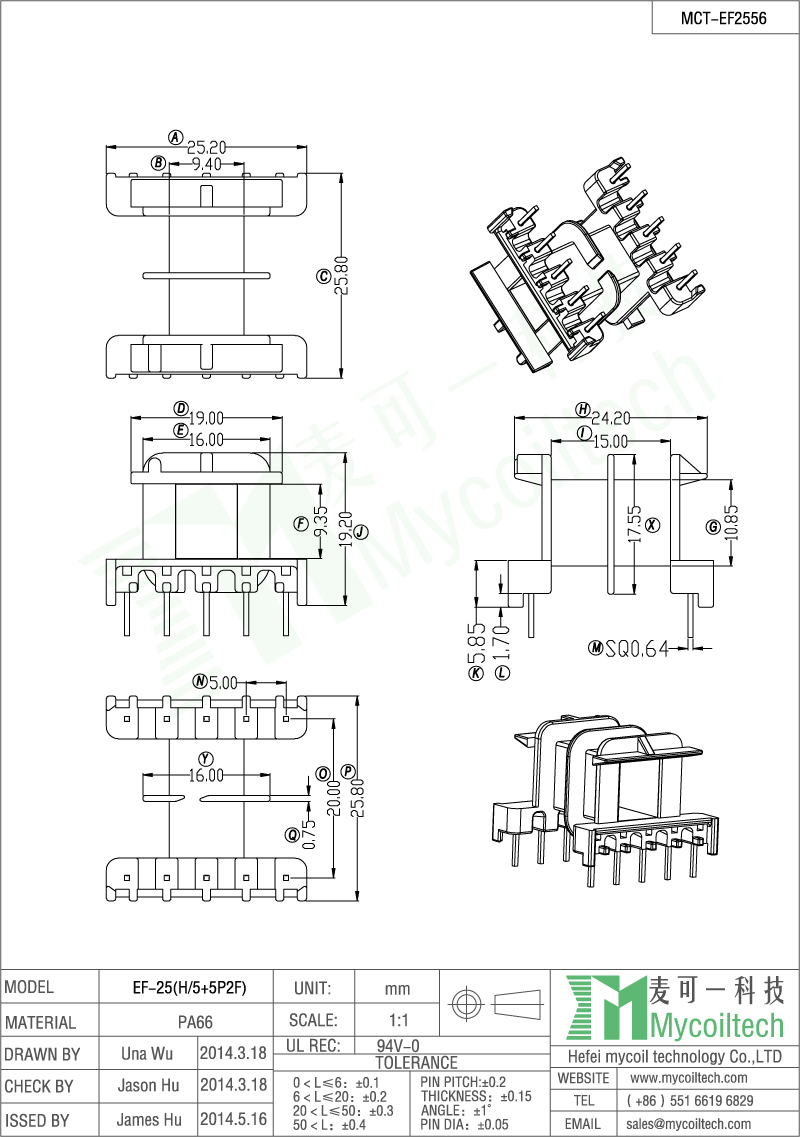

Horizontal transformer bobbin EF25
