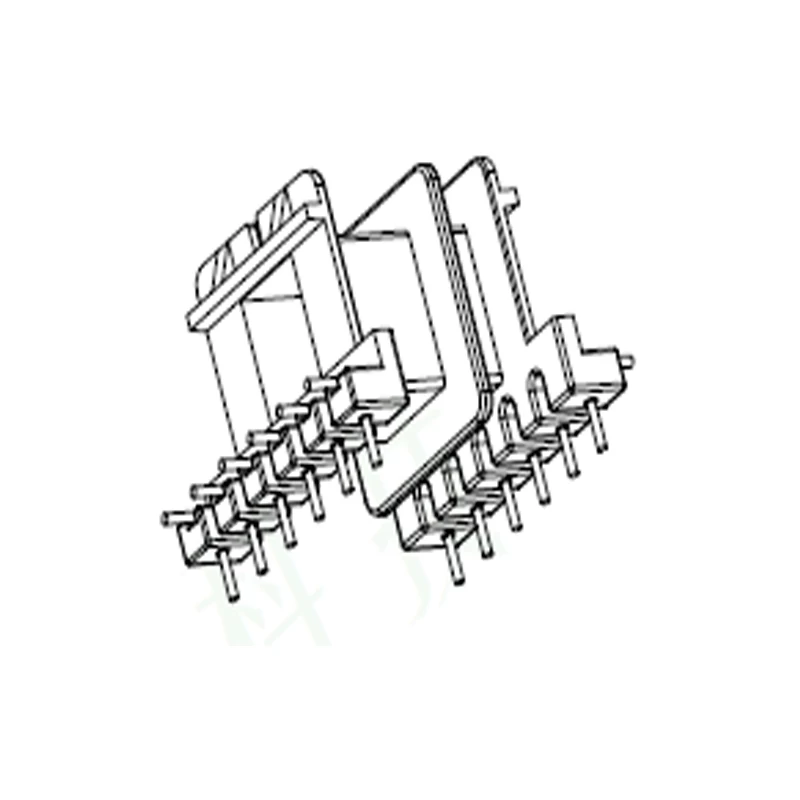

EF25 Double Slots Bobbin Horizontal 6+6 Pins

Multi section transformer bobbin. EF25 horizontal bobbin 12pins. Bobbin Size=31.5mmX25.0mmX18.4mm. Pin pitch=22.0mm. Parallel Distance=4.2mm. Phenolic material bobbin. DIP transformer bobbin.



 ISO9001:2008 certification factory, hot sale two slots EF25 horizontal bobbin, good quality and best after-sale service. We accept small order and OEM service.


Quick Details

Part No: MCT-EF2554

Brand Name: MCT

Material: Phenolic

Color: Black,Red

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EF25 Double Slots Bobbin Horizontal 6+6 Pins

Standard parts: Transformers, Inductor, Coils,current transformers, magnetic cores.

Applications: Consumer electronics, computer, TV parts, power supply. filters, etc.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air(TNT/Fedex/UPS/DHL/EMS), By ship, etc.

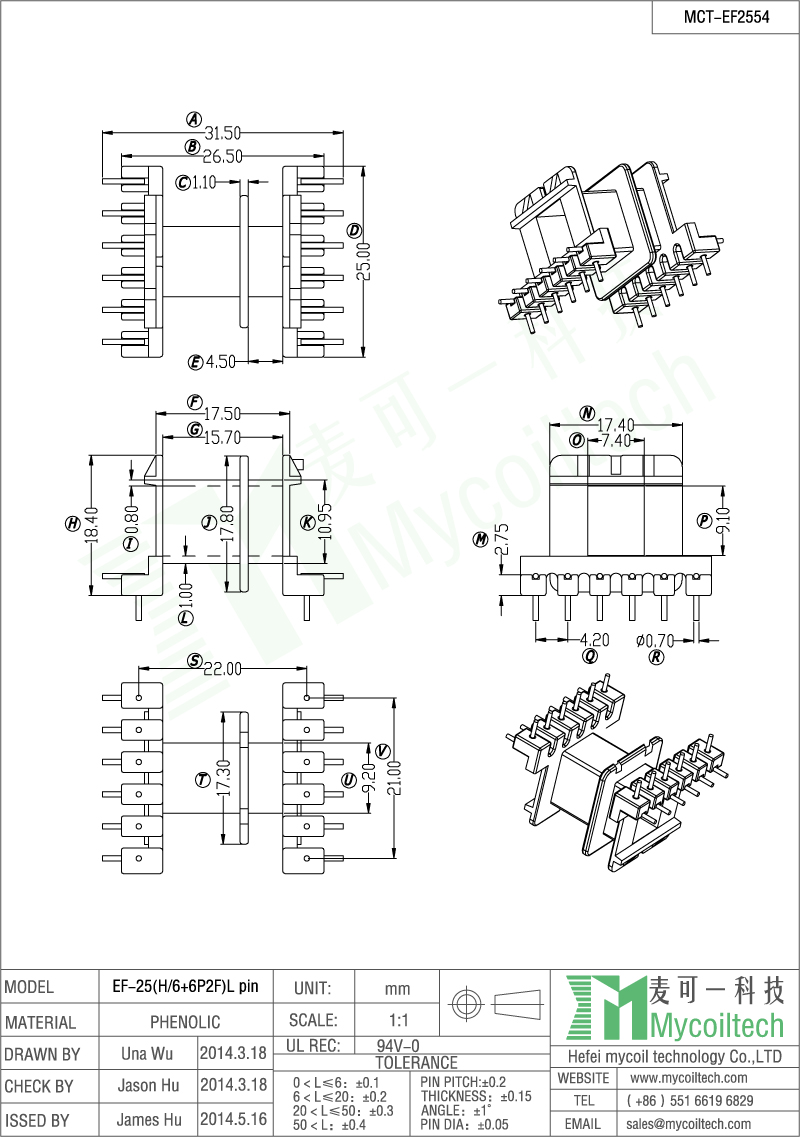

Product Specification

Horizontal bobbin EF25 double slots bobbin


If you have any questions, please be free to contact us, we will do our best to solve for you.
