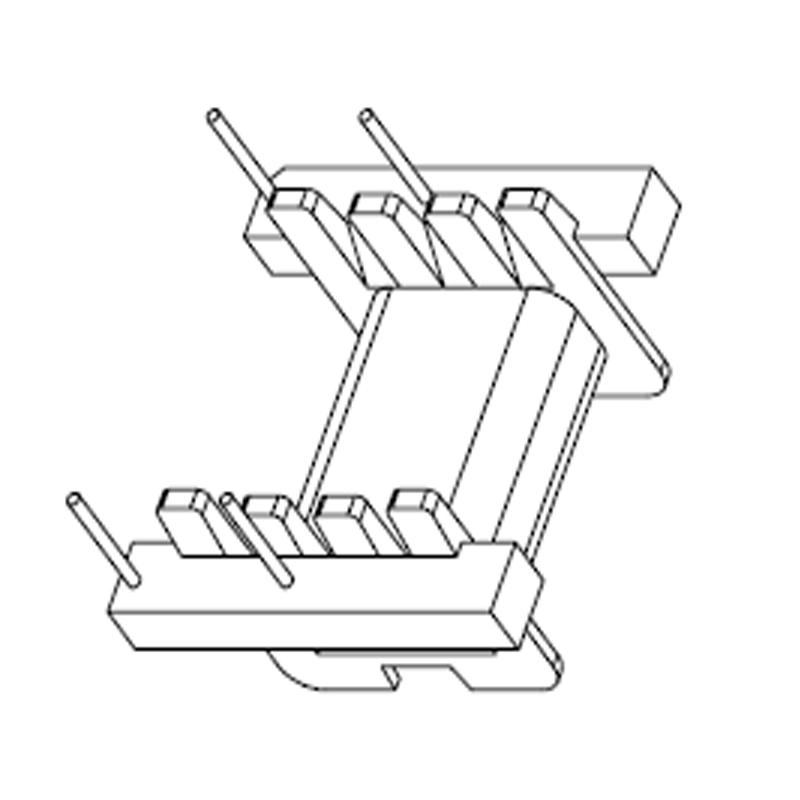

EFD20 Horizontal High Frequency Transformer Ferrite Core Bobbin

EFD20 transformer bobbin 4+4 pins. EFD20 horizontal bobbin. Pin pitch=5mm. Parallel distance=17.5mm. Phenolic material bobbin. Bobbin Size=20.3mmX20.2mmX11.8mm. DIP bobbin. UL REC:94V-0.

EFD20 Switching Power Transformer Horizontal Bobbin

6+6 pin EFD20 transformer bobbin. EFD20 horizontal type bobbin. Pin pitch=3.15mm. Parallel distance=17.2mm. Phenolic material bobbin. Bobbin Size=20mmX20mmX11.5mm. DIP bobbin. UL REC:94V-0.

EFD20 PCB Mounting Transformer Bobbin 6+6 Pins

EFD20 horizontal transformer bobbin. 6+6 pins EFD20 bobbin. Pin pitch=2.7mm. Pin pitch2=4.6mm. Parallel distance=13.64mm. Phenolic material coil bobbin. Bobbin Size=17.8mmX16.9mmX9mm. DIP bobbin. UL REC:94V-0.

SMD EFD20 Bobbin For Power Supply Transformer 7+7 Pin Bobbin

EFD20 horizontal transformer bobbin. 6+6 pins EFD20 bobbin. Pin pitch=2.7mm. Pin pitch2=4.6mm. Parallel distance=13.64mm. Phenolic material coil bobbin. Bobbin Size=17.8mmX16.9mmX9mm. UL REC:94V-0.

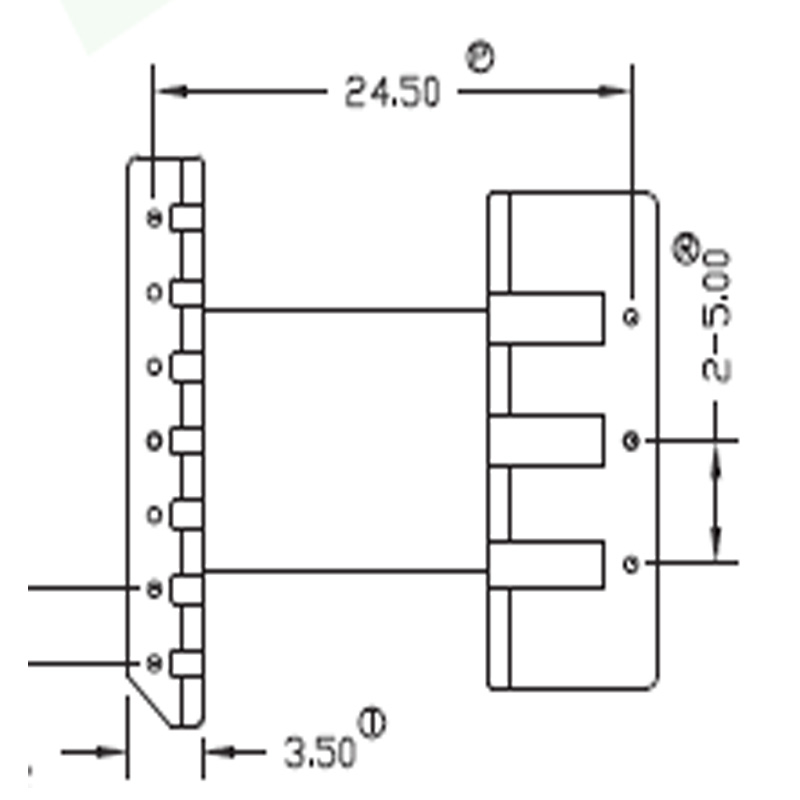

EFD20 Phenolic Ferrite Transformer Bobbin 3+7 Pins Coil Former

EFD20 3+7 pins transformer bobbin. Horizontal EFD20 series bobbin. Pin pitch=3mm. Pin pitch2=5mm. Parallel distance=24.5mm. Phenolic material coil bobbin. Bobbin Size=25mmX23mmX10.5mm. DIP bobbin. UL REC:94V-0.

High Frequency Horizontal EFD20 Bobbin For PCB Mount Transformer

Horizontal EFD20 bobbin. 3+7 pins transformer bobbin. Pin pitch=3mm. Pin pitch2=5mm. Parallel distance=22.5mm. Bobbin Size=25mmX23mmX10.5mm. Phenolic material coil bobbin. DIP bobbin. UL REC:94V-0.

EFD20 Horizontal High Frequency 8 Pin Flyback Transformer Bobbin

EFD20 phenolic bobbin 4+4 pin. EFD20 horizontal type coil bobbin. Pin pitch=5mm. Parallel distance=17.5mm. DIP bobbin. Bobbin Size=20mmX20mmX10.6mm. UL REC:94V-0.

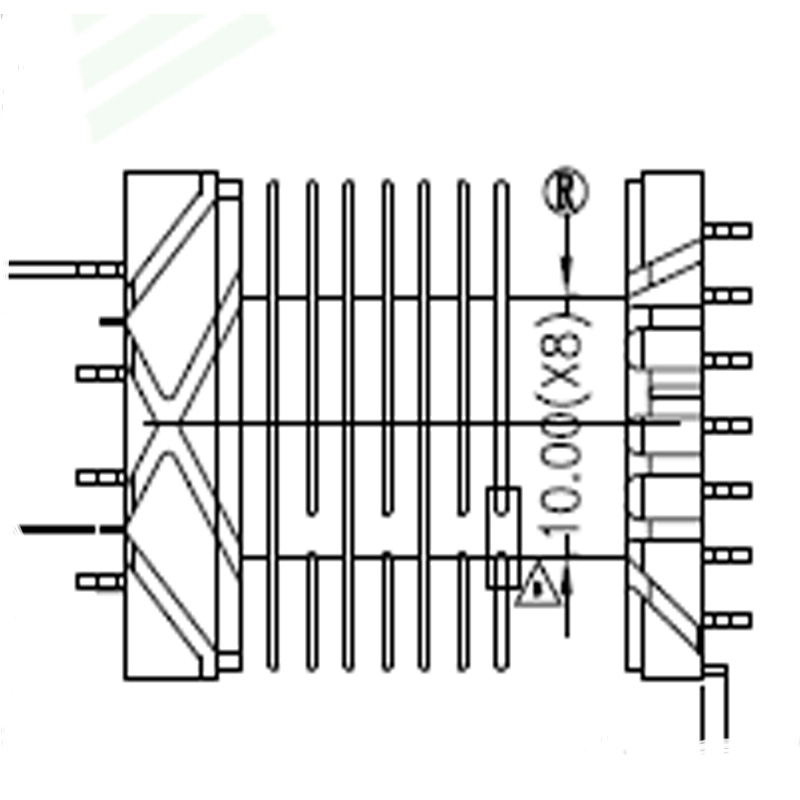

Multi Section EFD20 Transformer Bobbin 4+7 Pin Horizontal Bobbin

EFD20 eight slots bobbin 4+7 pin. EFD20 horizontal bobbin made of phenolic material. Pin pitch=2.5mm. Parallel distance=24.1mm. DIP bobbin. Bobbin Size=26.3mmX19.4mmX7.7mm. UL REC:94V-0.

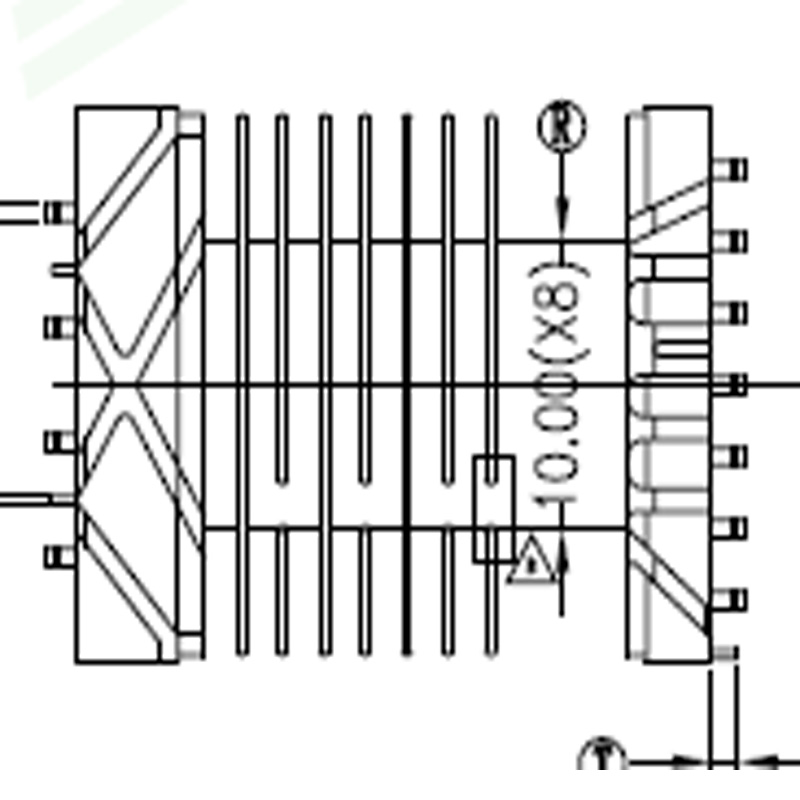

Eight Slots EFD20 Coil Former High Frequency Ferrite Core Bobbin

EFD20 horizontal multi section bobbin. 4+7 pin EFD20 bobbin made of phenolic material. Pin pitch=2.5mm. Parallel distance=24.1mm. DIP bobbin. Bobbin Size=27.9mmX19.4mmX7.7mm. UL REC:94V-0.

EFD25 Horizontal High Frequency Transformer Bobbin L Pin

EFD25 L pin transformer bobbin. EFD25 horizontal transformer bobbin. Pin pitch1=5mm. Pin pitch2=3.5mm. Parallel distance=35mm. Bobbin Size=52mmX25.5mmX15.5mm. Phenolic material transformer bobbin. UL REC:94V-0.

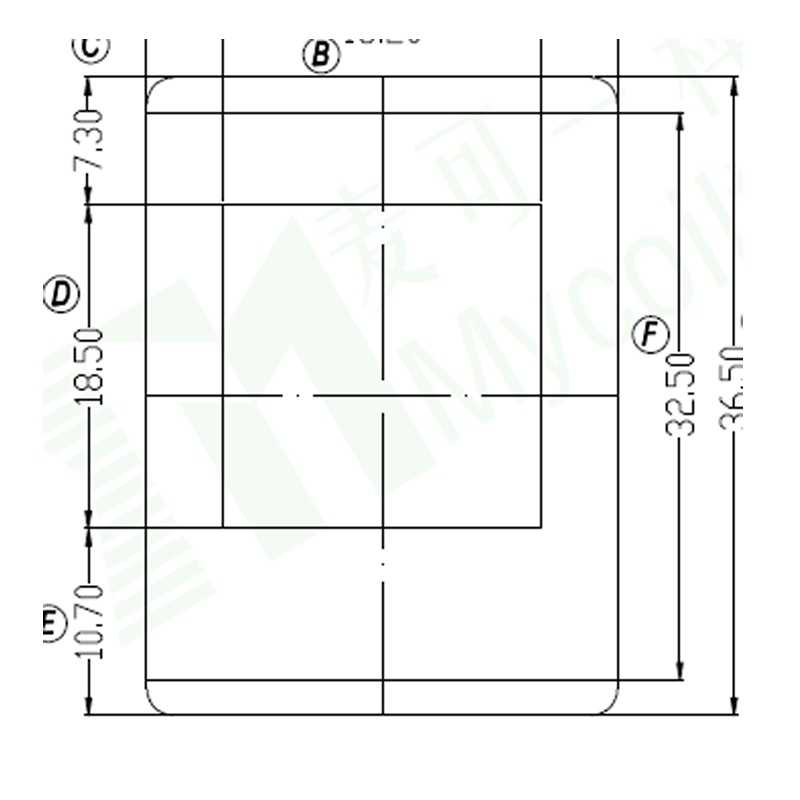

EFD25 Transformer Bobbin Spacer Made of PA66

EFD25 electronic transformer bobbin spacer. Mainly for EFD25 transformer bobbin. Spacer Size=36.5mmX27mmX0.8mm. PA66 material bobbin spacer. UL REC:94V-0.

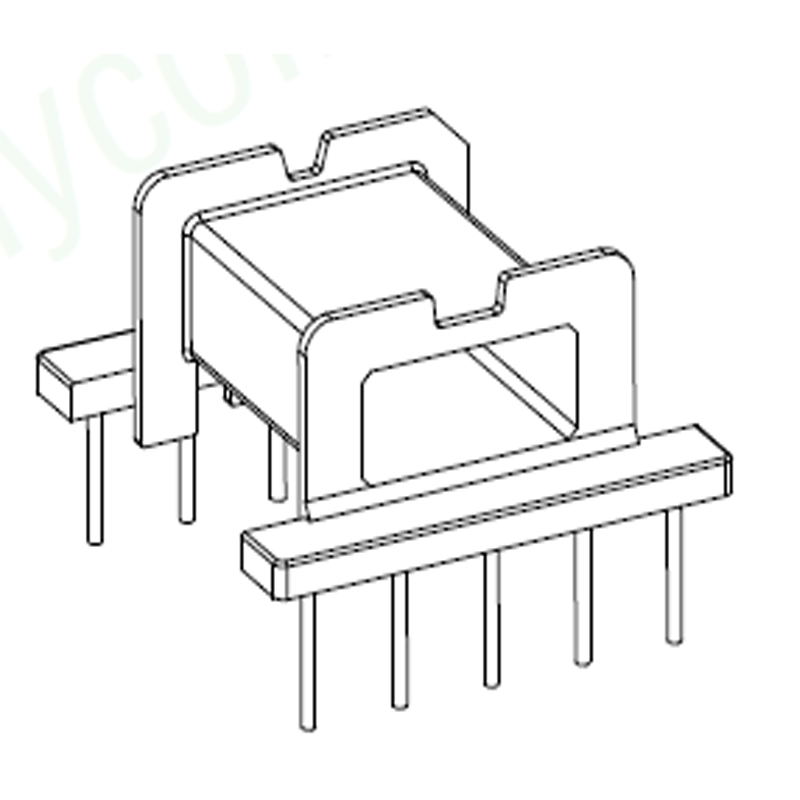

EFD25 Horizontal 5+5 Pin Bobbin For High Frequency Transformer

EFD25 transformer bobbin 5+5 pin. EFD25 horizontal transformer bobbin. Pin pitch=5mm. Parallel distance=22.5mm. DIP bobbin. Bobbin Size=25.8mmX25mmX15.5mm. Phenolic material transformer bobbin. UL REC:94V-0.

EFD25 Ferrite Core Horizontal Transformer Bobbin

Horizontal EFD25 transformer bobbin. EFD25 transformer bobbin pin 5+5. Pin pitch=5mm. Parallel distance=22.5mm. DIP bobbin. Bobbin Size=25.8mmX25mmX13mm. Phenolic material transformer bobbin. UL REC:94V-0.

EFD25 5+5 Pin Horizontal Bobbin For Electronic Transformer

EFD25 transformer bobbin 10 pin. EFD25 horizontal coil bobbin. Pin pitch=5mm. Parallel distance=22.5mm. DIP bobbin. Bobbin Size=26mmX25mmX14.3mm. Phenolic material transformer bobbin. UL REC:94V-0.

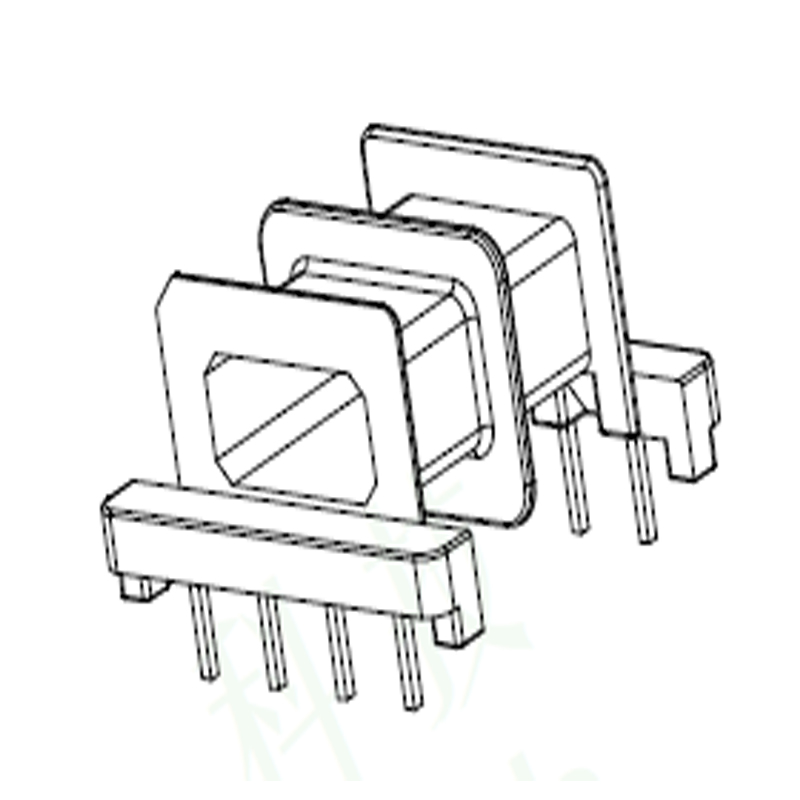

EFD25 Horizontal Double Slots Transformer Bobbin 4+4 Pin

4+4 pin double slot transformer bobbin. EFD25 horizontal transformer bobbin. Pin pitch=5mm. Parallel distance=20mm. DIP bobbin. Bobbin Size=25mmX24.7mmX14.2mm. Phenolic material transformer bobbin. UL REC:94V-0.

EFD25 Inductor Bobbin For Power Supply Transformer

EFD25 4+4 pin transformer bobbin. EFD25 horizontal transformer bobbin. Pin pitch=5mm. Parallel distance=20mm. DIP bobbin. Bobbin Size=25mmX24.7mmX14.2mm. Phenolic material transformer bobbin. UL REC:94V-0.

EFD25 High Voltage Transformer Bobbin 5-5Pin

Horizontal EFD25 bobbin 5+5pin. EFD25 single slot transformer bobbin. Pin pitch=5mm. Parallel distance=22.5mm. DIP bobbin. Bobbin Size=26mmX25mmX16mm. Phenolic material transformer bobbin. UL REC:94V-0.

EFD25 Horizontal 4+4 Pin with Four Slots Transformer Bobbin

Multi section transformer bobbin. 4+4 pin EFD25 horizontal transformer bobbin. Pin pitch=5mm. Parallel distance=20mm. DIP bobbin. Bobbin Size=25mmX24.7mmX14.2mm. Phenolic material transformer bobbin. UL REC:94V-0.

EFD25 Horizontal 5+7 Pin Seagull Feet Transformer Bobbin

Seagull feet EFD25 transformer bobbin. EFD25 horizontal transformer bobbin 5+7pin. Parallel distance=29.7mm. Pin pitch1=5mm. Pin pitch2=3.2mm. Bobbin Size=37mmX26mmX12.9mm. Phenolic material transformer bobbin. UL REC:94V-0.

Horizontal EFD25 4+4 Pin Double Slots Transformer Bobbin

EFD25 multi section transformer bobbin. EFD25 horizontal 4+4 pin transformer bobbin. Parallel distance=20mm. Pin pitch=3mm. Bobbin Size=25.5mmX25mmX14.5mm. Phenolic material transformer bobbin. UL REC:94V-0.

EFD25 Four Slots Bobbin 4+4 Pin Horizontal Transformer Bobbin

EFD25 4+4 pin horizontal bobbin. Multi section transformer bobbin. Pin pitch=5mm. Parallel distance=20mm. DIP bobbin. Bobbin Size=26mmX25mmX13.5mm. Phenolic material transformer bobbin. UL REC:94V-0.

EFD25 Phenolic Transformer Bobbin for Ferrite Cores

5+5 pin EFD25 horizontal bobbin. EFD25 single slot transformer bobbin. Bobbin Size=25.8mmX25mmX13.5mm. Pin pitch=5mm. Parallel distance=22.5mm. DIP bobbin. Phenolic material transformer bobbin. UL REC:94V-0.

EFD25 High Power Transformer Bobbin Pin 5+5

Single slot EFD25 bobbin 10pin. EFD25 horizontal transformer bobbin. Bobbin Size=25.8mmX25mmX12.95mm.DIP bobbin. Pin pitch=5mm. Parallel distance=22.5mm. Phenolic material transformer bobbin. UL REC:94V-0.

EFD25 High Frequency Ferrite Core Seagull Feet Bobbin

Power supply transformer bobbin. EFD25 horizontal bobbin 5+7 pin. Pin pitch1=5mm. Pin pitch2=3.5mm. Bobbin Size=35mmX25.5mmX13.5mm. Phenolic material transformer bobbin. We can make bobbin tooling. UL REC:94V-0.

EFD25 5+7 Pin Power Transformer Seagull Feet Bobbin

Customized EFD25 transformer bobbin. 5+7 pin EFD25 horizontal bobbin. Pin pitch1=5mm. Pin pitch2=3.5mm. Phenolic material transformer bobbin. Bobbin Size=35mmX25.5mmX13.5mm. We can make bobbin tooling. UL REC:94V-0.

Main Power Transformer Bobbin EFD25 12 Pins

EFD25 ferrite core bobbin. EFD25 5+5 pin horizontal bobbin. Pin pitch1=5mm. Pin pitch2=3.5mm. Phenolic material transformer bobbin. Bobbin Size=35mmX25.5mmX13.5mm. We can make bobbin tooling. UL REC:94V-0.

High Frequency Transformer EFD25 Horizontal Bobbin

EFD25 5+7 pin horizontal bobbin. EFD25 phenolic transformer bobbin. Pin pitch1=5mm. Pin pitch2=3.5mm. L pin transformer bobbin. Bobbin Size=35mmX25.5mmX13.5mm. We can make bobbin tooling. UL REC:94V-0.

EFD25 5+7 Pin Ferrite Core Bobbin For SMPS Transformer

EFD25 horizontal transformer bobbin. EFD25 5+7 pin bobbin seagull feet. Pin pitch1=5mm. Pin pitch2=3.5mm. L pin transformer bobbin. Bobbin Size=35mmX25.5mmX13.5mm. We can make bobbin tooling. UL REC:94V-0.

EFD25 Flyback Transformer 5+5 Pin Coil Former

EFD25 high frequency bobbin. EFD25 horizontal transformer bobbin. 5+5 pin bobbin seagull feet. Pin pitch=5mm. Bobbin Size=26mmX25mmX12.6mm. Phenolic material transformer bobbin. We can make bobbin tooling. UL REC:94V-0.

EFD25 Horizontal Flyback Transformer 5+5 Pin Bobbin

5+5 pin EFD25 horizontal transformer bobbin. EFD25 seagull feet bobbin. Pin pitch=5mm. Bobbin Size=26mmX25mmX12.8mm. Phenolic material transformer bobbin. We can make bobbin tooling. UL REC:94V-0.

EFD25 Ferrite Core Bobbin For Flyback Transformer

EFD25 horizontal bobbin pin 5+5. EFD25 single slot bobbin. Pin pitch=5mm. Parallel distance=22.5mm. Bobbin Size=26mmX25mmX13.3mm. Phenolic material transformer bobbin. We can make bobbin tooling. UL REC:94V-0.

EFD25 Bobbin Pin 7+7 For High Frequency Transformer

7+7 pins EFD25 coil bobbin. EFD25 horizontal bobbin. Bobbin Size=26.0mmX25.2mmX16.5mm. Pin pitch=5mm. Parallel distance=22.5mm. Phenolic material transformer bobbin. We can make bobbin tooling. UL REC:94V-0.

EFD25 Transformer Horizontal Bobbin With Ferrite Cores

Customized EFD25 transformer. EFD25 horizontal bobbin pin 5-5. Pin pitch=5mm. Parallel distance=22.5mm. Bobbin Size=26.0mmX25.1mmX16.0mm. Phenolic material transformer bobbin. We can make bobbin tooling. UL REC:94V-0.

High Temperature Resistant Transformer Bobbin EFD25

High quality transformer bobbin EFD25. 5+5 pins EFD25 horizontal bobbin. Bobbin Size=26.0mmX25.1mmX16.0mm. Parallel distance=22.8mm. Pin pitch=5mm. PC40 material ferrite cores. Phenolic material transformer bobbin. We can make bobbin tooling. UL REC:94V-0.

EFD25 Ferrite Core Transformer Horizontal Bobbin

EFD25 5+6pin lead free bobbin for electronic transformer. Bobbin Size=34.0mmX25.0mmX13.9mm. Parallel distance=30.5mm. Pin pitch1=5.0mm. Pin pitch2=4.0mm. Bobbin with PM9820 material. We have bobbin tooling now.
