EFD20 Ferrite Core Flyback Transformer Horizontal Bobbin

EFD20 horizontal multi section bobbin. 4+7 pin EFD20 bobbin made of phenolic material. Pin pitch=2.5mm. Parallel distance=24.1mm. DIP bobbin. Bobbin Size=27.9mmX19.4mmX7.7mm. UL REC:94V-0.

EFD25 High Frequency Power Transformer Bobbin

EFD25 pcb mounting transformer. 6+6 pin single slot SDM bobbin. Bobbin Size=31.5mmX25.0mmX12.6mm. Pin pitch=4.0mm. We have bobbin tooling now, samples are available.

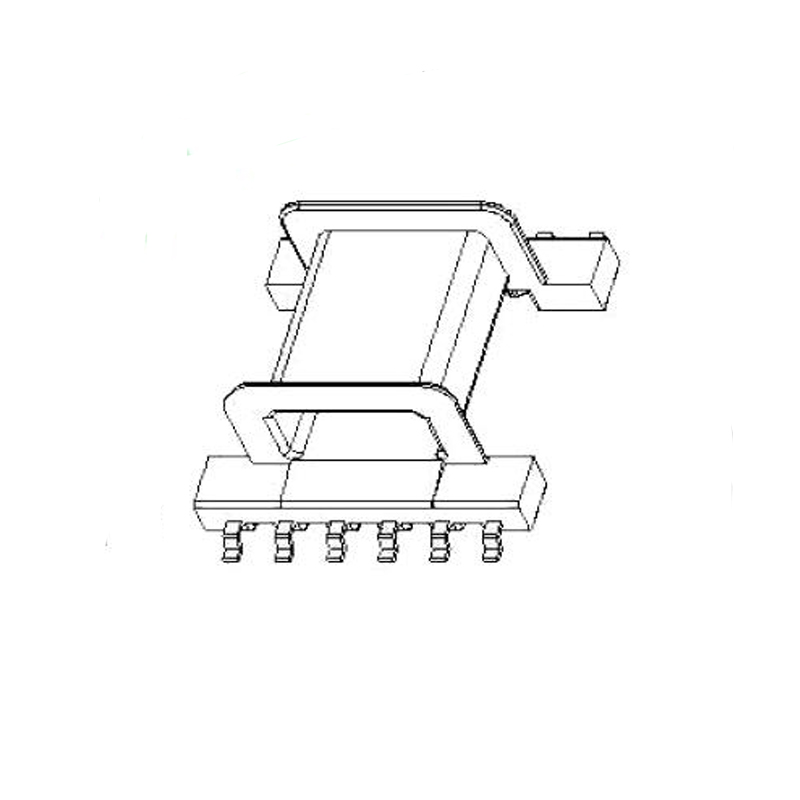

EFD25 SMPS Transformer Horizontal SMD Bobbin

EFD soft ferrite core bobbin. Mainly for pcb mounting transformer. Bobbin pin 6+6 horizontal shape. Bobbin Size=31.5mmX25.0mmX12.6mm. Pin pitch=3.75mm. We have bobbin tooling now, samples are available.

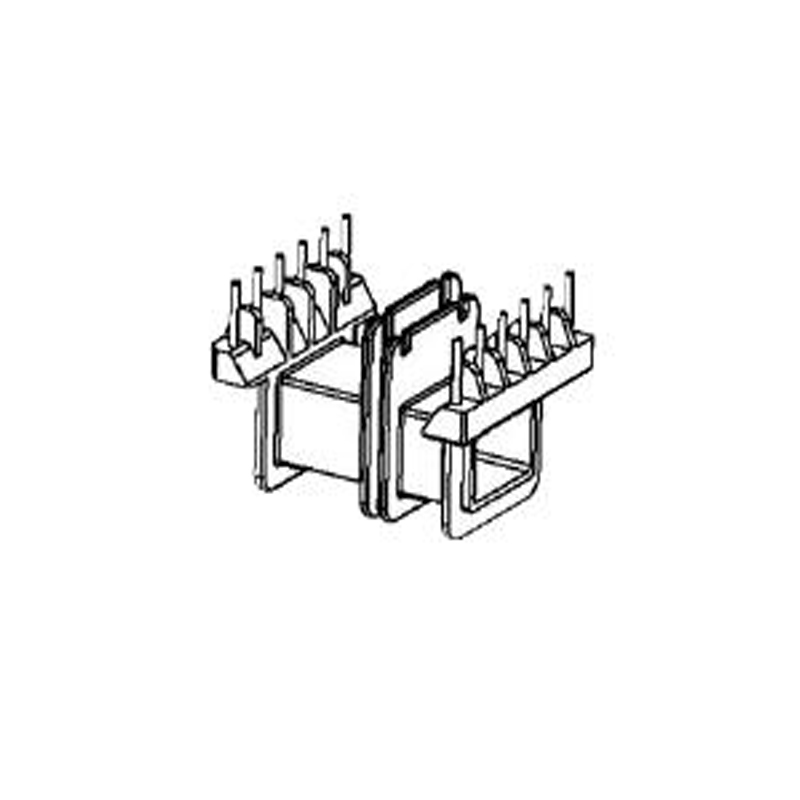

EFD25 Flyback Transformer Horizontal Bobbin DIP Pin

Multi section EFD25 horizontal bobbin. 6+6 pins EFD25 DIP bobbin. Used for pcb mounting transformer. Bobbin Size=29.0mmX24.0mmX18.0mm. Pin pitch=4.1mm. High quality and free samples.

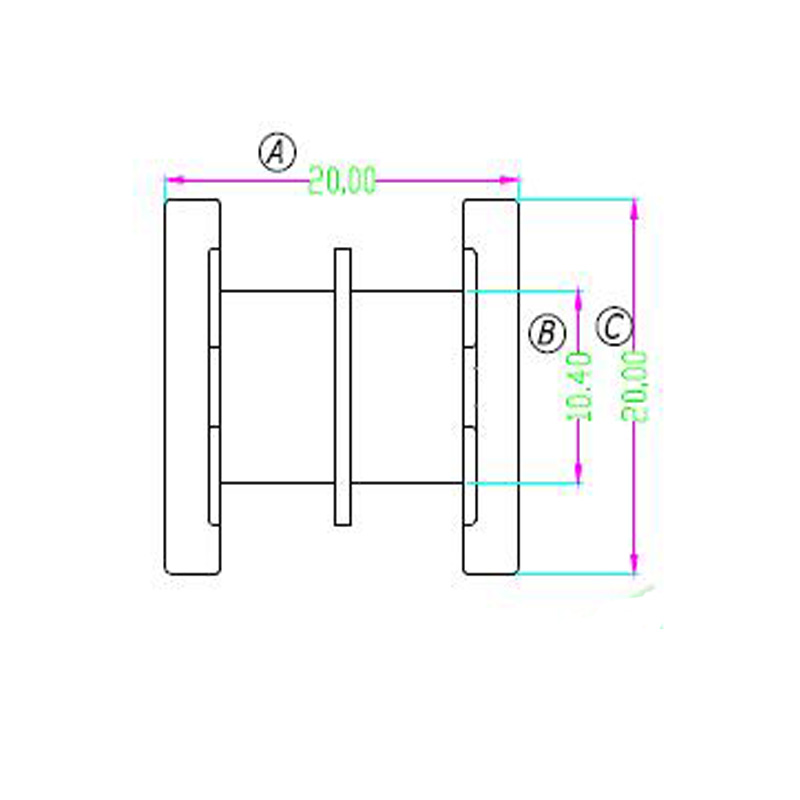

High Voltage Transformer EFD20 4+4 Pin Frame

EFD20 ferrite core bobbin for LED transformer. Double grooves EFD20 horizontal bobbin 4+4 pin. Row distance=17.5mm. Pin pitch=5.0mm. Bobbin Size=20.0mmX20.0mmX10.3mm. EFD20 power transformers widely used in electrical equipments, medical equipments, communication equipments, power supplies, vehicle electronic equipments.

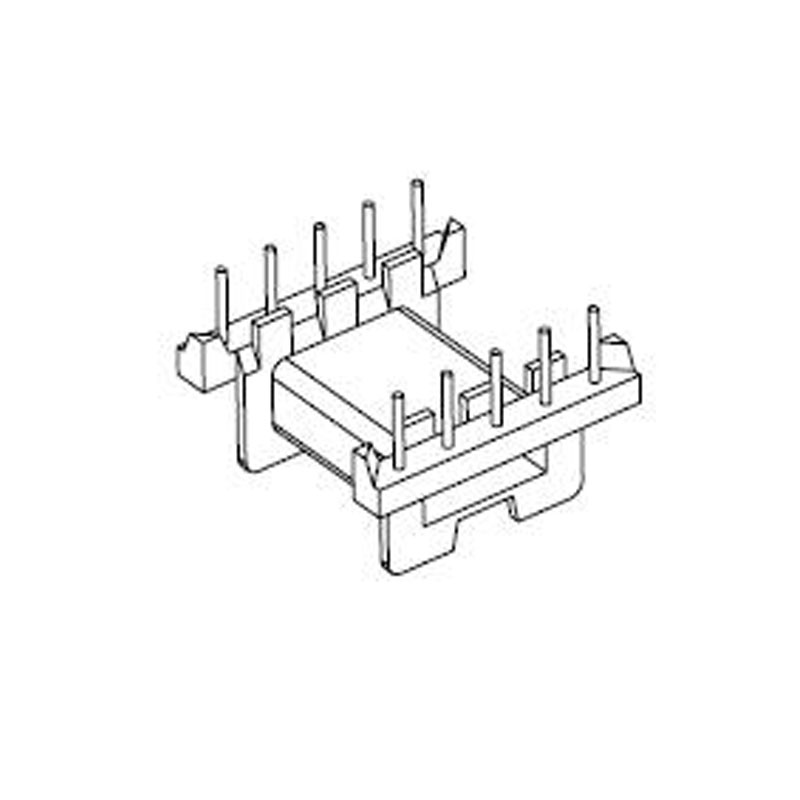

High Frequency Transformer EFD25 Coil Bobbin

EFD25 PCB mounting transformer bobbin. 5+5 pin EFD25 horizontal bobbin. Row distance=22.5mm. Pin pitch=5.0mm. Bobbin Size=25.9mmX25.2mmX13.6mm.EFD20 power transformers widely used in electrical equipments, medical equipments, communication equipments, power supplies, vehicle electronic equipments.

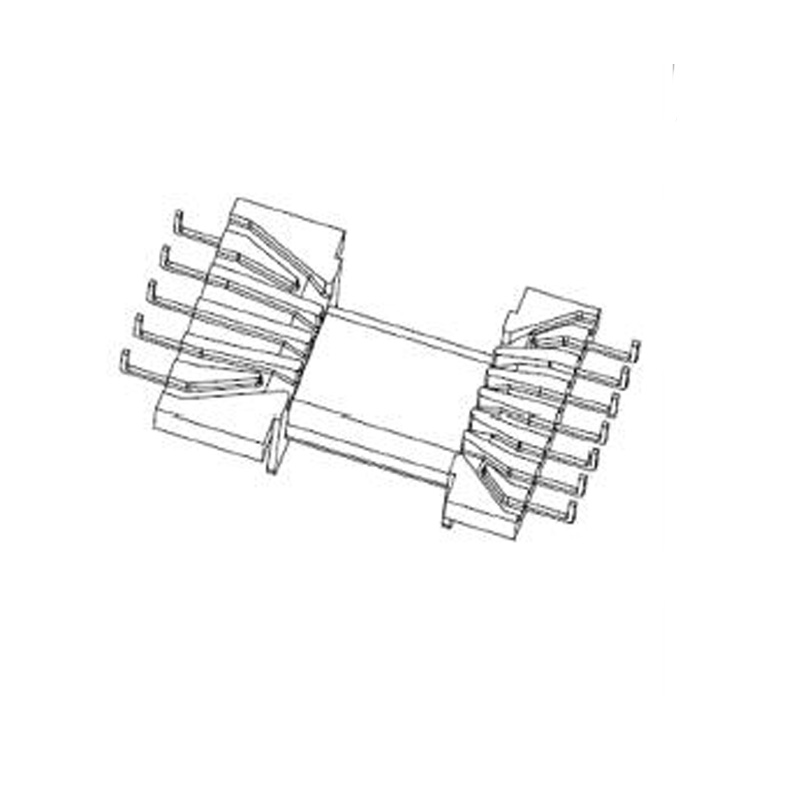

Horizontal EFD30 High Frequency Transformer Frame

EFD30 switching transformer coil bobbin. 5+7 pin wire slot horizontal bobbin. EFD30 MnZn power ferrite core. Row distance=44.0mm. Pin pitch=5.0mm. Pin pitch2=3.8mm. Bobbin Size=55.0mmX23.0mmX13.6mm. EFD30 power transformers widely used in electrical equipments, medical equipments, communication equipments, power supplies, vehicle electronic equipments.

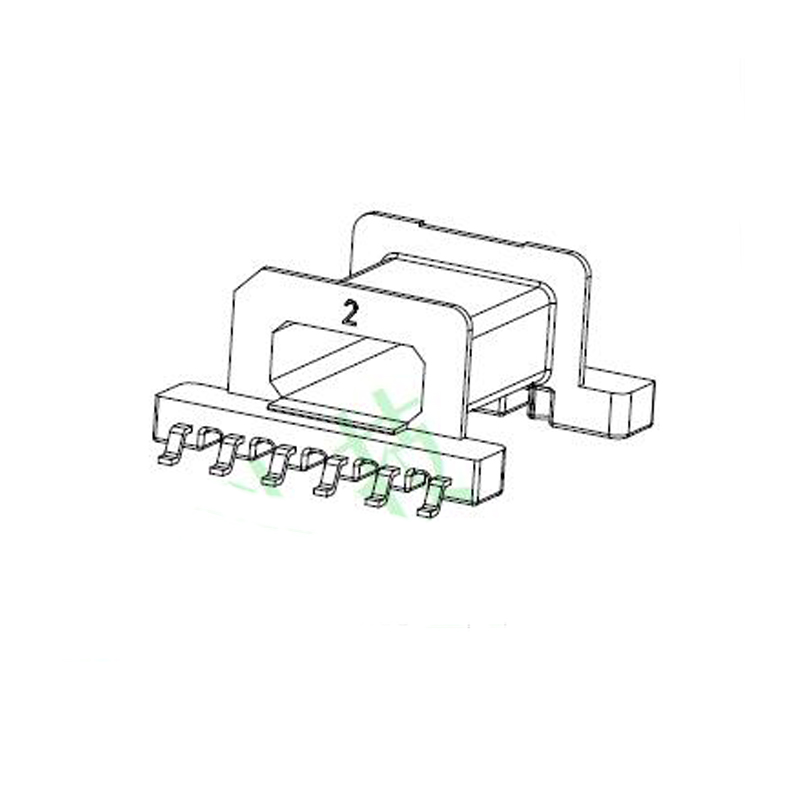

High Frequency SMD EFD30 Transformer Bobbin 6+6 Pins

Flyback transformer EFD30 bobbin, horizontal EFD30 6+6 pin SMD coil former. Supply matched ferrite cores, row distance=31.0mm. Pin pitch=4.5mm. Pin pitch2=3.8mm. Bobbin Size=39.6mmX30.2mmX12.1mm. EFD30 transformer widely used in electrical equipments, medical equipments, communication equipments, power supplies, vehicle electronic equipments.

EFD30 Bobbin For Solar Inverter Transformer

Power supply transformer. EFD30 5+7 pin horizontal bobbin. Bobbin Size=40.0mmX30.0mmX12.8mm. EFD30/15 ferrite core. Row distance=34.7mm. Pin pitch=5.0mm. Pin pitch2=3.8mm. EFD30 power transformers widely used in electrical equipments, medical equipments, communication equipments, power supplies, vehicle electronic equipments.
