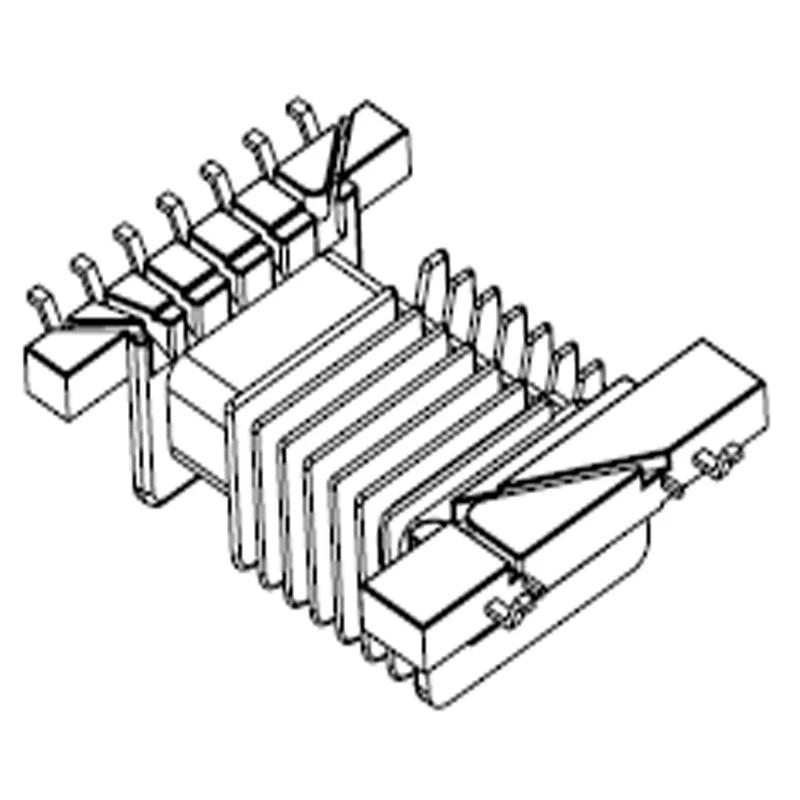

EFD20 Horizontal 2+7 Pins High Frequency SMD Bobbin

Eight slots EFD20 transformer bobbin. SMD horizontal coil former. Pin Pitch1=2.5mm. Pin Pitch2=4mm. Parallel distance=24mm. Size=28mmX19.6mmX8.09mm. Bobbin material: LCP-E4008. Customized designs are accepted.



Best selling SMD bobbin, eight slots EFD20 bobbin, we can meet customer's requirements, adjust the bobbin size to make the product more convenient to install, improve the production efficiency.


Quick Details

Part No: MCT-SMD-EFD2002(H2+7P8F)

Brand Name: MCT

Material: LCP-E4008

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EFD20 Horizontal 2+7 Pins High Frequency SMD Bobbin

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

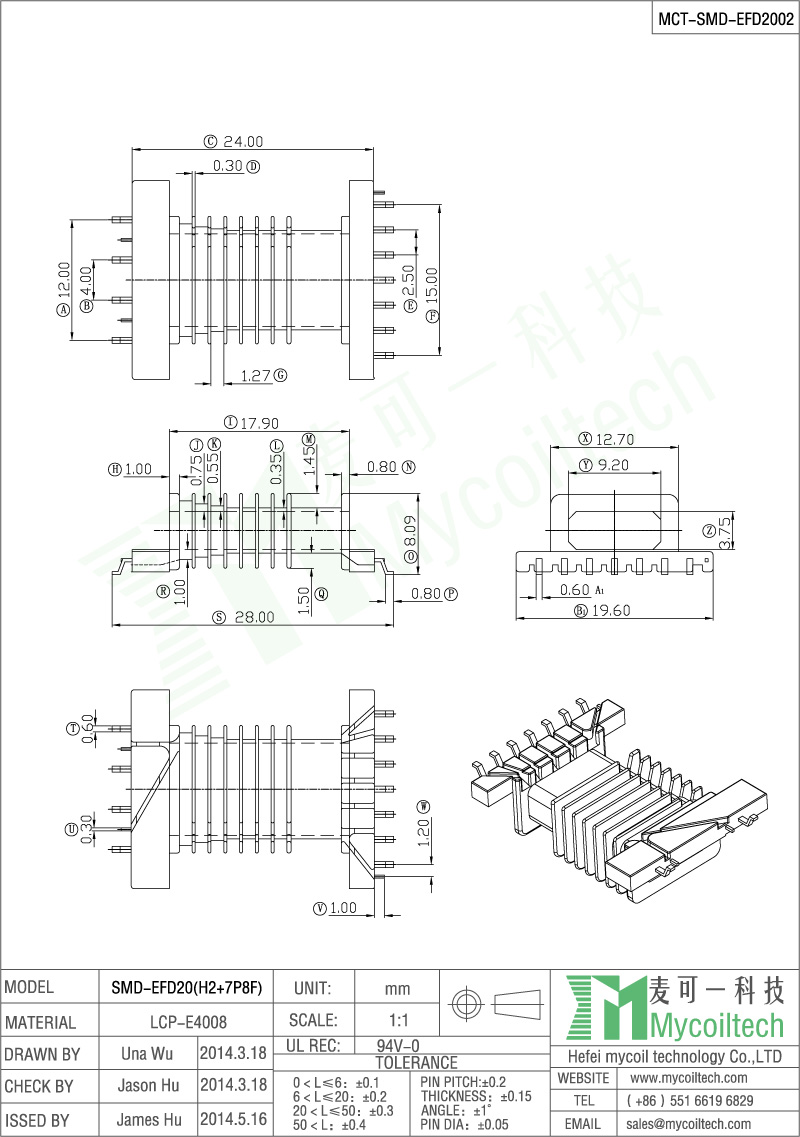

Product Specification

SMD EFD20 Bobbin for Power Supply
