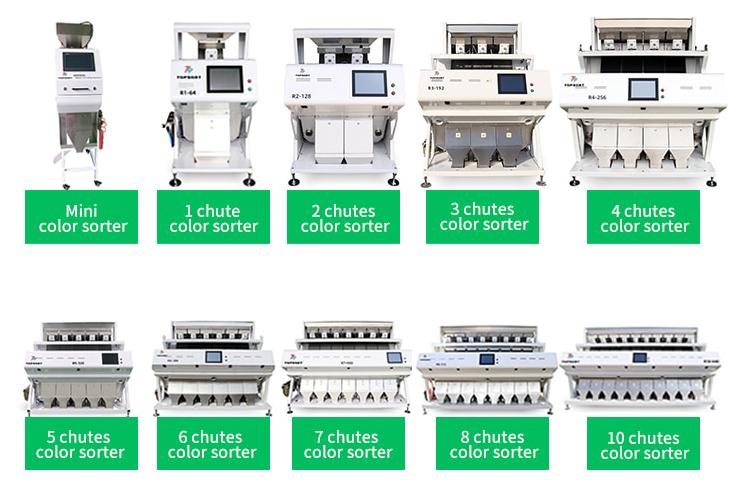

Topsort rice color sorter providing sorting solutions for all kinds of rice, help you improve the quality of processed rice, to achieve grading, price-separated sales.TOPSORT has already developed more than 10 different types of rice color sorter which are designed for rice sorting. High speed with remote control AI system,sorting precision can achieve 99.99%.

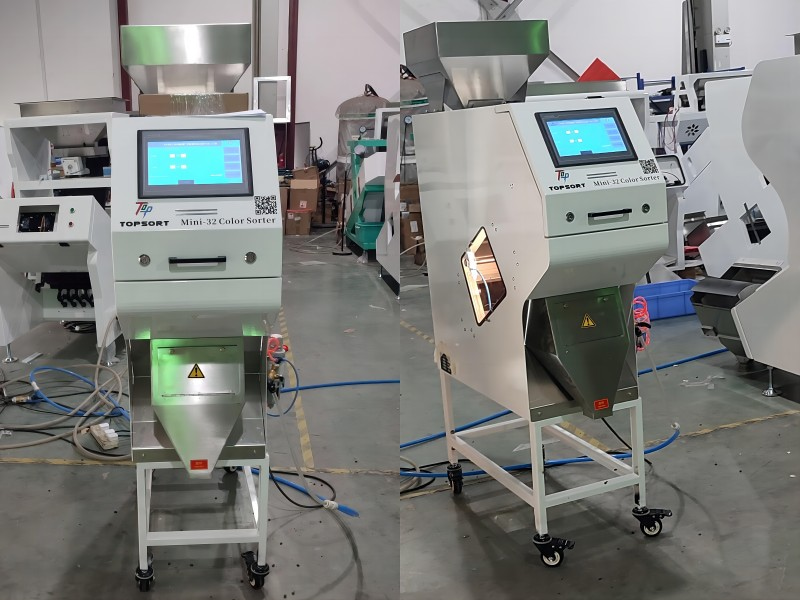

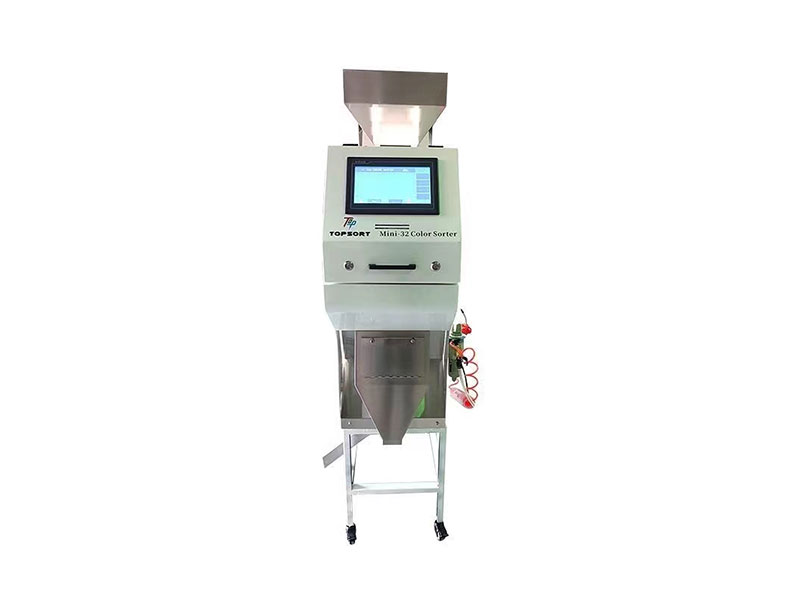

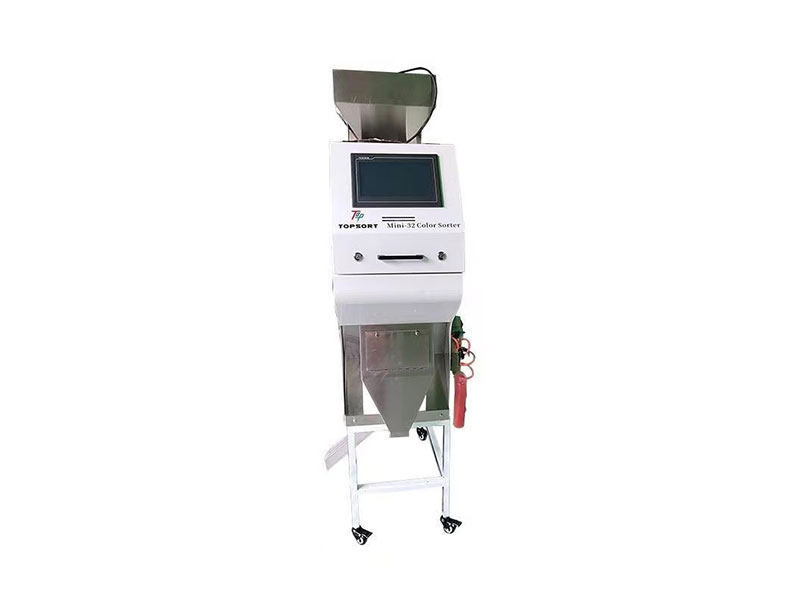

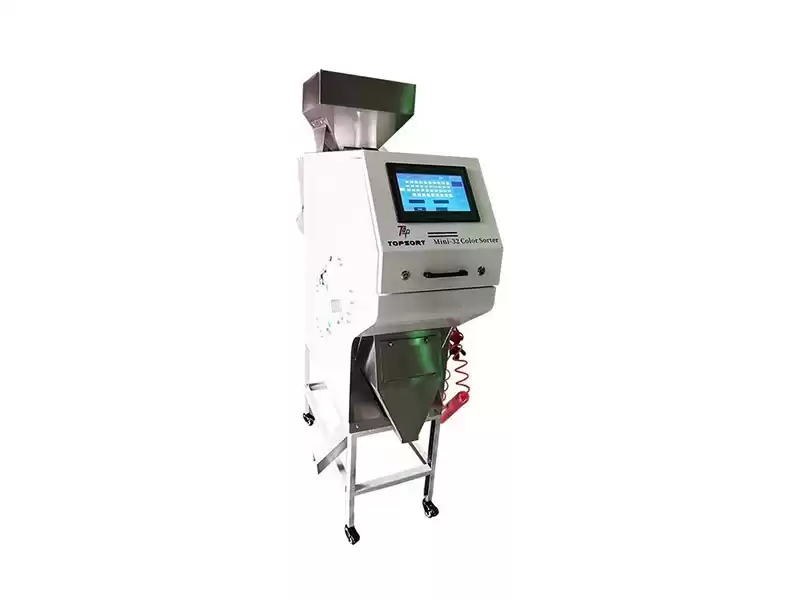

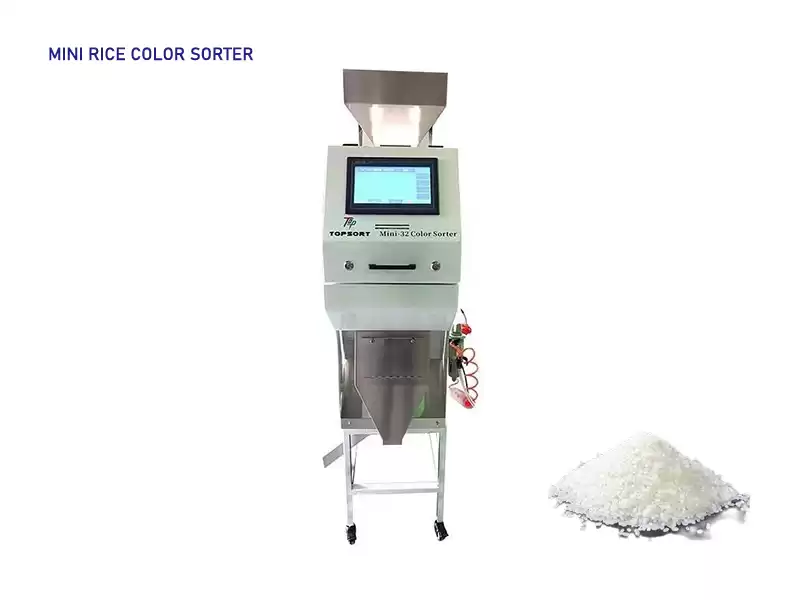

Efficient Mini Rice Color Sorter Features
1. Small size, small footprint, equipped with platform and wheels, easy to move.
2. Low total price, high economic efficiency and high return on investment.
3. Colour imaging, fully functional, suitable for colour sorting of a wide range of materials.
4. Widely popular with small rice mills, coffee shop,individual users ,small processing factory etc.
Topsort Color Sorter Sorting Results For Rice

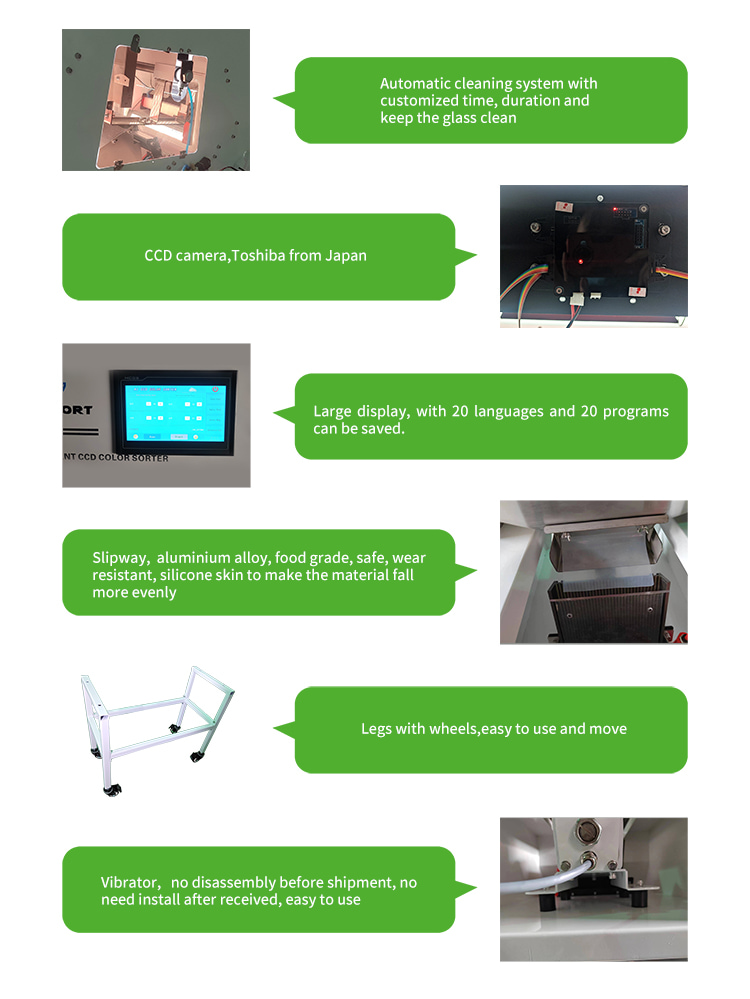

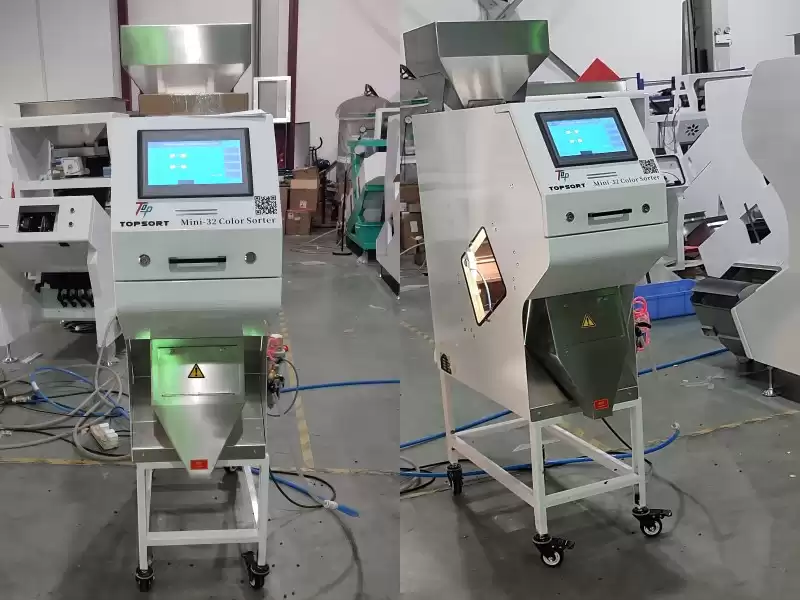

Mini Rice Color Sorter Details Show
TOPSORT Efficient Rice Color Sorter Innovated Technology
1.30000+ RICE AND GRANULES DETECTING EVERY SECOND
Computing updating, new generation FPGA processing technology with ALTERA, TI high proformance chips, accurately discover the quality of the sorting products.Take rice for example, every second 30000+ rice granules detecting,accurately remove variety defects. The sorting accuracy are much higher, processing capability are much stronger. lt ensure the variety of defects, tiny spot, light trace are easily discovered.The wisdom helps us “what you see is what you get."
2.INTELLIGENT OPERATION SYSTEM
Overall Large Screen HD Operation control panel, 1080P S uper high resolution,Linux Operation system, system more stable, more friendly Human-Machine-Interface panel, which gives high sensitivity instant fast repones in the industrial environment.
3.NEWLY SPECIAL SUPER WIDTH CHUTE DESIGN
Special technology chutes, applicable for universal materials,make the transfer more steady, more capacity.
4.MECHNICAL RECONSTRUCTION
Reconstrution of the mechnical frame, the main part with special material,balancing whole frame bearing, ensure the machine integrity. Working with the updated mechanism, it strength the base of the ultra-sorting.
5.SELF-DEVELOPED SPRAY VALVE
Self-developed spray valve, Self-developed high-performance spray valve, super high rapid response to the Algorithm results. It can continuously working 12billion+ times, extremely long life, with low air consumption,master the core technology.
6.ILLIMITABLE SORTING POSSIBILITIES, START BY “ONE BUTTON” PRESSURING
Hundred of sorting profiles can be saved in machine machine, for the variety products for sorting, subdivide the quality of agric and sideline products illimitable sorting possibilities,“one button”start, “one button”profiles exchange.
7.SHADOWLESS COLD LIGHT SOURCE,AUTOMATICA ADJUSTABLE
Extremely long life, low energy consumption intell ligent shadowless cold light source, orthogonal spectrum technology, make the image more visiable, more accuracy detection; the output luminance of light source are automatically adjustable, it make the lights more stable with high quality. It is fully appliable for the camera to see and detect.
8.WIRELESS REMOTE CONTROL FOR GLOBAL
Various terminals can be easily connected, remote control, instant response, and enjoy unattended operation.

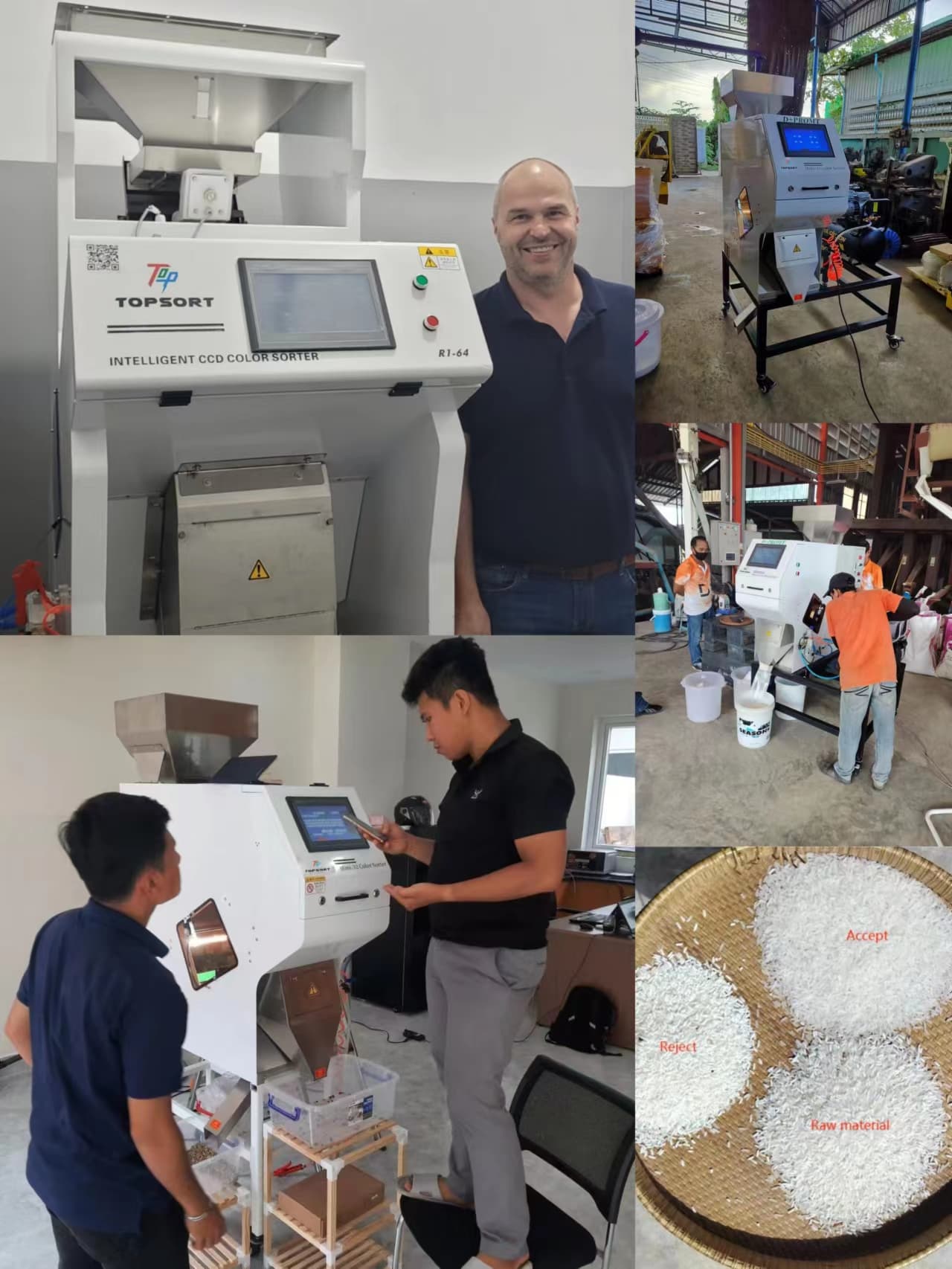

Customer Site
Rice Color Sorter Technical Parameters
| Model |
Power(KW) |
Capacity (T/H) |
Sorting accuracy |
Power vottage (V/HZ) |
Air pressure (Mpa) |
Air consumption (M3/MIN) |
Dimensions (MM) |
Weight(KGS) |
| MINI-32 |
0.5 |
0.5-1 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<0.5 |
420*1100*1820 |
100
|
| R1-64 |
0.8 |
1-2.5 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<1.0 |
880*1504*1760 |
300
|
| R2-128 |
1.3 |
2-4 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<2.0 |
1314*1504*1760 |
400 |
| R3-192 |
1.9 |
3-6 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<3.0 |
1650*1504*1760 |
500 |
| R4-256 |
2.4 |
4-8 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<4.0 |
1986*1504*1760 |
650 |
| R5-320 |
3.0 |
5-10 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<5.0 |
2322*1504*1760 |
800 |
| R6-384 |
3.6 |
6-12 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<5.5 |
2658*1504*1760 |
1000 |
| R7-448 |
4.1 |
7-14 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<6.0 |
2994*1504*1760 |
1200 |
| R8-512 |
4.7 |
8-16 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<6.5 |
3330*1504*1760 |
1400 |
| R10-640 |
5.8 |
10-20 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<8.0 |
3666*1504*1760 |
1800 |
Customer Concerns
Question 1: What are your advantages compared with your competitors?
Answer:With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price. 2). Good customer service: Fast response to any inquiry or question. 3). On-time delivery.
Question 2: Are you a manufacturer?
Answer: Yes, we are glober manufacturer with more than 18 years' color sorter producing and export experience.
Question 3: How to install and use the machine?
We will supply the installation instructions or videos and our engineers will train the operators.
Question 4. How long about the guarantee period?
Two years. The warranty period starts on the day of delivery.We supply lifelong software upgrade services for our customers.
Question 5: Do you have English Manual for each machinery?
Answer: Yes. The instruction manual,the test report and other data sheets related shall be provided by us.
