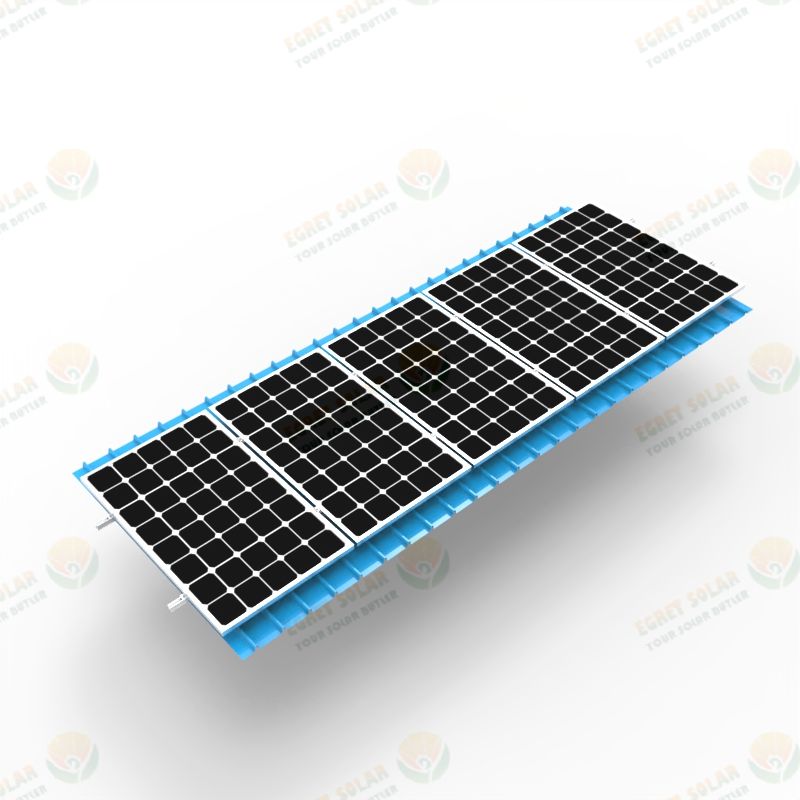

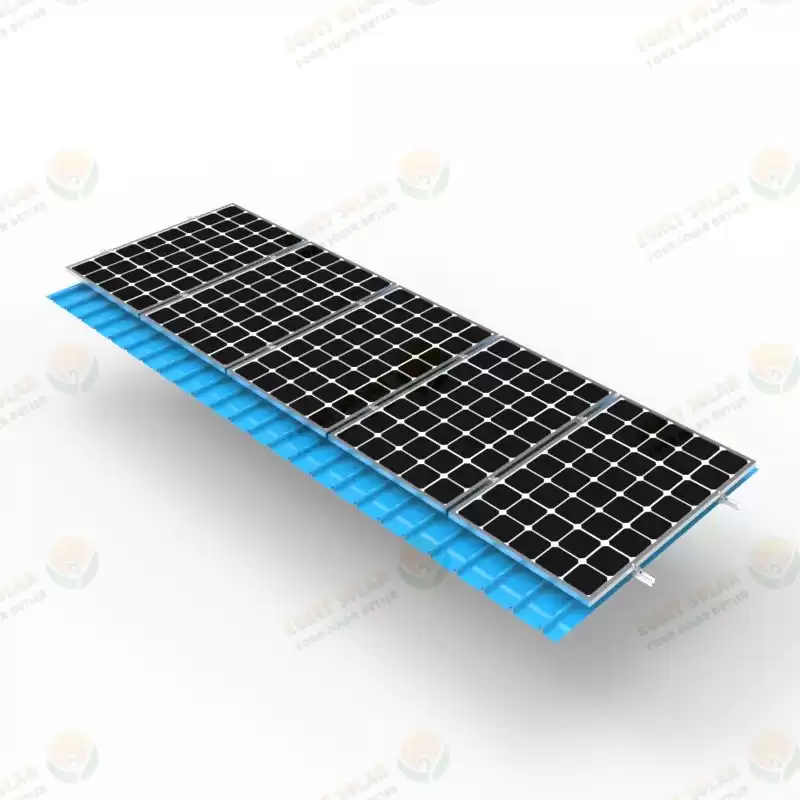

Egret Solar Color Steel Tile Fixture Bracket Roof Mounting System

The common color steel tile roof brackets in photovoltaic brackets can be applied to various types of color steel tiles such as T-type, angle-type, hidden button type, etc.

    • Payment :T/T,Paypal

    • Product Origin : China

    • Color : Natural

    • Shipping Port :Xiamen

    • Brand : Egret Solar

    • Certification :ISO/SGS/CE

    • Material :SUS304

    • Lead Time:
    • Quantity (watts) 1-5000 >5000
      EST. Time(days) 10 To be negotiated

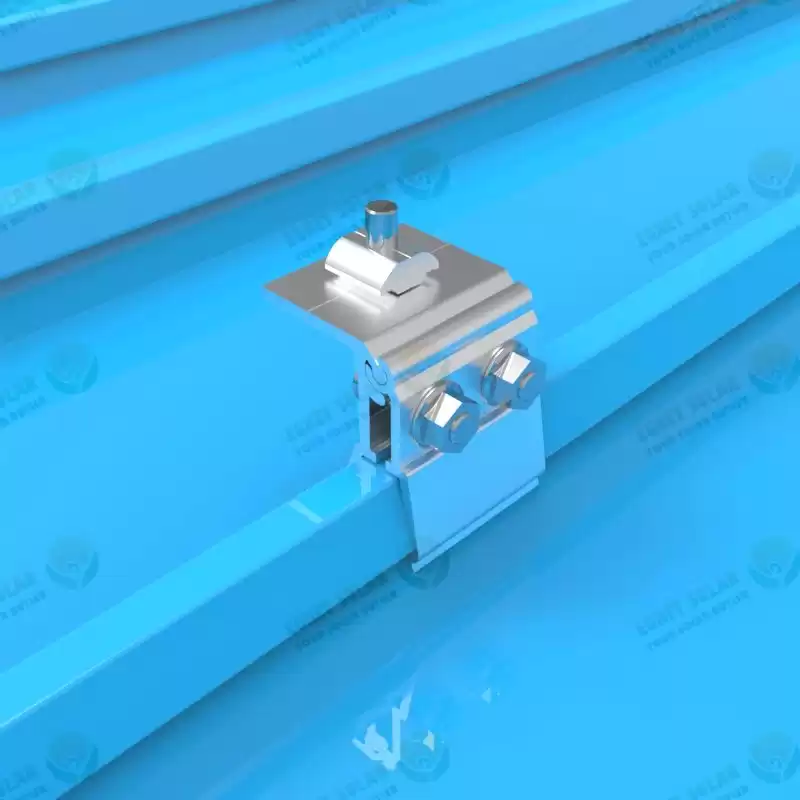

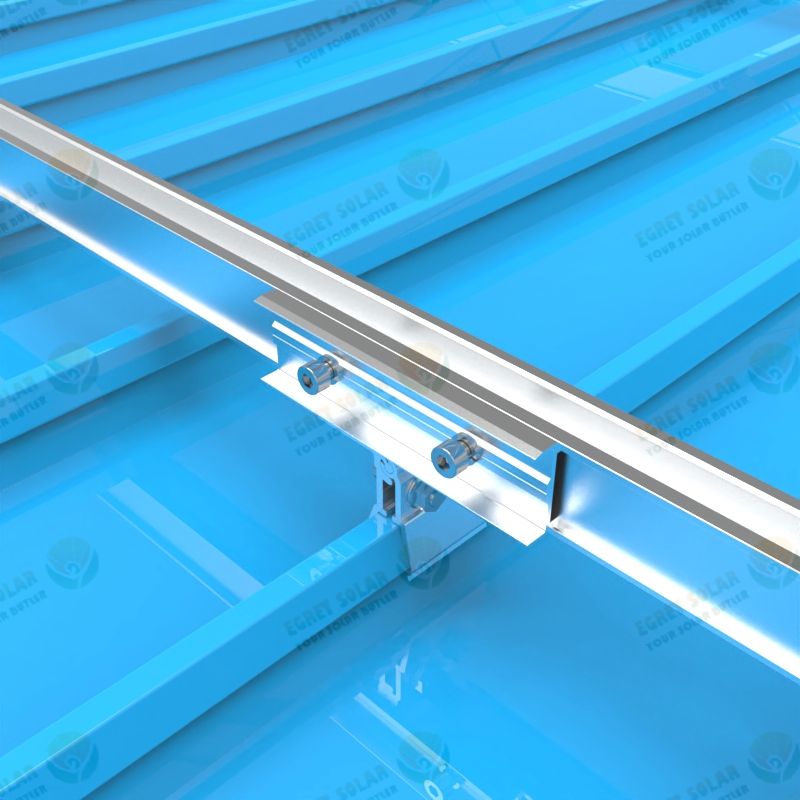

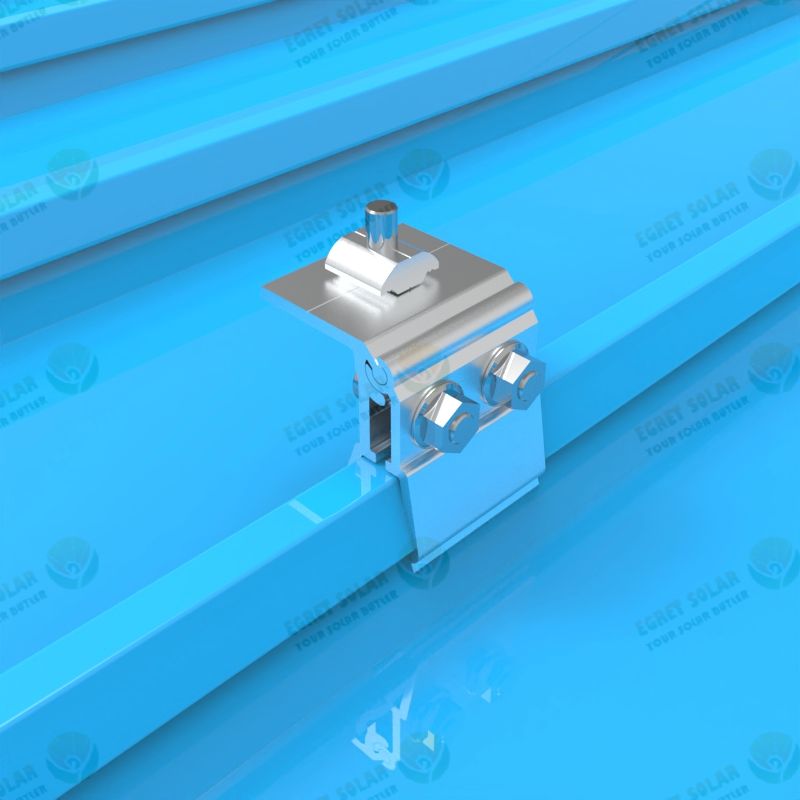

Product name Color steel tile fixture bracket
Model Number EG-TR01
Installation Site roof mounting system
Surface Treatment Sanblasted
Wind Load 60m/s
Snow load 1.2KN/M²
Warranty 25 YEARS
Specification Normal,Customize
OEM Service Avaliable



Product Description



The color steel tile fixture bracket can be used for the installation of the color steel tile roof of the solar photovoltaic power station. Different roof types use different fixtures without damaging the roof, providing a more convenient, economical and safe installation solution for solar photovoltaic power plants.

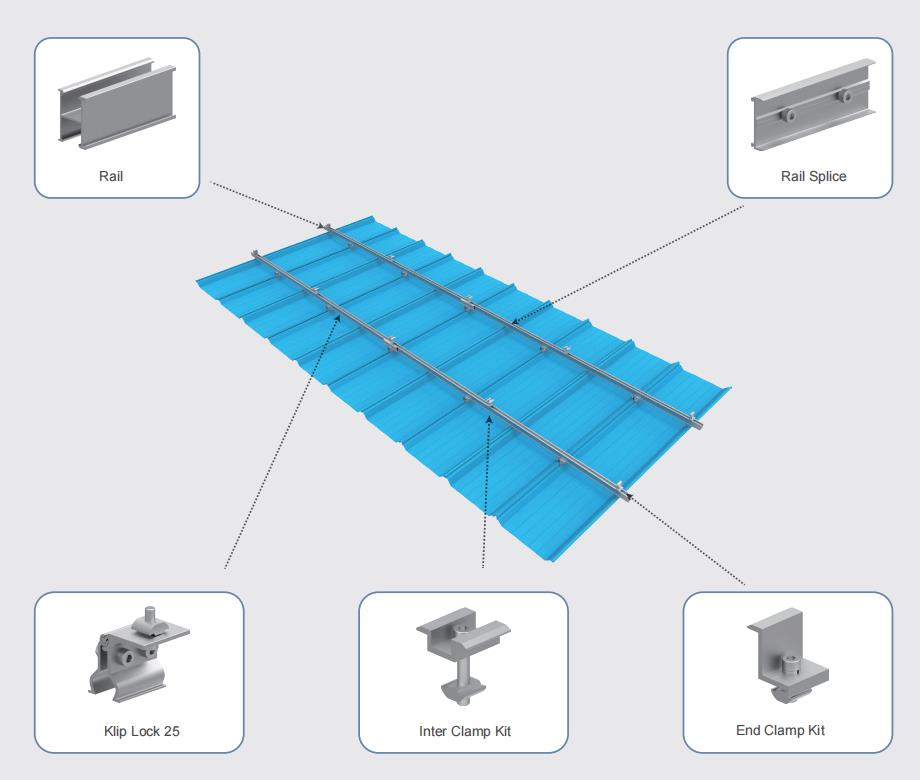

Exploded View

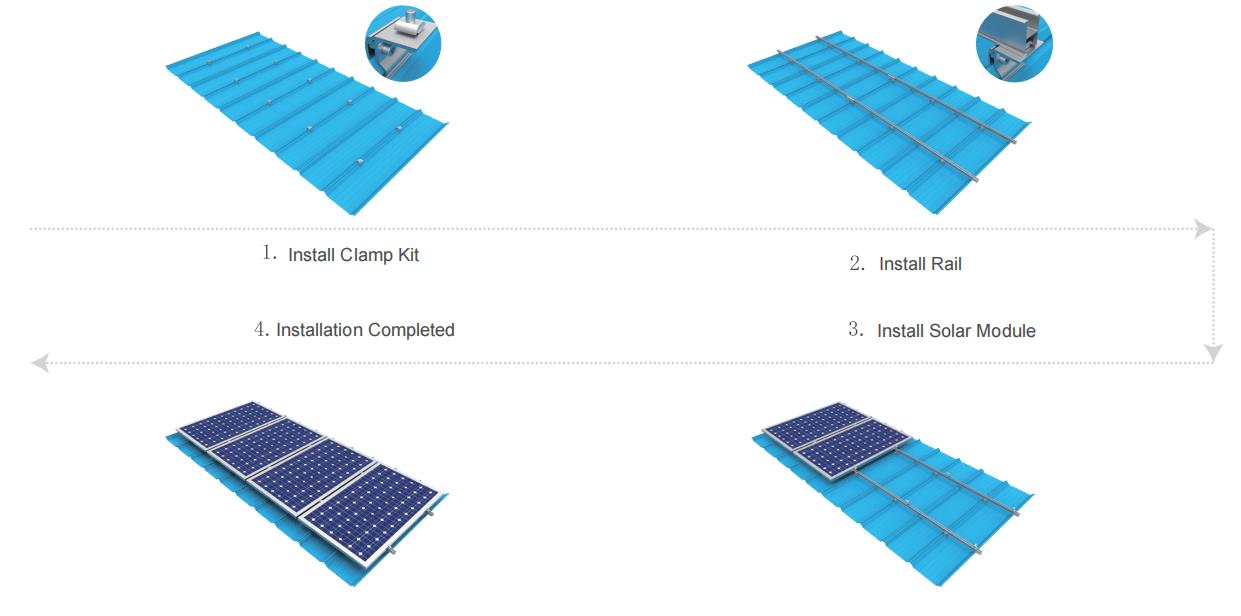

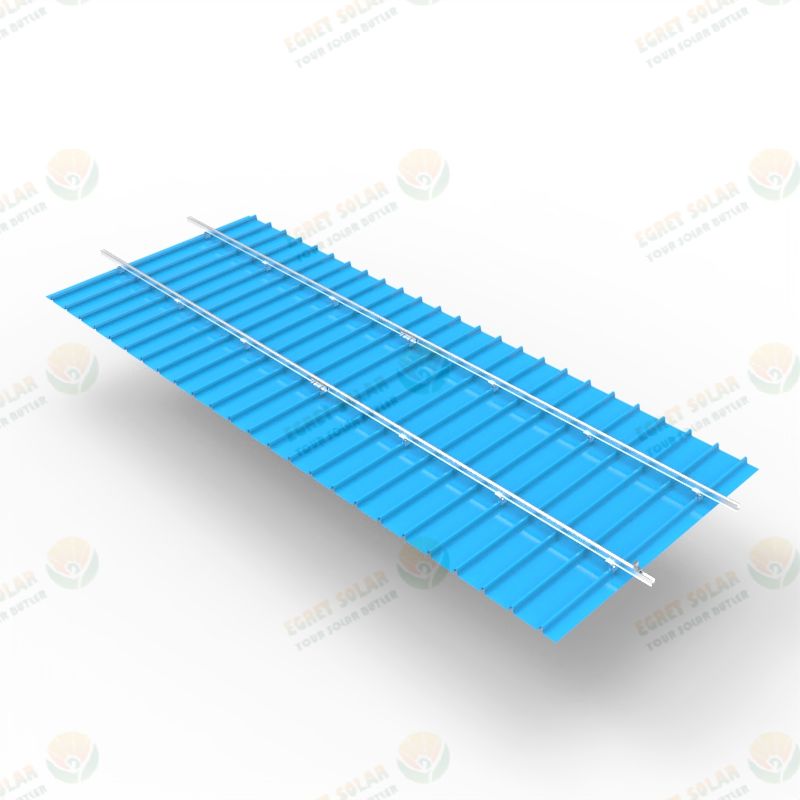

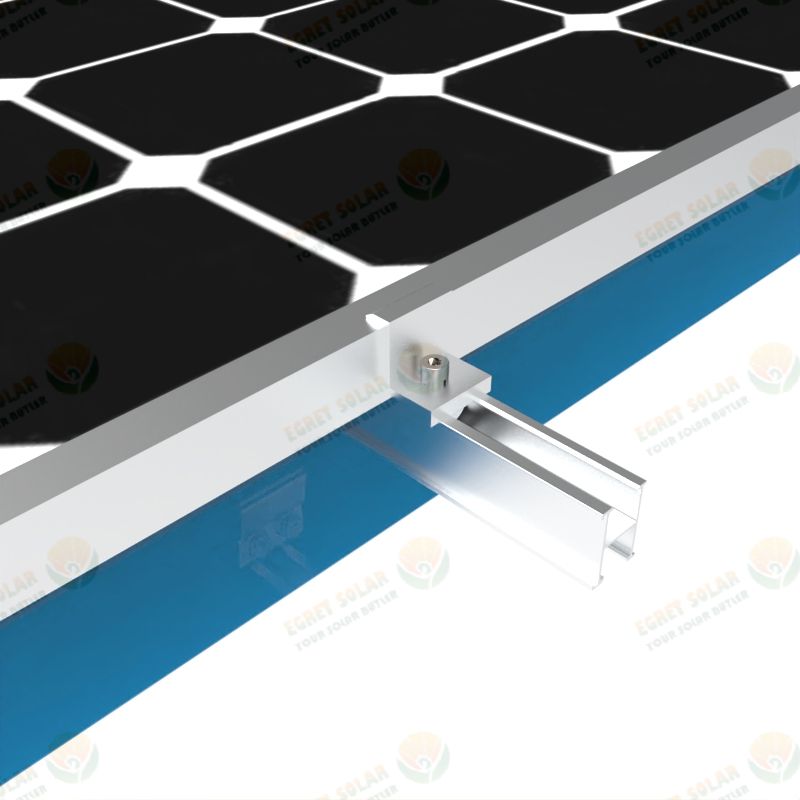

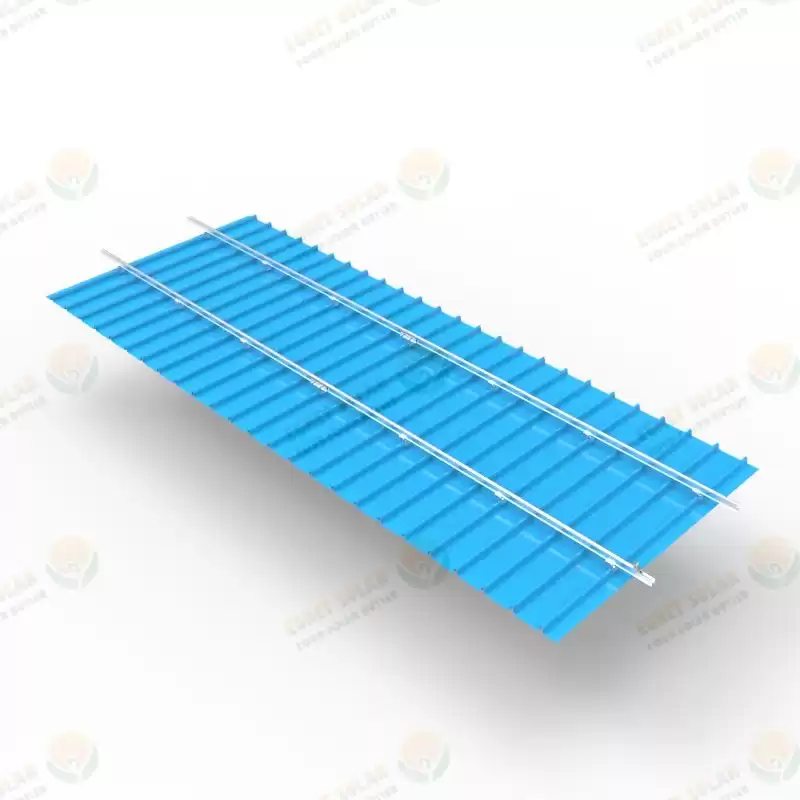

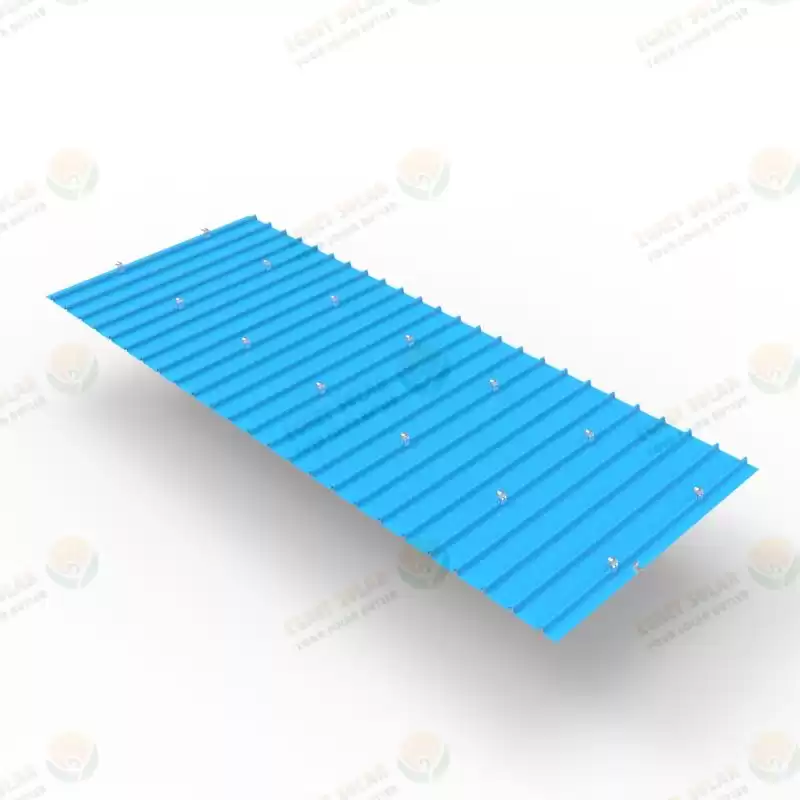

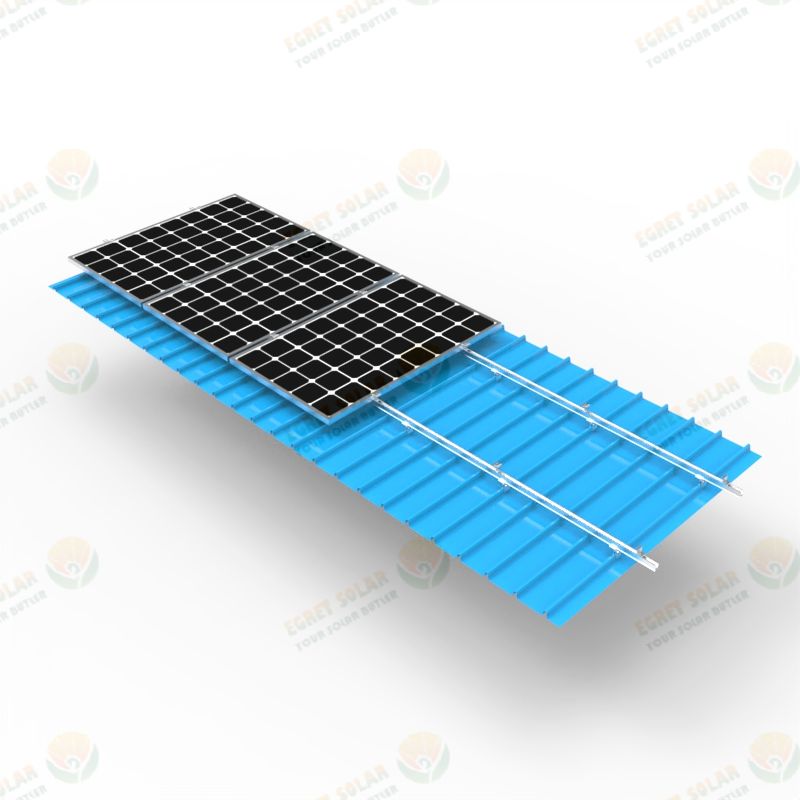

Installation Steps



FAQ

1.The information of the solar panel:L:______mm,W:______mm,T:_____mm;Power:______w,Frame or Frameless?Panel array:row______column______

2.Wind Load:______m/s 3.Snow Load:______cm 4.Installation Angle:______degree,Portrait or Landscape? 5.Where is Solar panel installed? Salinity control or not?

1)Ground

Structure Type:Common Ground,Carport or Solar Farm?

Foundation:Concrete,Ground Screw,C Pile or U Pile?

Minimum Ground Clearance:______mm

Earth report or not

2)Roof

Roof Type:Tin Roof,Tile Roof or Concrete?

Fixed Solution:Hook,L foot,Clamp,Ballast or Tripod?

Purlin Span:______mm
