| Product name |
Flat roof ballast brackect |
| Model Number |
EG-BR01 |
| Installation Site |
Metal Roof, Flat roof |
| Surface Treatment |
Aluminum Andized |
| Wind Load |
60m/s |
| Snow load |
1.2KN/M² |
| Warranty |
25 YEARS |
| OEM Service |
Avaliable |

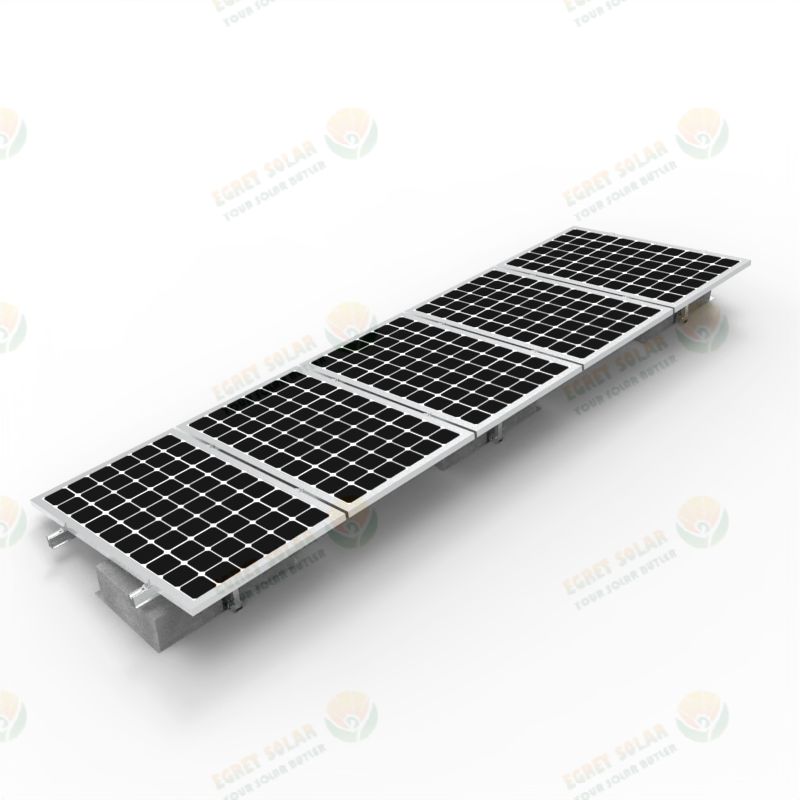

Product Description

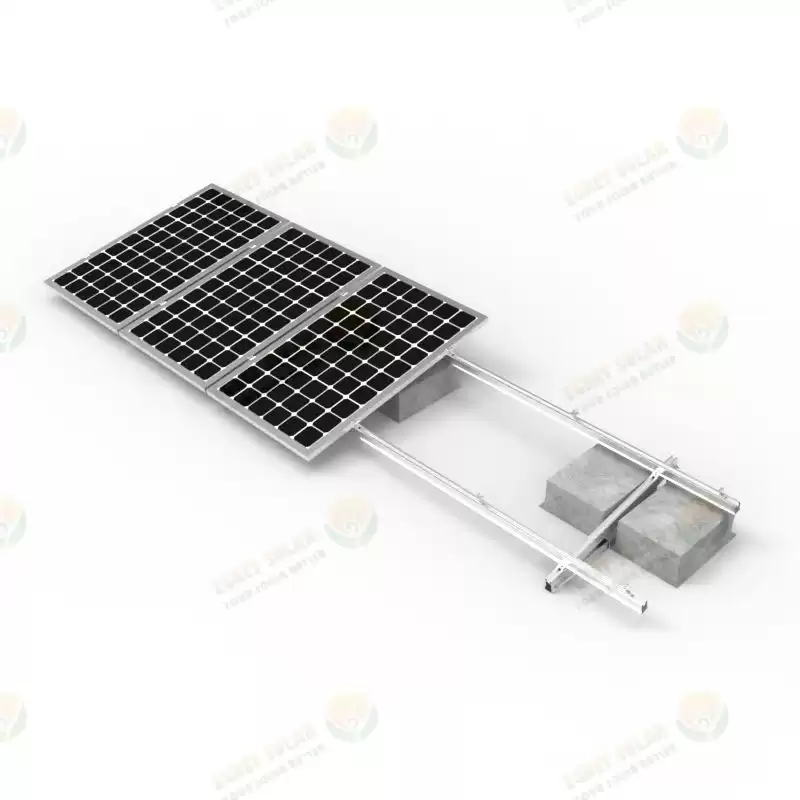

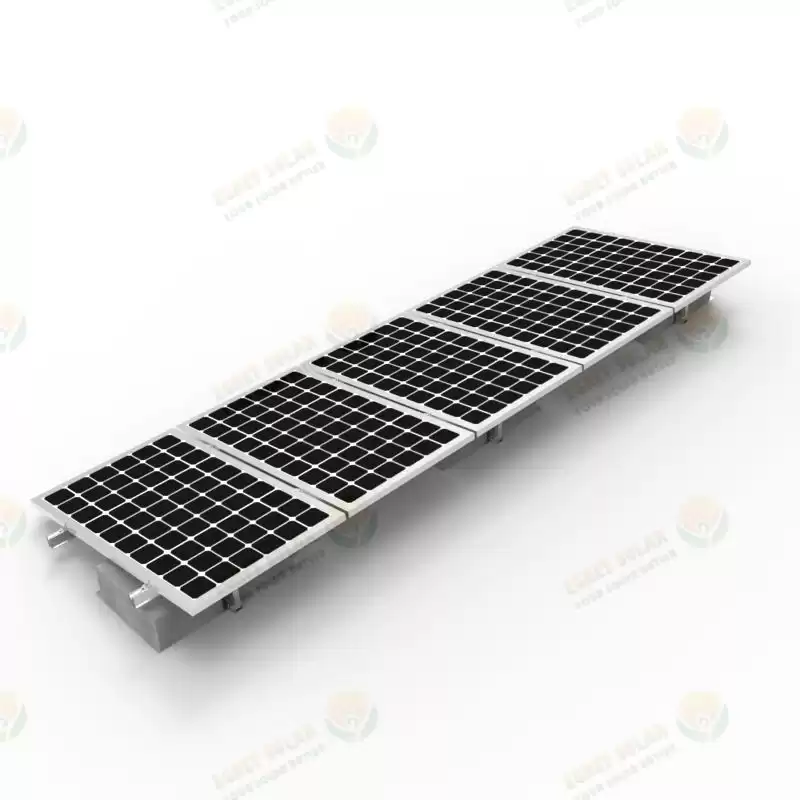

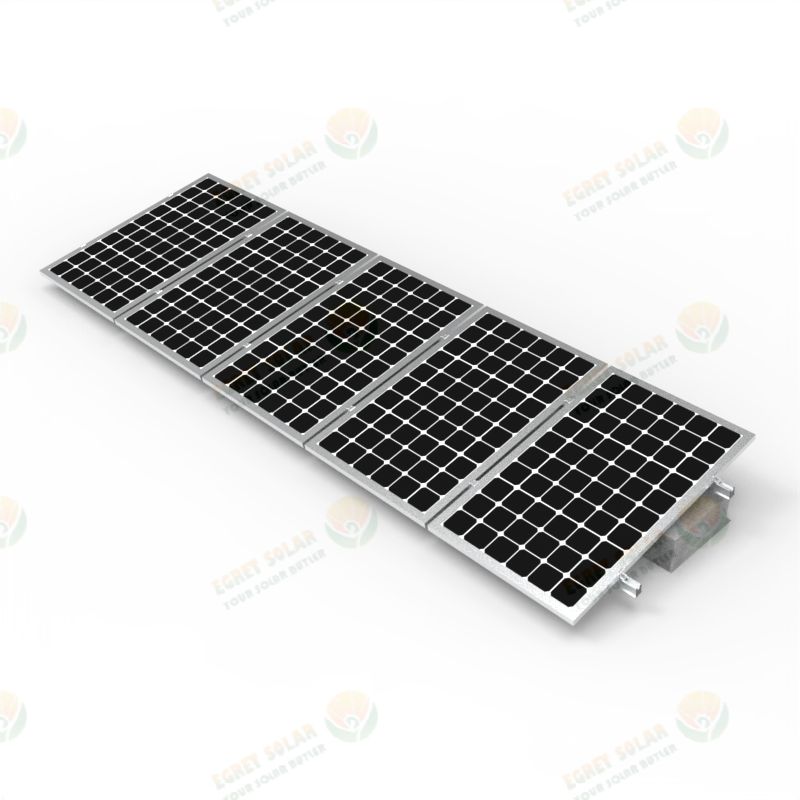

The flat roof ballast support solution is suitable for the flat roof ballast foundation or expansion bolt installation of solar photovoltaic power plants. The weight of the concrete blocks can be reduced if the east and west sides are designed. Simple structure, convenient installation and transportation, cost saving.

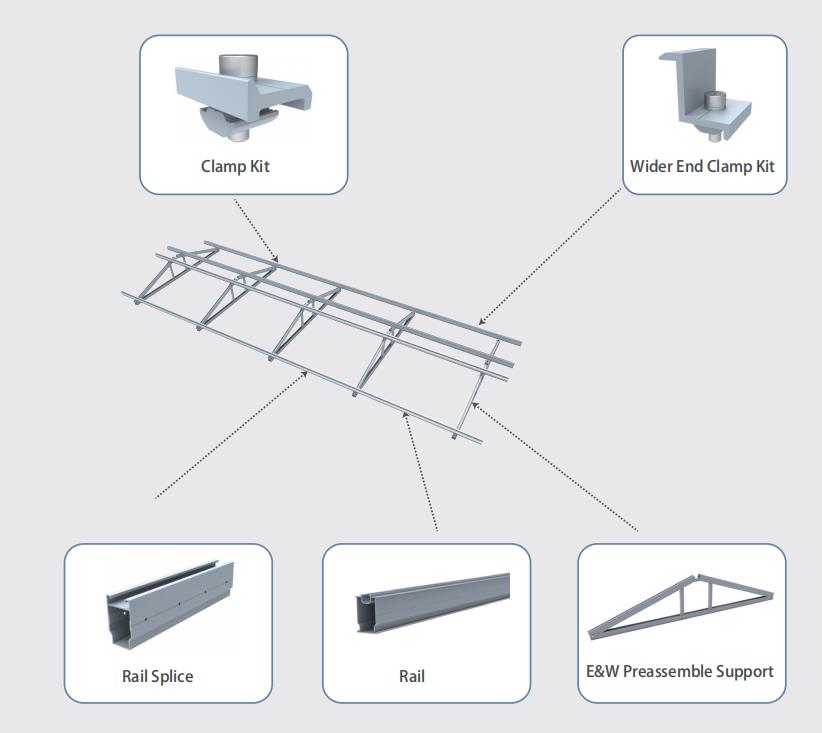

Exploded View

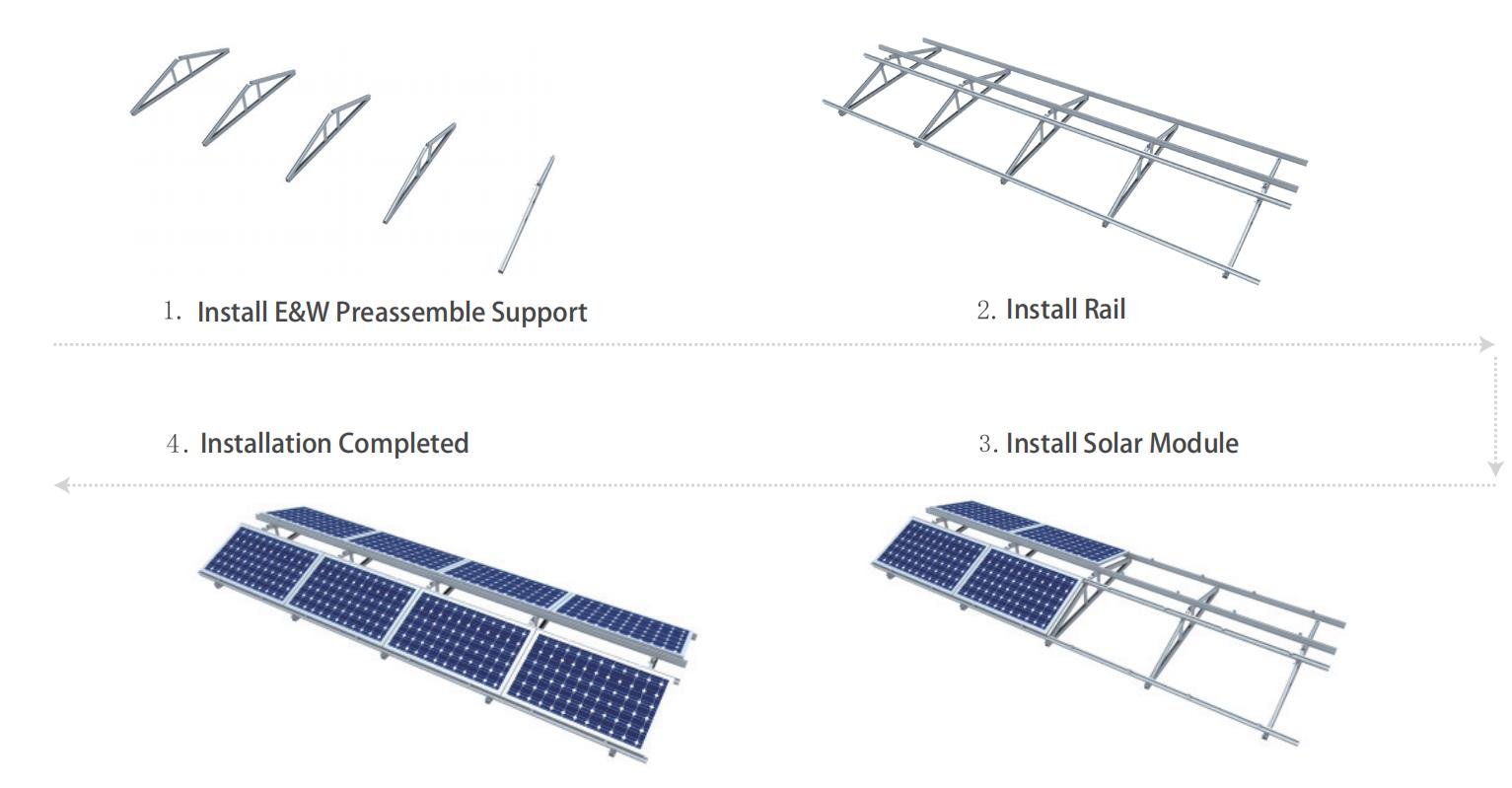

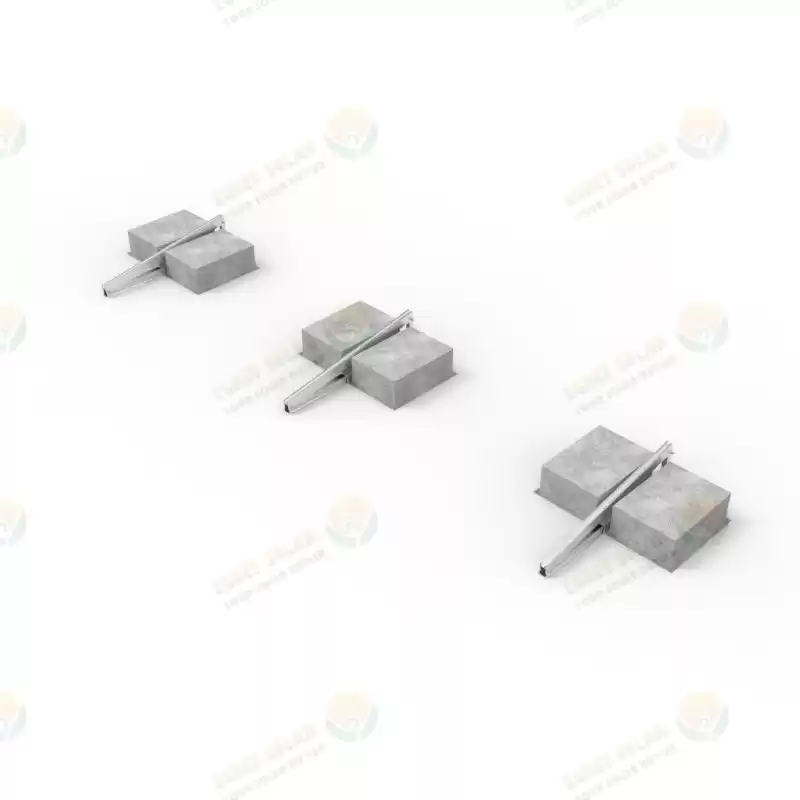

Installation Steps
FAQ
1.The information of the solar panel:L:______mm,W:______mm,T:_____mm;Power:______w,Frame or Frameless?Panel array:row______column______
2.Wind Load:______m/s 3.Snow Load:______cm 4.Installation Angle:______degree,Portrait or Landscape? 5.Where is Solar panel installed? Salinity control or not?
1)Ground
Structure Type:Common Ground,Carport or Solar Farm?
Foundation:Concrete,Ground Screw,C Pile or U Pile?
Minimum Ground Clearance:______mm
Earth report or not
2)Roof
Roof Type:Tin Roof,Tile Roof or Concrete?
Fixed Solution:Hook,L foot,Clamp,Ballast or Tripod?
Purlin Span:______mm
