| Product name |
1# Natural Rapid End Clamp |
| Model Number |
EG-REC01-50-Natural |
| Installation Site |
Solar Panel Mounting system |
| Surface Treatment |
Anodised |
| Wind Load |
60m/s |
| Snow load |
1.2KN/M² |
| Warranty |
12Years |
| Specification |
L50mm/OEM sevice |
Product Description

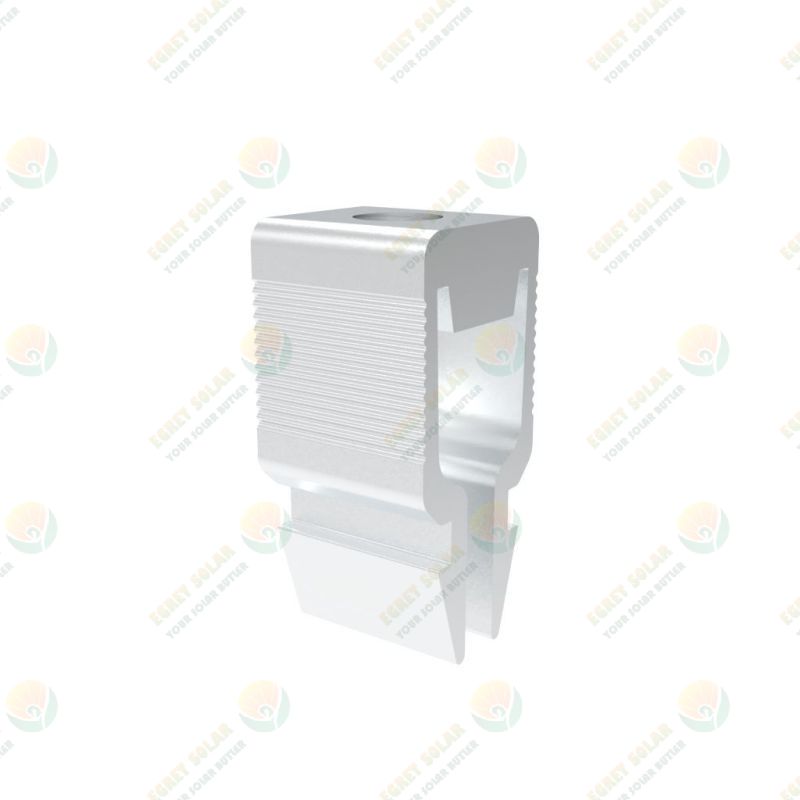

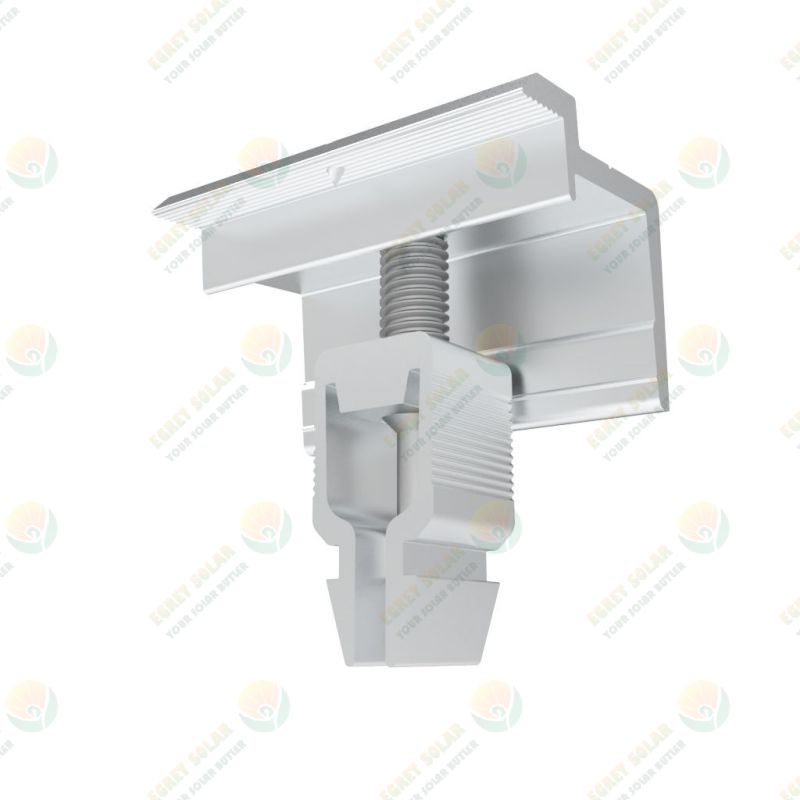

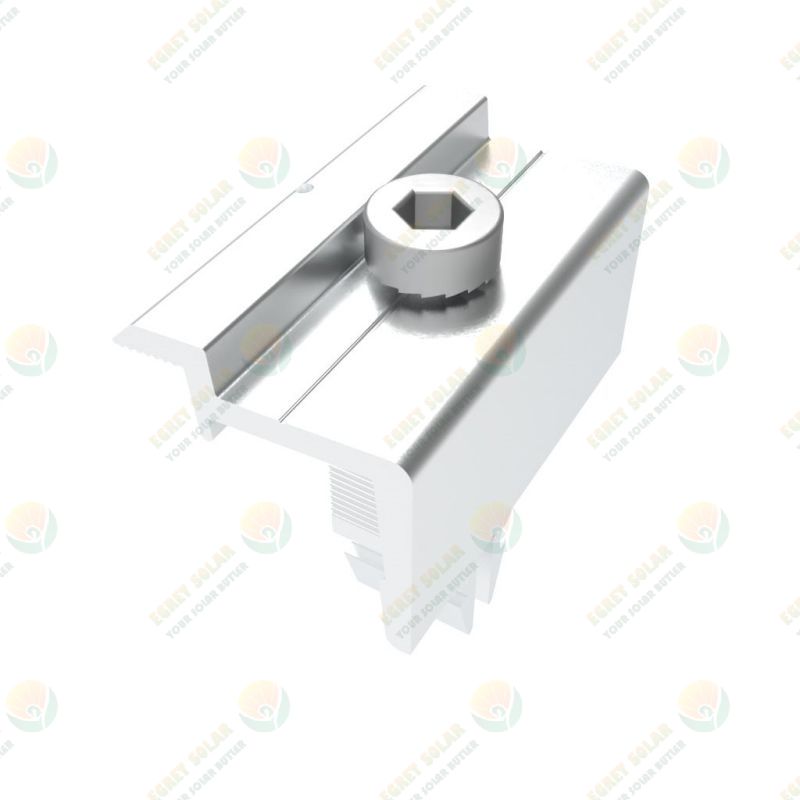

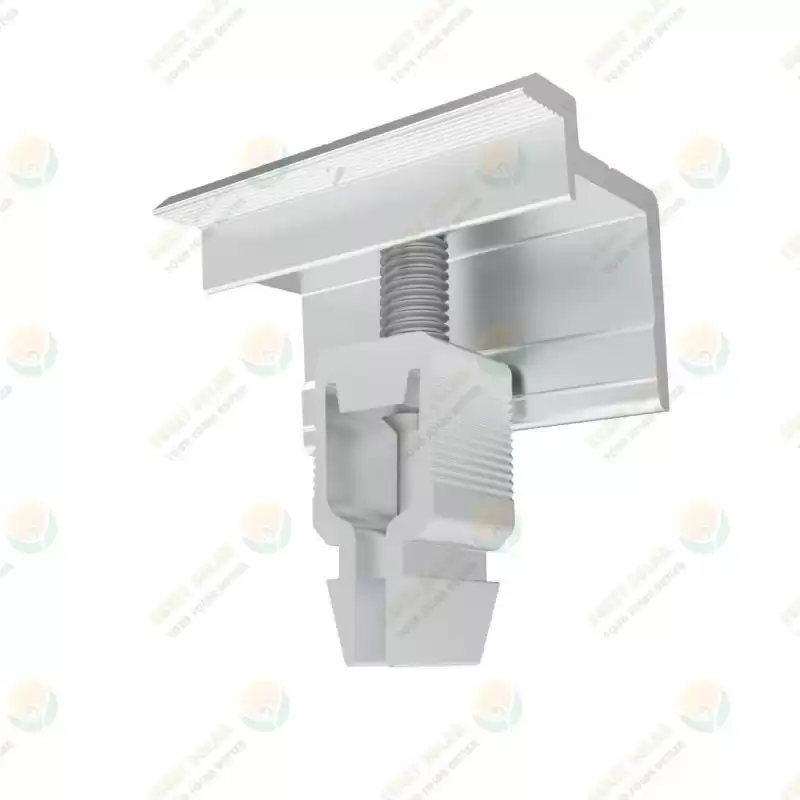

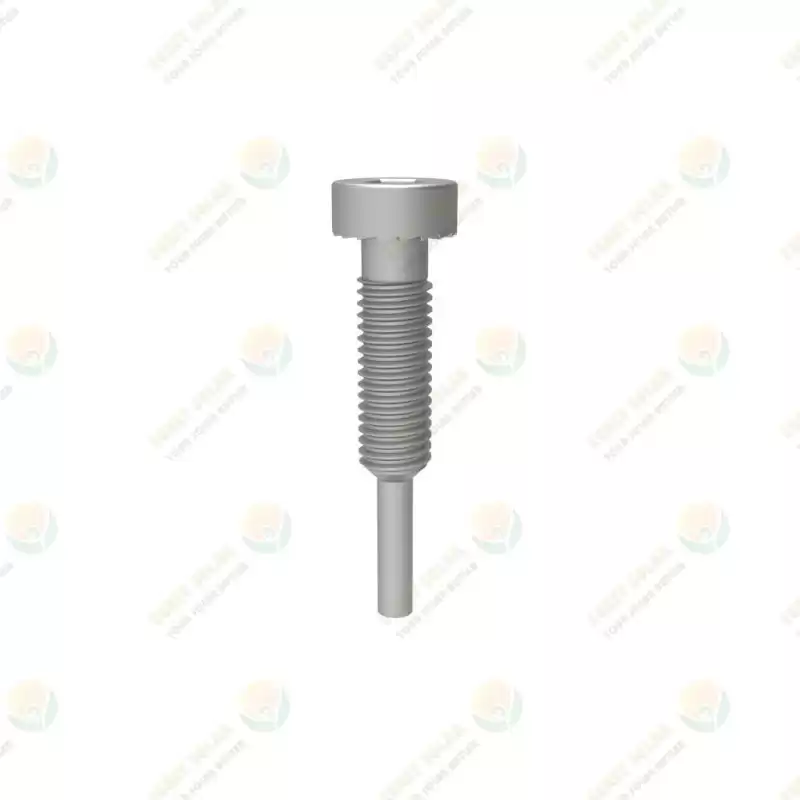

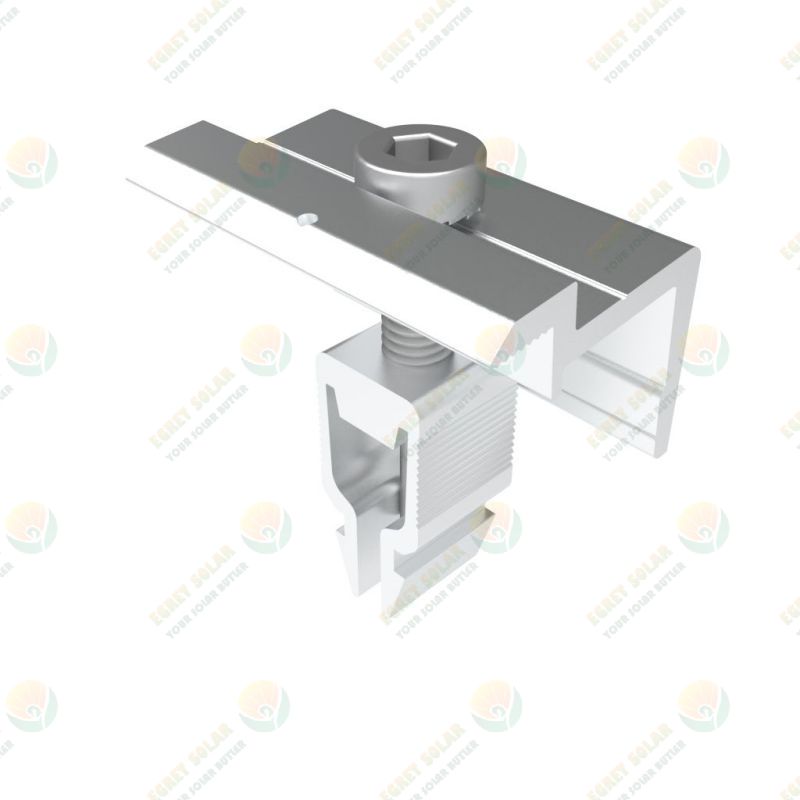

Aluminum Solar mid clamp and solar end clamp for framed modules which allow quick and simple mounting by clicking into mounting rails and provide optimal holding force.Egret Solar's new types of modular clamps offers many advantages, such as better warehousing thanks to minimal versions, and a grounding pin in every module clamp. Egret Solar’s Rapid Clamps is right for most module-bearing profile and is designed for module frame heights of 30–40 mm. It greatly saving stock costs and the adjustable range suit for variety of thickness of Solar panles.
FAQ
1.The information of the solar panel:L:______mm,W:______mm,T:_____mm;Power:______w,Frame or Frameless?Panel array:row______column______
2.Wind Load:______m/s 3.Snow Load:______cm 4.Installation Angle:______degree,Portrait or Landscape? 5.Where is Solar panel installed? Salinity control or not?
1)Ground
Structure Type:Common Ground,Carport or Solar Farm?
Foundation:Concrete,Ground Screw,C Pile or U Pile?
Minimum Ground Clearance:______mm
Earth report or not
2)Roof
Roof Type:Tin Roof,Tile Roof or Concrete?
Fixed Solution:Hook,L foot,Clamp,Ballast or Tripod?
Purlin Span:______mm
