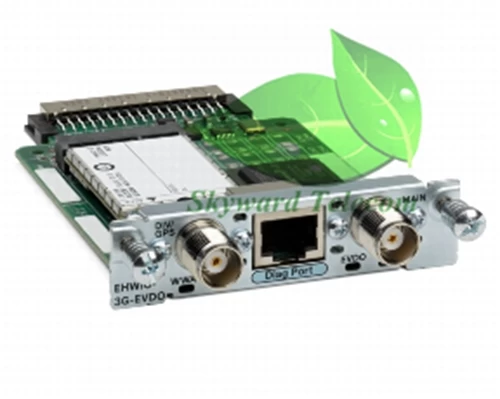

EHWIC-3G-EVDO-S Overview
The Cisco 3G WWAN EHWICs are tightly integrated with the services provided on the award-winning Cisco ISR G2 routers, which deliver highly secure data, voice, video, and mobility services. The Cisco 3G WWAN EHWICs are supported on the modular Cisco 1900, 2900 and 3900 Series Integrated Services Routers (ISRs) part of the Cisco ISR G2 portfolio.Enterprises are looking for ways to reduce costs, increase revenue, and improve business continuity. The Cisco 3G WWAN EHWICs, when coupled with a service provider wireless data plan, provide a cost-effective, rapidly deployable, reliable, and secure backup solution for remote sites and branch offices. With data rates approaching T1 speeds, 3G networks provide an alternative to wire-line backup solutions such as ISDN, cable, and DSL. If a network fails, the Cisco ISR routes mission-critical data to the Cisco 3G WWAN EHWIC for transmission across the wireless infrastructure. In addition, the router can distinguish different types of traffic and allow only mission-critical traffic to flow over the backup interface. The 3G wireless WAN EHWICs are available in multiple part numbers. The CDMA part number is EHWIC-3G-EVDO-x1 (where x reflects the wireless carrier) and EHWIC-3G-HSPA-U.
EHWIC-3G-EVDO-S Specification
|
Brand
|
Cisco
|
|
Part
number
|
EHWIC-3G-EVDO-S
|
|
Product
Description
|
3G EHWIC EDVO for Sprint with
GPS
|
|
Device Type
|
Interface module
|
|
Form factor
|
Single wide Cisco 3G WWAN EHWIC
form factor
|
|
Bands
|
850, 900, 1900, and 2100 MHz
|
|
DL/UP
Speeds
|
7.2 Mbps/5.76 Mbps
|
|
External
Interfaces
|
RJ-45 interface for use with
diagnostics and monitoring tools
|
|
Two TNC connectors with main
and diversity RF port for antenna connection. Diversity port can also support
GPS.
|
|
EHWIC-3G-HSPA+7,
EHWIC-3G-HSPA+7-A, EHWIC-3G-HSPA-U supports main and diversity antenna
connector
|
|
EHWIC-3G-EVDO-S,
EHWIC-3G-EVDO-V, EHWIC-3G-EVDO-B supports main and diversity antenna
connector
|
|
Subscriber Identity Module (SIM)
Card
|
SIM card socket; compliant with
ISO-7816-2 (SIM mechanical)
|
|
Power
|
4.5W maximum
|
|
Supported
Platforms
|
Modular Cisco 1900, 2900 and 3900
Integrated Services Routers G2
|
|
SMS/GPS
|
Send and receive SMS (max. 160
characters)
|
|
Standalone GPS
|
|
MIBs
|
3G MIB
|
|
ENTITY MIB
|
|
IF MIB
|
|
3G WWAN MIB persistence
|
|
Network
Management and Diagnostics
|
In-band and out-of-band management
using Telnet (Cisco IOS Software command-line interface [CLI]) and Simple
Network Management Protocol (SNMP), including MIB II and other extensions
|
|
Industry-standard 3G
diagnostics and monitoring tools (QUALCOMM CDMA Air Interface Tester [CAIT]
and Spirent Universal Diagnostic Monitor [UDM])
|
|
Warranty
|
One year
|
|
Lead
time
|
2-3 business days
|
|
Shipment
|
DHL, Fedex, Aramex, EMS or per
request
|
