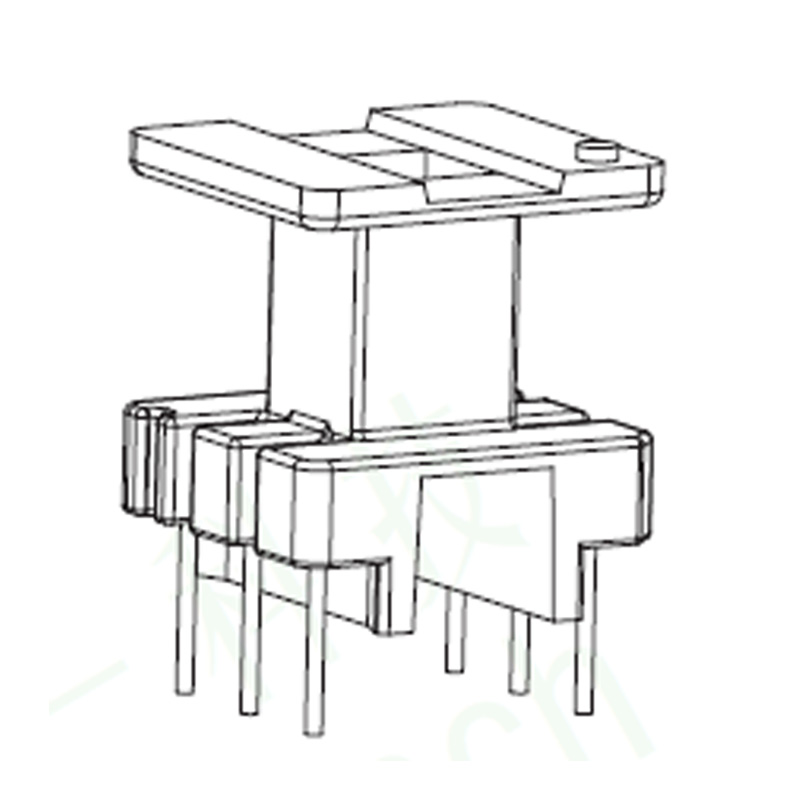

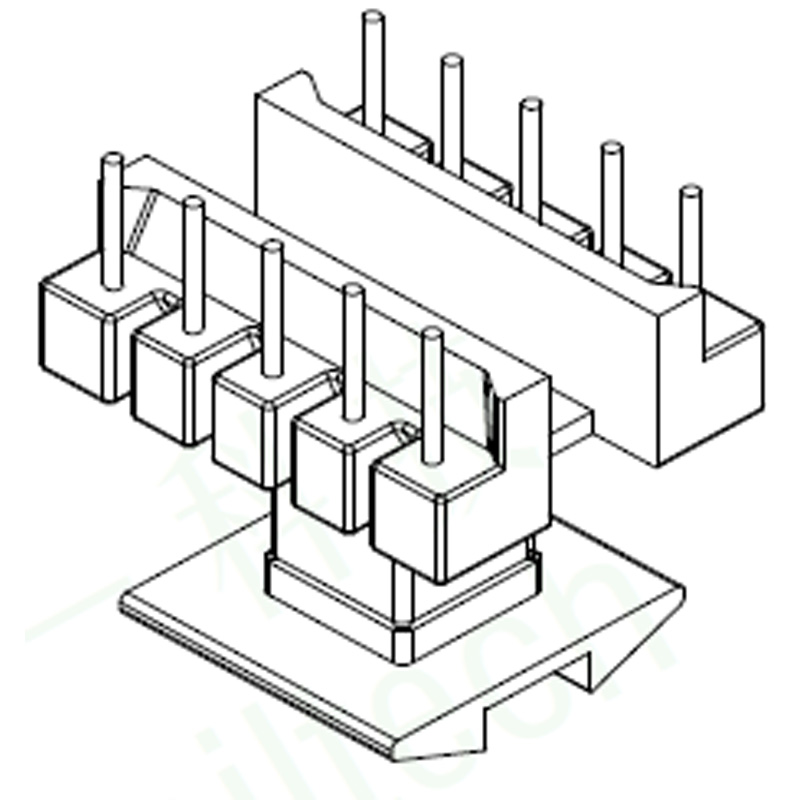

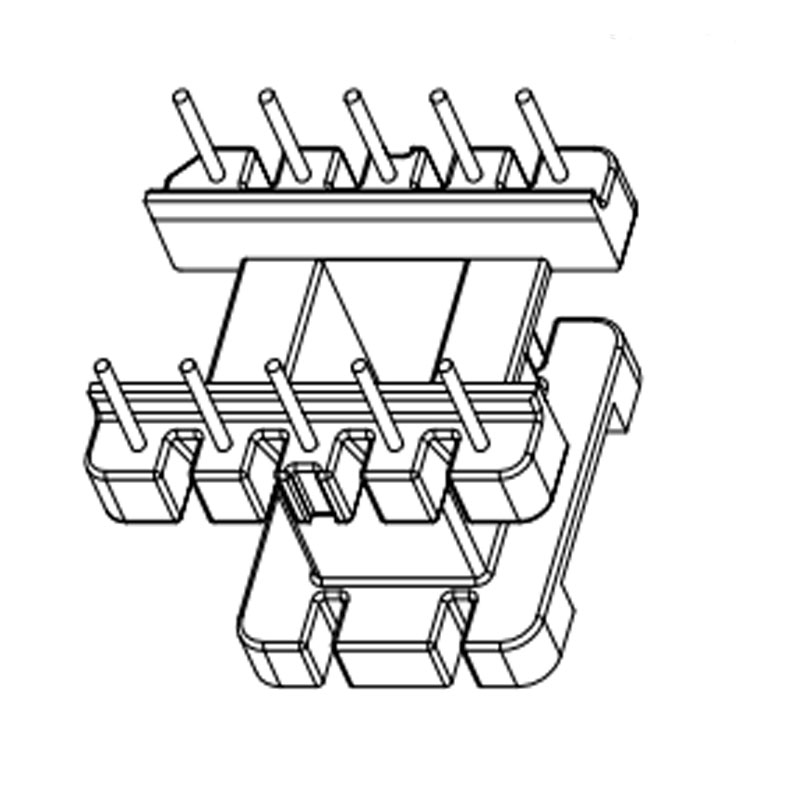

EI16 Vertica Transformer Bobbin Dip Bobbin With 5+5 Pins

5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.25mm Parallel Distance=10.5mm Size=15.9mmx13mmx13.8mm

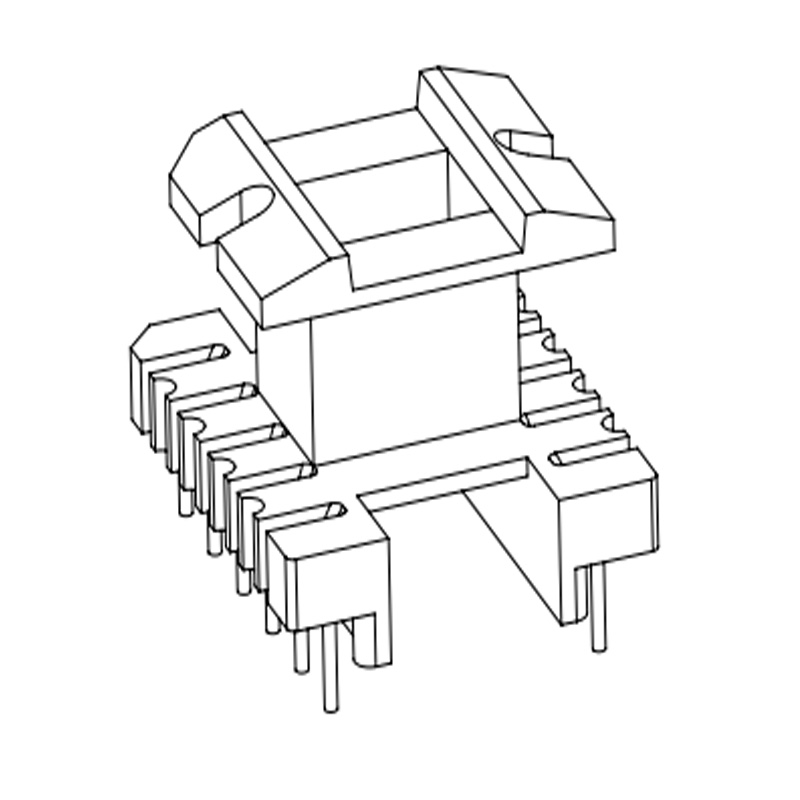

6+6 Pins Vertical EI35 Electronic Transformer Bobbin

12 Pins EI35 vertical bobbin. DIP transformer bobbin. Parallel Distance=20mm. Pin Pitch=5.0mm. UL REC:94V-0 Bobbin Size=35mmX25mmX27.5mm. EI35 phenolic bobbin.

EI25 High Frequency Vertical Transformer Bobbin Pin 5+5

5+5 pin EI25 transformer bobbin. EI25 vertical bobbin. Bobbin Size=25mmX20mmX18.5mm. Parallel Distance=20mm. Pin Pitch=5.0mm. DIP transformer bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.

EI25 Ferrite Core Bobbin 4+4 Pin Vertical EI Transformer Bobbin

Lead free 4+4 pin EI25 transformer bobbin. EI25 vertical bobbin. Bobbin Size=25.5mmX17.5mmX19.8mm. Parallel Distance=12.6mm. Pin Pitch=5.0mm. DIP transformer bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.

EI25 5+8 Pin Phenolic High Frequency Transformer Bobbin

EI25 vertical transformer bobbin 5+8 pin. EI25 phenolic material bobbin. Bobbin Size=28.5mmX20.5mmX20.5mm. Parallel Distance=15.2mm. Pin Pitch1=3.50mm. Pin Pitch2=5.0mm. DIP transformer bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.

EI25 Vertical 4+4 Pin Bobbin for Electronic Transformer

EI25 bakelite transformer 4+4 pin bobbin. EI25 vertical bobbin. Bobbin Size=25mmX17.3mmX20mm. Parallel Distance=12.4mm. Pin Pitch=5.0mm. DIP transformer bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.

EI25 High Power Transformer Bobbin 4+4 Pin Vertical Bobbin

EI25 ferrite core bobbin 4+4 pin. EI25 vertical type bobbin. Bobbin Size=25mmX17.3mmX20.5mm. Parallel Distance=12.4mm. Pin Pitch=5.0mm. DIP transformer bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.

EI25 4+4 Pin Coil Former Vertical EI25 Ferrite Core Bobbin

EI25 ferrite core bobbin 4+4 pin. EI25 vertical/horizontal type transformer bobbin. Bobbin Size=25mmX17.3mmX20.5mm. Parallel Distance=12.4mm. Pin Pitch=5.0mm. DIP transformer bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.

EI28 Vertical Ferrite Core Bobbin With 5+5 Pins

10 pins EI28 ferrite core bobbin. EI28 vertical type transformer bobbin. Bobbin Size=26mmX21.5mmX19.65mm. Parallel Distance=17.5mm. Pin Pitch=5.0mm. DIP transformer bobbin. We can make new bobbin tooling to meet different requirements. UL REC:94V-0.

EI28 Vertical Single Slot Transformer Bobbin With 5+5 Pins

EI28 vertical transformer bobbin. 5+5 pins EI28 bobbin. Bobbin Size=26mmX21.5mmX18.85mm. Parallel Distance=17.5mm. Pin Pitch=5.0mm. DIP transformer bobbin. We can make new bobbin tooling to meet different requirements. UL REC:94V-0.

EI28 6+6 Pins Vertical Bobbin Made of Phenolic

6+6 pins EI28 coil bobbin. EI28 vertical bobbin. Bobbin Size=29.6mmX24mmX19.9mm. Parallel Distance=17.6mm. Pin Pitch=5.0mm. DIP transformer bobbin. We can make new bobbin tooling to meet different requirements. UL REC:94V-0.

Vertical EI28 High Frequency Transformer Bobbin 5+5 Pins

EI28 5+5 pins coil former. EI28 vertical bobbin. Bobbin Size=26mmX22mmX19.7mm. Parallel Distance=17.5mm. Pin Pitch=5.0mm. DIP transformer bobbin. We can make new bobbin tooling to meet different requirements. UL REC:94V-0.

EI28 Vertical Ferrite Core Transformer Bobbin 6+6 Pins

EI28 coil former 6+6 pins. Vertical EI28 bobbin. Parallel Distance=17.5mm. Bobbin Size=29mmX24mmX19.6mm. Pin Pitch=5.0mm. DIP transformer bobbin. We can make new bobbin tooling to meet different requirements. UL REC:94V-0.

EI19 Bobbin With Pin 5+5 Vertical For Ferrite Core

EI19 ferrite core bobbin pin 5+5. EI19 vertical type transformer bobbin. Bobbin Size=22mmX15.6mmX16.2mm. Parallel Distance=10.2mm. Pin Pitch=4mm. DIP transformer bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.

EI19 Vertical Type Power Supply Bobbin 5+5 Pins

EI19 VD 5+5 pin transformer bobbin. EI19 vertical type transformer bobbin. Bobbin Size=22mmX15.6mmX16.4mm. Parallel Distance=10mm. Pin Pitch=4mm. DIP transformer bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.

EI19 Transformer Bobbin Pin 5+5 Vertical Coil Bobbin

EI19 vertical inductor bobbin. EI19 5+5 pins transformer bobbin. Bobbin Size=20.2mmX16.4mmX16.2mm. Parallel Distance=13mm. Pin Pitch=5mm. DIP transformer bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.

EI19 Transformer Bobbin Magnetic Core Vertical Bobbin

EI19 5+5 pins vertical bobbin. EI19 single slot transformer bobbin. Bobbin Size=20mmX18.1mmX15.8mm. Parallel Distance=13mm. Pin Pitch=4mm. DIP transformer bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.

EI19 Vertical Transformer Bobbin Pin 3+4 For Magnetic Core

EI19 vertical type 3+4pin bobbin. EI19 single slot transformer bobbin. Bobbin Size=14.8mmX14.8mmX15.1mm. Parallel Distance=11mm. Pin Pitch=4mm. DIP transformer bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.

Phenolic Transformer Bobbin EI19 Vertical Bobbin Pin 4+4

EI19 vertical bobbin with 4+4 pin. EI19 single slot transformer bobbin. Bobbin Size=19.9mmX15mmX16.2mm. Parallel Distance=10mm. Pin Pitch=5mm. DIP transformer bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.

EI19 Vertical Transformer Bobbin Pin 4+6 For Ferrite Core

EI19 vertical type coil bobbin. 4+6 pins EI19 single slot transformer bobbin. Bobbin Size=17.8mmX15.5mmX16.6mm. Parallel Distance=12.2mm. Pin Pitch1=3.5mm. Pin Pitch2=2.7mm. DIP transformer bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.

EI19 Vertical High Frequency Transformer Bobbin Pin 3+3

Vertical EI19 3+3pin coil bobbin. EI19 electronic transformer bobbin. Bobbin Size=15mmX13.5mmX14.5mm. Parallel Distance=11.3mm. Pin Pitch=4.7mm. DIP transformer bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.

EI19 High Voltage Transformer Bobbin 5+5 Pins Vertical Bobbin

EI19 vertical bobbin 10 pin. EI19 single slot transformer bobbin. Bobbin Parallel Distance=10.2mm. Pin Pitch=4mm. DIP transformer bobbin. We can make new bobbin tooling to meet different requirements. UL REC:94V-0.

EI19 Electronic Transformer Bobbin Vertical 5+5 Pins

5+5 pins vertical bobbin. EI19 single slot transformer bobbin. Bobbin Parallel Distance=13mm. Pin Pitch=3.9mm. Bobbin size=20.2mmX15.8mmX19mm. DIP transformer bobbin. We can make new bobbin tooling to meet different requirements. UL REC:94V-0.

EI19 Vertical Bobbin For Power Supply Transformer

5+5 pins vertical transformer bobbin. Bobbin Parallel Distance=13mm. Pin Pitch1=3.9mm. Pin Pitch2=5.1mm. Bobbin size=20mmX116mmX20.6mm. DIP transformer bobbin. We can make new bobbin tooling to meet different requirements. UL REC:94V-0.

EI19 Bobbin For Ferrite Core Vertical Transformer Bobbin 3+3 Pin

3+3 pin EI19 bobbin. EI19 transformer bobbin made of PA66 material. Bobbin Size=16.4mmX13.8mmX14.6mm. Parallel Distance=12mm. Pin Pitch=5mm. DIP transformer bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.

EI19 Vertical Bobbin 3+3 Pin For High Frequency Transformer

EI vertical 3+3 pin bobbin. EI19 transformer bobbin made of PA66 material. Bobbin Size=16.4mmX13.8mmX12.3mm. Parallel Distance=12mm. Pin Pitch=5mm. DIP transformer bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.

EI19 Small Coil Transformer 3+3 Pin Vertical Bobbin

Surface mounting transformer bobbin. EI19 bobbin made of PA66 material. Bobbin Size=15.4mmX13.8mmX14.1mm. Parallel Distance=11.3mm. DIP transformer bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.

EI19 High Power Transformer Vertical Bobbin 4+6 Pins

EI19 electronic transformer bobbin. 4+6 pins EI19 vertical coil bobbin. Bobbin Size=17.8mmX16.3mmX17.5mm. Parallel Distance=11.9mm. Pin Pitch1=3.5mm. Pin Pitch2=2.8mm. DIP transformer bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.

EI19 Ferrite Core Bobbin Vertical Transformer Bobbin With Pin 3+3

Transformer bobbin factory. EI19 vertical transformer bobbin 3+3 pin. Bobbin Size=15mmX13.6mmX14.9mm. Parallel Distance=11.5mm. Pin Pitch=4.8mm. PA66 material bobbin. DIP transformer bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.

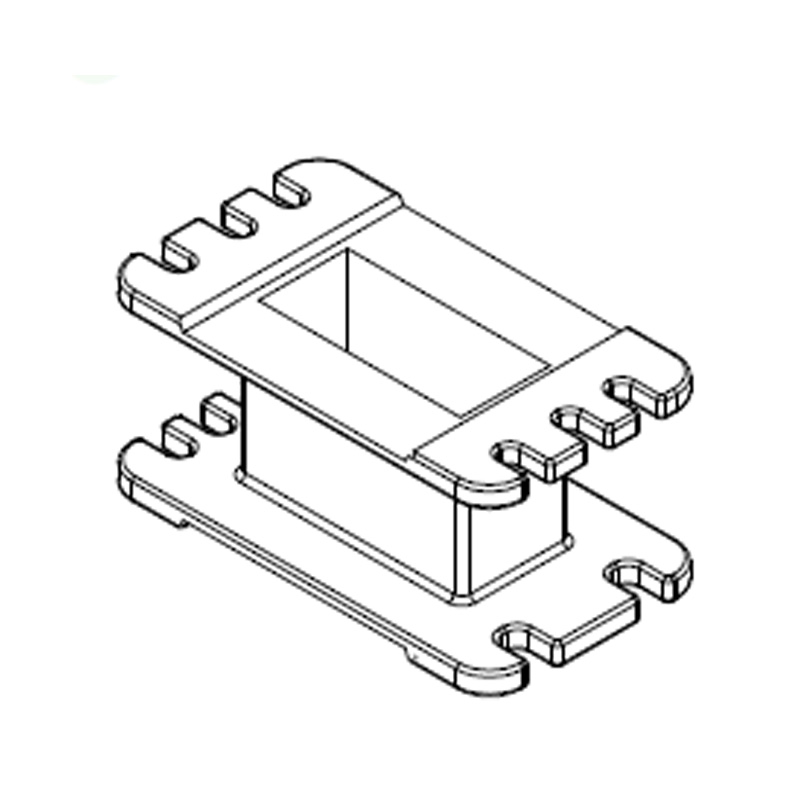

EI19 No Pin Transformer Bobbin For Ferrite Cores

High quality EI19 transformer bobbin. PC40 material ferrite cores. Bobbin Size=23.6mmX13.3mmX11mm. PBT material bobbin. No pin transformer bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.

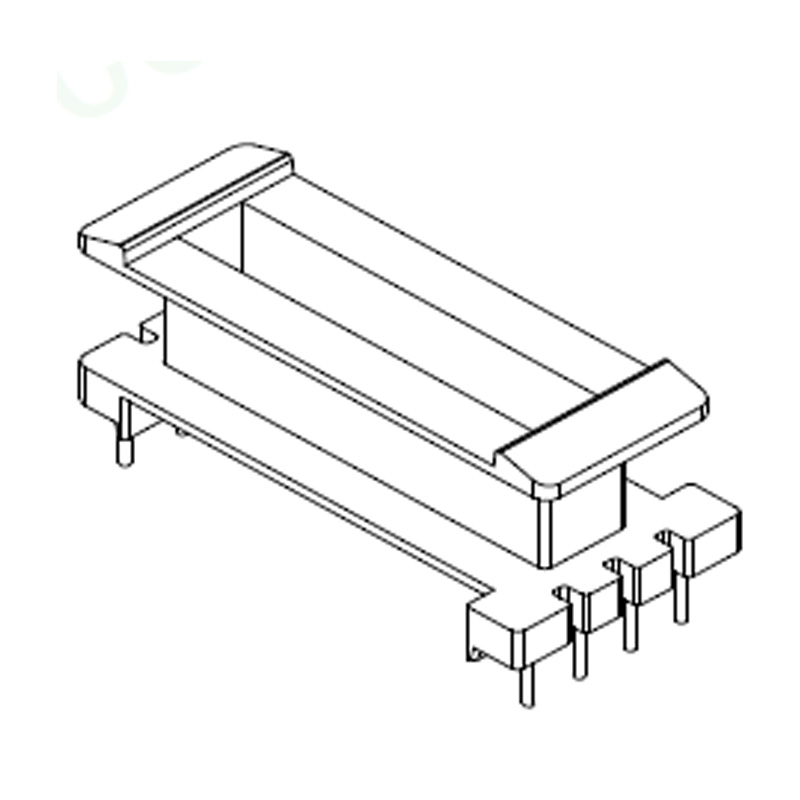

EI19 Vertical High Frequency Bobbin 3+4 Pin For Transformer

Transformer vertical bobbin EI19. 3+4 pins coil bobbin. Bobbin Size=38mmX18.1mmX14.2mm. Parallel Distance=33.9mm. Pin pitch1=4.1mm. Pin pitch2=4.6mm. Nylon material transformer bobbin. DIP transformer bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.

EI19 High Voltage Transformer Vertical Bobbin 3+3 Pins

High frequency core bobbin. Vertical EI19 bobbin 3+3 pins. Bobbin Size=15.4mmX13.8mmX14.1mm. Parallel Distance=10.5mm. Transformer phenolic bobbin. DIP transformer bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.

High Performance Transformer Bobbin EI19 Vertical Bobbin Pin 3+3

Lead free transformer bobbin. 3+3 Pins EI19 vertical bobbin. Bobbin Size=15mmX13.8mmX16mm. Parallel Distance=11.3mm. Pin pitch=4.6mm. Transformer phenolic bobbin. DIP transformer bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.

EI28 Ferrite Core Bobbin 6+6 Pins Vertical Bobbin

6+6 pins EI28 transformer bobbin. Vertical EI28 winding bobbin. Bobbin Size=29.2mmX24.2mmX19.4mm. Pin pitch=5.0mm. Parallel Distance=17.5mm. Transformer phenolic bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.

EI28 Vertical 5+5 Pin Bobbin For Electronic Transformer

EI28 coil former with 5+5 pin. Vertical EI28 winding bobbin. Bobbin Size=26.4mmX22.2mmX19.0mm. Pin pitch=5.0mm. Parallel Distance=17.5mm. Transformer phenolic bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.
