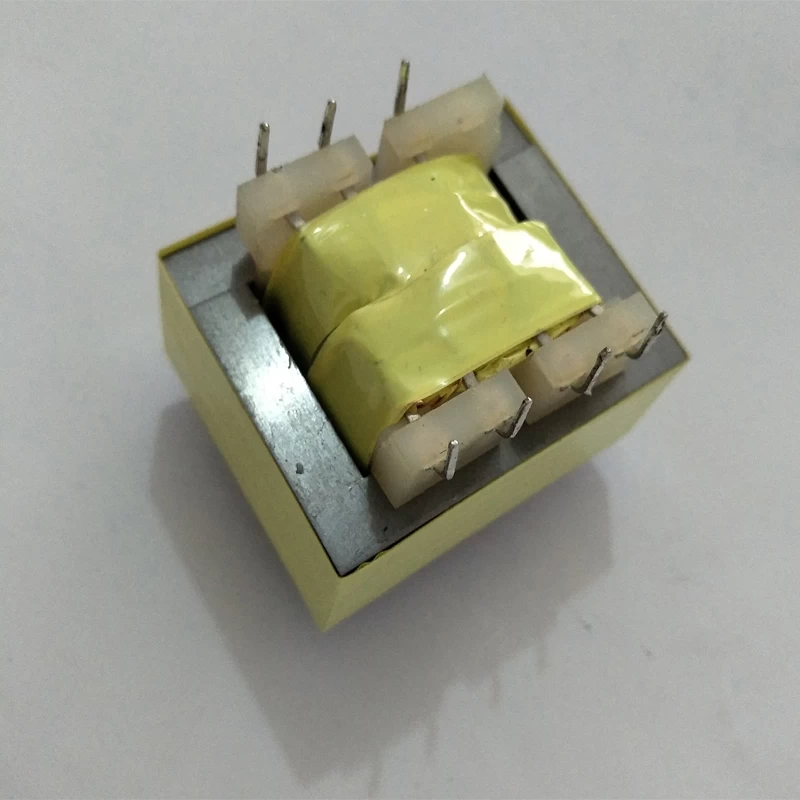

EI35 PCB Mount Low Frequency Laminated Transformer 2.4VA

2.4 VA EI35 PCB mounting laminated transformer. Low frequency transformer has rugged construction - no additional mounting hardware, universal design, fits industry-standard footprints. Low Frequency, open-style laminated, split bobbin, horizontal plug-in series.



We are professional transformer manufacturer, we have good relationship with material suppliers, so we can provide customers with good quality and low price transformers. If you are looking for EI series PCB mounting laminated transformers(low frequency transformers), welcome to contact us.


Quick Details

Part No: EI35 Laminated transformers 2.4VA Series

Brand name: MCT

High (2500V) isolation2500VRMS HIPOT

Custom made: Available

Non-concentric design - eliminates ESS

Logo: Can be customized

High insulation performance

Packing: Carton,can custom

Available in single or dual primary

OEM: Available

Certification: ISO9001,ROHS,CE

Shipping: Air, Ship, etc

Lead time: 25 days after payment

MOQ: Any quantity


Part Information

Product Name: EI35 PCB Mount Low Frequency Laminated Transformer 2.4VA

Product Benefits: No crossover between primary/secondary winding leads, Vacuum impregnated - withstands board washing, Systems and reduces audible noise, Baked resin provides an environmentally-resistant finish.

Applications: air conditioner, VCD, UPS power supply, microwave oven, amplifier, medical treatment, chemical industry and other electronic machine.

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

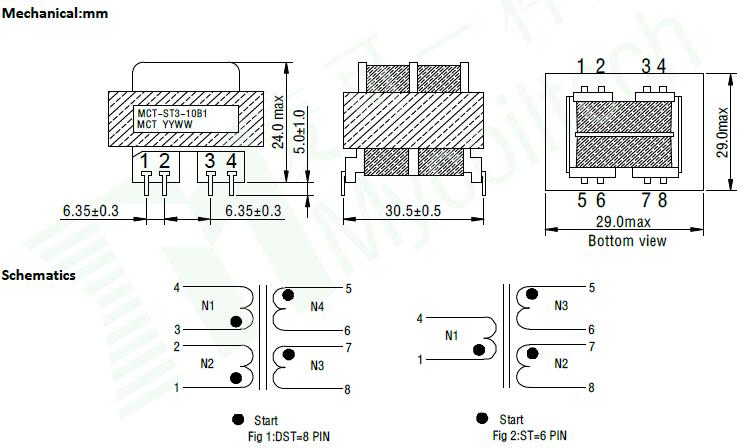

Product Specifications

PCB mounting low frequency EI35 transformer manufacture

MCT Part No.

115V-6Pin

MCT Part No.

115V/230V-8Pin

Secondary RMS Rating

Series

Parallel

MCT-ST3-10B1

MCT-DST3-10B1

10V C.T. @ 0.25A

5V @ 0.5A

MCT-ST3-12B5

MCT-DST3-12B5

12.6V C.T. @ 0.2A

6.3V @ 0.4A

MCT-ST3-16B9

MCT-DST3-16B9

16V C.T.@ 0.15A

8V @ 0.3A

MCT-ST3-20B13

MCT-DST3-20B13

20V C.T. @ 0.12A

10V @ 0.24A

MCT-ST3-24B17

MCT-DST3-24B17

24V C.T. @ 0.1A

12V @ 0.2A

MCT-ST3-28B21

MCT-DST3-28B21

28V C.T. @ 0.085A

14V @ 0.17A

MCT-ST3-36B25

MCT-DST3-36B25

36V C.T. @ 0.065A

18V @ 0.13A

MCT-ST3-48B29

MCT-DST3-48B29

48V C.T. @ 0.05A

24V @ 0.1A

MCT-ST3-56B33

MCT-DST3-56B33

56V C.T. @ 0.045A

28V @ 0.09A

MCT-ST3-120B37

MCT-DST3-120B37

120V C.T. @ 0.02A

60V @ 0.04A
