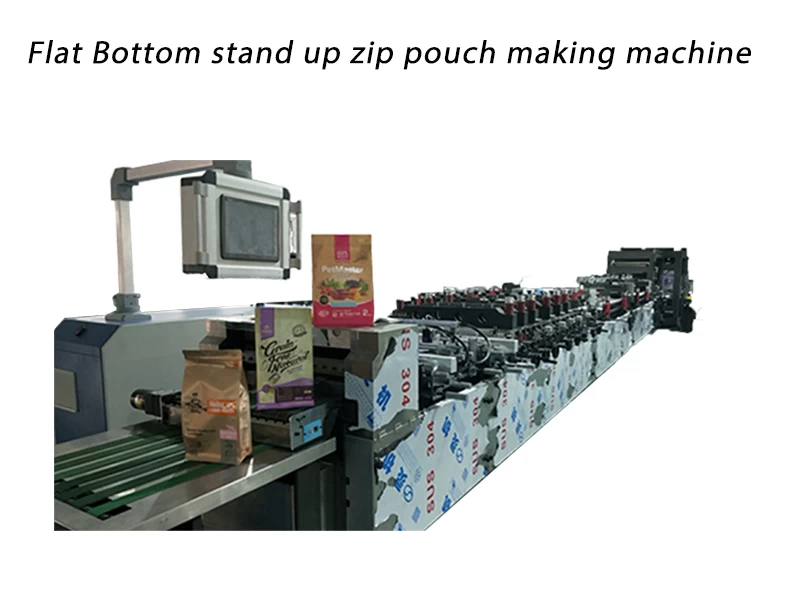

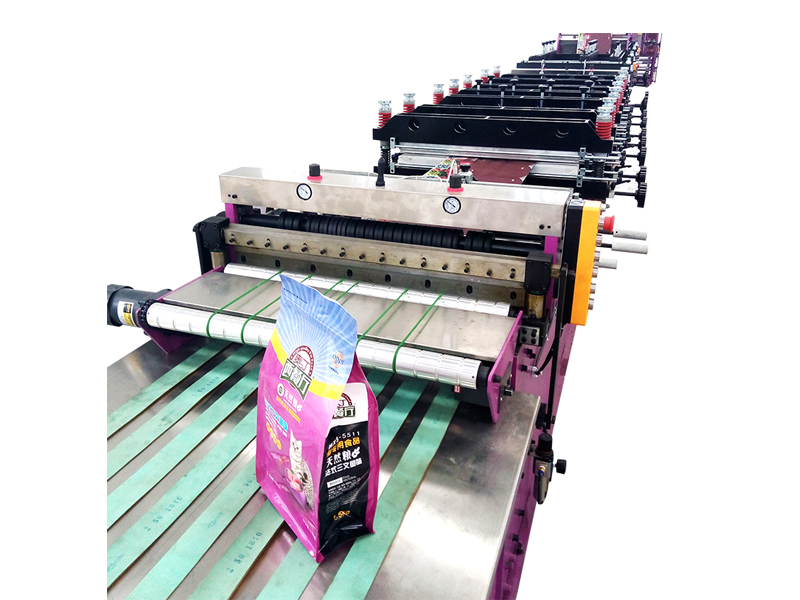

Configuration of 8 Sides Sealing Bag flat bottom Stand Up Zipper Pouch Making Machine
Machine function
|

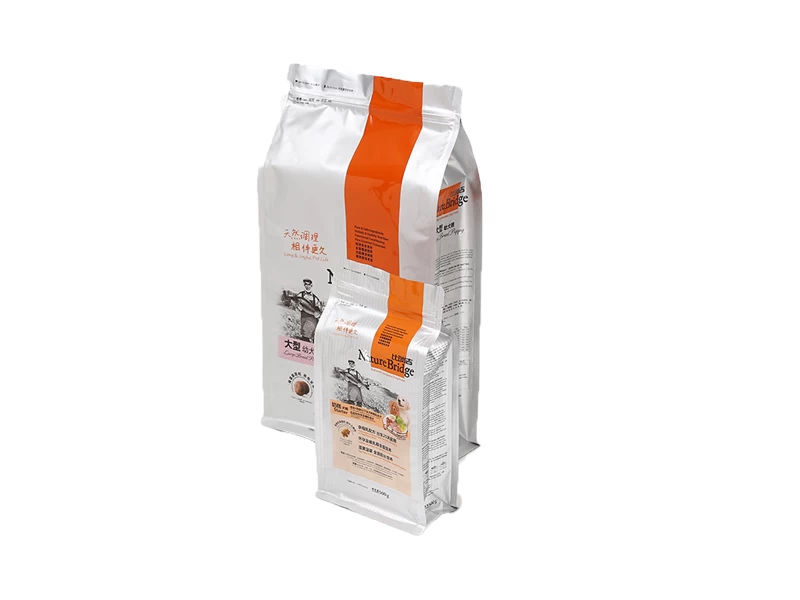

Single out four side pouch, single out flat bottom pouch,
single out flat bottom pouch, zip pouch ,single out flat bottom zip pouch
|
Main electrical configuration
|
The main engine is Panasonic 5.0KWservo motor,
traction four sets of Panasonic servo motor,
with Panasonic PLC,
Taiwan Weilun LCD touch screen, unwinding constant tension,
Servo linear organ type feeding
|
Suitable base material
|
Various plastic composite films and paper-plastic composite materials such as BOPP, CPP, PET, PE, nylon and aluminum plating.
|
Mechanical maximum speed
|
80 times / min
|
Maximum discharge line speed
|
≤ 40 m / min (depending on the material)
|
Maximum size of the roll
|
Φ800×1400mm (diameter * width)
|
Bag Size
|
Height* Width* Single Side Insertion Depth = 680mm*350mm*80mm
|
Positioning accuracy
|
≤±0.2mm
|
Number of heat seal knives
|
The horizontal seal adopts 4 sets of upper and lower heating, 2 sets of hot zipper heads, and 2 sets of up and down cooling.
The zipper adopts 1 set of up and down heating and 1 set of up and down cooling.
The vertical seal adopts 1 set of upper and lower heating and 1 set of up and down cooling.
Hot PE is adopts heating in 1 group and cooling in 1 group.
The hot bottom adopts 3 sets of heating and 1 set of upper and lower cooling.
The organ point heating is adopts 2 sets down heating.
The triangle hot is 1 set up and down heating, 1 set up and down cooling
|
Temperature setting range
|
0～300°C
|
Total power
|
About 85Kw
|
Dimensions
|
18500×2600×1950mm (length×width×height)
|
Net weight
|
About 7,000 kg
|
colour
|
304 stainless steel wire drawing shell, black phosphating body
|
Control system
|
PLC high speed bag making machine control system
|
●16 years focus on pouch making machine!Our expericnec is your advantage!
●Direct manufacturer(own factory)!
●Pouch making machine get Japan Panasonic and European engineer’s praise!
●480 set machine installed!
●2 years warranty time!
●Origin Idea ,design by our own engineer,accept OEM or ODM!
●Highed skilled engineer ,easy operation!
●Turn-key project, remote support on line!
●Photos and videos can be taken while testing the machine, so that you can check the specifications and quality on line!
●Qualified machine under global safety standards to guarantee production safety and workers security.
