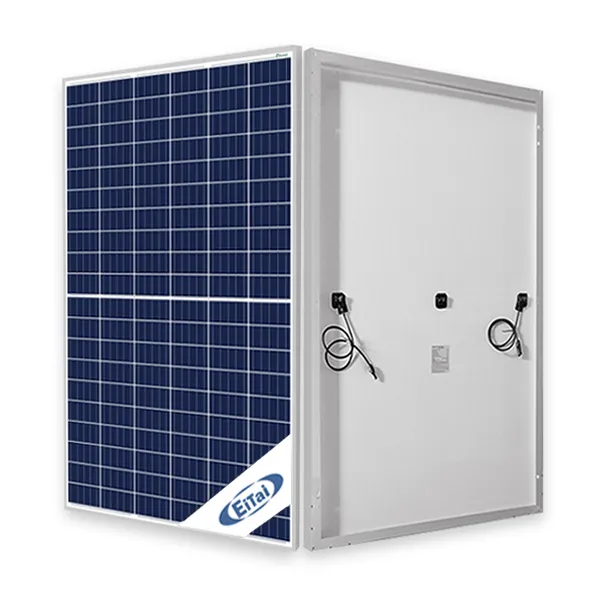

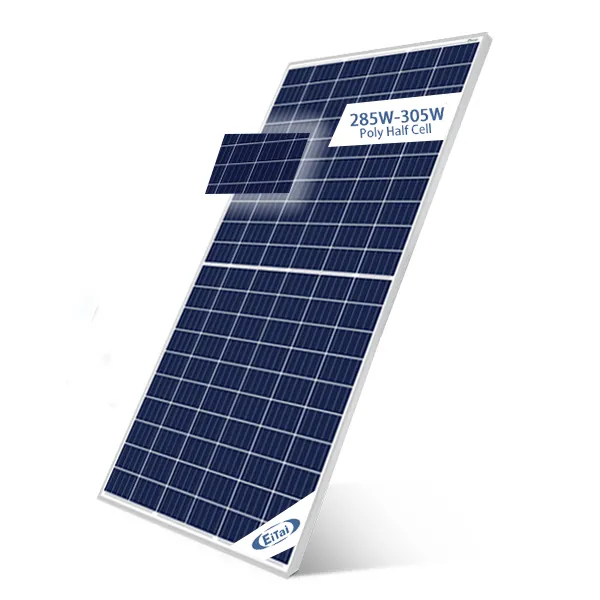

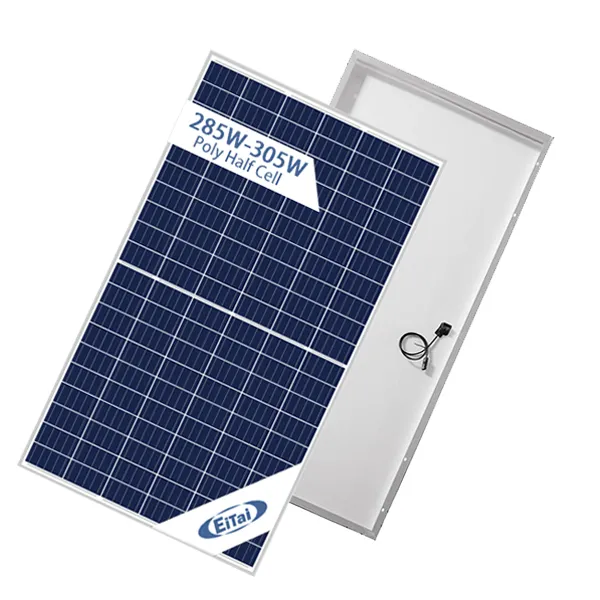

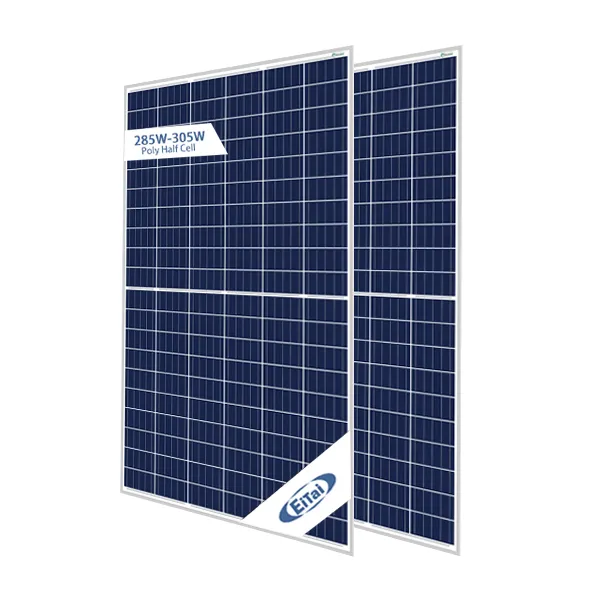

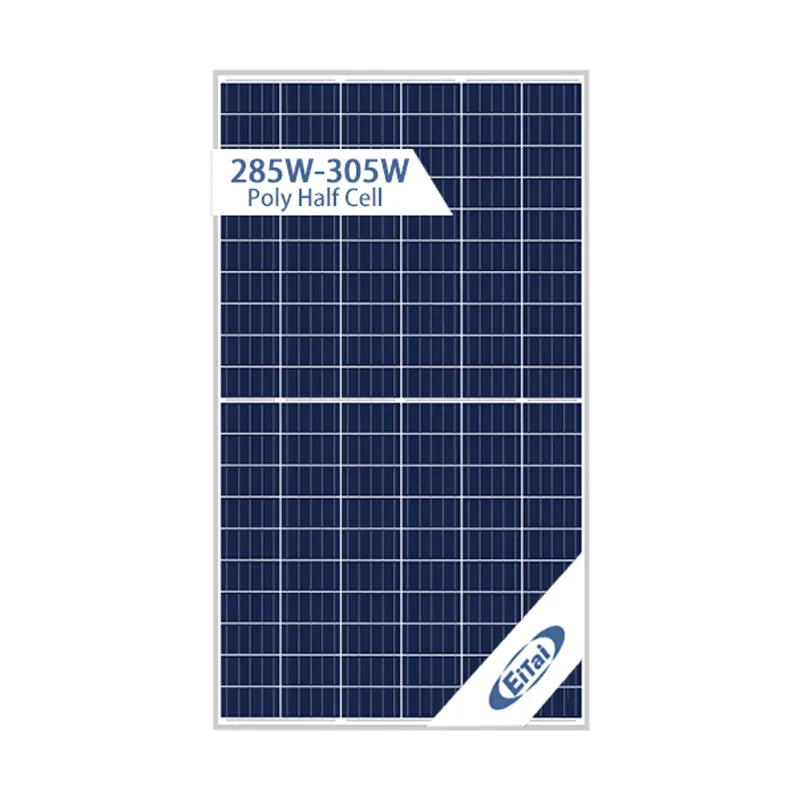

EITAI Half Cell Solar Module POLY Panel
EITAI Ploycrystalline Half Cell Technologe Poly Module 300w 305w 120cells Solar Panel
High Efficiency Module with half cell technology
-
- 120cells POLY PERC technology
-
- Low power loss
-
- Better shading tolerance
-
- Tolearnce: 0+3%
-
- Higher Output of Power
-
- Optimize the temperature coefficient
-
- Stronger the physical property
*12 yearsproduct workmanship warranty
*25 / 30 yearslinear power output warranty
Product Specifications :
|
Module
|
ETHP285-305W
|
|
Peak Power Watts( Pmax/W)
|
285
|
290
|
295
|
300
|
305
|
|
Power Output Tolerance( W)
|
0~+5
|
|
Maximum Power Voltage( Vmp/V)
|
32.10
|
32.30
|
32.50
|
32.70
|
32.90
|
|
Maximum Power Current (Imp/A)
|
8.88
|
8.98
|
9.08
|
9.18
|
9.28
|
|
Open Circuit Voltage( Voc/V)
|
38.70
|
38.90
|
39.10
|
39.30
|
39.50
|
|
Short Circuit Current( Isc/A)
|
9.42
|
9.49
|
9.57
|
9.65
|
9.73
|
|
Module Efficiency (%)
|
17.10
|
17.40
|
17.70
|
18.00
|
18.30
|
|
Solar Cells
|
Ponocrystalline
|
|
Cell Orientation
|
120 cells(6*20)
|
|
Module Dimensions
|
1675*992*35mm
|
|
Weight
|
18.8kg
|
|
Blacksheet
|
White
|
|
Frame
|
Sliver/Black Anodized Aluminium Alloy
|
|
Junction Box
|
IP68 rated
|
|
Cables
|
4.0mm2
|
|
Connector
|
MC4
|
Product Details :
|
Tempered Glass
* 12% Ultra Clear Tempered Glass.
* 30% Lower Reflection
* 3.2mm thickness
* >91% Higher Transmittance
* High mechanical strength
|
|
EVA
* >91% Higher Transmittance EVA,
* Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability
|
|
|
|
Junction box
Conventional standalone Edition and engineering custom Edition Quality diode ensures Module running safety IP67 Protection level
Heat Dissipation Long service life
|
|
Mono Half Cells
* PERC Half Cells
* Higher Power Output
* Less Shading Effect
* Appearance Consistency
|
|
|
Frame
* Aluminum Alloy Frame
* 120N Tensile Strength Frame
* 110% Seal-lip Design Glue Injection
* Black/Silver Optional
|

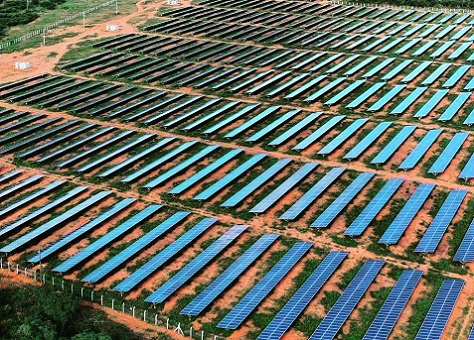

Project :
Product Packing :
Package:
- 30pcs per pallet
- 845pcs per 40'HQ
