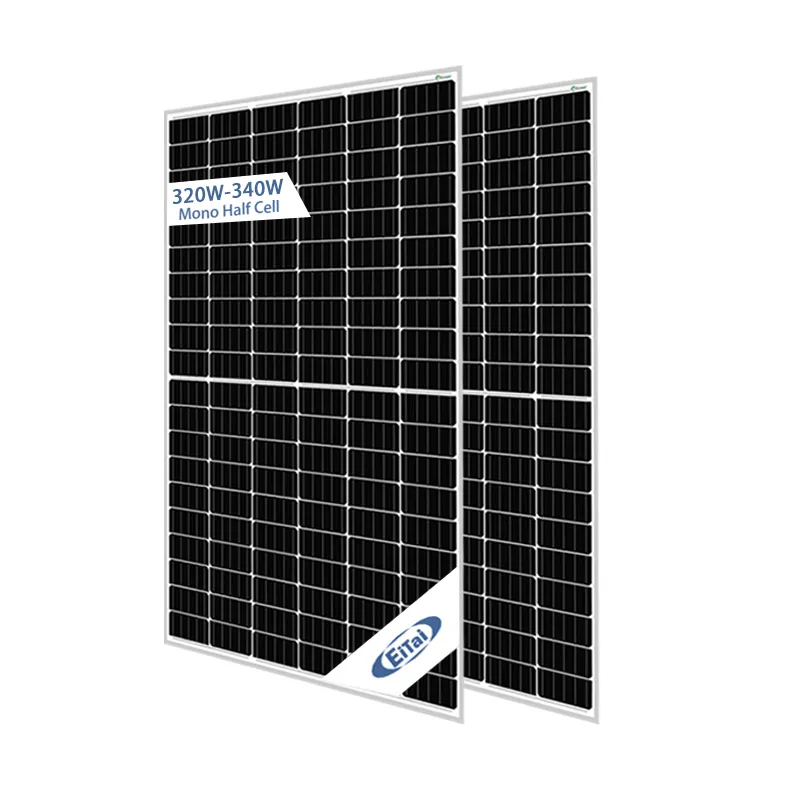

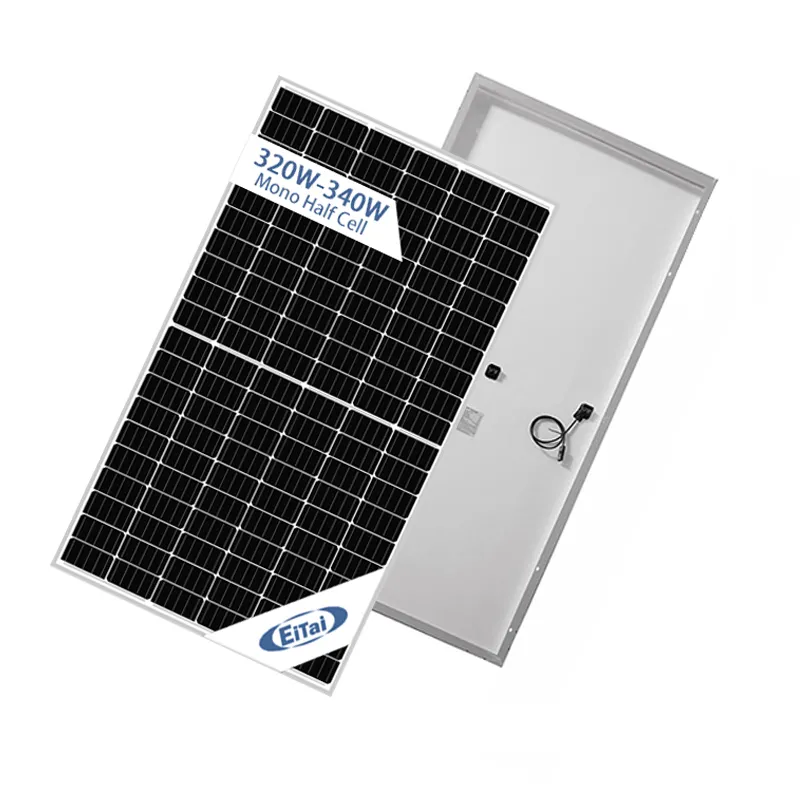

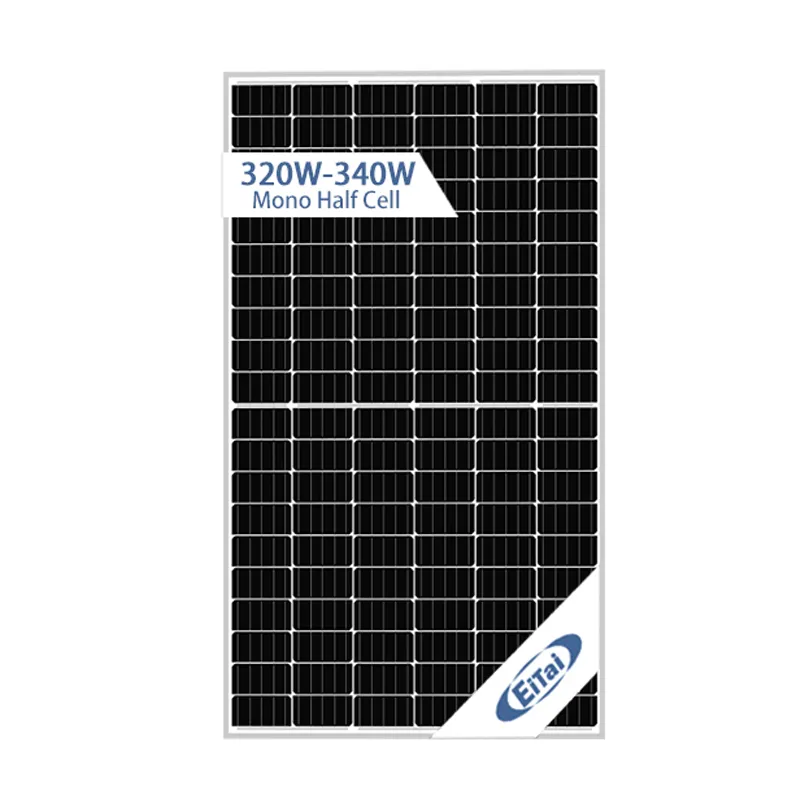

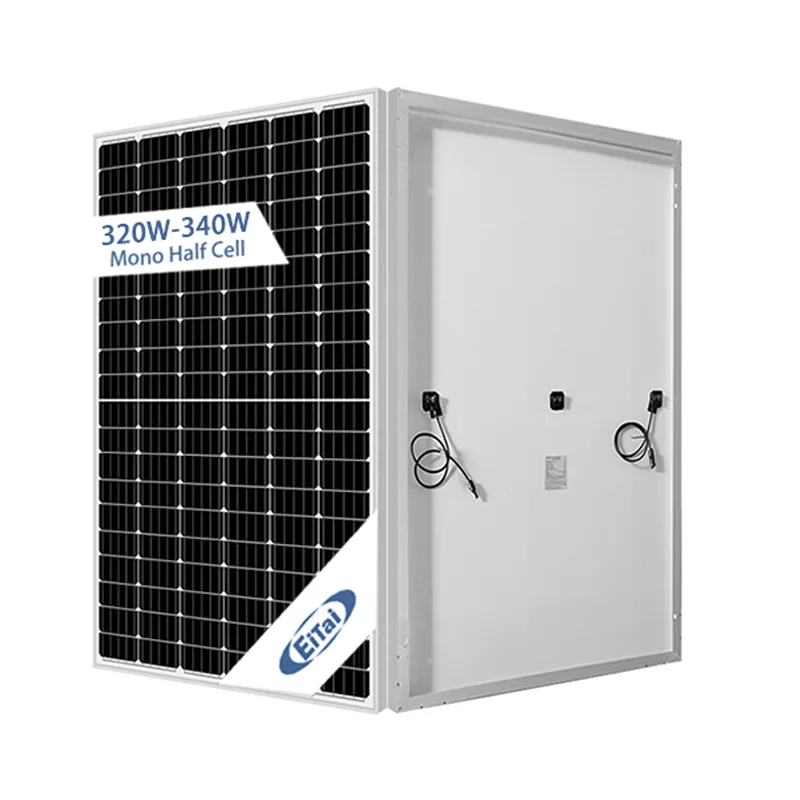

EITAI Half Cut Solar Panel PV Module
EITAI Half Cut Solar Panel 320w 325w 330w 335w 340w PV Module 120cells
High Efficiency Module with Half Cell Technology, Realize Better shading tolerance.
High Efficiency Module with half cell technology
-
- 120cells MONO PERC technology
-
- Low power loss
-
- Better shading tolerance
-
- Tolearnce: 0+3%
-
- Higher Output of Power
-
- Optimize the temperature coefficient
-
- Stronger the physical property
* 12 years product workmanship warranty
* 25 / 30 years linear power output warranty

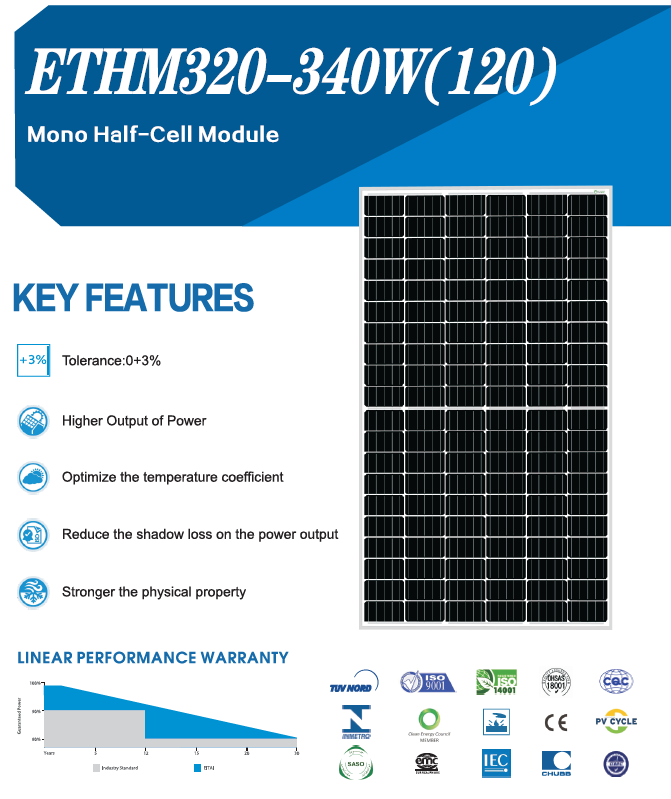

Product Specifications :
|
Module
|
ETHM320-340W
|
|
Peak Power Watts( Pmax/W)
|
320
|
325
|
330
|
325
|
340
|
|
Power Output Tolerance( W)
|
0~+5
|
|
Maximum Power Voltage( Vmp/V)
|
33.62
|
33.87
|
34.13
|
34.36
|
34.63
|
|
Maximum Power Current (Imp/A)
|
9.52
|
9.60
|
9.67
|
9.75
|
9.82
|
|
Open Circuit Voltage( Voc/V)
|
40.27
|
40.56
|
40.84
|
41.12
|
41.36
|
|
Short Circuit Current( Isc/A)
|
10.16
|
10.23
|
10.30
|
10.38
|
10.46
|
|
Module Efficiency (%)
|
19.00
|
19.30
|
19.60
|
19.90
|
20.20
|
|
Solar Cells
|
Monocrystalline
|
|
Cell Orientation
|
120 cells(6*20)
|
|
Module Dimensions
|
1675*992*35mm
|
|
Weight
|
18.8kg
|
|
Blacksheet
|
White
|
|
Frame
|
Sliver/Black Anodized Aluminium Alloy
|
|
Junction Box
|
IP68 rated
|
|
Cables
|
4.0mm2
|
|
Connector
|
MC4
|
Product Details :
|
Tempered Glass
* 12% Ultra Clear Tempered Glass.
* 30% Lower Reflection
* 3.2mm thickness
* >91% Higher Transmittance
* High mechanical strength
|
|
EVA
* >91% Higher Transmittance EVA,
* Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability
|
|
|
|
Junction box
Conventional standalone Edition and engineering custom Edition Quality diode ensures Module running safety IP67 Protection level
Heat Dissipation Long service life
|
|

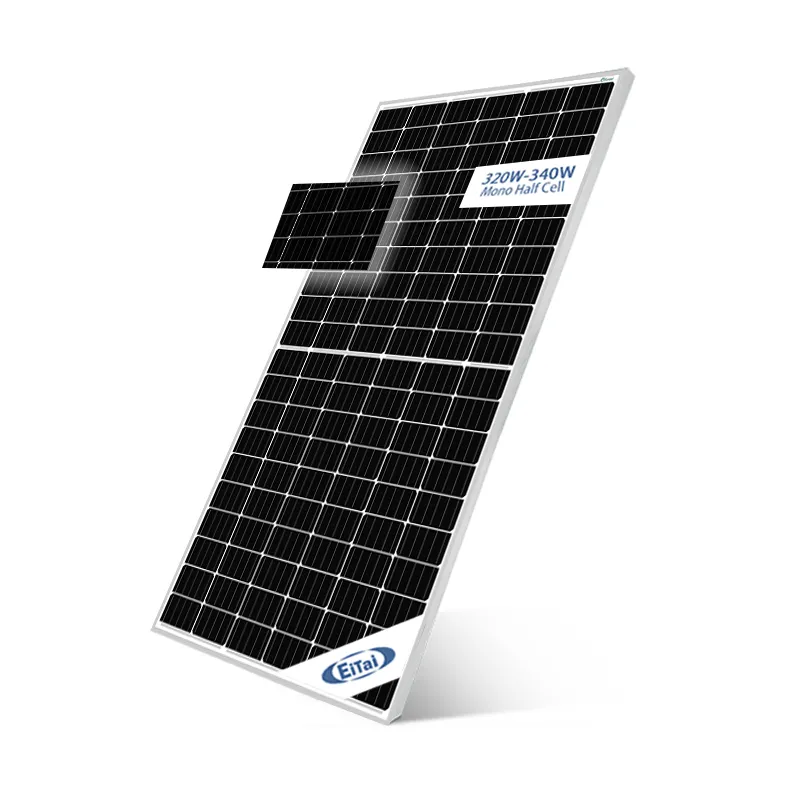

Mono Half Cells
* PERC Half Cells
* Higher Power Output
* Less Shading Effect
* Appearance Consistency
|
|
|
Frame
* Aluminum Alloy Frame
* 120N Tensile Strength Frame
* 110% Seal-lip Design Glue Injection
* Black/Silver Optional
|

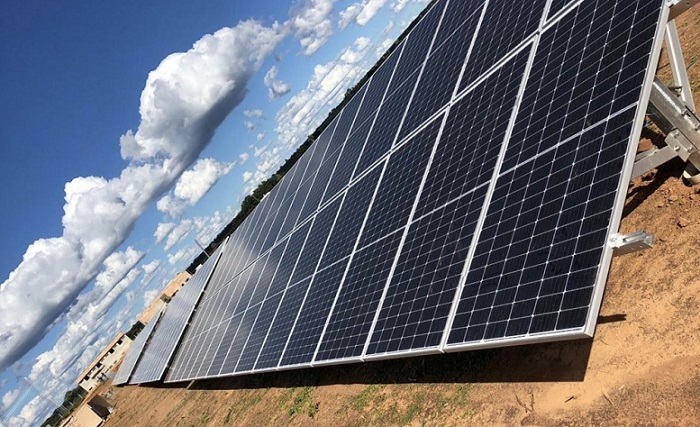

Solar Panel Project :

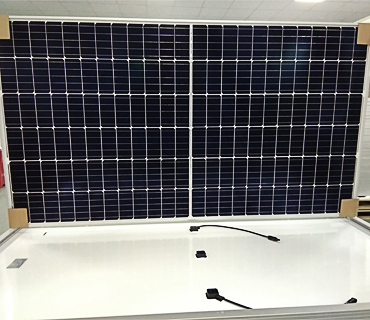

Product Packing :
Package:
- 30pcs per pallet
- 845pcs per 40'HQ
