EITAI Monocrystalline Solar Module 72cells PV Panels

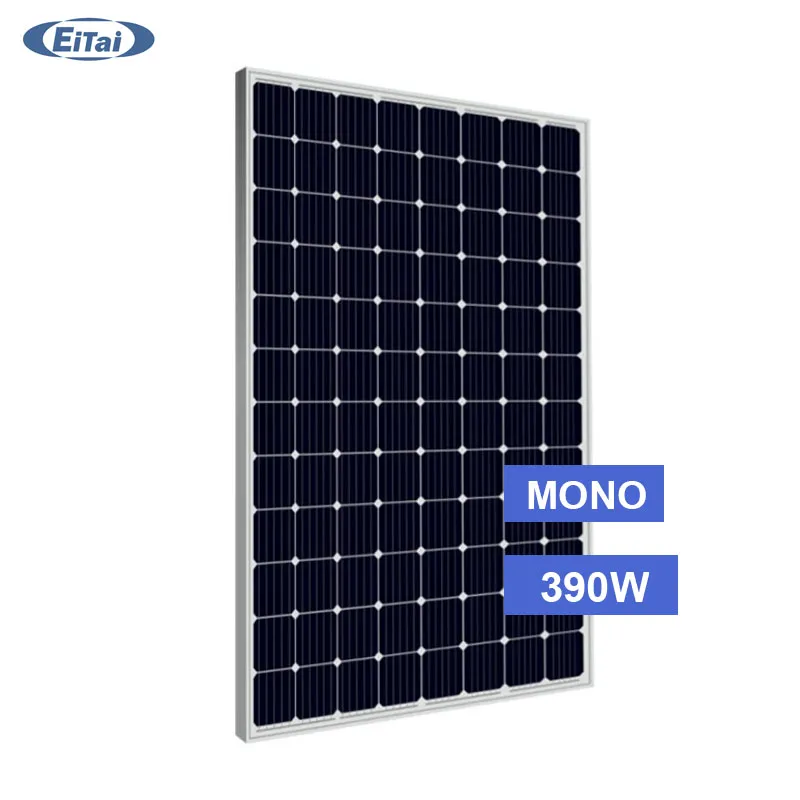

EITAI Monocrystalline Solar Module 390watt 72cells PV Panel
Specification Display :
|
Module
|
ETM390-400W(72)
|
|
Maximum Power Pmax
|
W
|
390
|
400
|
|
Maximum Power Voltage(Vmp)
|
V
|
39.8
|
41.4
|
|
Maximum Power Current(Imp)
|
A
|
9.8
|
9.73
|
|
Open Circuit Voltage(Voc)
|
V
|
47.76
|
49.32
|
|
Short Circuit Current(Isc)
|
A
|
10.29
|
10.22
|
|
Cell Efficiency
|
%
|
22.71
|
23.29
|
|
Module Efficiency
|
%
|
20.3
|
20.82
|
|
Tolerance
|
0+3%
|
|
Max System Open Circuit Voltage
|
1500V
|
|
Max Series Fuse Rating
|
15A
|
|
Operate Temperture Scope
|
-40/+85°C
|
|
Relative Humidity
|
0~100%
|
|
Standard Test Conditions[STC]:irradiance 1000W/m²;AM1.5;module temperature 25°C.Measuring uncertainty of power is within ±3%.
|
|
Tolerance of Pmpp:0~3%.Certified in accordance with IEC61215,IEC61730-1/2.
|

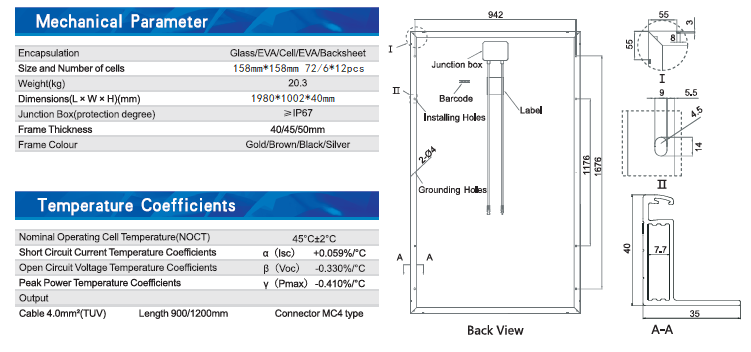

Product Dimensions :
Solar Cell
☆ Anti PID
☆ 19.78% High Efficiency PV Cells
☆ Appearance Consistency
☆ Color sorting ensure consistent appearance on each module
Glass
☆ Anti-reflective glass
☆ Self-cleaning function
☆ Module efficiency is increased by 3%
☆ Service life is as long as 25 years (30 years optional)
Frame
☆ Stock-size
☆ Silvery and black
☆ thickness 30/35/40/45/50mm
☆ stress test
Junction box
☆ Conventional standalone edition and
engineering custom edition
☆ Quality diode ensures module running safety
☆ IP67 protection level
☆ Heat dissipation
☆ Long service life
Packaging & Delivery :
Package 26pcs per pallet, 260pcs per 20ft; 624pcs per 40hq.
Delivery by Road/ Railway/ Sea/ Air.

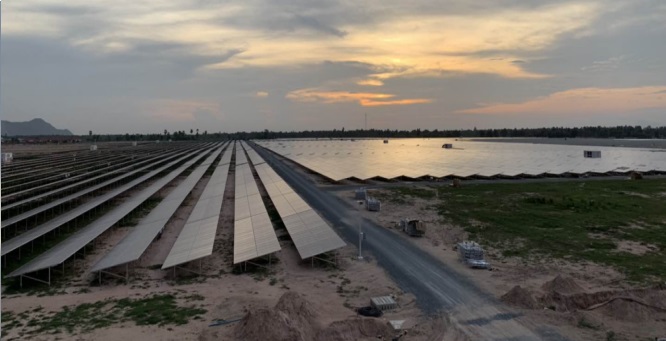

Project :
