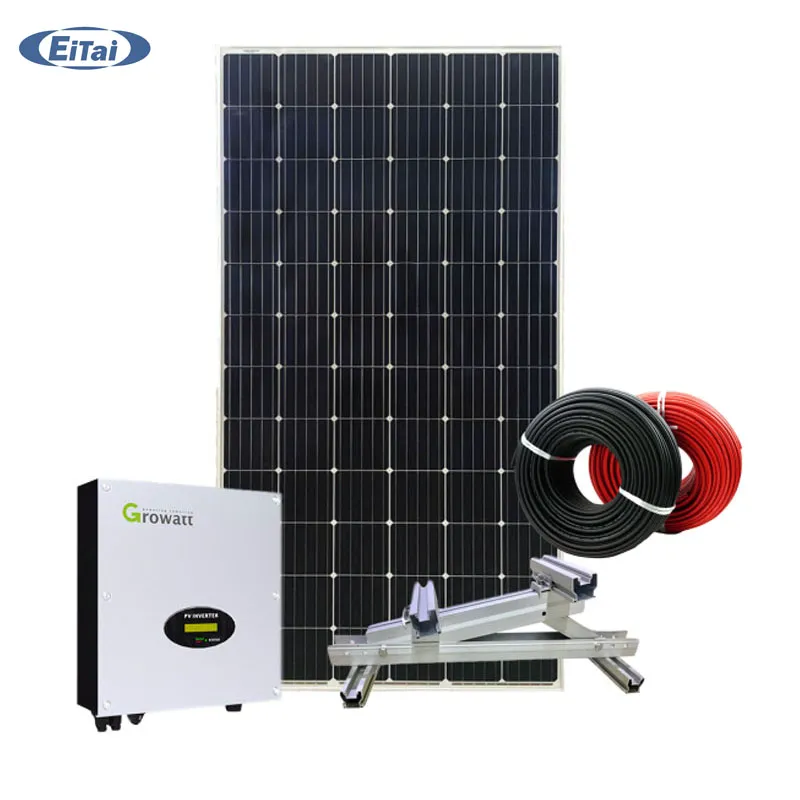

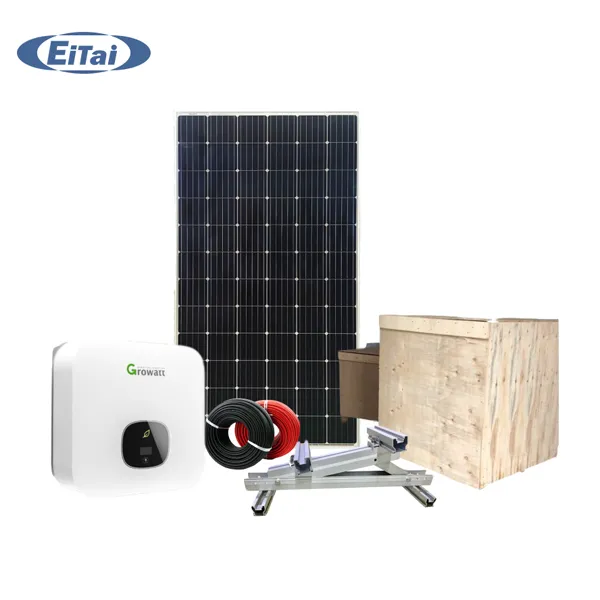

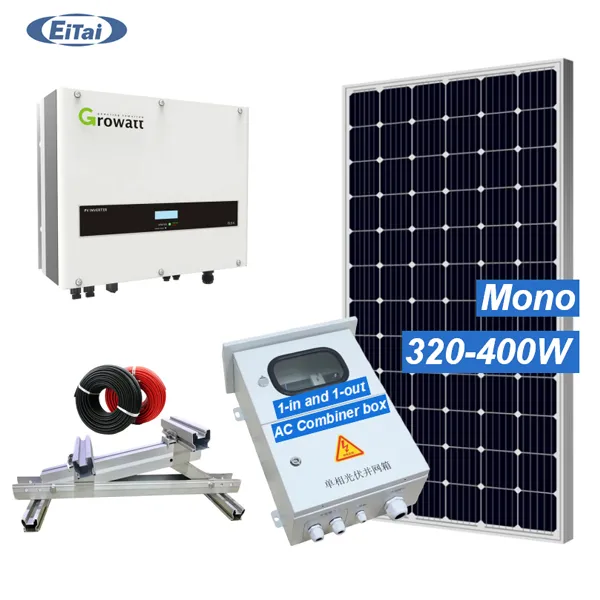

EITAI On Grid Solar Panel Solar Energy System

EITAI On Grid Solar System 5kw Solar Pv Panel System Hot Selling Systema Energia.


  • Power range220-240V
  • CertificateTUV
  • Output Type50/60Hz

EITAI On Grid Solar Panel Solar Energy System

Eitai Solar Panel System On Grid 10kw There Phase Solar System Home with Inverter



Prodcut Detail :


Model Number: On Grid Solar System

Application: HOME

Solar Panel Type: Monocrystalline Silicon

Output Frequency: 50/60HZ

Work Time (h): No-Limited

Certificate: TUV

Inverter: Growatt On grid inverter

Brackets: Aluminum alloy bracket

Warranty: 3 years

Output Voltage: 220-240V Single Phase or 380V Three Phase

Mounting brackets: Roof/ground installation

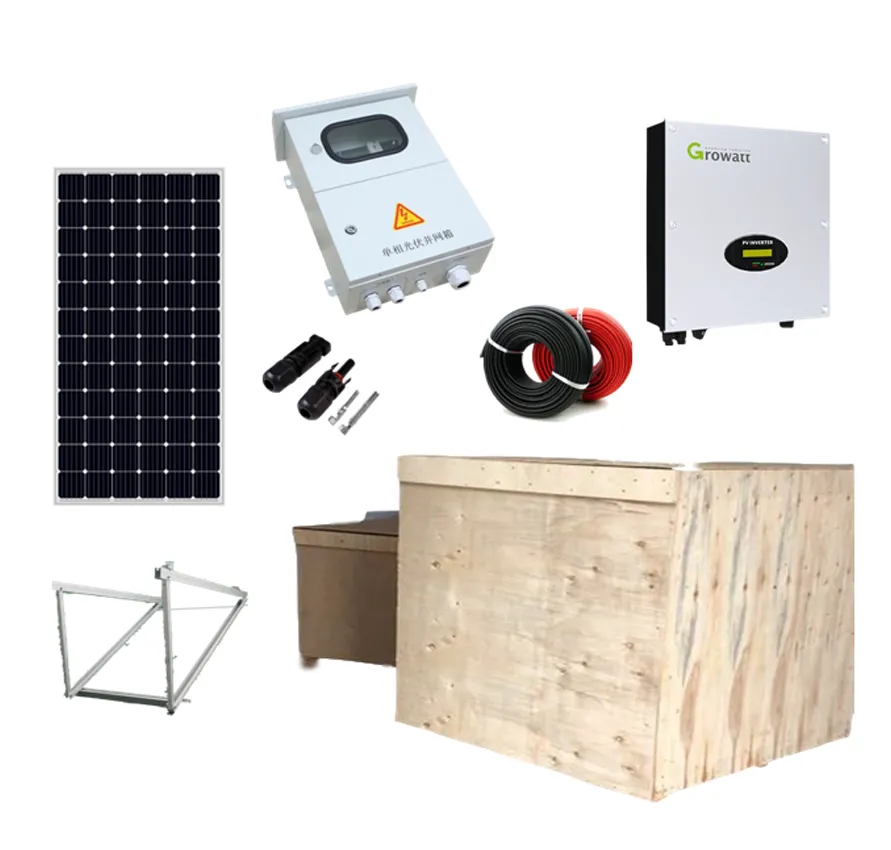

Configuration Detail :


On-grid Solar System 10KW
Item
Description
Qty
Unit
Mounting Brackets
EITAI standard/ custmoized Roof/ Ground mounting kit
1
set
Solar Panel
POLY 340W 72 Cells
30
pcs
Solar Inverter
GROWATT 10000TL3-S
1
set
DC Cable
1*4mm²
150
meters
AC Cabel
3*6mm²
50
meters
Ground Wire
 1*4mm², yellow/ green wire
50
meters
Connector
Waterproof MC4
30
pairs
AC Combiner Box
Three Phase 1 in 1 out
1
set
Tool Box
PV wiring Tools
1
set
Package
Wooden box
1
set


Solar Panel

▶PID Free PV Module

▶0-5W Positive Power Output Guarantee

▶25 Years Power Output Guarantee

▶100% Double Full EL Inspection


Growatt On Grid Inverter

▶5 years standard warranty

▶Support Working in Parallel

▶Max.Efficiency 99.7%

▶Integrated DC switch for added safety protection

▶With WIFI Monitoring Device


Solar Mounting System

▶ Customized for :Rooftop(Flat/Pitched), Ground , Carport etc

▶ Adjustable tile angle from 0 to 65 degree

▶ Tile roof: Aluminium type

▶Compatible with all solar modules.


AC Combiner box

▶  Include FUSE,SPD,  Leakage  Breaker etc.

▶ Protect Solar System


DC Cable & MC4 Connector

▶PV Cable 4mm2 6mm2

▶MC 4 compatible Connector


10kw solar systems
