EITAI Photovoltaic Panels Monocrystalline Solar Panel

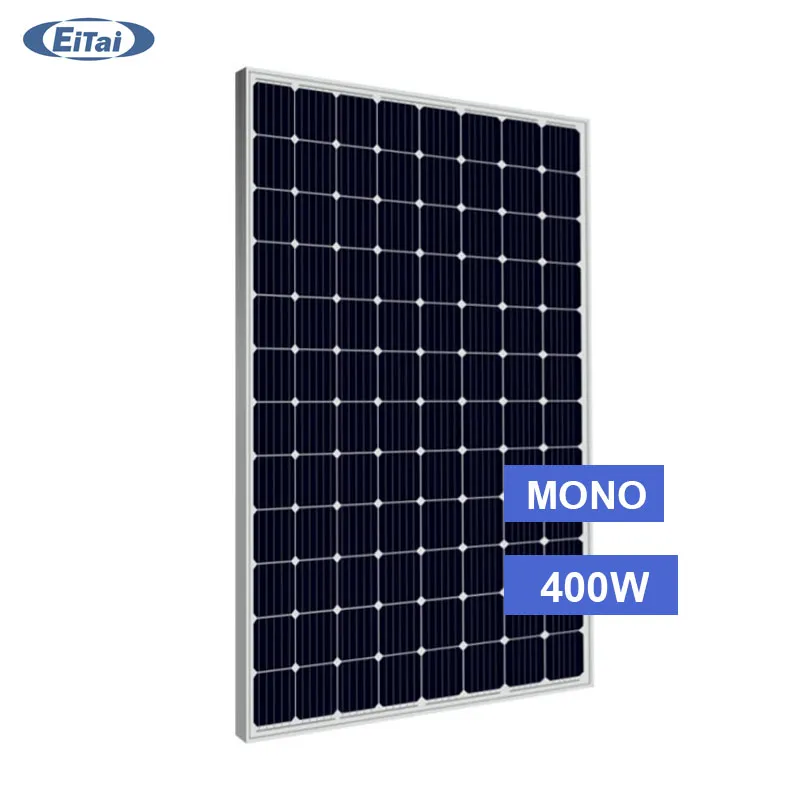

EITAI 400W MONO Solar Panel 72cells Module 400watt for PV System
Certification :
By CE, TUV, UL, IEC61215, IEC61730, CSA,CEC, JET.
Solar Panel Specification :
|
Module
|
ETM350-400W(72)
|
|
Maximum Power Pmax
|
W
|
350
|
360
|
370
|
380
|
400
|
|
Maximum Power Voltage(Vmp)
|
V
|
38.8
|
39.1
|
39.3
|
39.5
|
39.9
|
|
Maximum Power Current(Imp)
|
A
|
9.02
|
9.21
|
9.41
|
9.62
|
10.02
|
|
Open Circuit Voltage(Voc)
|
V
|
46.56
|
46.92
|
47.16
|
47.4
|
47.84
|
|
Short Circuit Current(Isc)
|
A
|
9.47
|
9.67
|
9.89
|
10.1
|
10.32
|
|
Cell Efficiency
|
%
|
19.8
|
20.1
|
20.48
|
20.8
|
21.5
|
|
Module Efficiency
|
%
|
18.22
|
18.74
|
19.26
|
19.78
|
20.84
|
|
Tolerance
|
0+3%
|
|
Max System Open Circuit Voltage
|
1500V
|
|
Max Series Fuse Rating
|
15A
|
|
Operate Temperture Scope
|
-40/+85°C
|
|
Relative Humidity
|
0~100%
|
|
Standard Test Conditions[STC]:irradiance 1000W/m²;AM1.5;module temperature 25°C.Measuring uncertainty of power is within ±3%.
|
|
Tolerance of Pmpp:0~3%.Certified in accordance with IEC61215,IEC61730-1/2.
|
Product Dimensions :
Solar Cell
☆ Anti PID
☆ 19.78% High Efficiency PV Cells
☆ Appearance Consistency
☆ Color sorting ensure consistent appearance on each module
Glass
☆ Anti-reflective glass
☆ Self-cleaning function
☆ Module efficiency is increased by 3%
☆ Service life is as long as 25 years (30 years optional)
Frame
☆ Stock-size
☆ Silvery and black
☆ thickness 30/35/40/45/50mm
☆ stress test
Junction box
☆ Conventional standalone edition and
engineering custom edition
☆ Quality diode ensures module running safety
☆ IP67 protection level
☆ Heat dissipation
☆ Long service life
Packaging & Delivery :
Package 26pcs per pallet, 260pcs per 20ft; 624pcs per 40hq.
Delivery by Road/ Railway/ Sea/ Air.
Project :
