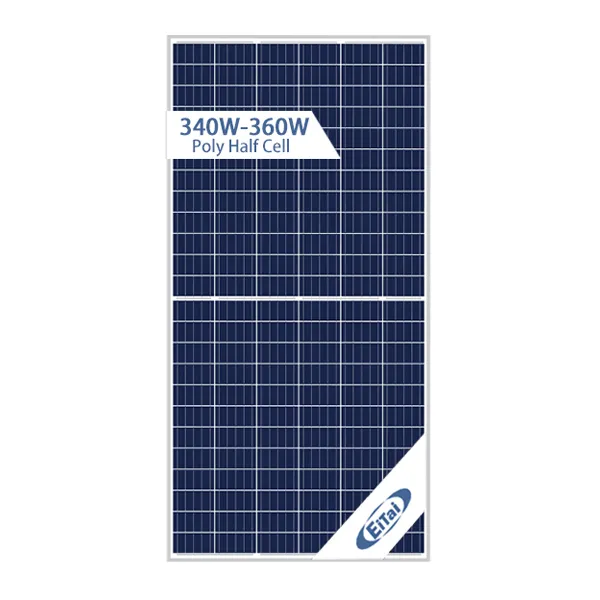

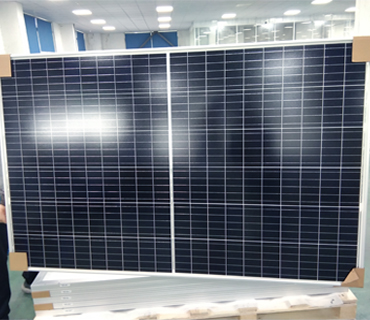

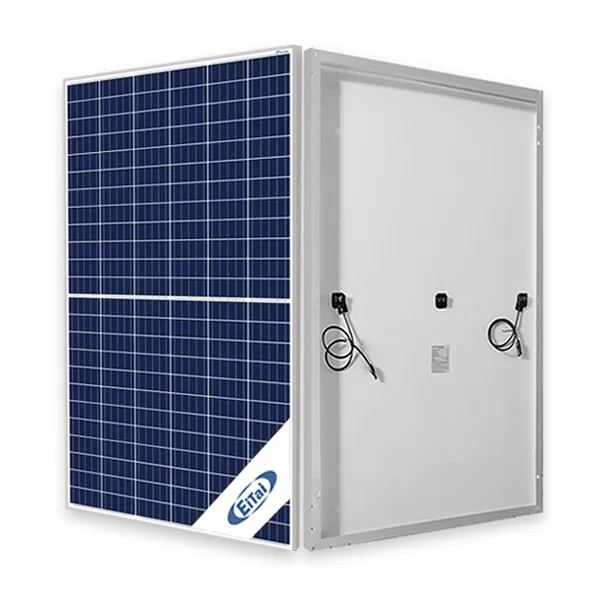

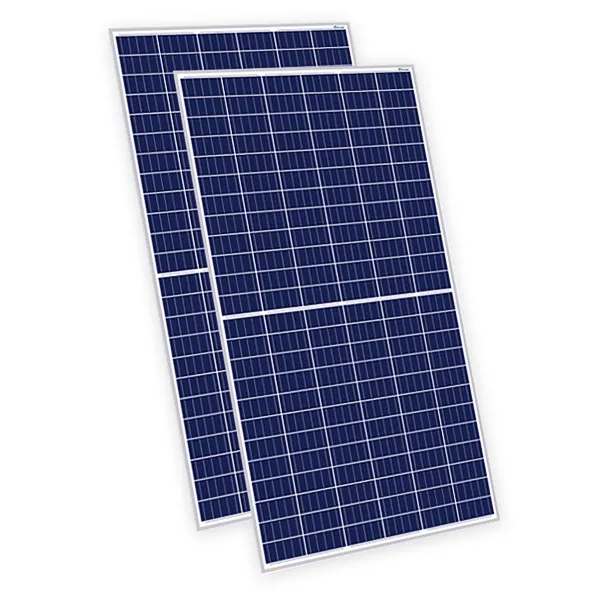

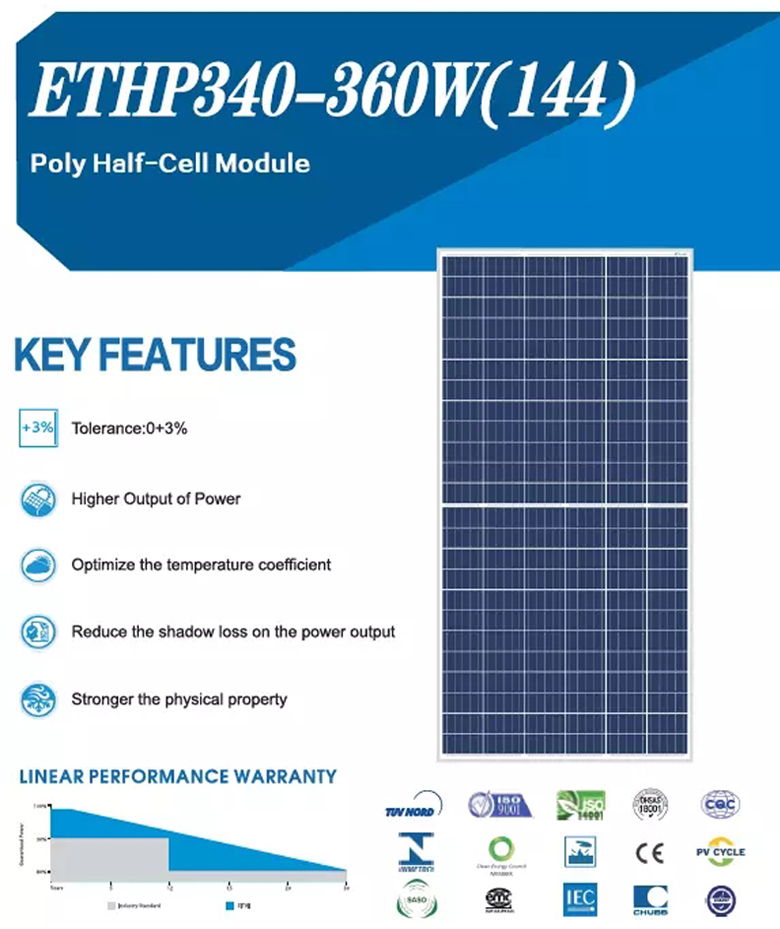

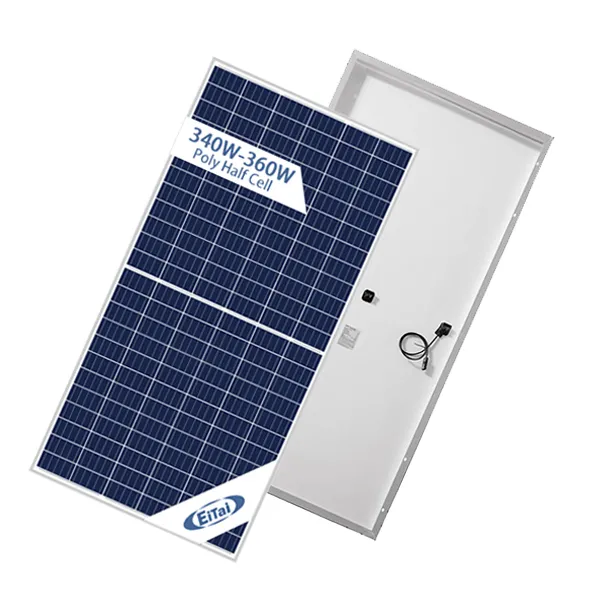

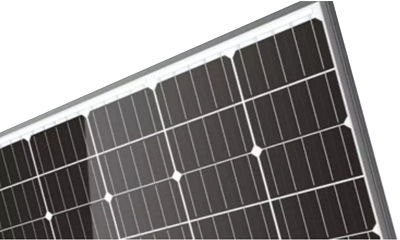

EITAI Polycrystalline Half Cell Solar Panel PV Module
EITAI Polycrystalline Half Cell 340w 345w 350w 355w 360w 144cells Solar Panel PV Module All Scale
Product Description :
|
Place of Origin:
|
China
|
Brand Name:
|
Eitai
|
|
Model Number:
|
340-360W
|
Type:
|
Half Cell, Half Cell Solar Panel
|
|

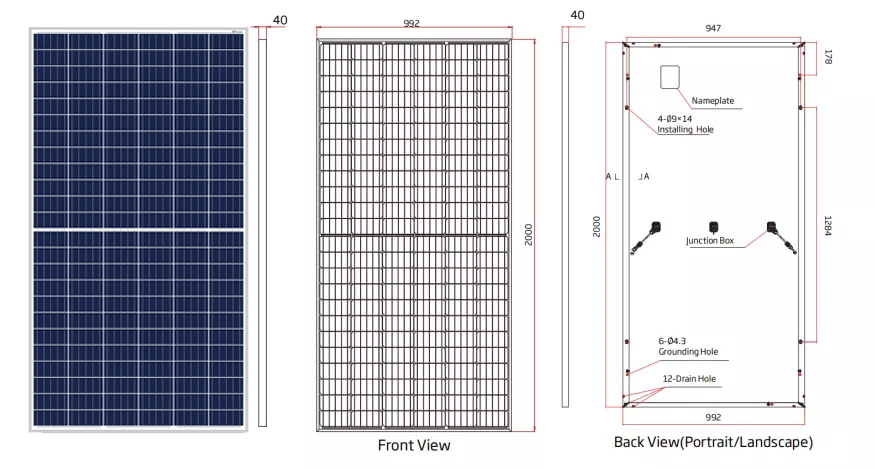

Size:
|
2000*992*40mm
|
Panel Efficiency:
|
17.2-18.2%
|
|
Certificate:
|
CE, CE,IEC61215,IEC61730-1/2
|
Warranty:
|
30year
|
|
Solar cell:
|
Polycrystalline
|
Szie of cells:
|
144cells( 6*24)
|
|
Tolerance:
|
0+3%
|
Operational Temperature:
|
-40~+80°C
|
|
Max. Series Fuse Rating:
|
20A
|
Junction Box(protection degree):
|
≥IP68
|
|
Max System Open Circuit Voltage:
|
47V
|
Weight:
|
22.5kg
|
Parameter display :
|
|
|
|
|
Glass/EVA/Cell/EVA/Backsheet
|
|
|
|
|
|
|
|
|
|
|
|
Maximum Power Voltage(Vmp)
|
|
|
|
|
|
|
Maximum Power Current(Imp)
|
|
|
|
|
|
|
Open Circuit Voltage(Voc)
|
|
|
|
|
|
|
Short Circuit Current(Isc)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Standard Test Conditions[STC]: Irradiance 1000W/m²; AM1.5; module temperature 25°C.
Measuring uncertainty of power is within ±3%.
Tolerance of Pmpp: 0~3%.
Certified in accordance with IEC61215,IEC61730-1/2.
Product Details :
|

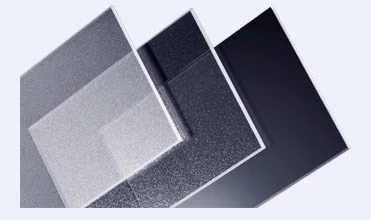

Tempered Glass
* 12% Ultra Clear Tempered Glass.
* 30% Lower Reflection
* 3.2mm thickness
* >91% Higher Transmittance
* High mechanical strength
|
|

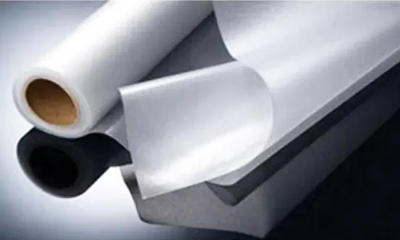

EVA
* >91% Higher Transmittance EVA,
* Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability
|
|
|
|

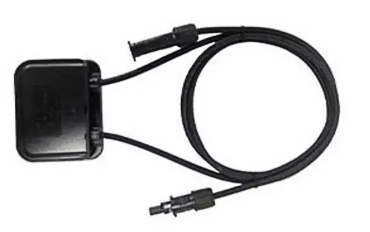

Junction box
Conventional standalone Edition and engineering custom Edition Quality diode ensures Module running safety IP67 Protection level
Heat Dissipation Long service life
|
|

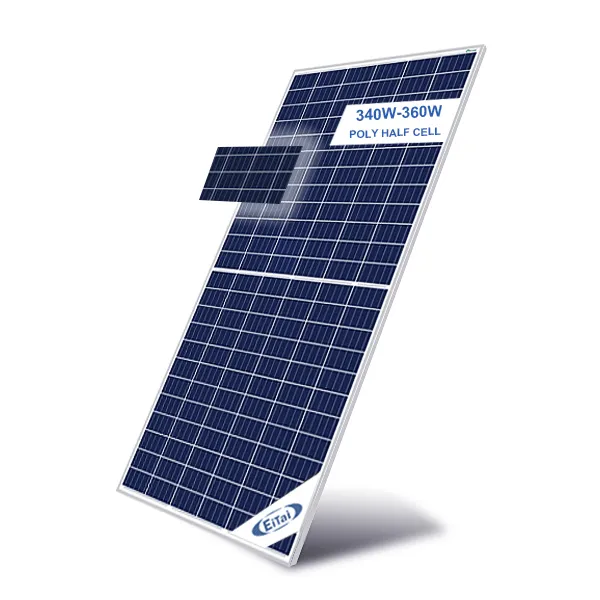

Mono Half Cells
* PERC Half Cells
* Higher Power Output
* Less Shading Effect
* Appearance Consistency
|
|
|

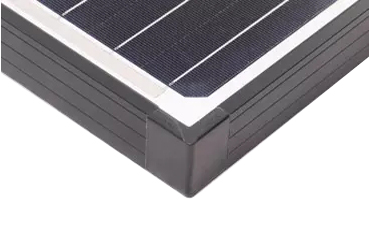

Frame
* Aluminum Alloy Frame
* 120N Tensile Strength Frame
* 110% Seal-lip Design Glue Injection
* Black/Silver Optional
|

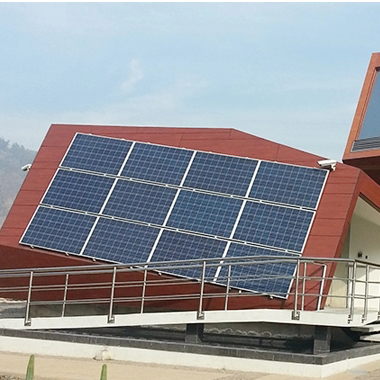

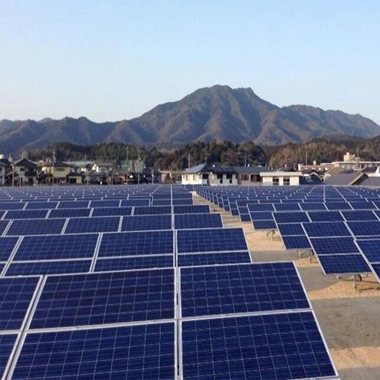

Product Application :

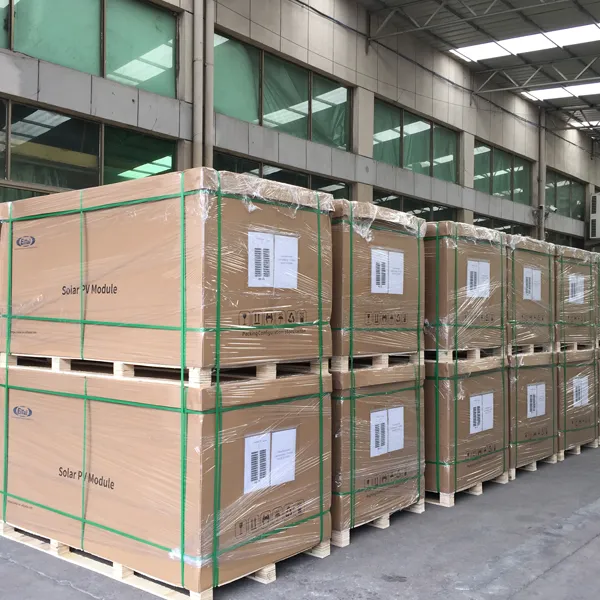

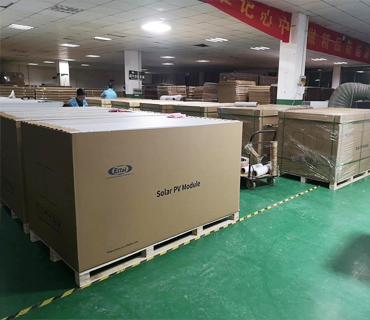

Product Packing :
