EITAI Solar Battery Gel Lead Acid Battery

EITAI Solar Battery Gel Lead Acid Battery

EITAI Lead Acid Battery 12v150ah Maintenance Free Gel Battery Solar PV System Use

Solar battery

Lead Acid 12V150AH :

*Maintenanch free
*Convenient for installation
*Safety and no leakage
*Excellent recharge and discharge performance
*Adapt to high or low temperature
*Good deep discharge performance
*Longer cycle life

Product Description :

Rated Voltage	12V
Number of cells	6 Cells
Designed Life	5-8 Years
Rated Capacity at 25℃(77℉)	10hr rate(0.1C,10.8V)	100Ah
	3hr rate(0.25C,10.8V)	76.8Ah
	1hr rate(0.55C,10.5V)	55.2Ah
Capacity affected by Temperature(10 hour rate)	40℃(104℉)	103%
	25℃(77℉)	100%
	0℃(32℉)	85%
	-15℃(5℉)	65%
Charge Method:constant-voltage charging at 25℃(77℉)	Cyclic use	14.4-14.9V
	Maximum charging current	25A
	Temperature Compensation	-30mV/℃
	Float Use	13.6-13.8V
	Temperature Compensation	-20mV/℃
Self-Discharge 25℃(77℉) Capacity	After 3 month storage	91%
	After 6 month storage	82%
	After 12 month storage	64%
Environment Temperature Requirements	Discharge Temperature	-15-50℃
	Charge Temperature	0-40℃
	Storage Temperature	-15-40℃
Inner Resistance&Max. Discharge Current	A fully charged battery at 25℃(77℉)	4.5mΩ
	Max. Discharge Current	1500A(5s)
	Short Circuit Current	5000A
Dimension and weight	Length	330mm
	Width	173mm
	Height	217mm
	Total Height	222mm
	Reference Weight	30kg

Solar power batteries

Product Detailed :

Lead Acid Battery

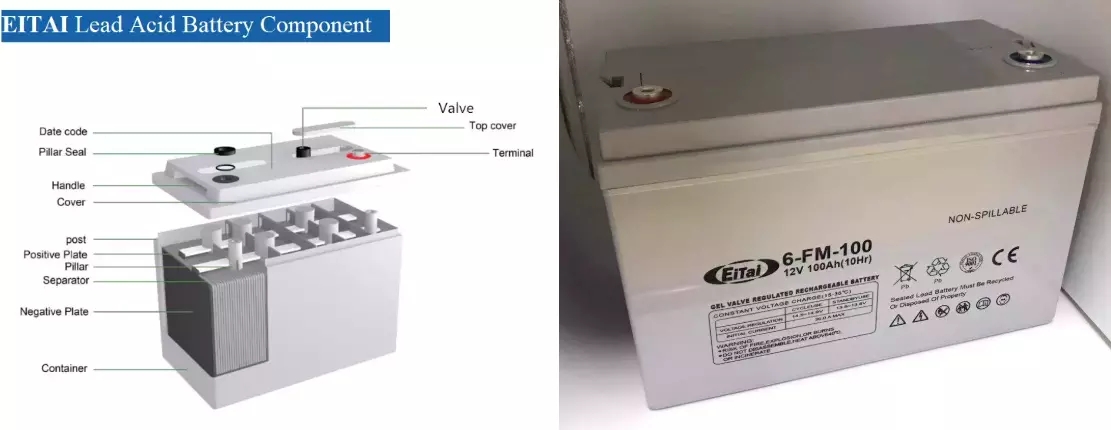

Battery Construction :

Construction	Positive plate	Negative plate	Container	Cover	Safety valve	Terminal	Separator	Electrolyte
Raw material	Lead dioxide	Lead	ABS	ABS	Rubber	Copper	AGM glass	Sulfuric acid
