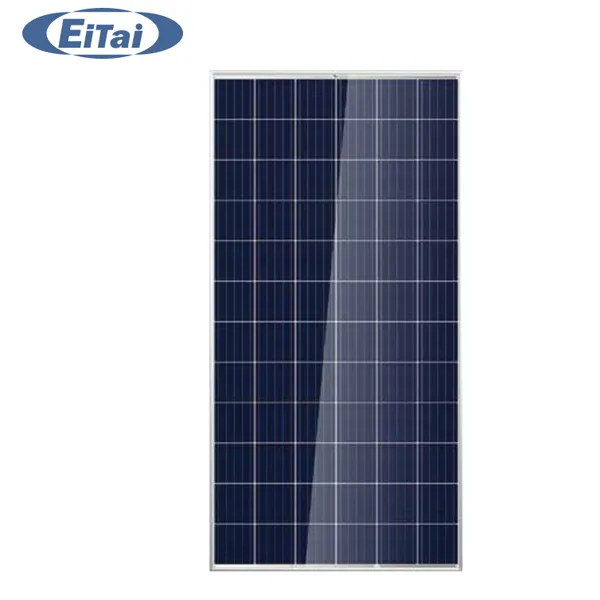

EITAI Solar Panel Poly PV Moudle Home Use
EITAI Solar Poly 310w 320w 330w 340W 350 watt 360 watt Portable Solar Panel PV Moudle Home
Product Specifications :
|
Module
|
|
|
Encapsulation
|
Glass/EVA/Cell/EVA/Backsheet
|
|
Size and Number of cells
|
|
|
Maximum Power Pmax
|
W
|
310
|
320
|
325
|
330
|
340
|
350
|
|
Maximum Power Voltage(Vmp)
|
V
|
37
|
37.5
|
37.9
|
38.2
|
38.5
|
38.9
|
|
Maximum Power Current(Imp)
|
A
|
8.38
|
8.53
|
8.58
|
8.64
|
8.83
|
9
|
|
Open Circuit Voltage(Voc)
|
V
|
44.4
|
45
|
45.48
|
45.84
|
46.2
|
46.68
|
|
Short Circuit Current(Isc)
|
A
|
8.8
|
8.96
|
9
|
9.07
|
9.27
|
9.45
|
|
Cell Efficiency
|
%
|
18.1
|
18.72
|
19.2
|
19.9
|
20.8
|
21.6
|
|
Module Efficiency
|
%
|
15.98
|
16.49
|
16.75
|
17.01
|
17.52
|
18.04
|
|
Tolerance
|
|
|
Max System Open Circuit Voltage
|
|
|
Max Series Fuse Rating
|
|
|
Junction Box(protection degree)
|
|
|
Dimension
|
|
|
Weight
|
|
|
Operate Temperture Scope
|
|
|
Relative Humidity
|
|
|
Frame Thinkness
|
|
|
Frame Colour
|
|
|
Standard Test Conditions[STC]:irradiance 1000W/m²;AM1.5;module temperature 25°C.Measuring uncertainty of power is within ±3%.
|

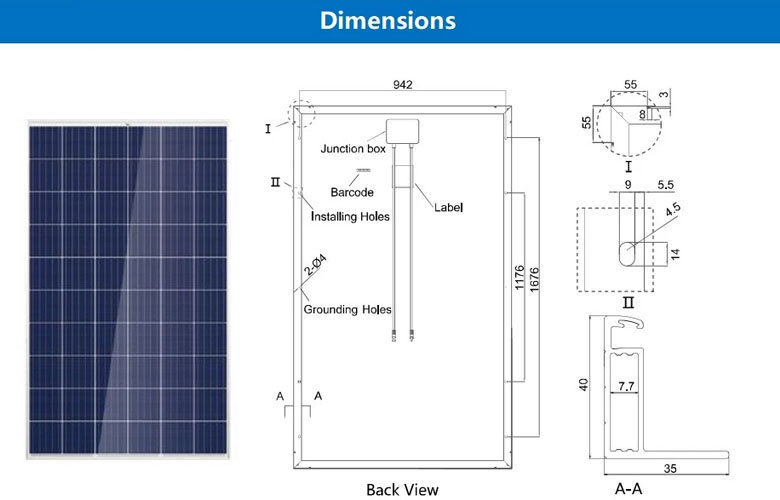

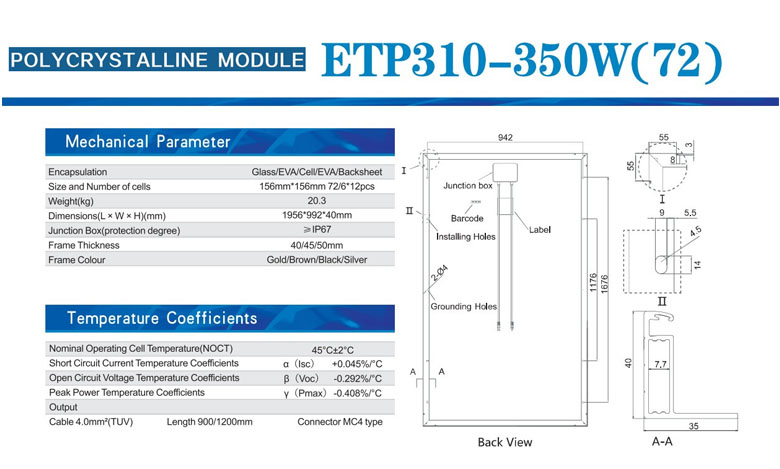

Dimensions :
|

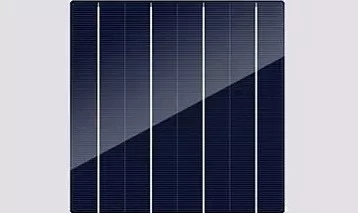

Solar Cell
☆ Anti PID
☆ 19.78% High Efficiency PV Cells
☆ Appearance Consistency
☆ Color sorting ensure consistent appearance on each module
|
|
Glass
☆ Anti-reflective glass
☆ Self-cleaning function
☆ Module efficiency is increased by 3%
☆ Service life is as long as 25 years (30 years optional)
|
|
|

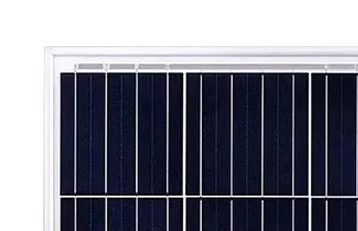

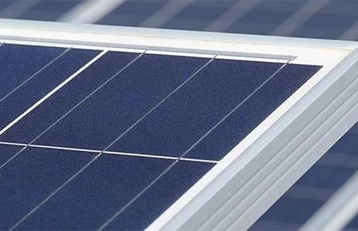

Frame
☆ Stock-size
☆ Silvery and black
☆ thickness 30/35/40/45/50mm
☆ stress test
|
|

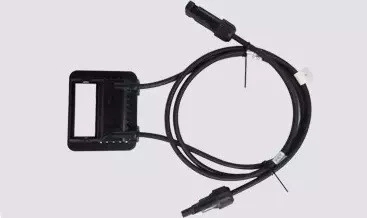

Junction box
☆ Conventional standalone edition and
engineering custom edition
☆ Quality diode ensures module running safety
☆ IP67 protection level
☆ Heat dissipation
☆ Long service life
|
|

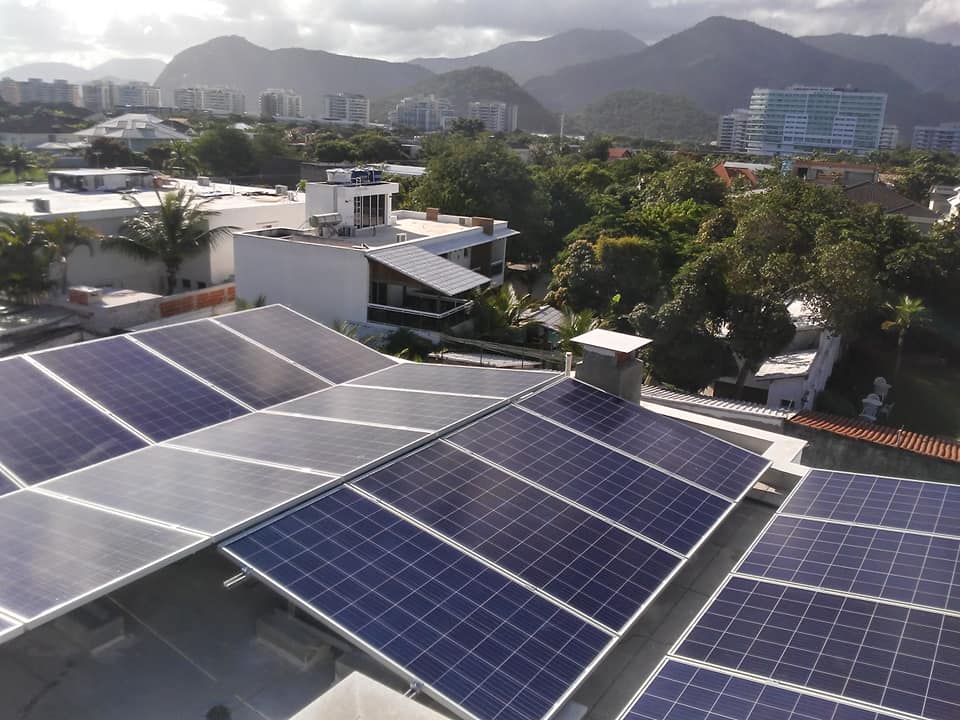

Product Application :

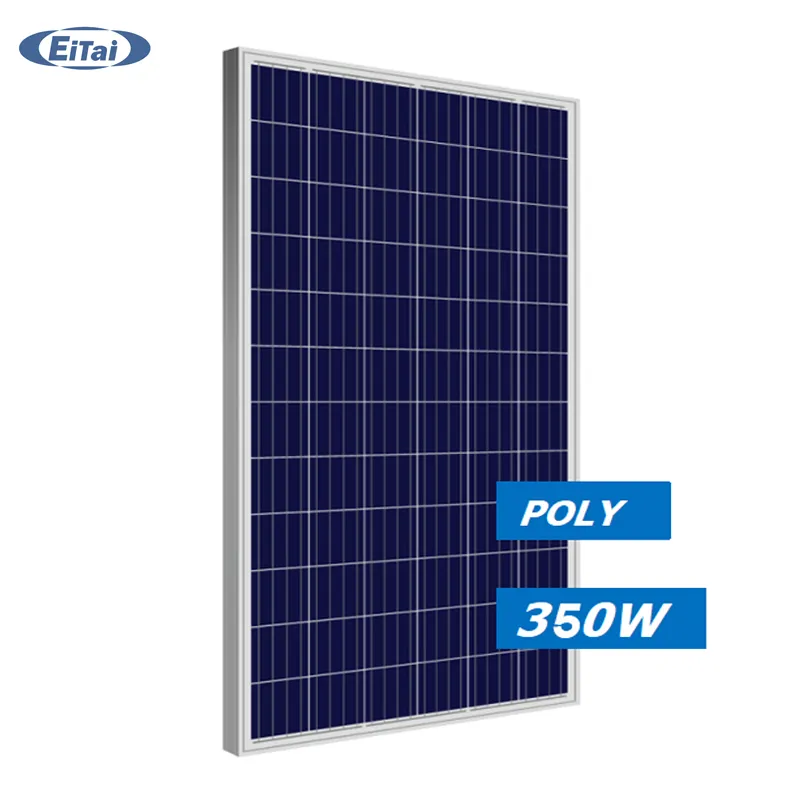

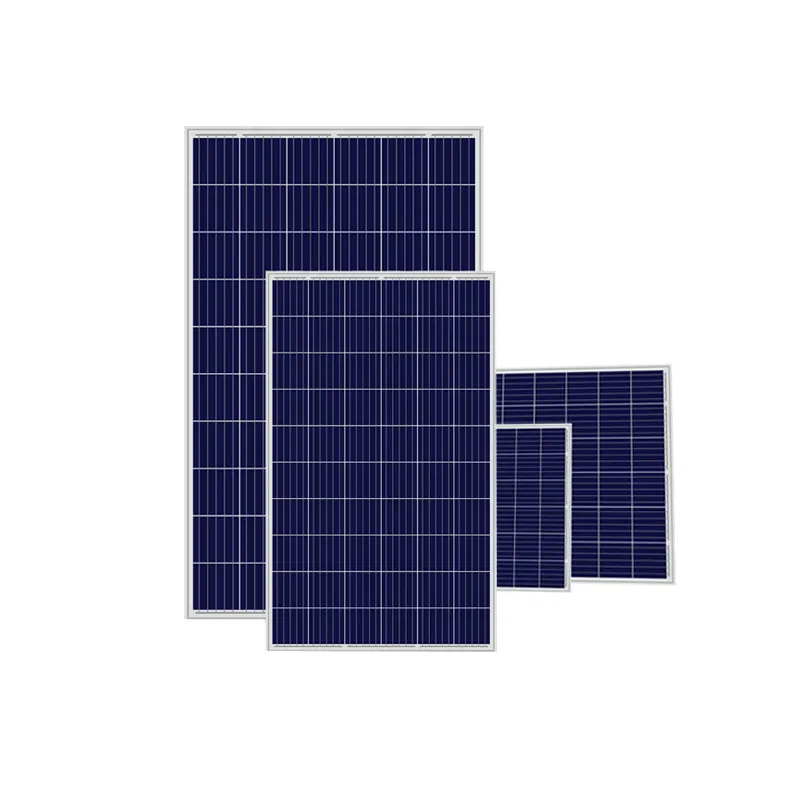

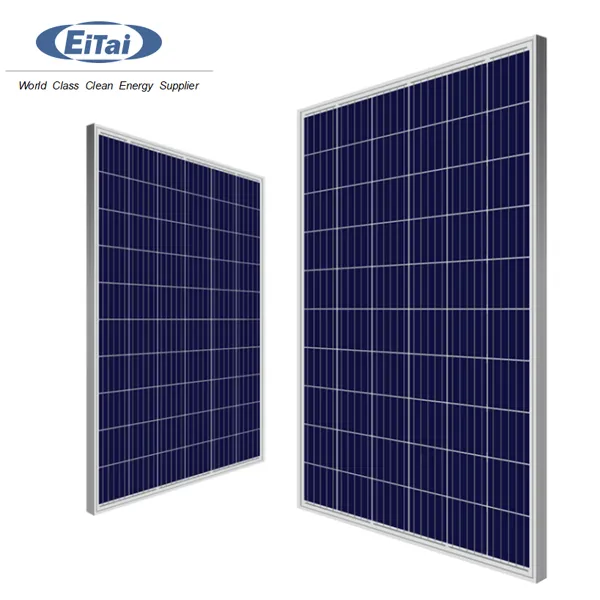

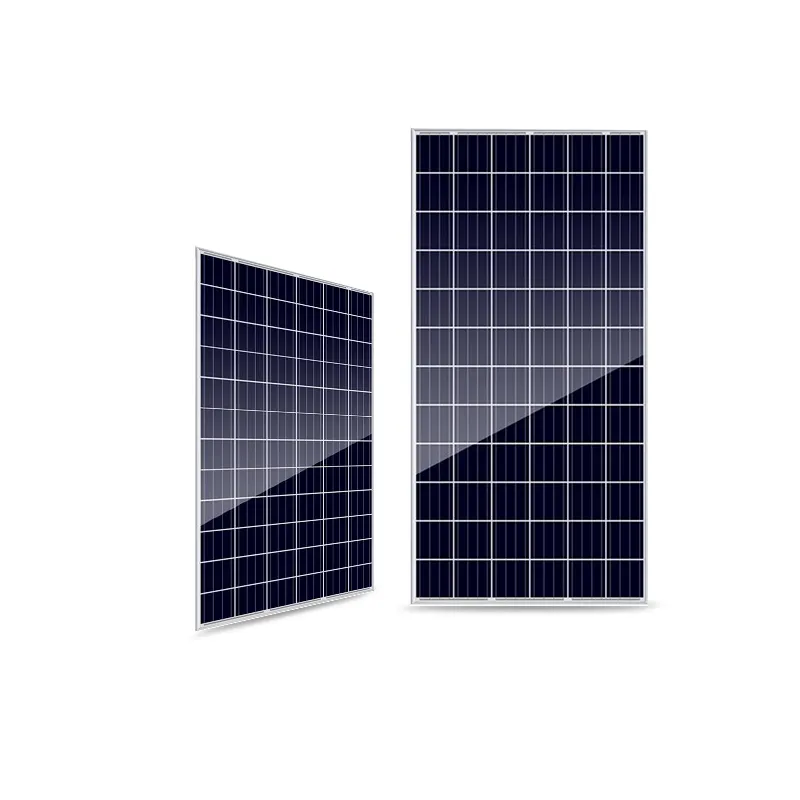

Product Display :
