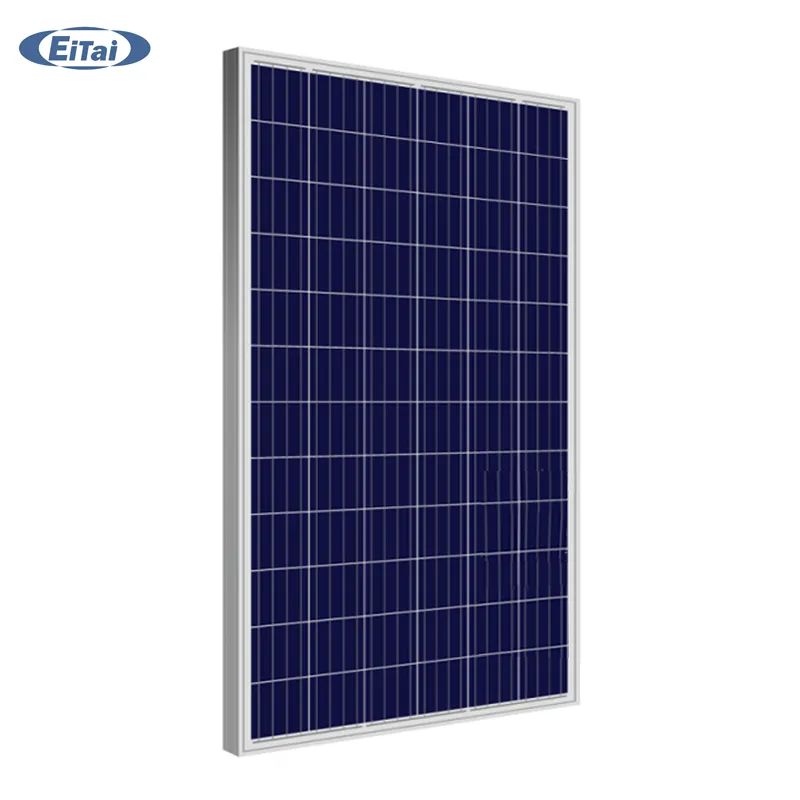

EITAI Solar PV Module Poly 350w Solar Panel

ETAI Solar PV Module factory covers 90,000 square meters, has more than 500 employees. With an emphasis on management, research and development, EITAI continuously manufactures leading-edge products. The modules range from 5W~520W and are approved by CE, TUV, UL, IEC61215, IEC61730, CSA,CEC, JET.


  • Size 1956 * 992 * 40 mm
  • Warranty10Years
Facebook Twitter Pinterest LinkedIn 分享

EITAI Solar PV Module Poly 350w Solar Panel

Poly solar panel 350 watt

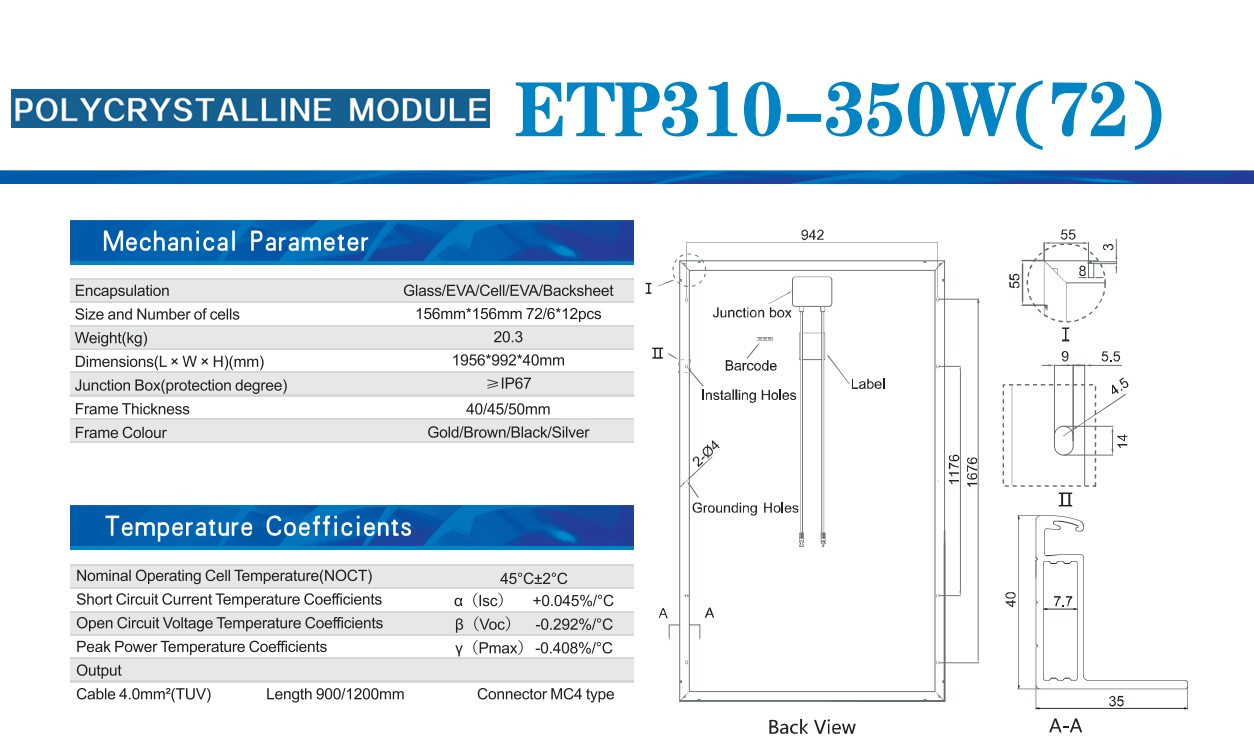

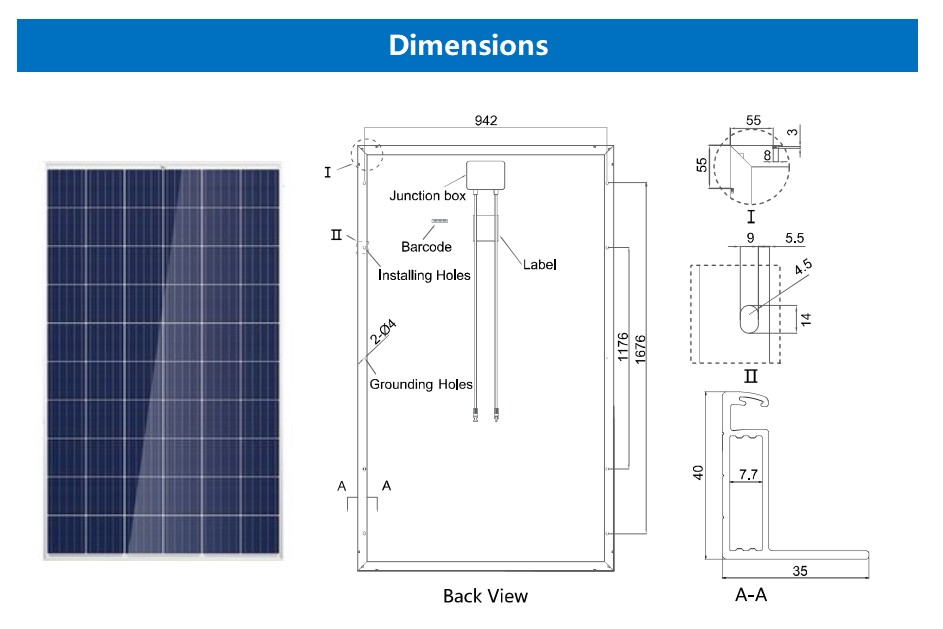

Dimensional

Solar pv module



Product Specifications :


Module
ETP310-350W(72) Poly
Maximum Power Pmax
W
310
320
325
330
340
350
Maximum Power Voltage(Vmp)
V
37
37.5
37.9
38.2
38.5
38.9
Maximum Power Current(Imp)
A
8.38
8.53
8.58
8.64
8.83
9
Open Circuit Voltage(Voc)
V
44.4
45
45.48
45.84
46.2
46.68
Short Circuit Current(Isc)
A
8.8
8.96
9
9.07
9.27
9.45
Cell Efficiency
%
18.1
18.72
19.2
19.9
20.8
21.6
Module Efficiency
%
15.98
16.49
16.75
17.01
17.52
18.04
Tolerance
0+3%
Max System Open Circuit Voltage
1500V
Max Series Fuse Rating
15A
Operate Temperture Scope
-40/+85°C
Relative Humidity
0~100%
Standard Test Conditions[STC]:
irradiance 1000W/m²;AM1.5;module temperature 25°C.Measuring uncertainty of power is within ±3%.
Tolerance of Pmpp:
0~3%.Certified in accordance with IEC61215,IEC61730-1/2.


Solar Cell

☆ Anti PID

☆ 19.78% High Efficiency PV Cells

☆ Appearance Consistency

☆ Color sorting ensure consistent appearance on each module


Glass

☆ Anti-reflective glass

☆ Self-cleaning function

☆ Module efficiency is increased by 3%

☆ Service life is as long as 25 years (30 years optional)


Frame

☆ Stock-size

☆ Silvery and black

☆ thickness 30/35/40/45/50mm

☆ stress test


Junction box

☆ Conventional standalone edition and

engineering custom edition

☆ Quality diode ensures module running safety

☆ IP67 protection level

☆ Heat dissipation

☆ Long service life



Product Application :


Solar panel moudle



Solar Panel

Solar power systems



Product Display :



350w solar panel
