Elanda E801 thermal printer
Receipt Printers and Kitchen Printer play a crucial role in the modern business. Elanda provides two models of 80mm receipt printers that feature of large paper roll high-speed printers that suitable for restaurants, retail chain store and take-out stores
E801 is a high-speed thermal receipt printer designed for high-duty tasks under harsh environments. With the Low-noise mechanism, E801 can perform long-time printing and reduce the noise to the minimum. Multi I/O Interface, Easy maintenance and fascinating high-speed performance, E801 is the best choice of high-quality demand solutions.

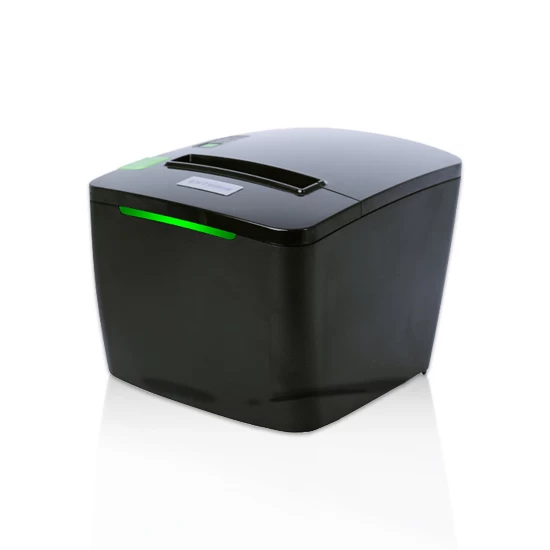

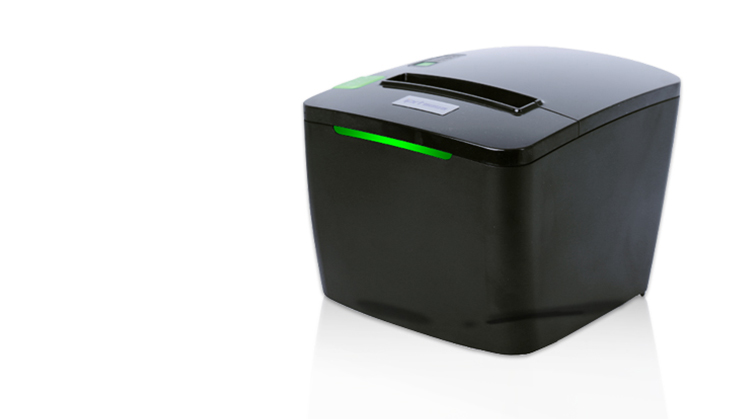

Elanda E801 Thermal printer

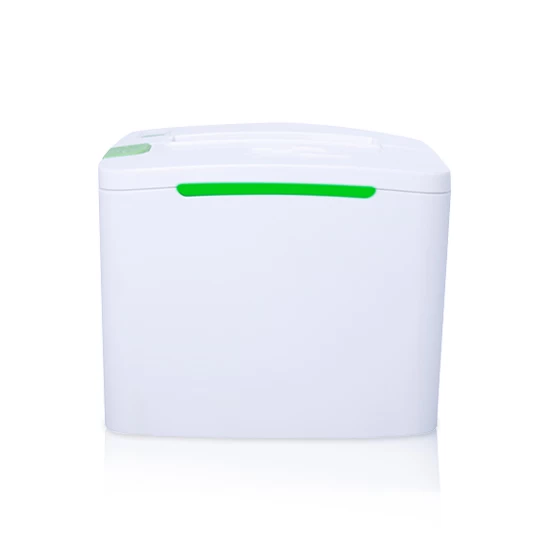

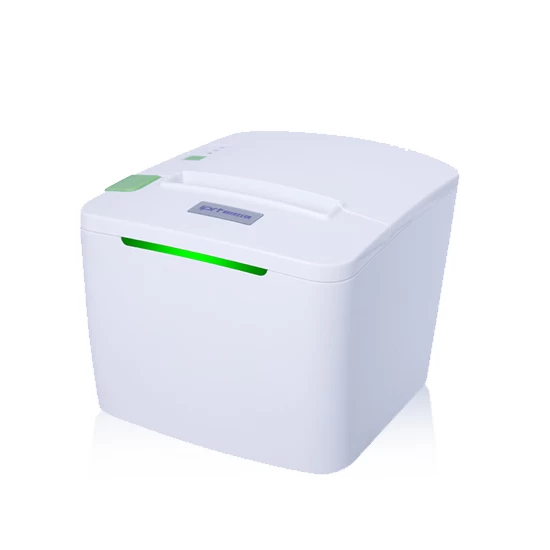

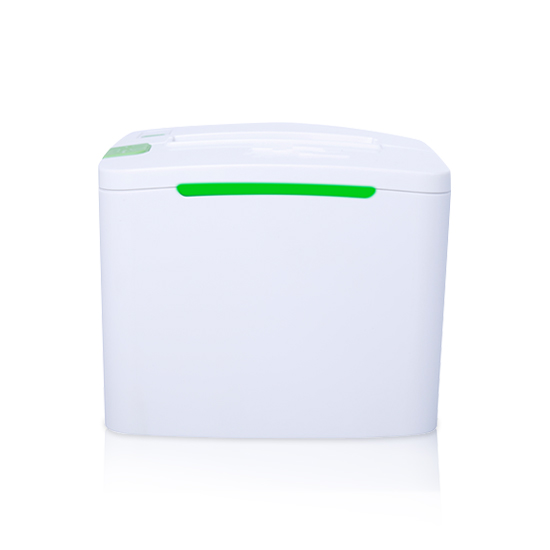

Elegant and fashionable appearance
|
|
|

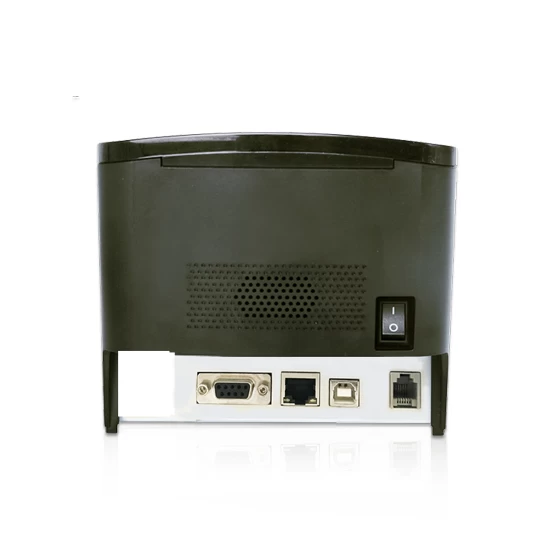

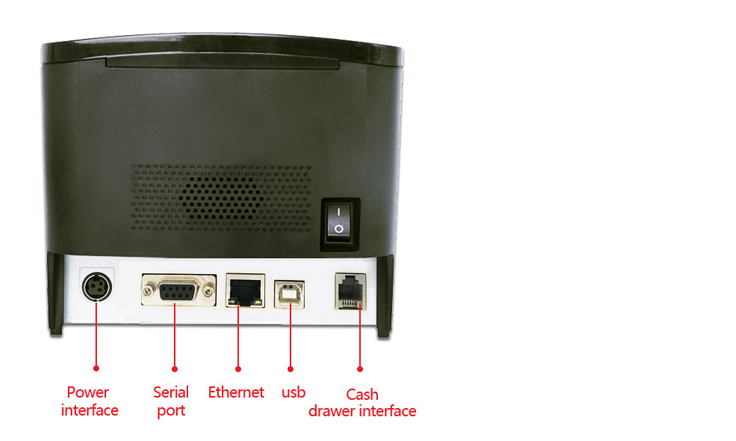

Interface Display
|

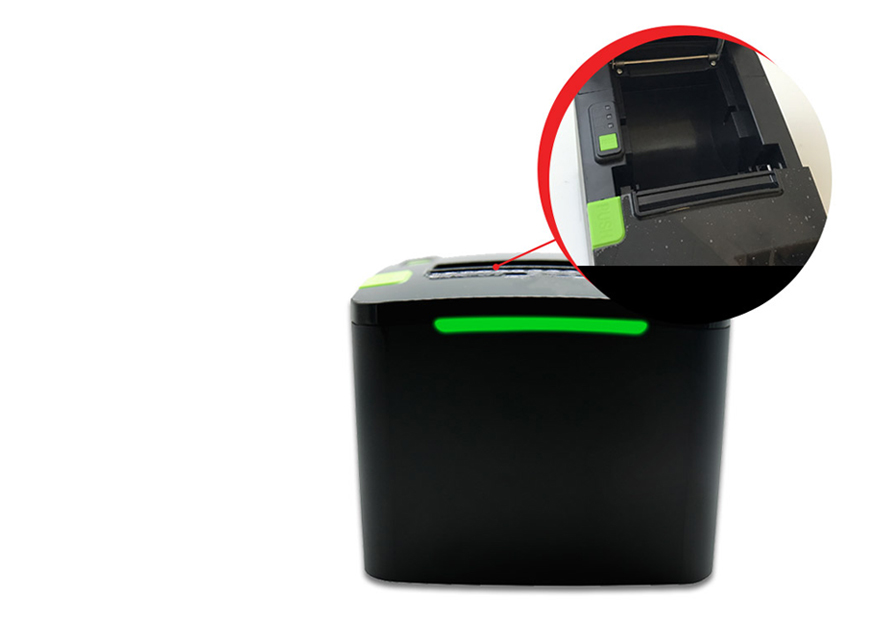

Big Storage for Paper
|
|
E801 Thermal printer
Printer ability |
|||
Printing Method |
Thermal Line Printing |
||
Printing den-sity |
8 dots/mm,576 dots/line |
||
Printing speed |
Max :250mm/s |
||
Effective Printing Width |
72mm |
||
Paper width |
80 mm±0.5mm |
||
Printing support |
|||
self-defining character |
Support |
||
Graphic printing |
Support different density point map and download bitmap printing |
||
Font Size |
ANK characters, Font A:1.5×3.0mm(12×24pt);Font B:1.1×2.1mm(9×17pt)。 National standard three-level character bank: simplified or traditional: 3.0×3.0mm(24×24pt) |
||
Extended Characters |
PC437、 KataKana、 PC850、 PC860、 PC863、PC865、 WPC1251、 PC866、 MIK、PC755、Iran、Reserve、PC862、WPC1252、WPC1253、PC852、 PC858、Iran II、Latvian、PC864、 ISO-8859-1、PC737、 WPC1257、Thai、PC720、PC855、PC857、WPC1250、PC775、WPC1254、WPC1255、WPC1256、 WPC1258、ISO-8859-2、ISO-8859-3、ISO-8859-4、ISO-8859-5、ISO-8859-6、ISO-8859-7、ISO-8859-8、ISO-8859-9、ISO-8859-15、Thai2、PC856 |
||
Barcode |
1D |
UPC-A;UPC-E;EAN-13;EAN-8;CODE39; CODE93;CODABAR;ITF25; CODE128 |
|
Power |
|||
DC |
DC24V±10%,2A External power supply |
||
Supply |
|||
DC |
DC24V±10%,2A External power supply |
||
Paper specifications |
|||
Type |
Thermal roll paper 80×Ø 80mm |
||
Thickness |
0.06mm~0.08mm |
||
Paper In Method |
Simple to install |
||
Paper Out Method |
Auto cut |
