Elanda E802 thermal printer

Receipt Printers and Kitchen Printer play a crucial role in the modern business. Elanda provides two models of 80mm receipt printers that feature of large paper roll high-speed printers that suitable for restaurants, retail chain store and take-out stores


E802 is a high-speed thermal receipt printer designed for high-duty tasks under harsh environments. With the Low-noise mechanism, E802 can perform long-time printing and reduce the noise to the minimum. Multi I/O Interface, Easy maintenance and fascinating high-speed performance, E802 is the best choice of high-quality demand solutions.

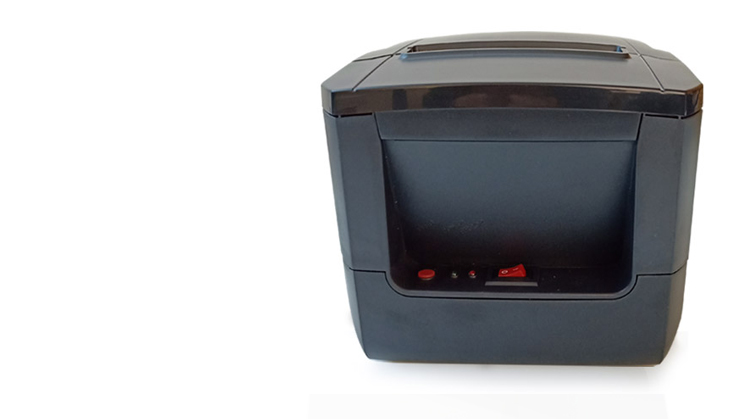

Elanda E802 Thermal printer

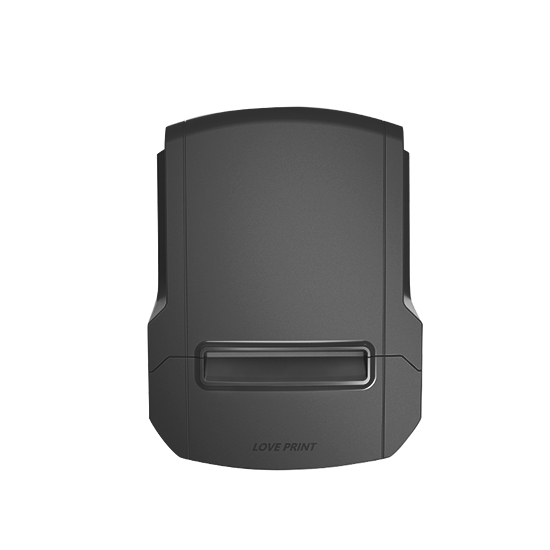

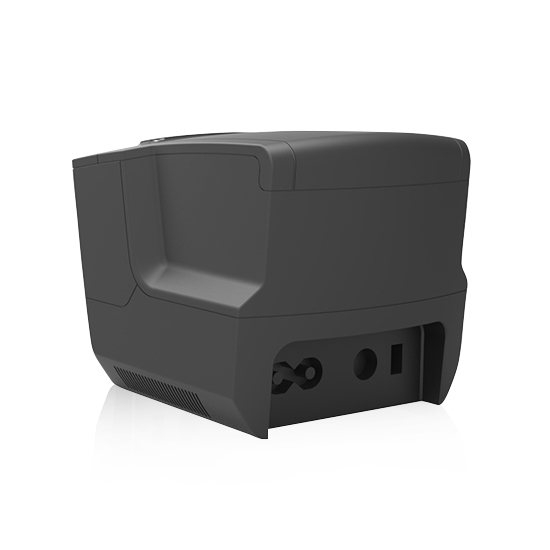

Elegant and fashionable appearance

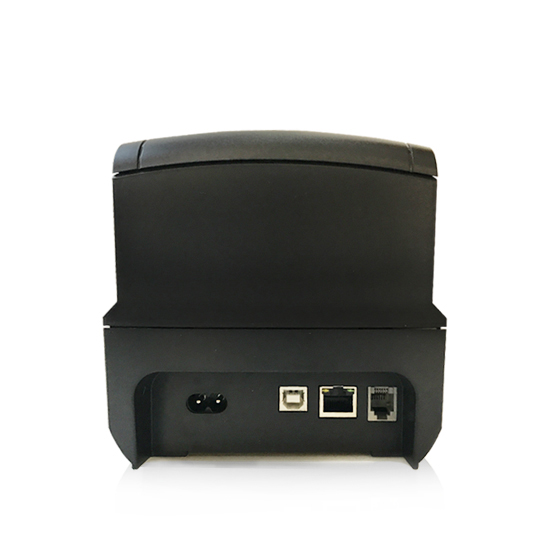

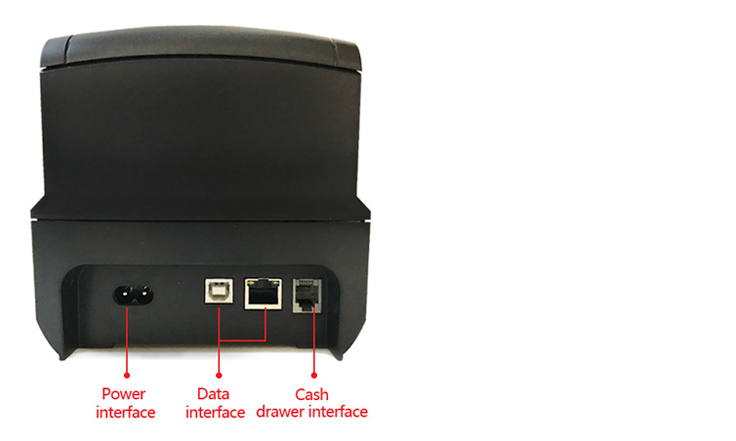

Interface Display

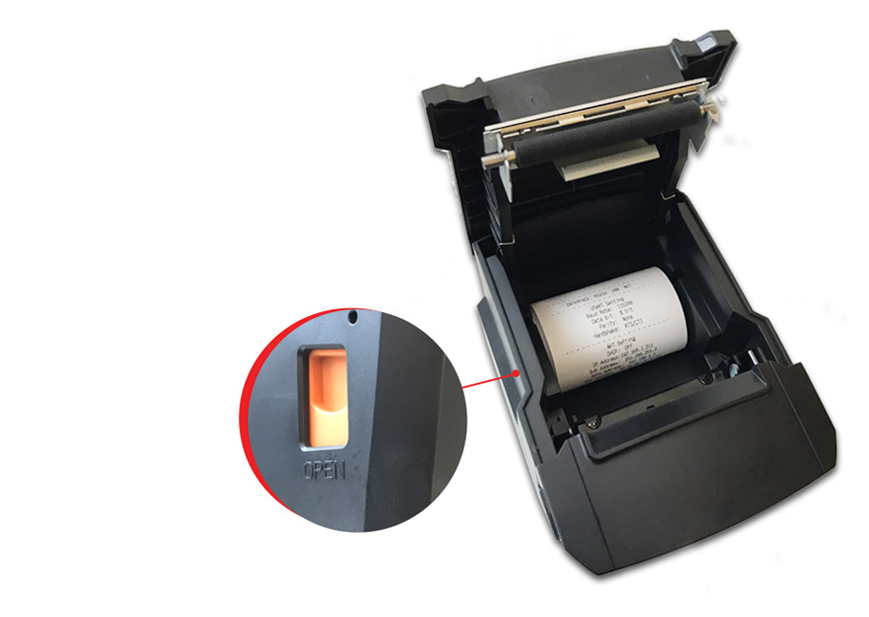

Big Storage for Paper









E802 Thermal printer


Printing Performance

Printing Method
Direct Thermal Printing
Printing den-sity
8 dots/mm(203dpi),576 dots/line
Printing speed
250mm/s
Effective Printing Width
72mm
Paper width
80 mm±0.5mm
Printing support

Customize Characters
Support
Image Print-ing
Support different density dots picture and download bitmap printing
Font Size

ANK character,Font A:1.5×3.0mm(12×24dots)Font B:1.1×2.1mm(9×17dots)

Extended Characters

PC437、 KataKana、 PC850、 PC860、 PC863、PC865、 WPC1251、 PC866、 MIK、PC755、Iran、Reserve、PC862、WPC1252、WPC1253、

PC852、PC858、Iran II、Latvian、PC864、 ISO-8859-1、PC737、 WPC1257、Thai、PC720、PC855、PC857、WPC1250、PC775、WPC1254、

WPC1255、WPC1256、WPC1258、ISO-8859-2、ISO-8859-3、ISO-8859-4、ISO-8859-5、ISO-8859-6、ISO-8859-7、ISO-8859-8、ISO-8859-9、

ISO-8859-15、Thai2、PC856

Barcode
1D
UPC-A;UPC-E;EAN-13;EAN-8;CODE39; CODE93;CODABAR;ITF25; CODE128
2D
PDF417;QRCODE;Data Matrix
Extended Characters
LAN、USB、Bluetooth ( optional)
Support functions
Sound alarm, lack paper alarm, black label detection, over-heat protection, cutter wrong position detection, top cover not tight detection
Cash Drawer Control
DC24V,1A,6 wire RJ-11 plug
Power
AC Power
AC22OV, 1.5A(max)
Paper type
Thermal paper 80×Ø80mm
Paper Thickness
0.06mm~0.08mm
Loading Method
Simple method
Cutting method
Auto-cutting
Appearance
Size
182mm×132mm×133mm  (L×W×H)
Environmental
Working Temperature:5 ~ 50℃, humidity:10 ~ 80%
Storage
Temperature:-20 ~ 60℃ ,humidity:10 ~ 90%
Lifetime
Reliability
Movement reliability 150 km,cutter lifetime 1,000,000 times
