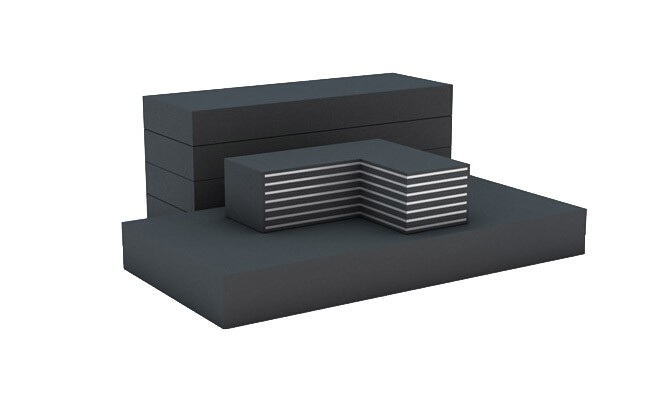

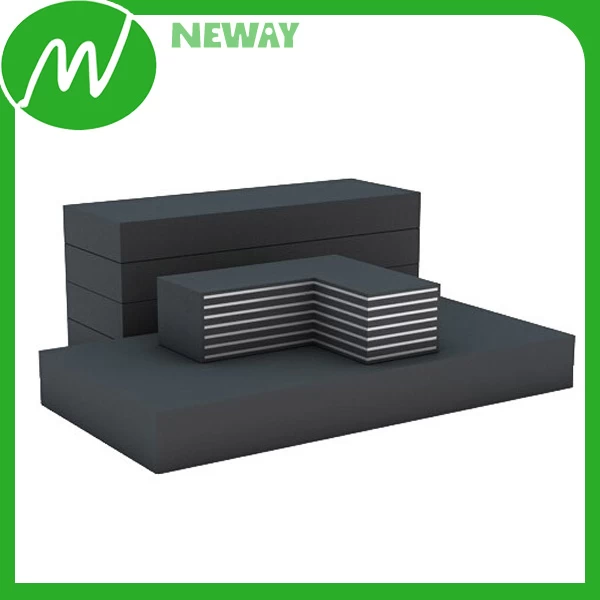

Elastomeric Reinforced Rubber Bearing Pads Bridge

Elastomeric bearing pads for bridges can be used extensively in construction industry.


  • Mold Injection or compression
  • ColorBlack, or customized
  • MaterialRubber

   Rubber neoprene bearing pads is used extensively in construction industry. Besides being widely used in bridge, construction or other supports,  they are also specified in wide variety of applications where flexible structural support and vibration isolation is required.

Neoprene bearing pads suppliers

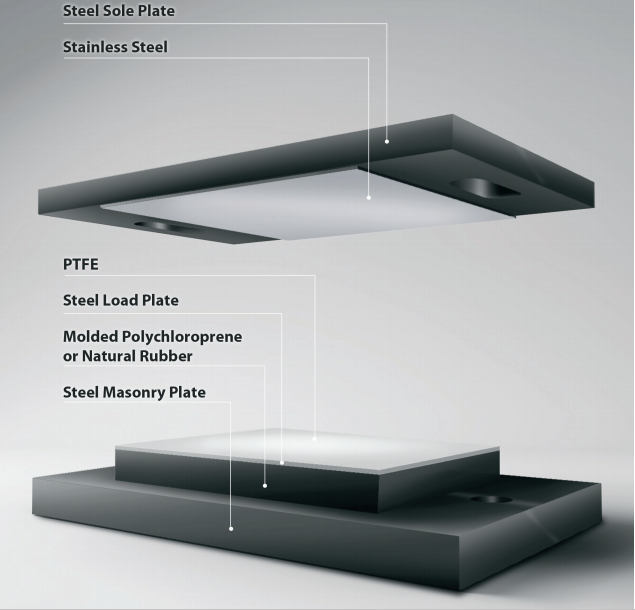

    We offer our clients a wide range of Elastomeric bridge Bearing pads which is using superior quality steel plates and high grade chloroprene or natural rubber. The Rubber hold up flat to pressurize into sulfide by multi-layer rubber and stencil plate, it can move the upper structure of the bridge to piers reliably against strength also can adapt to roof beam end rotate and provide support through rubber shearing deformation of flat.

Neoprene bearing pads suppliers


NEWAY STANDARD MATERIAL PROPERTIES

Material Property ASTM Standard Test Requirement Polychloroprene Units
50 Duro 60 Duro 70 Duro
Physical Properties D 2240 Hardness 50 ± 5 60 ± 5 70 ± 5 Shore A
D 412 Min tensile strength 2250 (15.5) 2250 (15.5) 2250 (15.5) psi (Mpa)
Min ultimate elongation 400 350 300 %
Heat Resistance D 573 Specified temp. of the test 212 (100) 212 (100) 212 (100) °F (°C)
Aging time 70 70 70 Hours
Max change in durometer hardness 15 15 15 Shore A
Max change in tensile strength -15 -15 -15 %
Max change in ultimate elongation -40 -40 -40 %
Compressive Set D 395 Method B Specified temp. of the test 212 (100) 212 (100) 212 (100) °F (°C)
Max Permissible test (after 22 hrs) 35
Ozone Resistance D 1149 100 pphm ozone in air by volume 20% strain at 100 °F, ± 2 °F (37.7 °C ± 1 °C) 100 hours, mounting procedure D 518, method A No cracks No cracks No cracks
Tear Resistance D 624 Die C Minimum pounds per inch 180 180 Lbs/in
Brittleness D 746 Low temperature brittleness at -40° No Failure No Failure

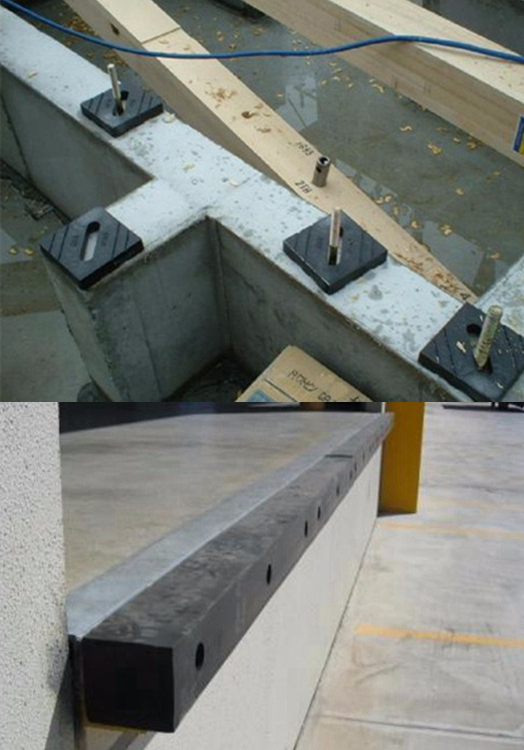

    These pads are suitable for use in pre-cast concrete, cast in place concrete, and steel framed structures.
