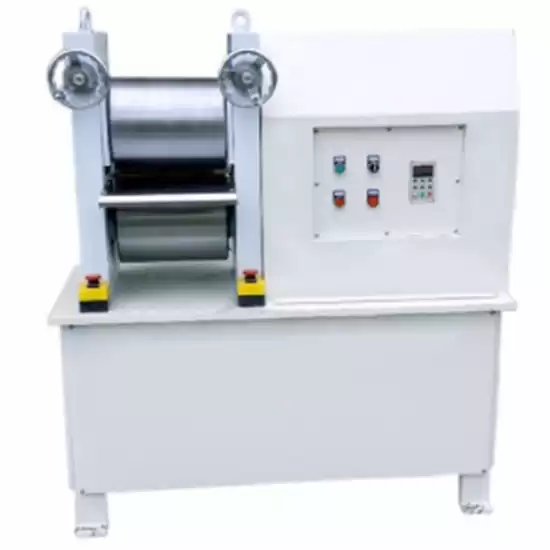

Electric Hot Roller Press Machine with Variable Speed Control

TMAX-GYJ-100-400  is a UL/CSA ready electric rolling press with variable speed 24DC gear motor and UL certified switch power supply, which can be used from 110V- 220VAC under Argon gas glovebox. It has dual rollers and is an ideal rolling press for preparing electrode sheet for Li-Ion batteries research after coating and drying.

SPECIFICATIONS:

Roller Dimensions	TMAX-GYJ-100-100   100mm(Dia.) x 100mm(W) TMAX-GYJ-100-200   100mm(Dia.) x 200mm(W) TMAX-GYJ-100-400   100mm(Dia.) x 400mm(W) TMAX-GYJ-150-200   150mm(Dia.) x 200mm(W) TMAX-GYJ-150-400   150mm(Dia.) x 400mm(W) TMAX-GYJ-200-200   200mm(Dia.) x 200mm(W) TMAX-GYJ-200-400   200mm(Dia.) x 400mm(W)
Working Voltage	110V - 240V AC, 50/60Hz, automatic switch for worldwide use
Structure	Heavy duty steel frame, gears, and handle Dual micrometer for accurate thickness adjustment in the range 0 - 8 mm Maximum
Roller	1. Roller diameter tolerance: 0.004mm 2. Material: Made from hardened tool steel (RC > 62) with Cr electroplated coating 3. Rolling Speed: 0-120mm/s adjustable
Roller Surface Hardness	62 HRC  Never roll materials with hardness > 50HRC
Compliance	CE Certificate
Warranty	One Year limited warranty with lifetime support
Warnings	1. Never roll materials with hardness > 50HRC 2. In order to prolong the lifespan of the roller bearings, regular lubrication is recommended.  3. Multi-step thickness calibration: When calibrating the thickness, make increment/decrement of 0.1mm or 20% of sheet thickness each time. 4. Must clean roller surface for each rolling and use acetone to clean and lubricate when not in use to avoid corrosion 5. This rolling machine can be used under Ar gas.
