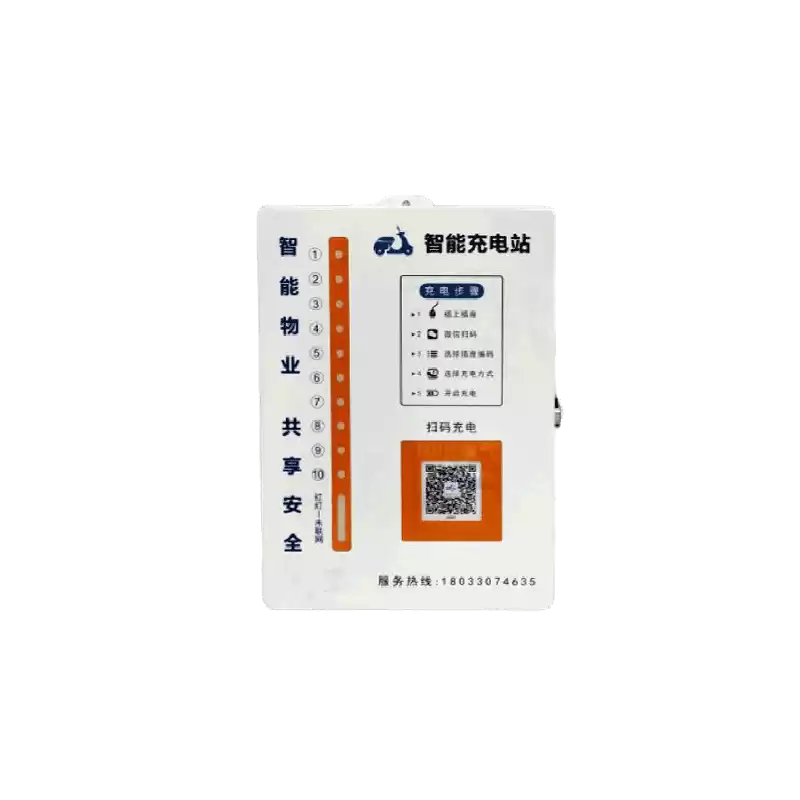

Electric Bicycle Charging Station ZBW-T10

The electric bicycle charging station offers a convenient, efficient, and user-friendly solution for charging electric bicycles, catering to the increasing demand for green transportation. Designed for outdoor use, it provides fast and reliable charging while promoting eco-friendly mobility. Ideal for urban areas, residential communities, and commercial spaces, it enhances the accessibility and sustainability of electric bike charging infrastructure.

Facebook Twitter Pinterest LinkedIn 分享

Description

ZBW-T10 Electric Bicycle Charging Station Features

Convenience & Compatibility

Installed in public areas like parking lots and shopping centers, compatible with various electric bicycle models.
Safety & Protection
Features overload, short circuit, and leakage protection, plus automatic stop when fully charged.
Intelligent System
4G connectivity and QR code charging enable remote monitoring via a mobile app, with real-time data linked to a WeChat account.
Robust Design
IP54 industrial-grade rating for long-term reliability.

Specifications

Rated Input Voltage	220V ± 15%
Rated Input Current	16A max
Rated Output Voltage	220V ± 20%
Single Output Power	1kW max
Total Output Power	3.6kW max
Standby Power	≤ 5W
Operating Temperature	-25°C to 55°C
Dimensions	36 * 22 * 6.5 cm
Weight	≤ 2.5 kg
IP Rating	IP54
Installation Method	Wall-mounted / Pole-mounted
