Product Name
Electric bike scooter motorcycle Tricycle high power LiFePO4 48V 20AH battery
48V 20Ah consists of many 26650 cells mounted together in a honeycomb structure and spot welded together and PVC shrink wrapped for extra padding.
Feature
-
High Power LiFePO4 48V 20AH battery pack for 1600W 2000W system
-
48 volt 20Ah = 960 watt hours
-
35amp continuous 110amp burst BMS
-
Configuration: high quality 26650 battery frame with Retardant and Fireproof
-
Case: 1 layer of PVC wrap and Plug-and-play design of portable metal case
-
Standard connectors with customized 40A fuse for discharging
-
Cannon connector for charging
Specification
|
No.
|
Items
|
Specifications
|
|
1
|
Nominal Voltage
|
51.2V
|
|
2
|
Nominal Capacity
|
20Ah
|
|
3
|
Cell Inside
|
OSN Power 26650 3300mAh
|
|
4
|
Configuration
|
16S6P
|
|
5
|
Standard Charge Current
|
4A (0.2C)
|
|
6
|
Max. Charge Current
|
20A (1C)
|
|
7
|
Battery management System (BMS)
|
BMS-L16S3010-486
|
|
8
|
Continuous Discharge Current
|
30A
|
|
9
|
Peak Discharge Current
|
60A
|
|
10
|
Full Charged Voltage
|
58.4V (3.65V per cell)
|
|
11
|
Charge Cut-off Voltage
|
62.4V (3.9V per cell)
|
|
12
|
Discharge Cut-off Voltage
|
32V (2.0V per cell)
|
|
13
|
Net Weight
|
9.18kg
|
|
14
|
Dimensions
|
295x209x102mm
|
|
15
|
Connector
|
Input::Cannon XLR connector
|
|
Output:a pair of wires
|
|
16
|
Operating Temperature
|
Charging: 0°C ~ 45°C
Discharging: -20°C ~ 55°C
|
|
17
|
Storage Temperature
|
(Recommended to store 20 ± 5°C for long term storage)
|
|
18
|
Cycle Life
|
2000 times (80% of initial capacity at 0.2C rate, IEC Standard)
|

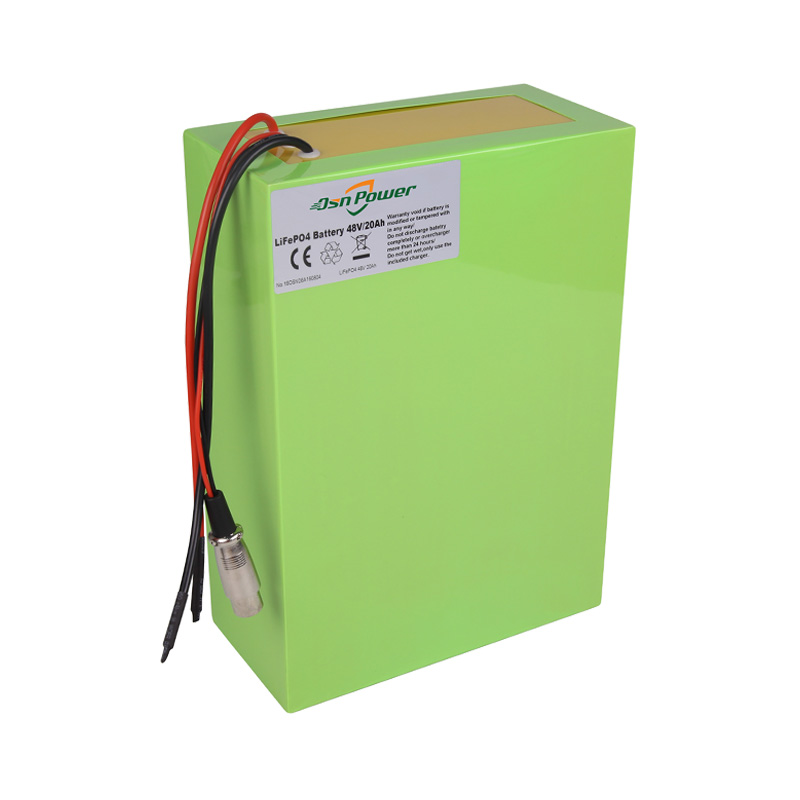

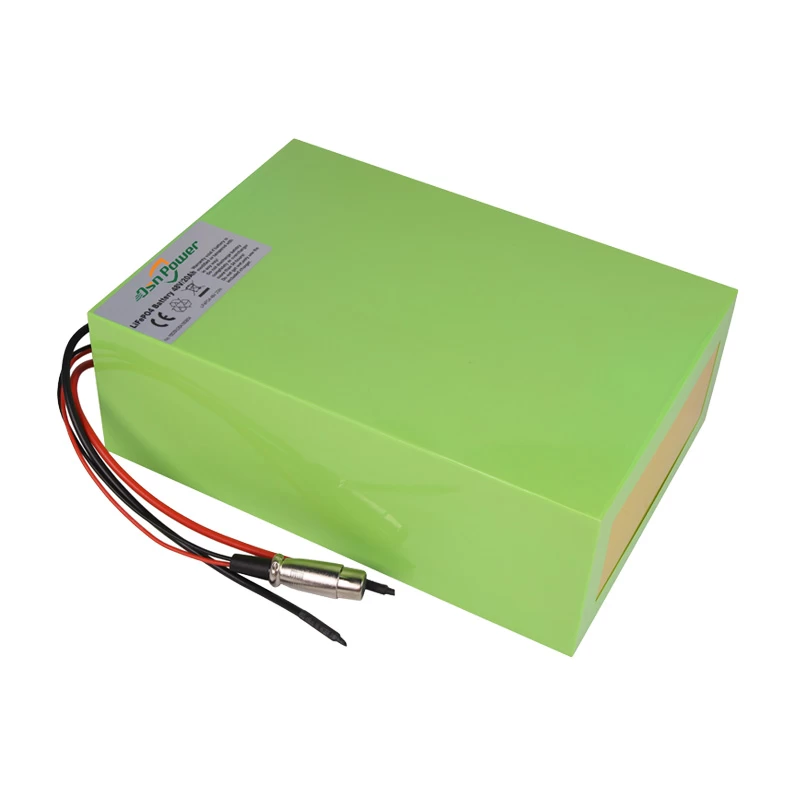

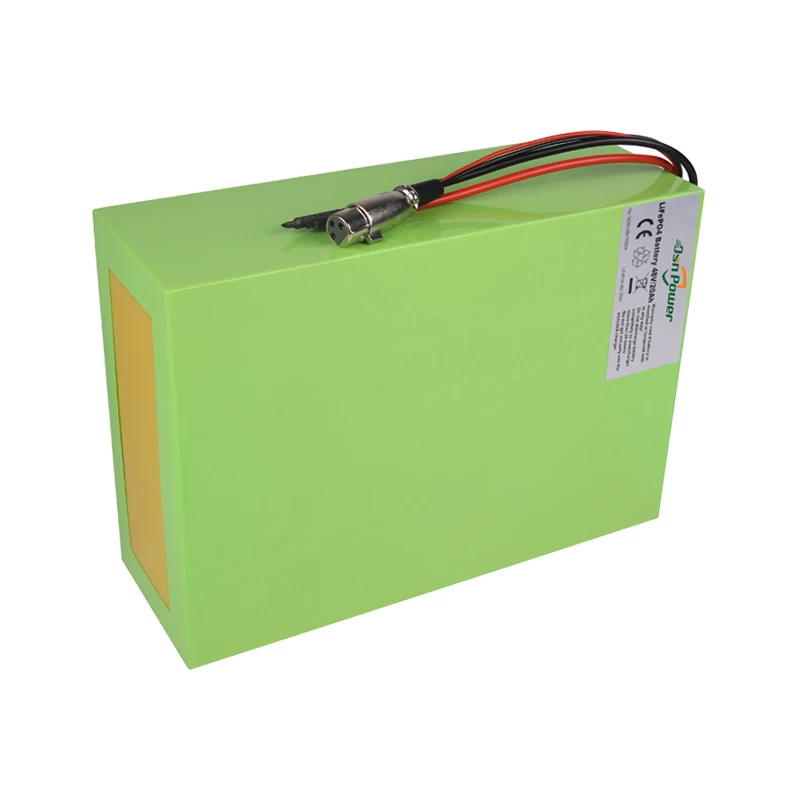

Photo of Electric bike scooter motorcycle Tricycle high power LiFePO4 48V 20AH battery
Applications
Related scooter battery list
Related smart battery pack
OSN Power supply smart battery too,It can internally measure voltage and current, and deduce charge level and SoH (State of Health) parameters, indicating the state of the cells. And supports communication protocol: SMBus,I2C etc.
What’s more, smart battery is with Bluetooth transmission for mobile phone APP display. From APP Display. You can monitor
Battery pack voltage
Single cell voltage
Current
State of charge (SOC)
Charge or discharge State
Cyclee
Temperature
Remaining capacity (RMC)
Design capacity (DCAP)
Full charge capacity (FCC)
Average Time To Empty (ATTE)
Average Time To Full (ATTF)
Serial Number (SN)
More info:
OSN Power flexibly provide 48V battery pack solution with various of battery cell from difference brand to meet your budget.Any inquiry, please send email to service@osnpower.com or call at +86-18575517952
