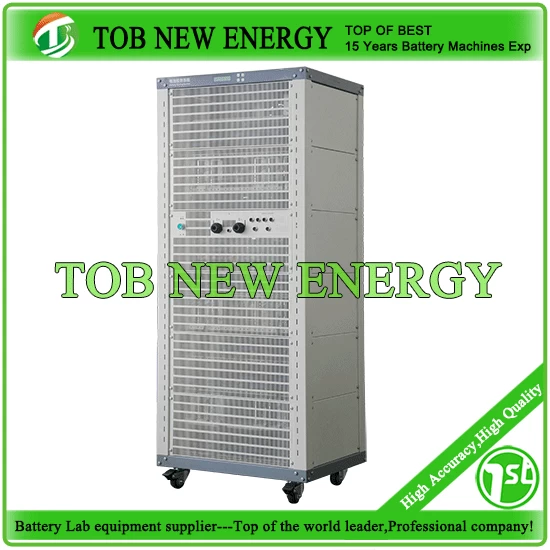

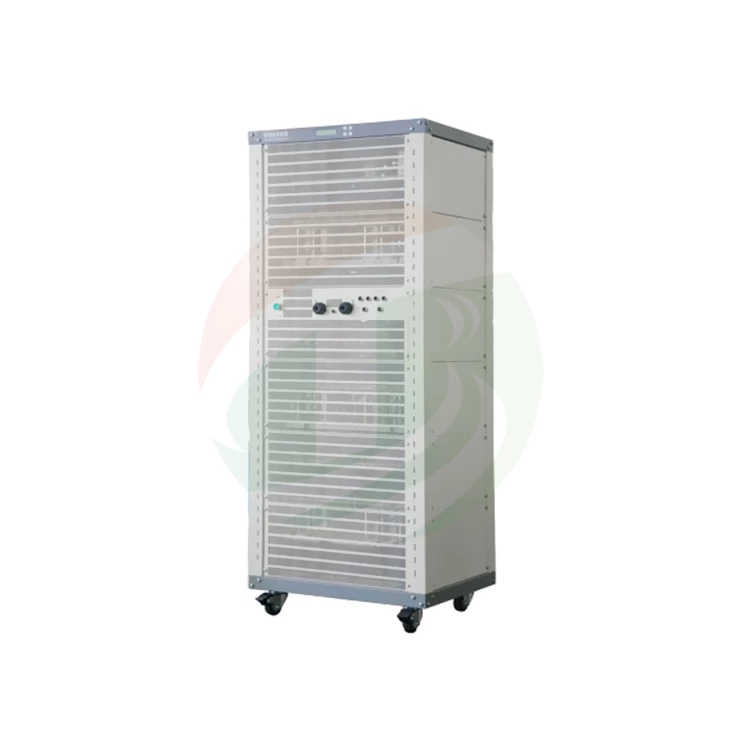

2 Channel Battery Pack Test System For Electric Car Battery Pack Tester 60V50A
SPECIFICATIONS
1 TOB-BTS-60V50A Battery Pack test system is mainly used for Electric Car battery pack testing, it can test lithium battery pack voltage up to 60v with Max current 50A.
2 It can also test battery pack with protect board (PCB/PCM)
|
Project index
|
Parameter index
|
|
Input Power
|
AC 380V ±10% / 50Hz
|
|
Resolution
|
AD：15bit；DA：12bit
|
|
Input Resistance
|
≥1MΩ
|
|
Input Power
|
7848W
|
|
Channel Features
|
Constant Current Source and Constant Voltage Source
with Independent pairs of Closed-loop Structure
|
|
Channel Control Mode
|
Independent Control
|
|
Voltage
|
Per Channel Voltage Range
|
Charge：300mV~60V；Discharge：2.5V~60V
|
|
Discharge Min Voltage
|
2.5V
|
|
Accuracy
|
± 0.1% of FS
|
|
Stability
|
± 0.1% of FS
|
|
Current
|
Per Channel Current Range
|
250mA~50A
|
|
Accuracy
|
± 0.1% of FS）
|
|
Stability
|
± 0.1% of FS
|
|
Power
|
Per Channel Output Power
|
3000W
|
|
Stability
|
± 0.2% of FS
|
|
Time
|
Current Response Time
|
The Current rise Response Time is 20ms
|
|
Step Time Range
|
1s≤Single Step Time Range≤365*24 h，
Time Form Support 00：00：00(h、min、s)
|
|
Data Recording
|
Record Condition
|
Lower sampling time：100ms
|
|
Lower sampling Voltage：150mV
|
|
Lower sampling Current：5mA
|
|
Record Frequency
|
10Hz
|
|
Charge
|
Charge Mode
|
Constant Current Charge、Constant Voltage Charge、
Constant Current and Constant Voltage Charge
|
|
End Conditon
|
Voltage、Current、Relative Time、Capacity
|
|
Discharge
|
Discharge Mode
|
Constant Current Discharge
|
|
End Condition
|
Current、Current、Relative Time、Capacity
|
|
Cycle
|
Loop Measure Range
|
1~65535 times
|
|
Per Loop Step No.
|
254
|
|
Nested Loop
|
Nested loop Function，Max Support 3 Layers
|
|
Protection
|
Software Protection
|
l Power-down Data Protection
|
|
l Off-line Testing Function
|
|
lSetting Protection Condition，Setting Parameter：
Voltage Low limit、Voltage Upper limit、Current Low limit、
Current Upper limit、Delay Time
|
|
Hardware Protection
|
Addition Avoiding Reverseconnection Protection Model
|
|
Voltage and Current Testing Sample
|
4-wire connecting
|
|
Noise
|
<80dB
|
|
Database
|
My SQL Databace
|
|
A Means of Communication of Upper Machine
|
TCP/IP Protocol
|
|
Data Output
|
EXCEL、TXT、Graph
|
|
Operation system
|
Offioce 2010 , Win 7 system
|
|
Communication Interface
|
Ethernet Port
|
|
Per Unit Main Channels No.
|
1
|
|
Dimensions
|
18U，W*D*H：606*606*990（mm）
|
Machine accessories

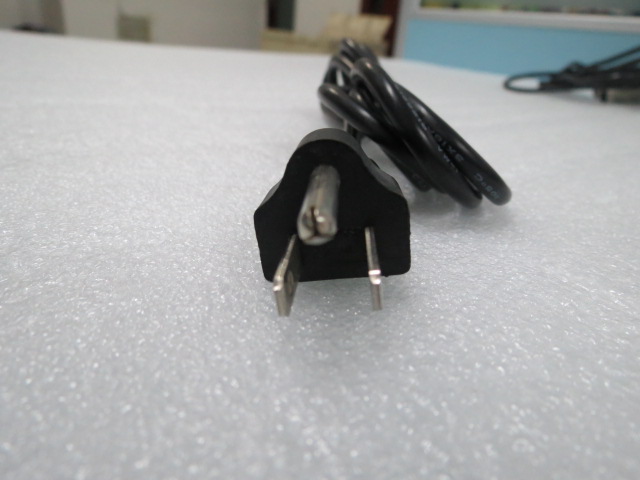

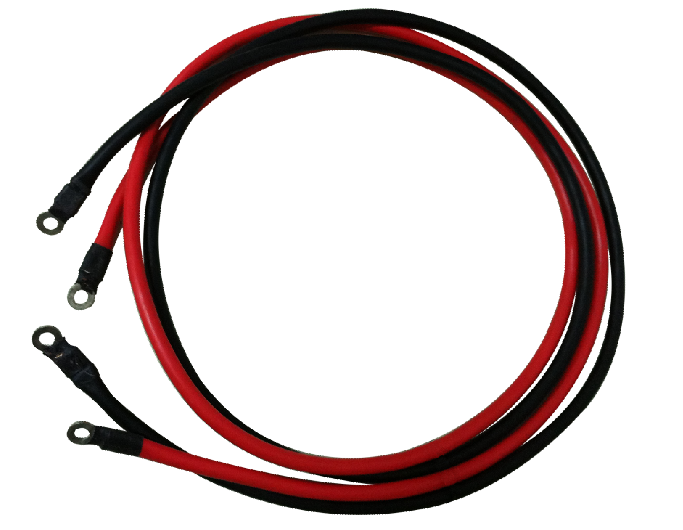

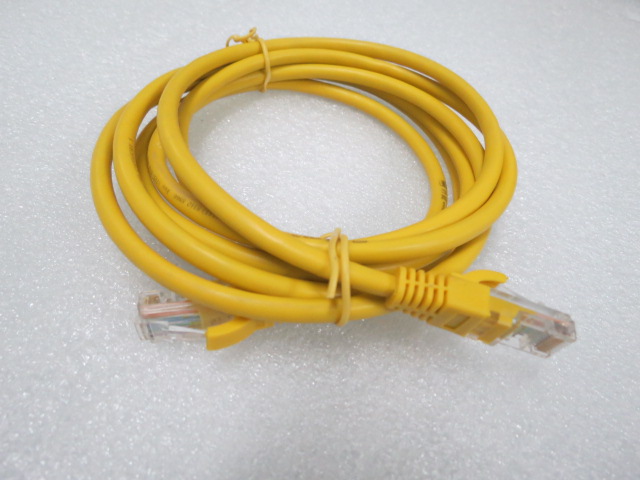

“Nose line”-2pcs "Connect line”-1pcs "Customized power cable"-1pcs
