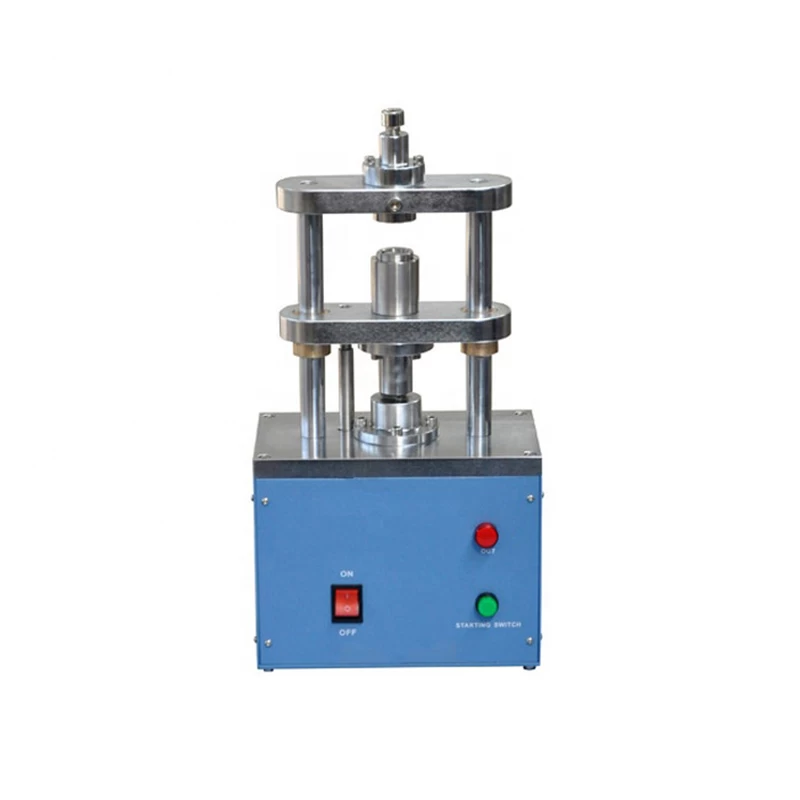

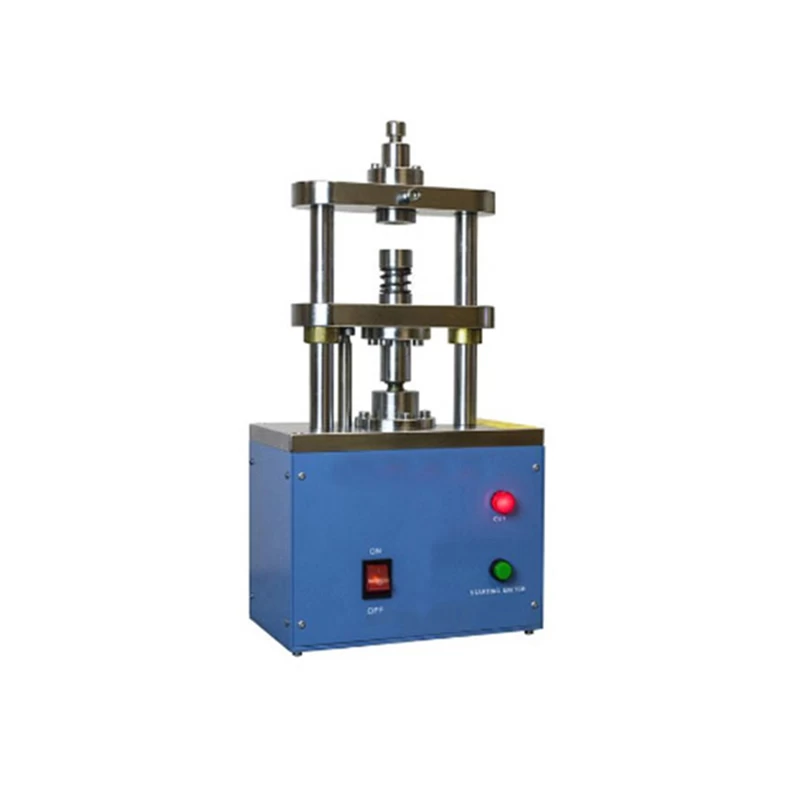

AOT-MSK-160D is a CE Certified electric crimper machine for the CR20XX series coin cells such as CR2016, CR2025, and CR2032. The compact size of coin cell crimper machine designed for operating both inside and outside of a glove box.

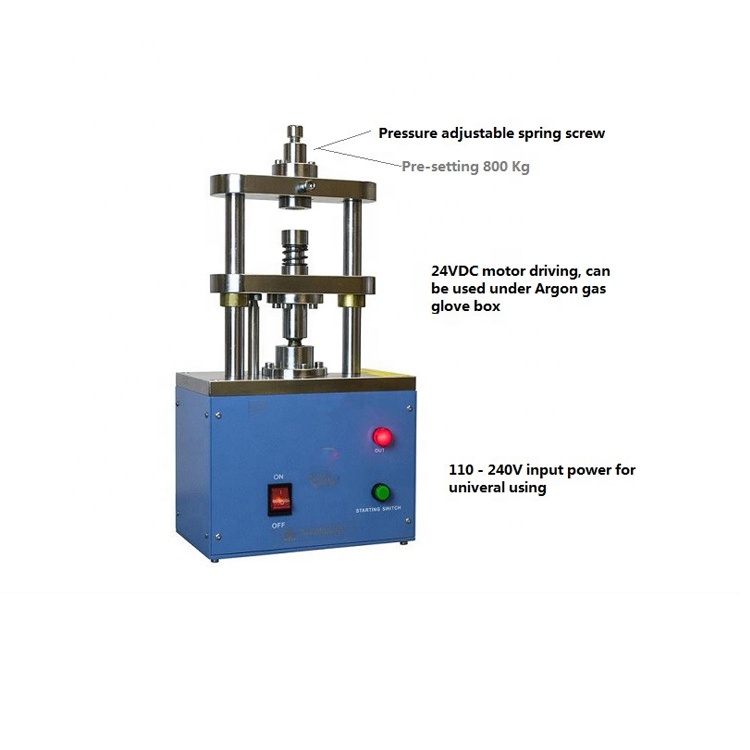

The use of a 24VDC motor enables the operation inside a glove box under Ar atmosphere for Li-S, Li Metal Air and Li half-cell testing.
|
Model
|
Electric Crimper Machine for Coin Cell AOT-MSK-160D
|
|
Voltage
|
110-240V AC 50/60Hz
|
|
Power
|
DC 24V motor,15W
|
|
Die Set & Compatibility
|

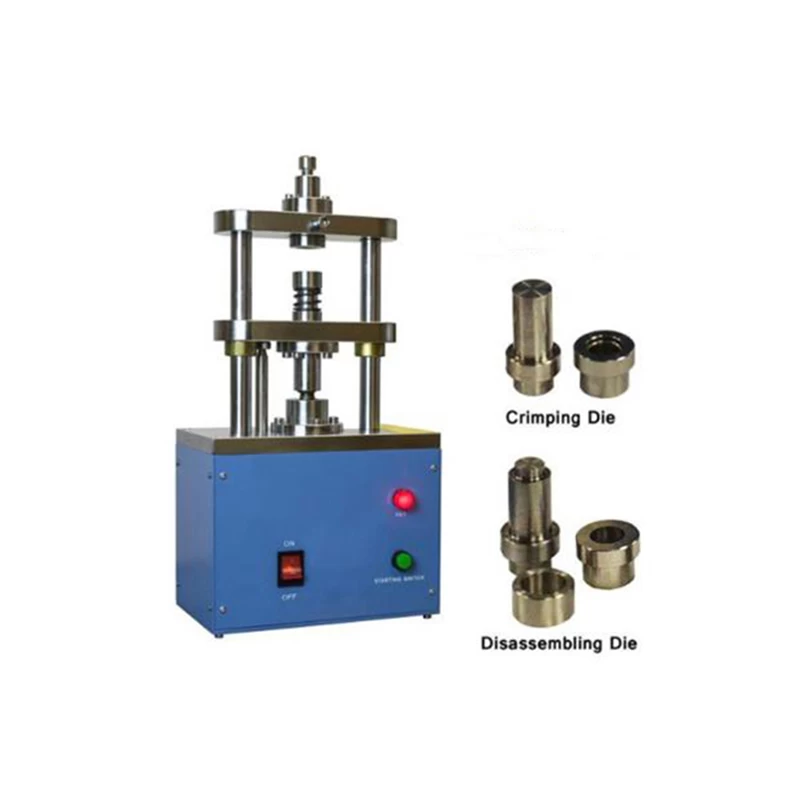

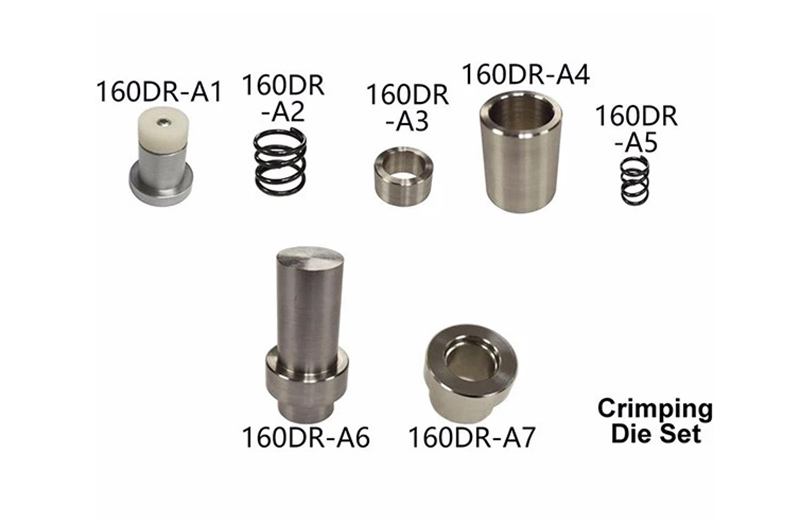

1.Assembling and disassembling dies for CR2032, CR2025, & CR2016 coin cells.
2. Please read operation manual to see how to replace die from crimping to disassembling.
|
|
Structure
|
Heavy Duty Steel Platform
|
|

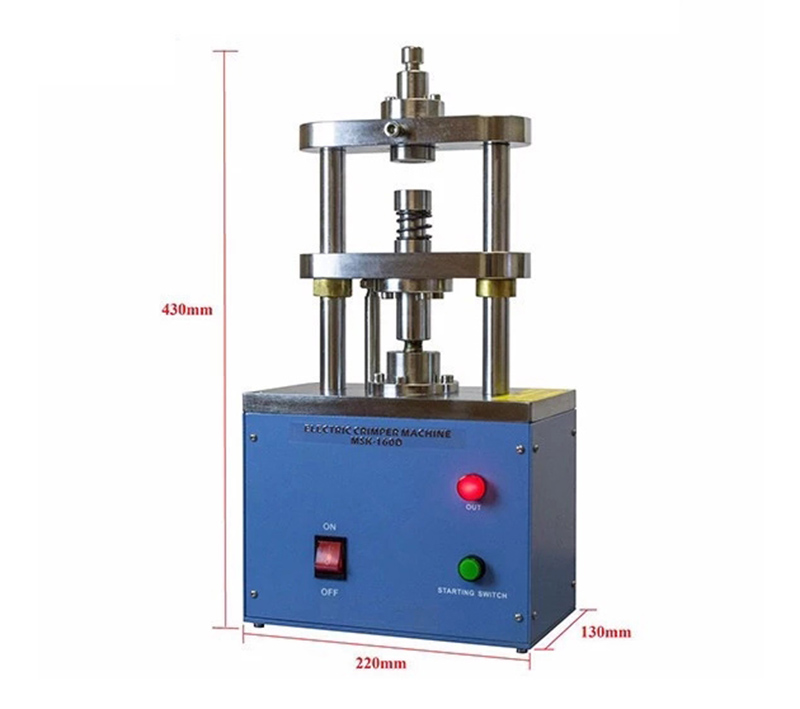

Product Dimensions
|
220mm(L) x 130mm(W) x 430mm(H)
|
|
Compliance
|
CE Certified
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Maintenance Notes
|
Electrolytes are highly corrosive materials, and therefore the die set must be cleaned
with alcohol after each use to avoid corrosion and to maintain the equipment's integrity.
|
|
Optional
|
Protection shield/enclosure with the implementation of the safety interlock
|
|
Net Weight
|
28 kg
|
