1. Advantage
. The forklift comes with enclosed type dashboard. Simple design of the cab creates comfortable working environment for the operator.
. Combined type taillight makes this four wheel forklift attractive and noticeable.
. Since the foot brake pedal is slightly higher than the CURTIS accelerator, this forklift offers high comfort during operation.
. Applies CURTIS LCD instrument panel with good resistance to water and vibration. Important information can be displayed on the screen completely, enabling the user to understand the working conditions of the product.
2. Features

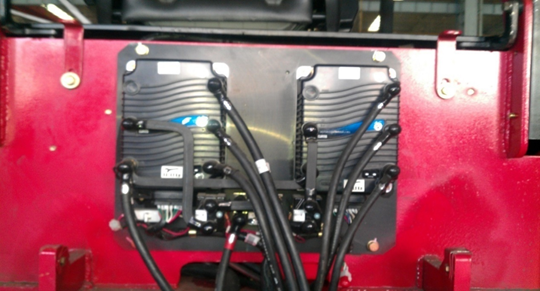

Imported Curtis controller configuration,
while using the new installation which has won national patent to achieve
better thermal performance

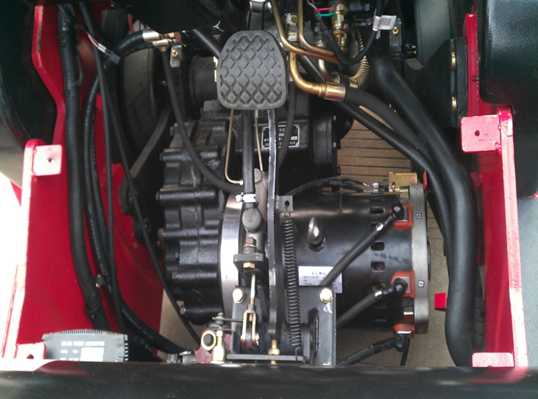

Transverse gearbox, high transmission
efficiency, effectively improve every battery operating time.

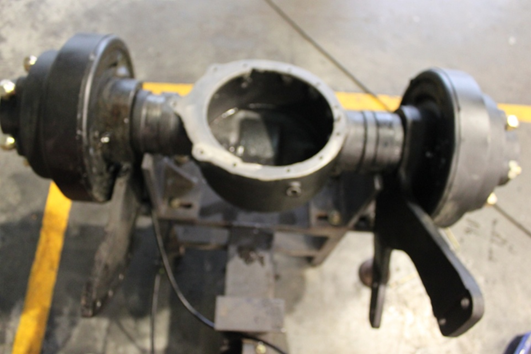

Plate type fan drive axle which can make
rotated 360 °, has obtained national patent, which greatly facilitates the repair of
motor and gearbox.

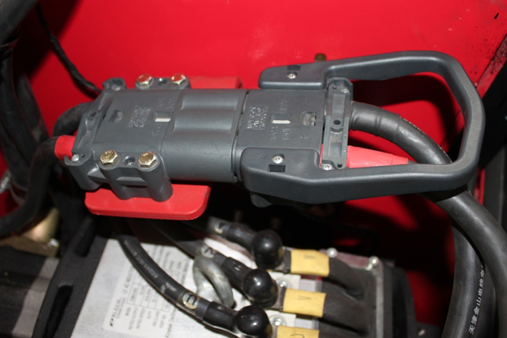

REMA power connector plug makes more
convenient and safer.

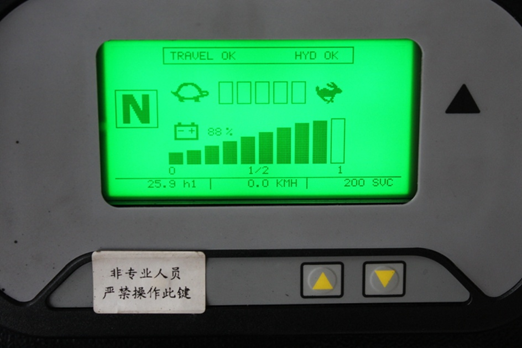

Curtis Liquid crystal instrument,
waterproof, shockproof, reliable, completely shows important information for
the operator to have a direct and dynamic information.
3. Specification
|
Model
|
|
CPD13J
|
CPD16J
|
CPD18J
|
|
1
|
Feature
|
Power Type
|
|
Battery
|
|
2
|
Load Capcity
|
kg
|
1300
|
1600
|
1800
|
|
3
|
Load center
|
mm
|
500
|
500
|
500
|
|
4
|
Lift height
|
mm
|
3000
|
3000
|
3000
|
|
5
|
Free lift height
|
mm
|
135
|
135
|
135
|
|
6
|
Forkk size
|
L*W*H
|
mm
|
920×100×35
|
920×100×35
|
920×100×35
|
|
7
|
Mast tilt
|
FR/RR
|
。
|
6/10
|
6/10
|
6/10
|
|
8
|
Min turning Radius
|
mm
|
1990
|
2030
|
2030
|
|
9
|
Min Right angle stacking aisle width
|
mm
|
3397
|
3437
|
3437
|
|
10
|
Min right angle aisle width
|
mm
|
2190
|
2230
|
2230
|
|
11
|
Min ground clearance
|
mm
|
110
|
110
|
110
|
|
12
|
Height of overhead guard
|
mm
|
2132
|
2132
|
2132
|
|
13
|
Overhang
|
mm
|
1030
|
1030
|
1030
|
|
14
|
Performance
|
Max driving speed
|
Full load
|
km/h
|
406
|
406
|
406
|
|
15
|
Max Lifting speed
|
Full load
|
mm/s
|
14
|
14
|
14
|
14
|
14
|
14
|
|
16
|
Max drawbar pull
|
Full load
|
KN
|
300
|
350
|
300
|
350
|
285
|
300
|
|
17
|
Gradeabiity
|
%
|
15
|
15
|
15
|
15
|
15
|
15
|
|
18
|
Dimension
|
Overall length
|
Without forks
|
mm
|
2158
|
2220
|
2220
|
|
19
|
Over width
|
mm
|
1072
|
1072
|
1072
|
|
20
|
Height mast lifted(with backrest）
|
mm
|
3930
|
3930
|
3930
|
|
21
|
Height mast lowered
|
mm
|
1990
|
1990
|
1990
|
|
22
|
Power
|
Tyre
|
Front
|
|
6.00-9-10PR
|
6.00-9-10PR
|
6.00-9-10PR
|
|
23
|
Rear
|
|
5.00-8-10PR
|
5.00-8-10PR
|
5.00-8-10PR
|
|
24
|
Wheelbase
|
mm
|
1370
|
1370
|
1370
|
|
25
|
Tread
|
FR/RR
|
mm
|
894/920
|
894/920
|
894/920
|
|
26
|
Self weight
|
Without load
|
kg
|
2840
|
3000
|
3120
|
|
27
|
Battery
|
Voltage/capacity
|
V/Ah
|
48/400
|
48/400
|
48/500
|
|
28
|
motor
|
Driving
|
KW
|
5.2
|
8
|
5.2
|
8
|
5.2
|
8
|
|
29
|
lifting
|
KW
|
8
|
10
|
8
|
10
|
8
|
10
|
|
30
|
Controller
|
CURTIS
|
CURTIS
|
CURTIS
|
CURTIS
|
CURTIS
|
CURTIS
|
|
31
|
|
Way of Contrl
|
DC
|
AC
|
DC
|
AC
|
DC
|
AC
|
|
32
|
Operating pressure
|
Mpa
|
15.5
|
15.5
|
15.5
|
