1. Advantage
. Applies CURTIS LCD instrument panel with good resistance to water and vibration. Important information can be displayed on the screen completely, enabling the user to understand the working conditions all the time.
. Simple design of the cab creates comfortable working environment for the operator.
. Comes with enclosed type dashboard.
. Combined type taillight makes this forklift attractive and noticeable.
. Since the foot brake pedal is slightly higher than the Curits accelerator, this forklift offers high comfort during operation.
2. Features

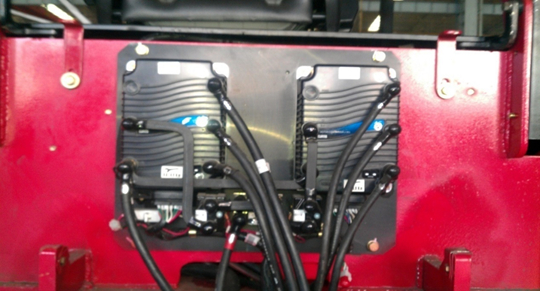

Imported Curtis controller configuration, while using the new installation which has won national patent to achieve better thermal performance.

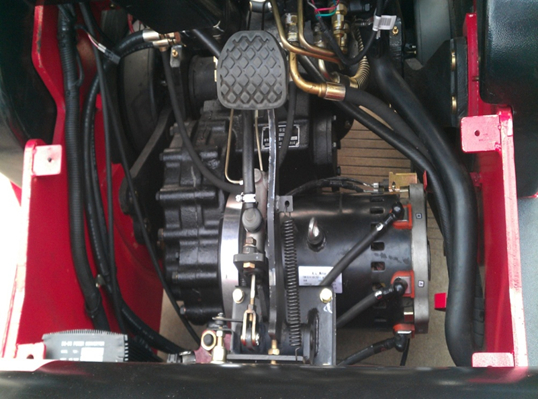

Transverse gearbox, high transmission efficiency, effectively improve every battery operating time.

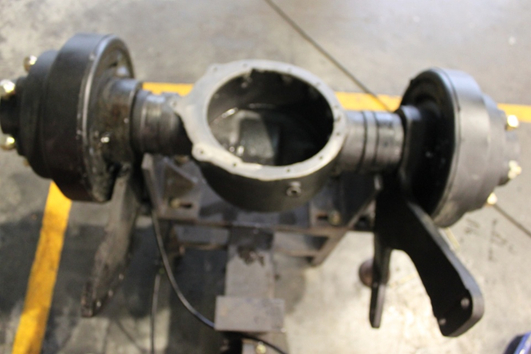

Plate type fan drive axle which can make rotated 360 °, has obtained national patent, which greatly facilitates the repair of motor and gearbox.

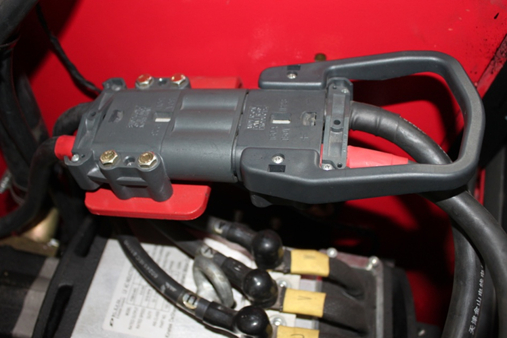

REMA power connector plug makes more convenient and safer.

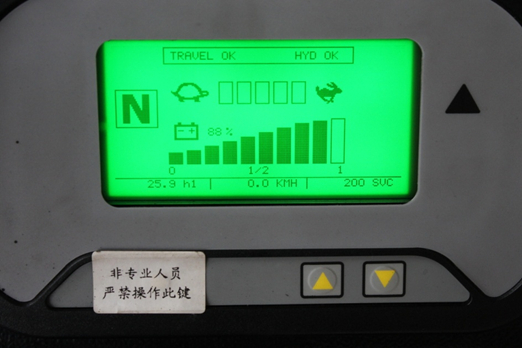

Curtis Liquid crystal instrument, waterproof, shockproof, reliable, completely shows important information for the operator to have a direct and dynamic information.
3. Specification
|

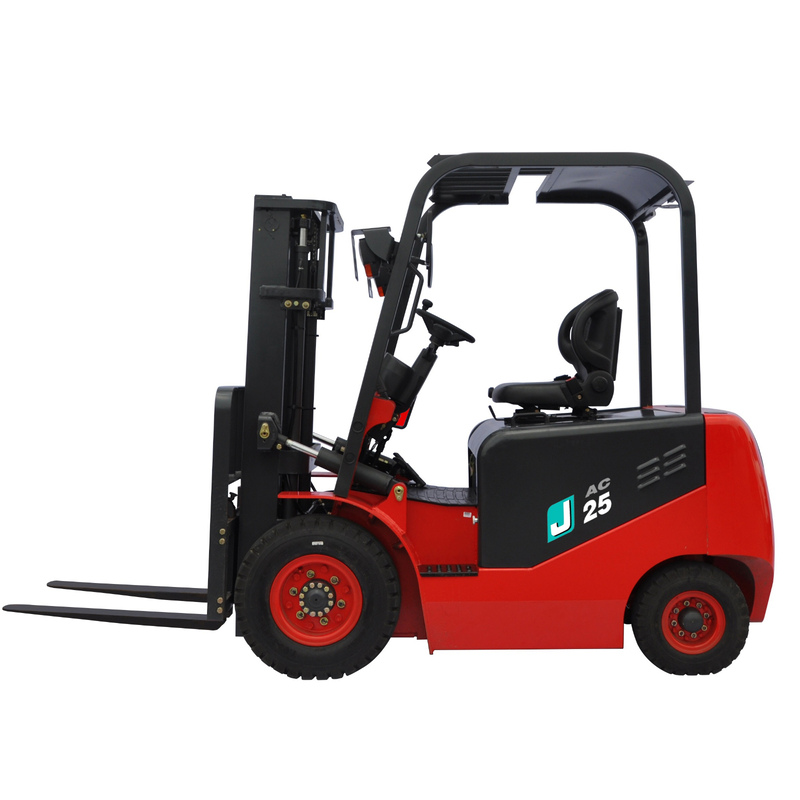

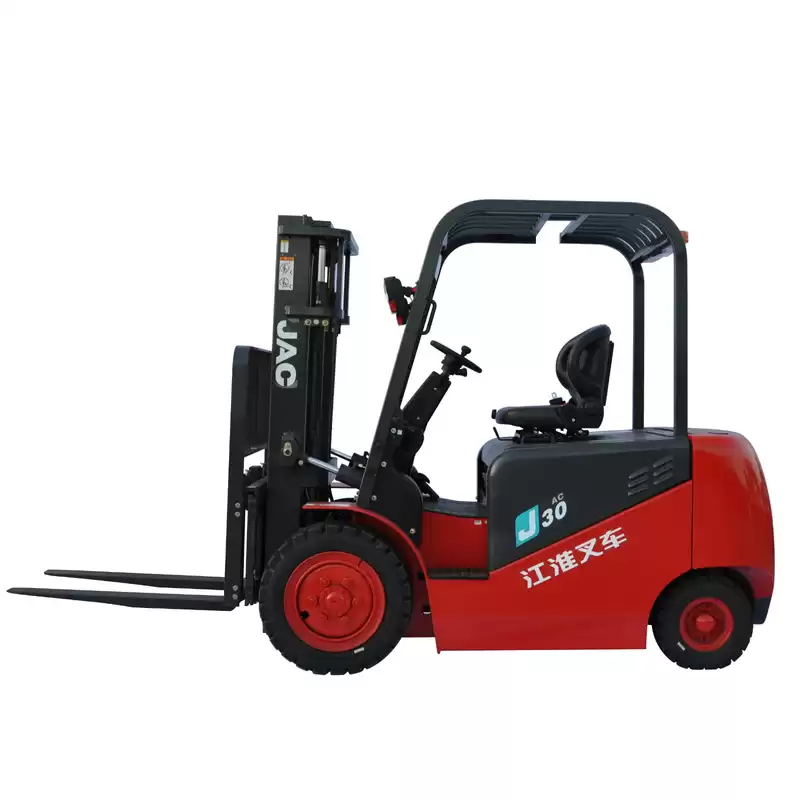

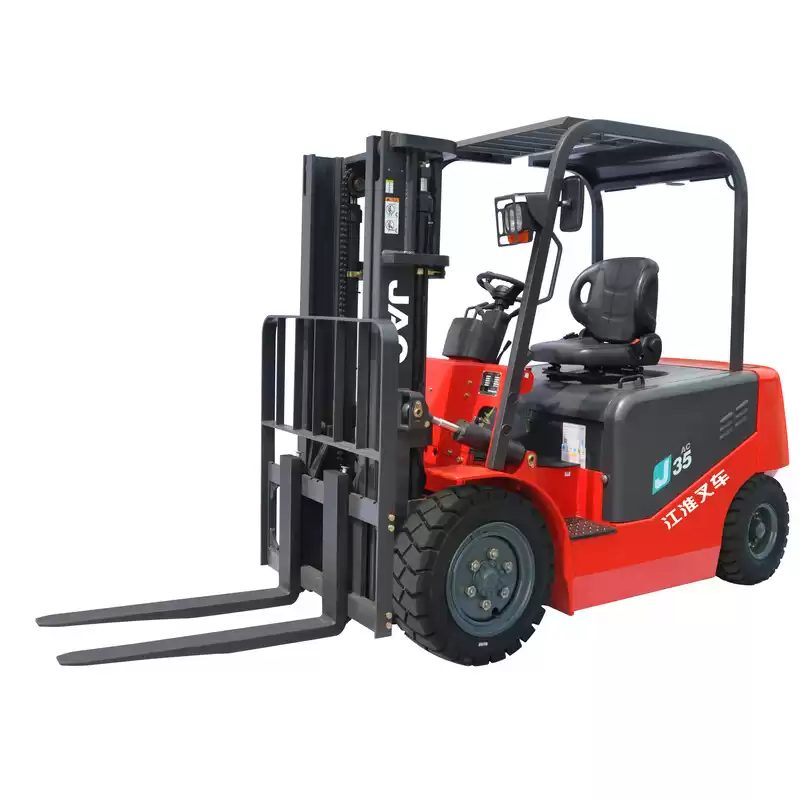

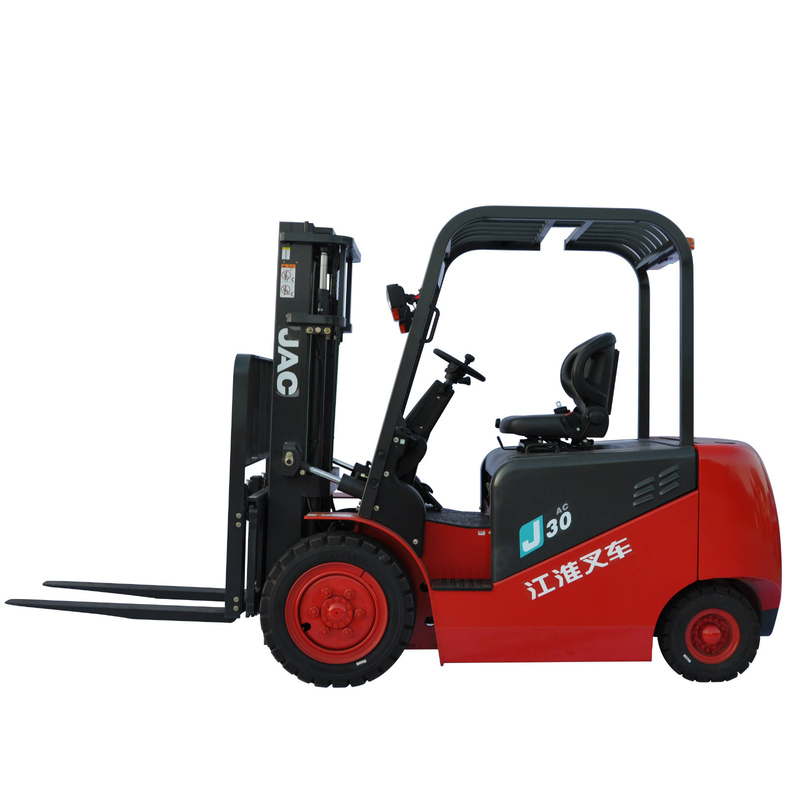

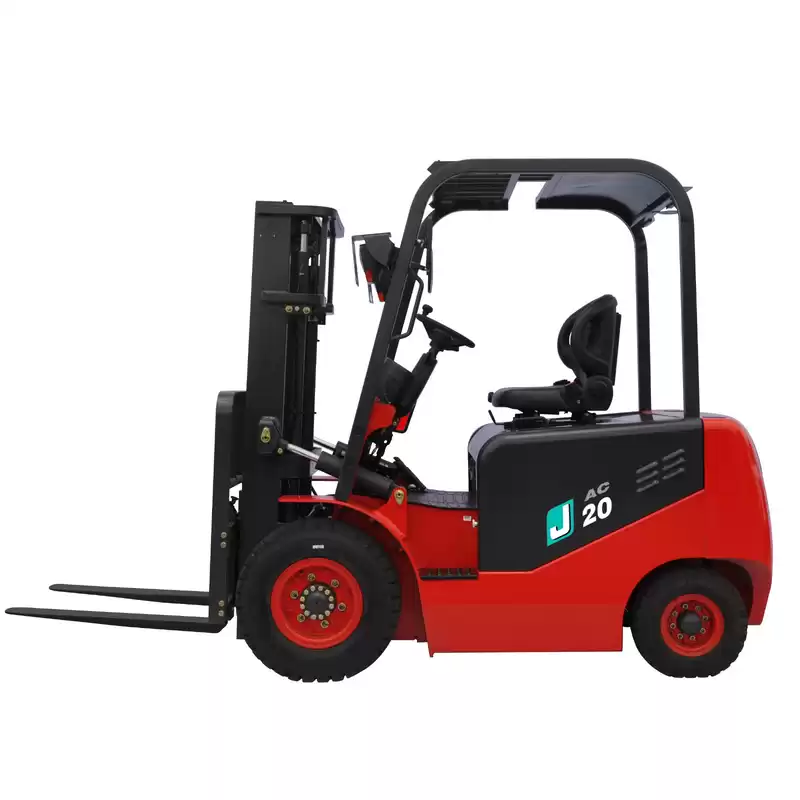

Model
|
|
CPD20J
|
CPD25J
|
CPD30J
|
CPD35J
|
|
1
|
Feature
|
Power Type
|
|
Battery
|
|
2
|
Load Capcity
|
kg
|
2000
|
2500
|
3000
|
3500
|
|
3
|
Load center
|
mm
|
500
|
500
|
500
|
500
|
|
4
|
Lift height
|
mm
|
3000
|
3000
|
3000
|
3000
|
|
5
|
Free lift height
|
mm
|
155
|
155
|
160
|
160
|
|
6
|
Forkk size
|
L*W*H
|
mm
|
1070×122×40
|
1070×122×40
|
1070×125×45
|
1070×125×50
|
|
7
|
Mast tilt
|
FR/RR
|
。
|
6/12
|
6/12
|
6/12
|
6/12
|
|
8
|
Min turning Radius
|
mm
|
2200
|
2200
|
2280
|
2280
|
|
9
|
Min Right angle stacking aisle width
|
mm
|
3665
|
3665
|
3964
|
3964
|
|
10
|
Min right angle aisle width
|
mm
|
2400
|
2400
|
2480
|
2480
|
|
11
|
Min ground clearance
|
mm
|
110
|
110
|
120
|
120
|
|
12
|
Height of overhead guard
|
mm
|
2172
|
2172
|
2180
|
2180
|
|
13
|
Overhang
|
mm
|
990
|
990
|
980
|
980
|
|
14
|
Performance
|
Max driving speed
|
Full load
|
km/h
|
466
|
466
|
484
|
484
|
|
15
|
Max Lifting speed
|
Full load
|
mm/s
|
14
|
14
|
14
|
14
|
14
|
14
|
13
|
13
|
|
16
|
Max drawbar pull
|
Full load
|
KN
|
280
|
300
|
280
|
280
|
260
|
260
|
240
|
240
|
|
17
|
Gradeabiity
|
%
|
15
|
15
|
15
|
15
|
15
|
15
|
12
|
12
|
|
18
|
Dimension
|
Overall length
|
Without forks
|
mm
|
2435
|
2435
|
2603
|
2603
|
|
19
|
Over width
|
mm
|
1163
|
1163
|
1250
|
1250
|
|
20
|
Height mast lifted(with backrest）
|
mm
|
4030
|
4030
|
4228
|
4228
|
|
21
|
Height mast lowered
|
mm
|
1995
|
1995
|
2065
|
2120
|
|
22
|
Power
|
Tyre
|
Front
|
|
7.00-12-12PR
|
7.00-12-12PR
|
28×9-15-14PR
|
28×9-15
|
|
23
|
Rear
|
|
18×7-8-14PR
|
18×7-8-14PR
|
18×7-8-14PR
|
18×7-8
|
|
24
|
Wheelbase
|
mm
|
1520
|
1520
|
1700
|
1700
|
|
25
|
Tread
|
FR/RR
|
mm
|
973/960
|
973/960
|
1000/990
|
1000/990
|
|
26
|
Self weight
|
Without load
|
kg
|
3850
|
4220
|
4960
|
5540
|
|
27
|
Battery
|
Voltage/capacity
|
V/Ah
|
48/600
|
48/630
|
80/500
|
80/550
|
|
28
|
motor
|
Driving
|
KW
|
6.5
|
11.1
|
6.5
|
11.1
|
10.2
|
16.6
|
10.2
|
16.6
|
|
29
|
lifting
|
KW
|
8.6
|
12
|
8.6
|
12
|
13
|
13.5
|
13
|
13.5
|
|
30
|
Controller
|
CURTIS
|
CURTIS
|
CURTIS
|
CURTIS
|
CURTIS
|
CURTIS
|
CURTIS
|
CURTIS
|
|
31
|
|
Way of Contrl
|
DC
|
AC
|
DC
|
AC
|
DC
|
AC
|
DC
|
AC
|
|
32
|
Operating pressure
|
Mpa
|
18.5
|
18.5
|
18.5
|
18.5
|
