Electric tea leaf dryer machine can process almost all tea: such as black tea, green tea, oolong tea, dark tea herbal tea and so on. Through drying, the tea leaves are stopped to ferment, the shape of tea is fixed and the volume is reduced. This machine use electric heating wire as heating source, total drying area is 12m², for tea, the recommended drying temperature is 75℃ - 100℃, we suggest that the water content after drying is about 5%, which is conducive to the preservation of tea.

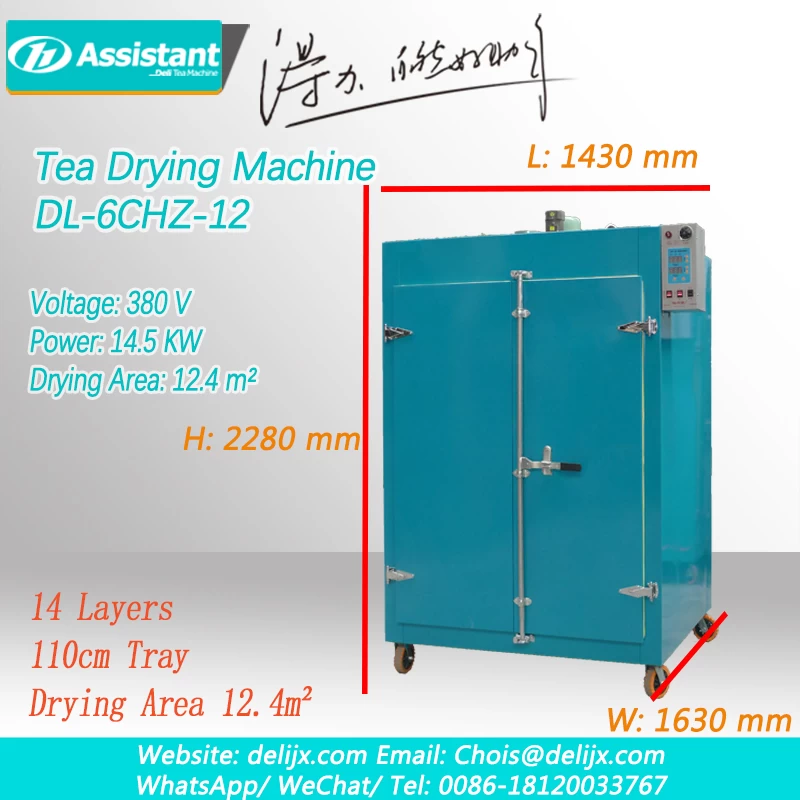

DL-6CHZ-12 tea leaf drying machine specification:
|
Model
|
DL-6CHZ-12
|
|
Dimension
|
1430×1630×2280 mm
|
|
Voltage
|
380/50 V/Hz
|
|
Heating element
|
Electric heating wire
|
|
Total heating power
|
14.5 kw
|
|
Heating element group
|
3 Group
|
|
Fan motor
|
Power
|
0.55 KW
|
|
Speed
|
1400 rpm
|
|
Rated voltage
|
380 V
|
|
Pallet rotary motor
|
Power
|
40 W
|
|
Speed
|
1250 rpm
|
|
Rated voltage
|
220 V
|
|
Pallet rotary speed
|
6 rpm
|
|
Pallet type
|
Round
|
|
Drying pallet diameter
|
110 cm
|
|
Effective drying area
|
12.4 m2
|
|
Number of drying pallet
|
14
|
|
Efficiency
|
140 kg/h
|
The above data is based on fresh tea leaf water content of 75-80%.

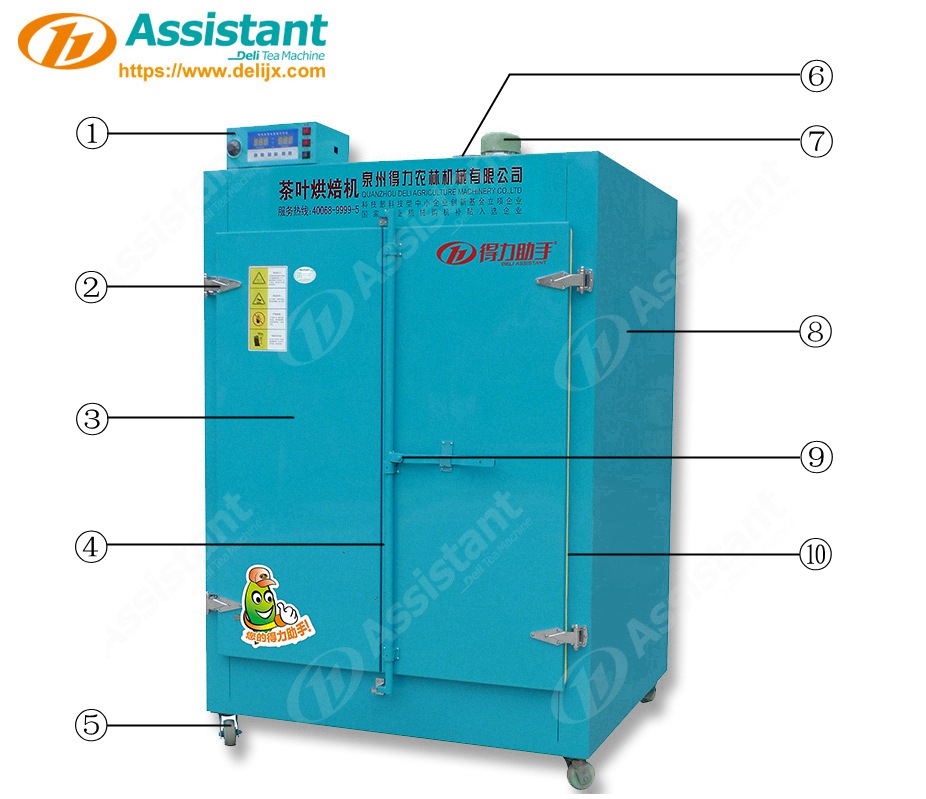

DL-6CHZ-12 tea drying machine decomposition diagram:
|
①
|
Electric control panel
|
②
|
Hinge
|
③
|
Door
|
④
|
Transmission rod
|
⑤
|
Nylon wheel
|
⑥
|
Exhaust vent
|
⑦
|
Drive motor
|
⑧
|
Tank body
|
⑨
|
Open handle
|
⑩
|
Sealing strip
|
|
The design of the wind tunnel has got the national patent, which makes the heat more uniform, the drying is more efficient and the noise is lower.
|
|
Copper core motor is used to ensure smooth operation of the machine, ensure heat transfer and moisture vapor emission.
|
|
The metal plate inside the machine is coated with special coating, which reflects the heat inside the machine. The heat loss is small and the drying speed is faster.
|
|

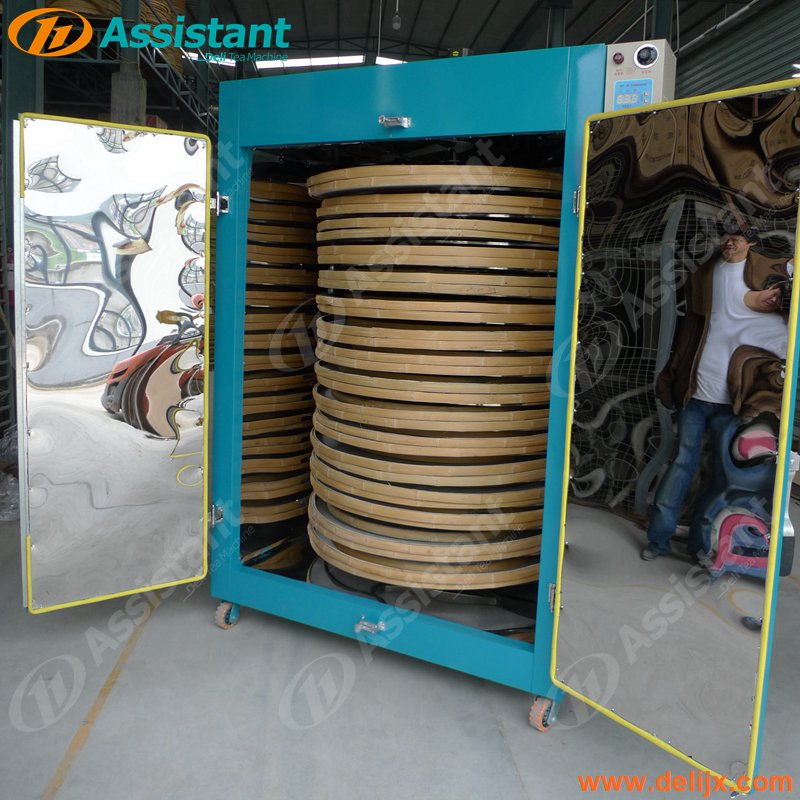

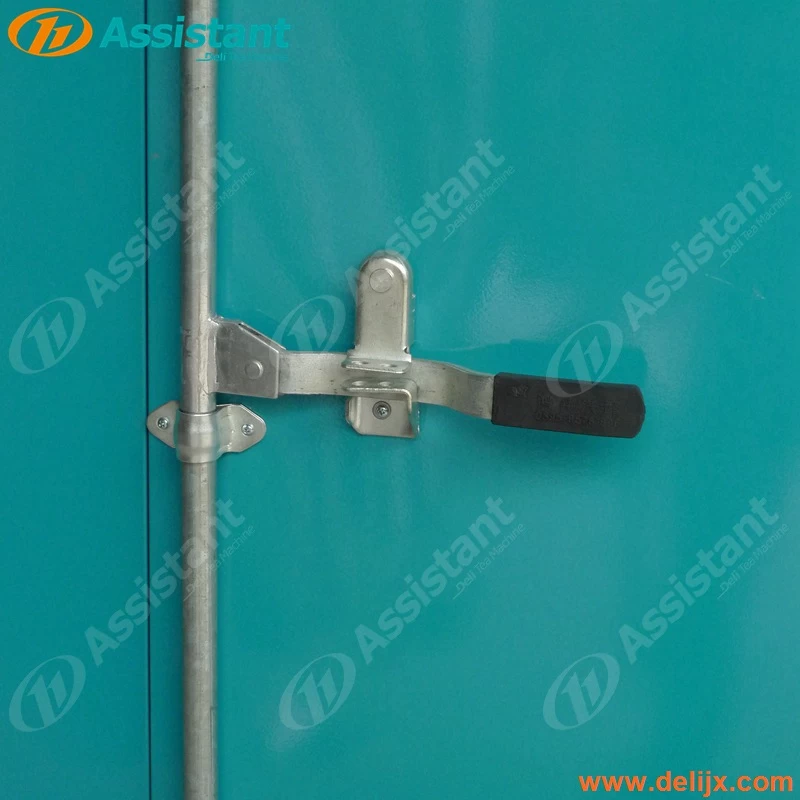

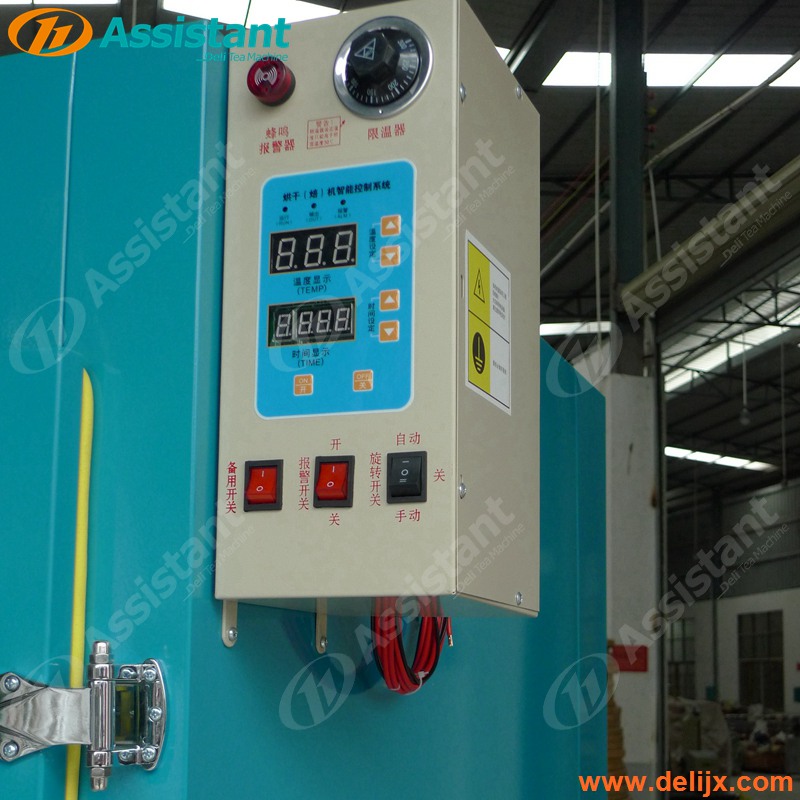

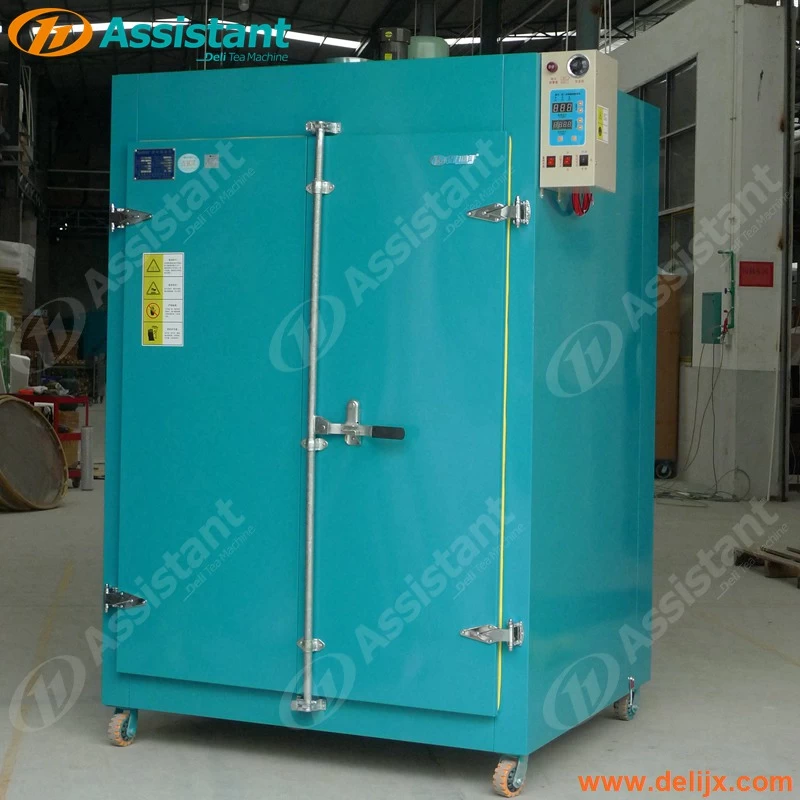

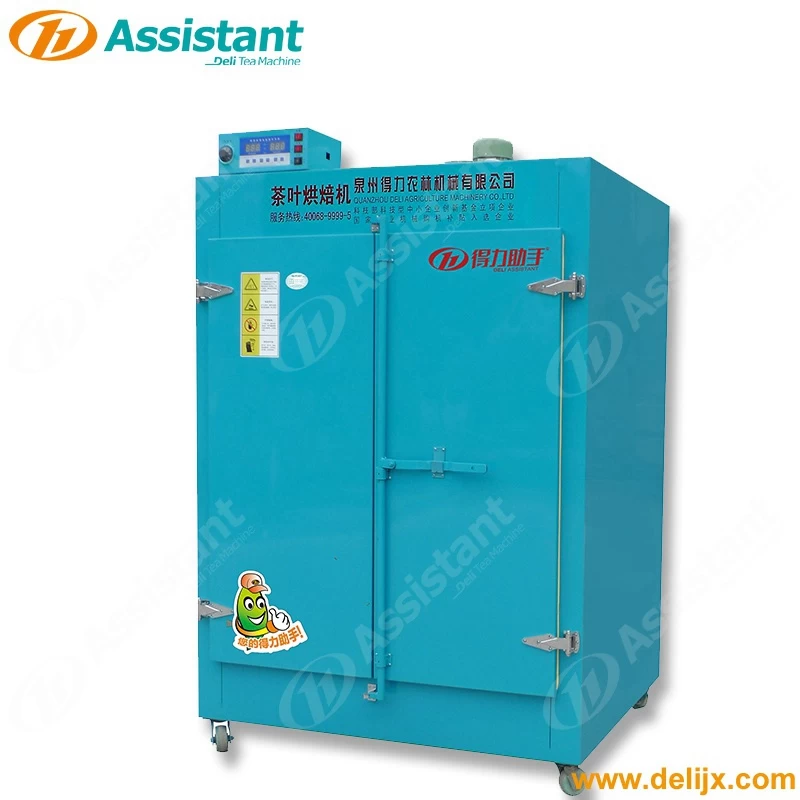

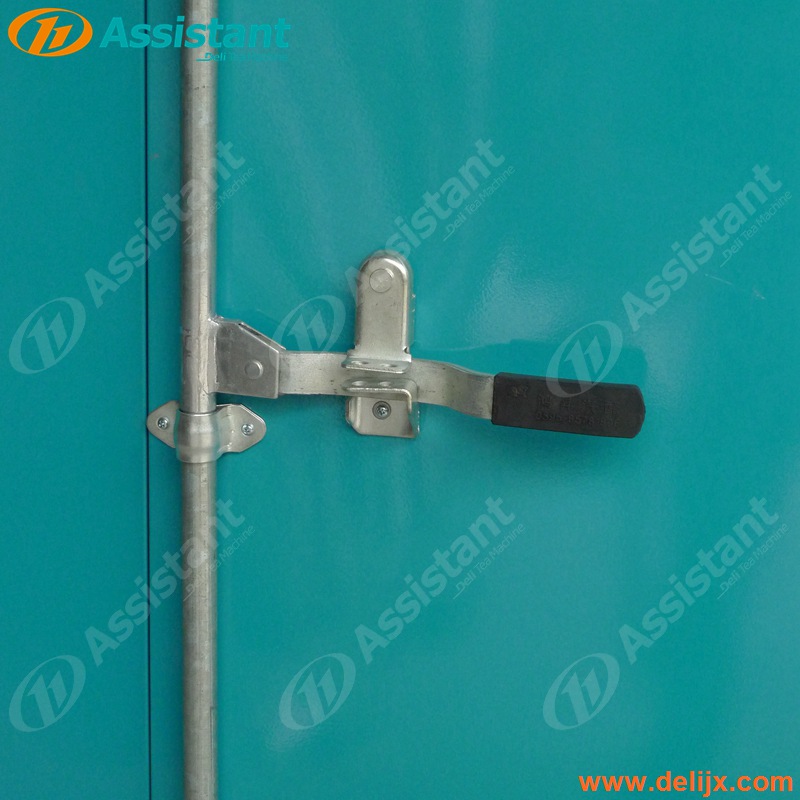

DL-6CHZ-12 electric heating tea leaf dryer machine photos:
|
