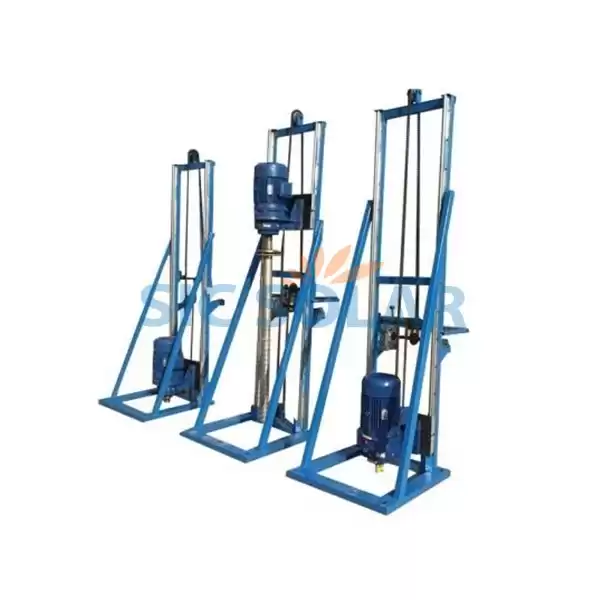

Solar Pile Driving Pile Driving Machine
Power principle: This machine uses 7.5kW motor as power source, and then decelerates through gearbox, and connects to and drill screw pile nail with specified size.

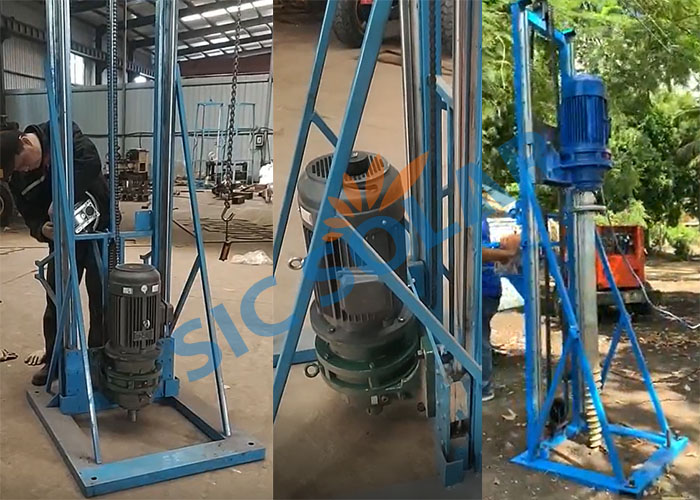

Lifting principle: The machine is hoisted by hoist gears. Through the motor and the reducer moving up and down on two 30mm slides on the fixed plate, the hoist reaches, the height specified by the customer by the shaking chain.
The machine can run by two directions.
Category: Ground screw
|
Voltage
|
380V
|
|
Oil for Gearbox
|
Gear oil
|
|
Height of Machine
|
2000MM-3500MM
|
|
Length of Ground Screw
|
800MM-2500MM
|
|
Max Diameter of Ground Screw
|
140MM
|
|
Motor Speed
|
1440 r/min
|
|
Operational Direction
|
clockwise/ counterclockwise
|
|
Oil for Gearbox
|
Gear oil
|
|
Weight of Machine
|
About 260KG
|
|
Transmission mode
|
Reducer optical axis chain transmission
|
☆ Portable - Immediately loadable and quick changes of position.
☆Professional - suitable for different soil types.
☆ Economic - Cost savings and saving time.
☆ Efficient - Short assembly time and quick mounting.
The driver accessory are packed in wooden case,
Q1. How can I purchase the suitable driver for my ground screw?
Currently we have several kinds of ground screw electric driver, the max specification of ground screw for the driver is different. so, pls offer us the dimension of ground screw, and we will choose the suitable driver for you.
Q2. Do I need to add gear oil before use?
Yes, it is, must add gear oil before use.
Q3. What should I pay attention to when I assemble the driver?
Don't be worry, we will offer you the instruction of ground screw electric driver.
Q4. What is the weight of driver including accessories?
The weight of driver is260KG.
Q5. Do you have the warranty certificate for the driver?
Yes, we have the warranty certificate for the driver, and we also have the certificate of other products. If you want, we will offer you.
