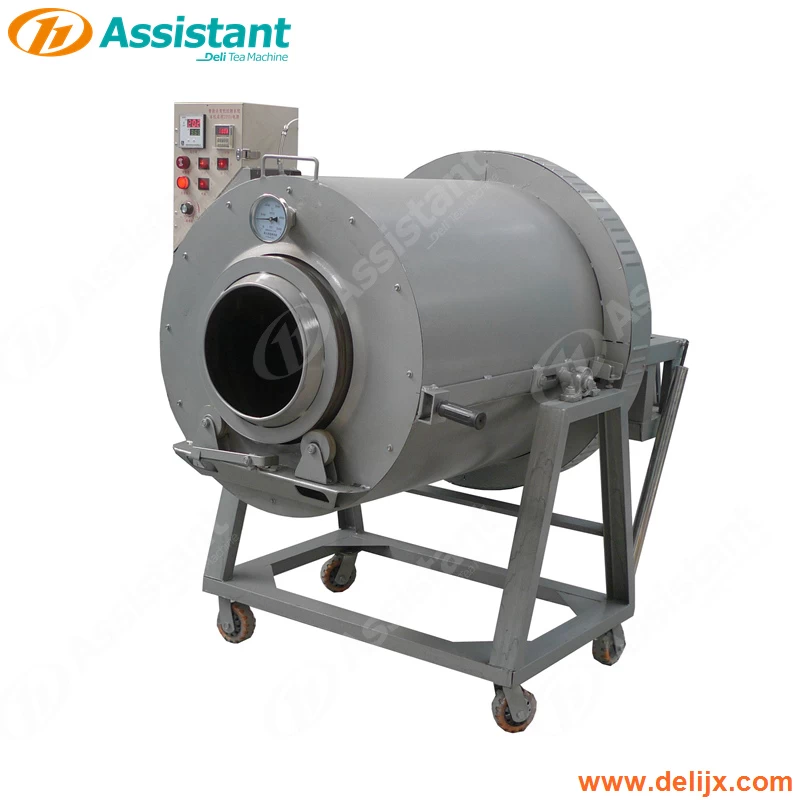

Electric Heating Coffee Small Nut Peanut Soybean Chili Roasting Machine 6CST-D501

DL-6CST-D501 Electric Heating Type Coffee Small Nut Peanut Soybean Chili Roasting Roaster Machine can roast peanut, cocoa, coffee, sesame, tea leaf, chest nut, almond, chestnut, cashew, melon seed, walnut, pistachio, soybean and so on.

  • Heating typeElectric heating
  • Barrel speed5-37 min
  • Heating power18 KW
  • Barrel length850 mm
  • Barrel diameter500 mm
  • Voltage380/50 V/Hz
  • Dimension780×1400×1530 mm
Facebook Twitter Pinterest LinkedIn 分享

Description:
DL-6CST-D501 electric heating roasting machine use electric,  can adjustable heating temperature, up to 280 degrees Celsius, adjustable rotation speed, to ensure that food is roasted, not scorched.

Application:
DL-6CST-D501 Electric Heating Type Coffee Small Nut Peanut Soybean Chili Roasting Roaster Machine can roast peanut, cocoa, coffee, sesame, tea leaf, chest nut, almond, chestnut, cashew, melon seed, walnut, pistachio, soybean and so on.

Parameter:
DL-6CST-D501 food nut roasting machine specification:
Model DL-6CST-D501
Dimensions 780×1400×1530 mm
Voltage 380/50 V/Hz
Inner barrel diameter 500 mm
Inner barrel length 850 mm
Heating power 18 KW
Drive motor Power 0.75 KW
Speed 1390 rpm
Voltage 220 V
Exhaust fan Power 85 W
Speed 2200 rpm
Voltage 220 V
Barrel speed 5-37 min
Heating type Electric heating

Details:

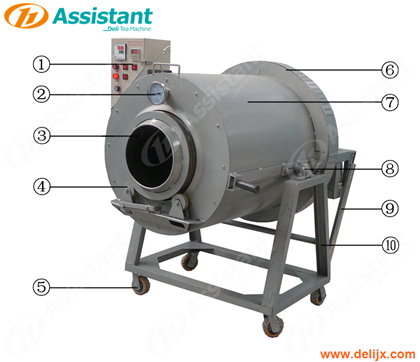

DL-6CST-D501 food nut roaster machine decomposition diagram:
Electric Heating Coffee Small Nut Peanut Soybean Chili Roasting Roaster Machine 6CST-D501
 ①
 Electric control panel
 ⑥
 Heating wire box
②
 Thermometer
 ⑦
 Outer barrel
③
 Inner barrel
 ⑧
 Balance bolt
④
 Nylon wheel
 ⑨
 Shock absorber rod
⑤
 Wheel
 ⑩
 Suppoet frame

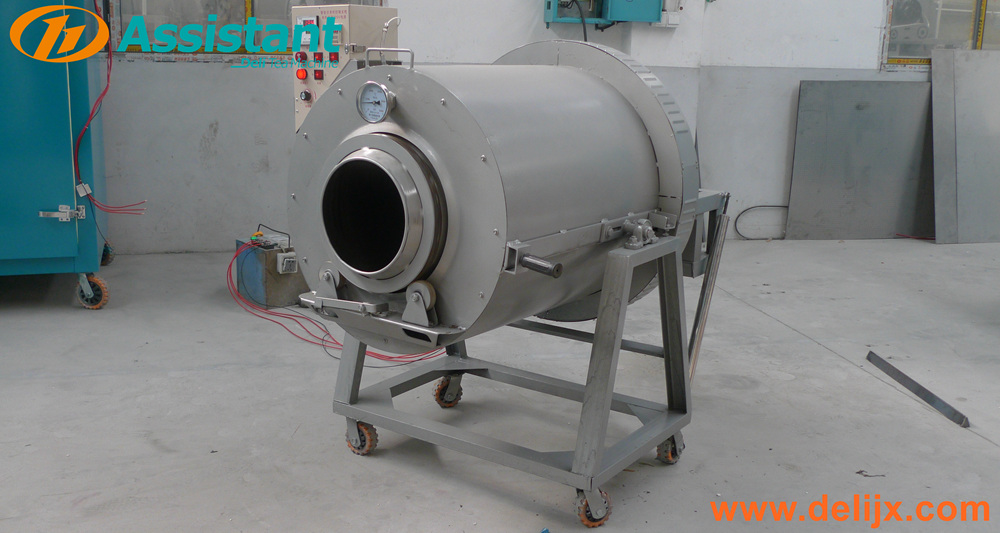

DL-6CST-D501 food  roasting machine photos:

Electric Heating Coffee Small Nut Peanut Soybean Chili Roasting Roaster Machine 6CST-D501
 Electric Heating Coffee Small Nut Peanut Soybean Chili Roasting Roaster Machine 6CST-D501

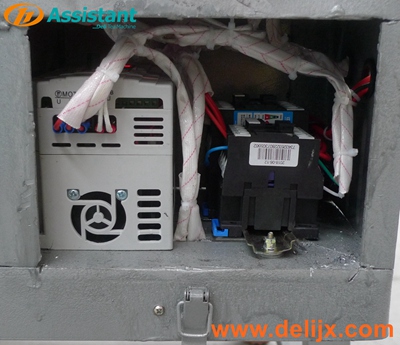

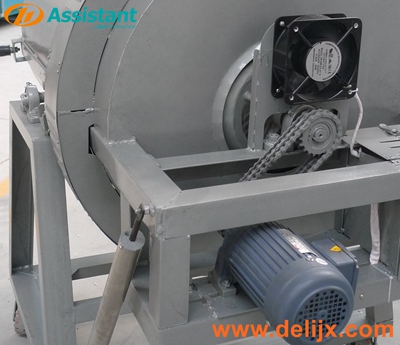

Copper core driving motor Total control area
Electric Heating Coffee Small Nut Peanut Soybean Chili Roasting Roaster Machine 6CST-D501
