Electric Heating Green Tea Roasting Drying Machine 6CSTP-D90

DL-6CSTP-D90 tea leaf stir rotating drum roasting dryer use electric heating, for tea water conent, sorting and tighten stripe, controllable temperature, higher quality of tea.


  • Efficiency80 kg/h
  • Heating typeElectric Heating Wire
  • Barrel speed5-37 rpm
  • Heating power27 kw
  • Barrel length1000 mm
  • Barrel diameter900 mm
  • Voltage380V /50Hz
  • Dimension2100×1150×1780 mm

Description:

This electric heating tea leaf drum roasting drying machine is using at primary stage of tea processing, for drying water content, sorting and tighten stripe. The machine can also be used for stir day tealeaves, and other food like sunflower seed, pipe seeds.

Application:
This stir drum roasting drying machine mainly used for green tea, make the finished tea leaf more tighten, quality more better.

Advantage:

The heating pipe of stainless steel pipe is strong and durable;
Controllable water vapor emission system is adopted to save energy;

Intelligent temperature control system, easy to operate, accurate control;

Calcium silicate board is used to increase heat preservation performance, environmental protection and energy saving;

The inner drum is made of 3.5mm thick steel plate, which is uniformly heated and can eliminate the scorching of tea. It is the basic standard of high-quality tea green-killing.

Parameter:
6CSTP-D90 electric heating green tea drum roasting dryer machine specification:

Model DL-6CSTP-D90
Dimension 2100×1150×1780 mm
Voltage 380V /50Hz
Inner drum diameter 900 mm
Inner drum length 1000 mm
Drive motor Power 0.75 kw
Speed 1400 rpm
Voltage 380 V
Exhaust motor Power 0.18 kw
Speed 1400 rpm
Voltage 380V /220V
Total heating power 27 kw
Drum speed 5-37 rpm
Efficiency 80 kg/h

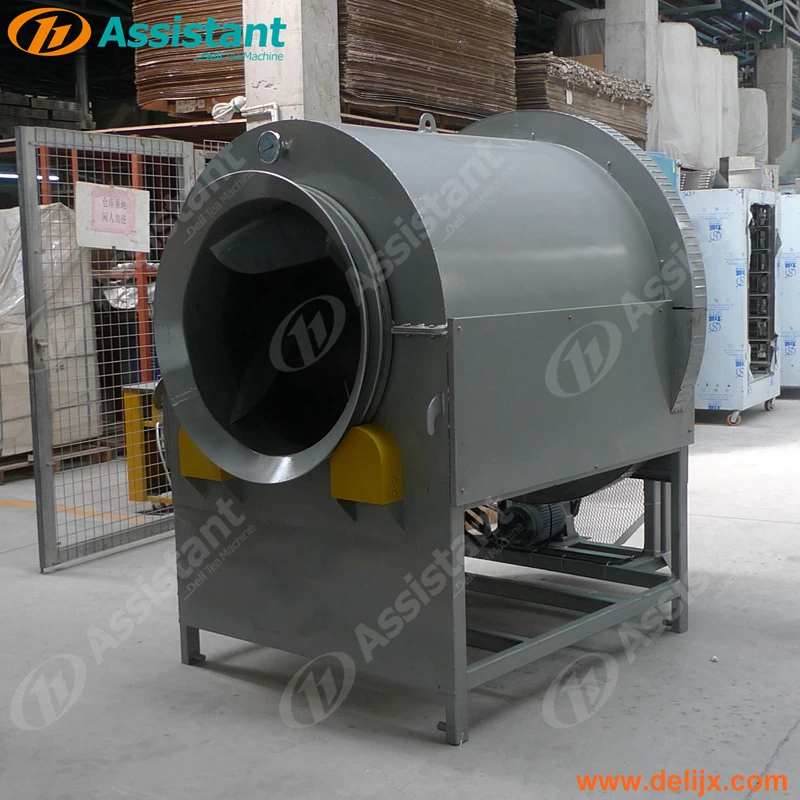

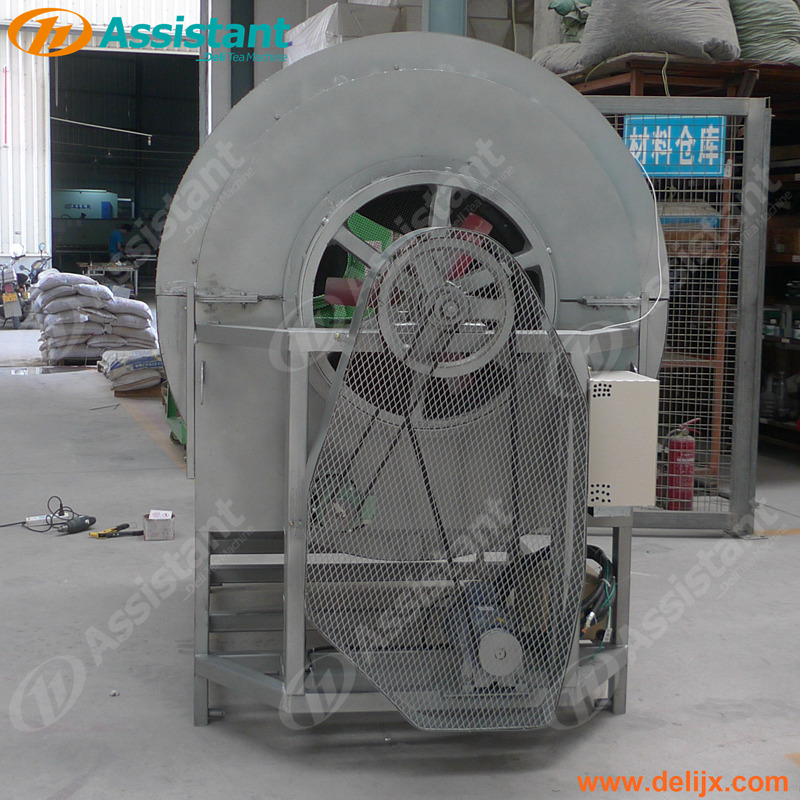

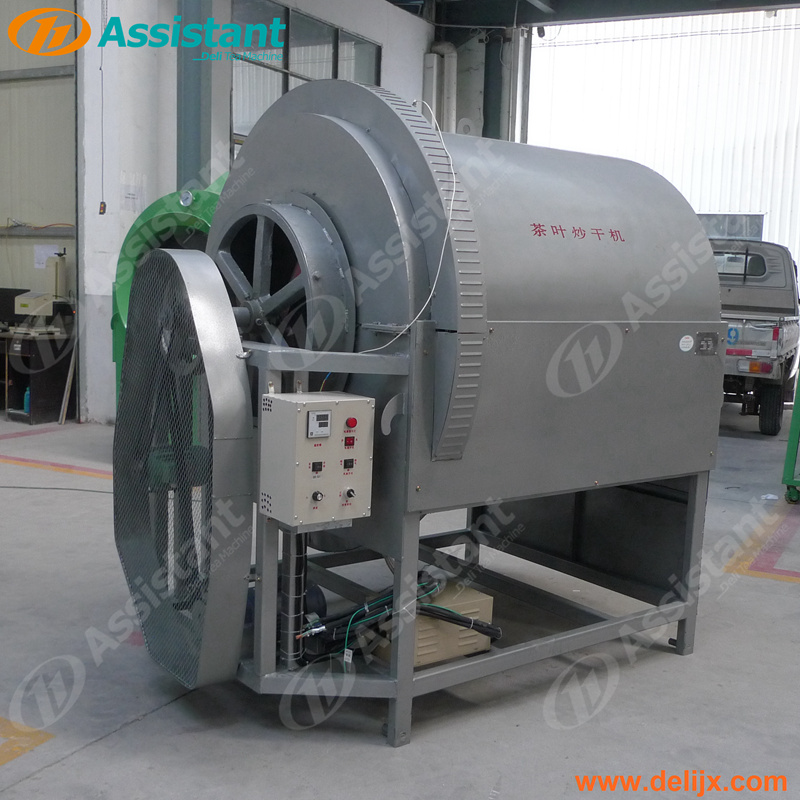

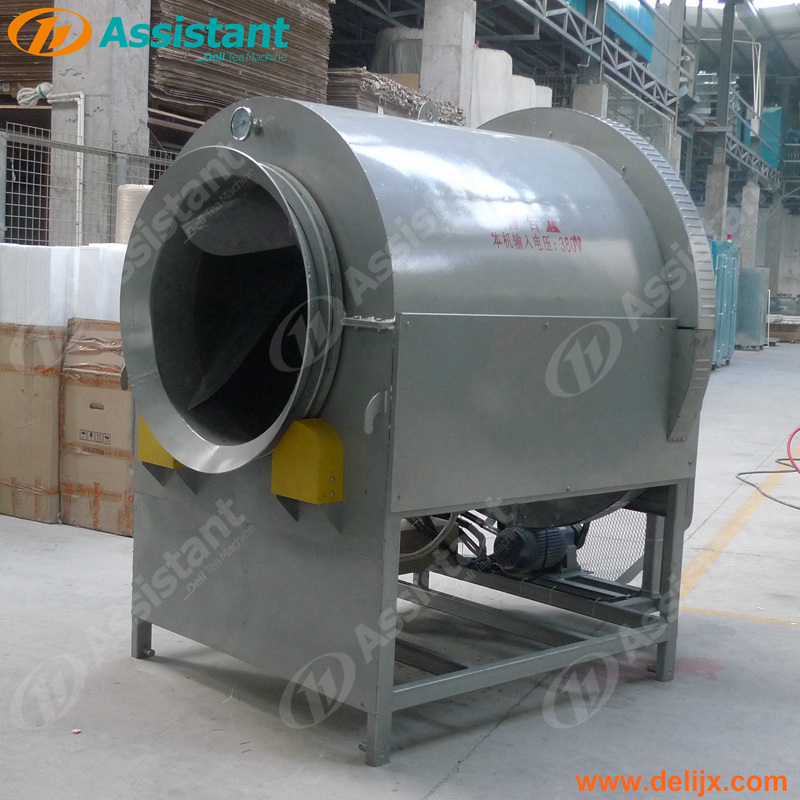

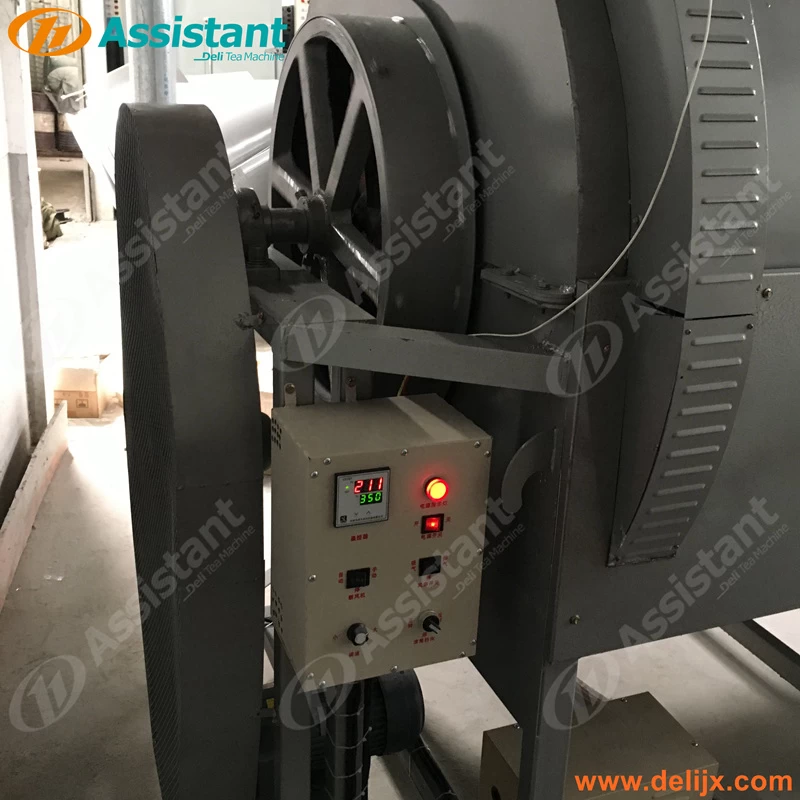

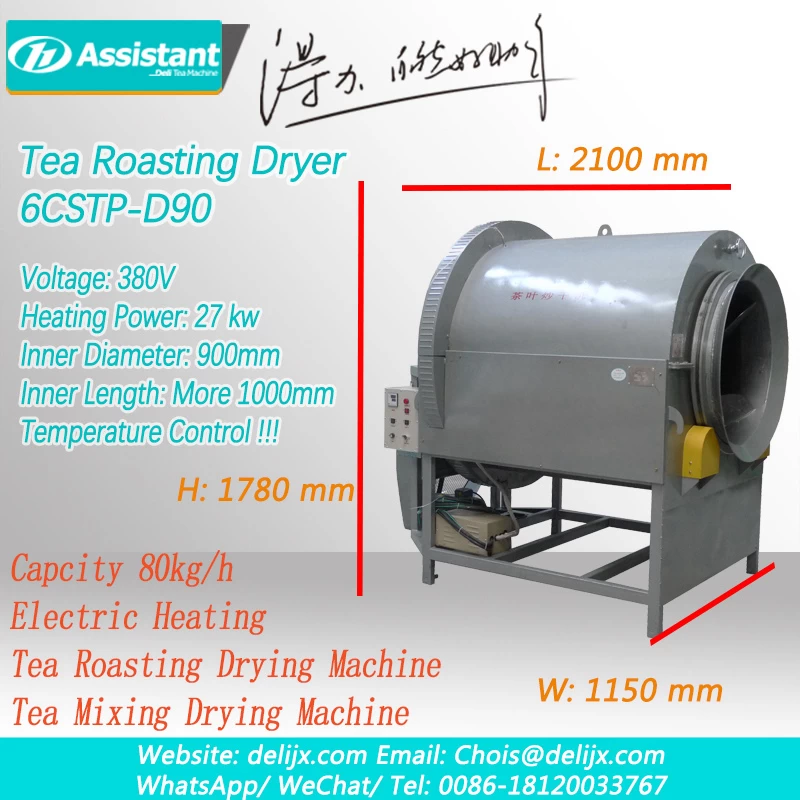

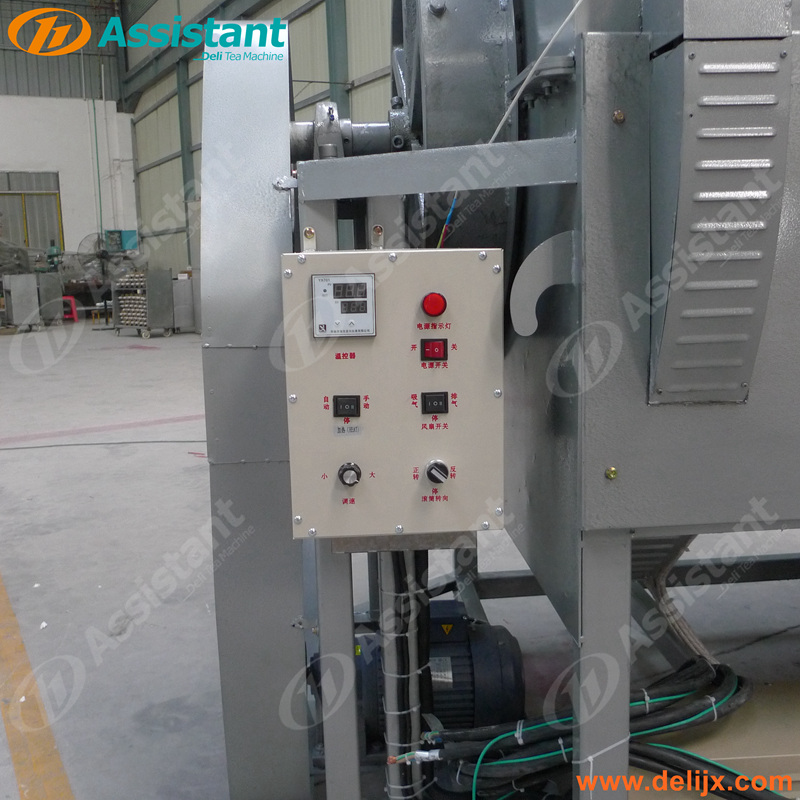

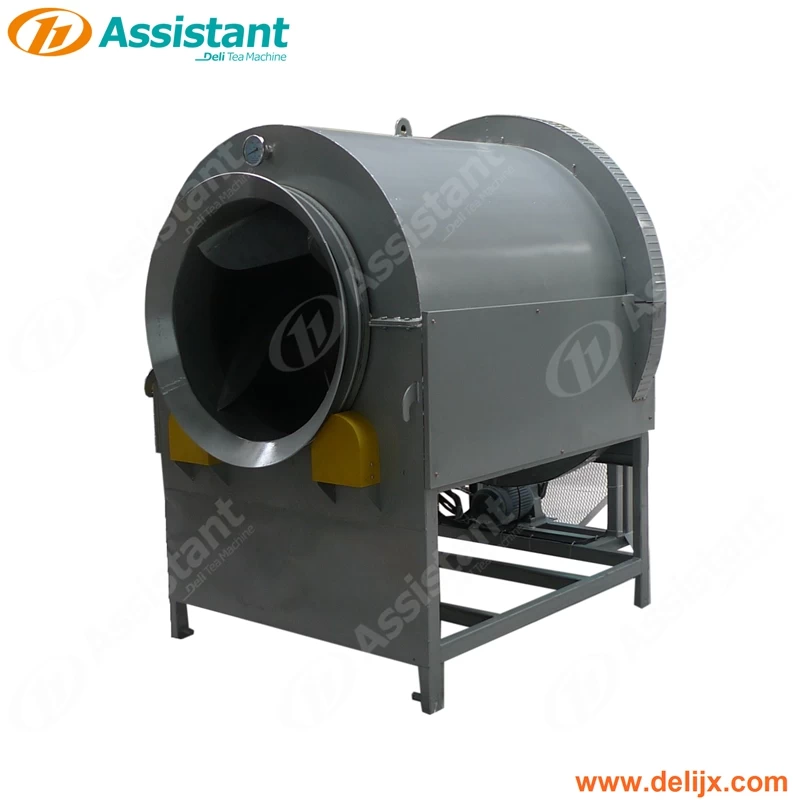

DL-6CSTP-D90 electric heating tea leaf roasting dryer photos:
Electric Heating Green Tea Rotating Drum Roasting Drying Machine 6CSTP-D90
Electric Heating Green Tea Rotating Drum Roasting Drying Machine 6CSTP-D90
Electric Heating Green Tea Rotating Drum Roasting Drying Machine 6CSTP-D90
Electric Heating Green Tea Rotating Drum Roasting Drying Machine 6CSTP-D90
Electric Heating Green Tea Rotating Drum Roasting Drying Machine 6CSTP-D90
