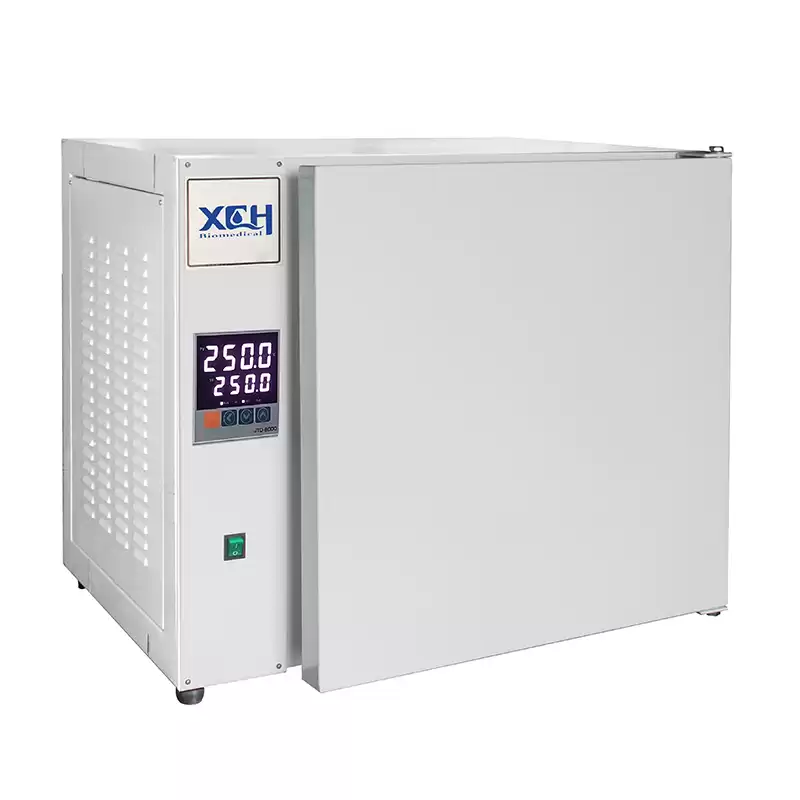

Electric Heating Incubator
The Electric Heating Incubator is widely used for bacteria culture, fermentation and constant temperature test in medical and health, pharmaceutical industry, biochemistry, agricultural science and other scientific research and industrial production departments. The electric heating incubator is an incubator with excellent temperature uniformity. Equipped with a special temperature controller, fast induction, small system error.
Key Features:
• Adopt the latest airduct system achieves good uniform of temperature form different parts inside the chambe
• Insulation layer with glass fiber filling technology, high temperature resistance, good insulation.
• Liner is mirror stainless steel material, four corners half circle arc over plating, shelf can be free loading and unloading.
• Special temperature controller,sensitive induction,small system error.
• With built-in glass door, it is convenient to observe the changes of culture directly.
• Temperature Fluctuation ≤ ±0.5℃ ,Temperature Uniformity ≤ ±1.5℃（@37℃）
• Timing Range: 1-9999min
• Power: AC 220V±10% 50HZ
• Optional : printer or RS485 interface
Model & Parameters:
| MODEL
|
TEMP RANGE
|
CAPACITY
|
INTER DIMEN
W×D×H
|
EXTER DIMEN
W×D×H
|
POWER
|
TRAYS
|
|
XCH-9050DHP
|
RT+5℃ ～ 65℃
|
50L
|
415×360×355(mm)
|
690×500×500(mm)
|
0.3KW
|
2
|
|
XCH-9080DHP
|
RT+5℃ ～ 65℃
|
80L
|
500×400×400(mm)
|
780×530×560(mm)
|
0.4KW
|
2
|
|
XCH-9160DHP
|
RT+5℃ ～ 65℃
|
160L
|
500×500×650(mm)
|
790×630×810(mm)
|
0.6KW
|
2
|
|
XCH-9270DHP
|
RT+5℃ ～ 65℃
|
270L
|
600×600×750(mm)
|
890×740×910(mm)
|
0.8KW
|
2
|
|
XCH-9400DHP
|
RT+5℃ ～ 65℃
|
400L
|
640×585×1355(mm)
|
780×750×1880(mm)
|
1.1KW
|
3
|
|
XCH-9600DHP
|
RT+5℃ ～ 65℃
|
600L
|
840×600×1355(mm)
|
980×800×1880(mm)
|
2.2KW
|
4
|
Application:
XCH-DHP Electric Heating Thermostatic Incubators are used for bacteria culture,fermentation constant temperature test in medical and health. Mainly include the following departments:
Used for storing bacteria and biological culture in colleges and universities, medical and biological research departments, It's the necessary equipment in scientific research laboratories.
Pharmaceutical industry
Biochemistry
Agricultural science
Other scientific research and industrial production departments
Advantages:
Fast induction, small system error
High temperature uniformity
High temperature resistance, good insulation
Low cost
