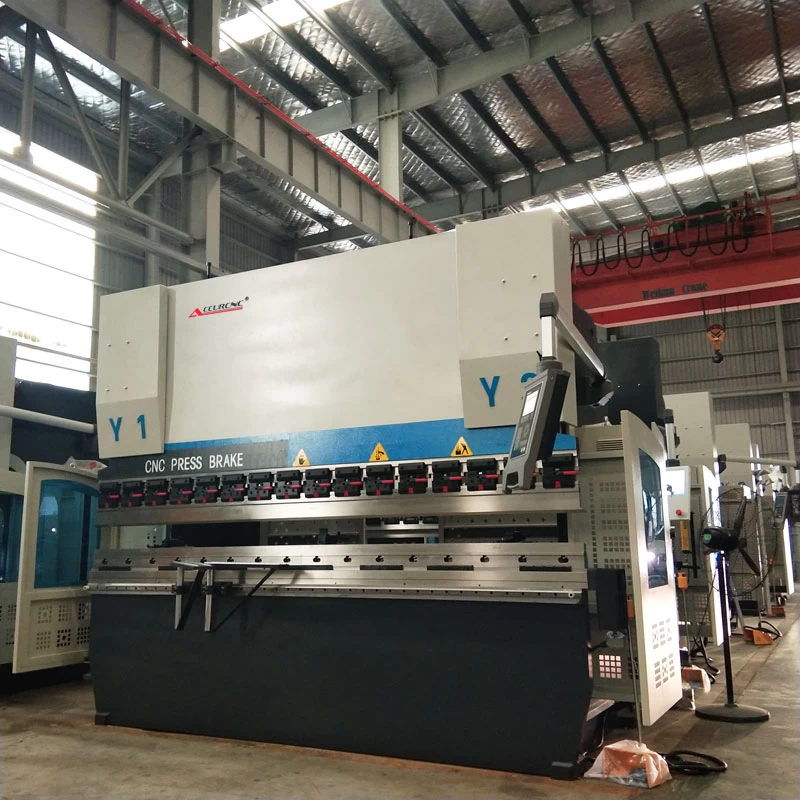

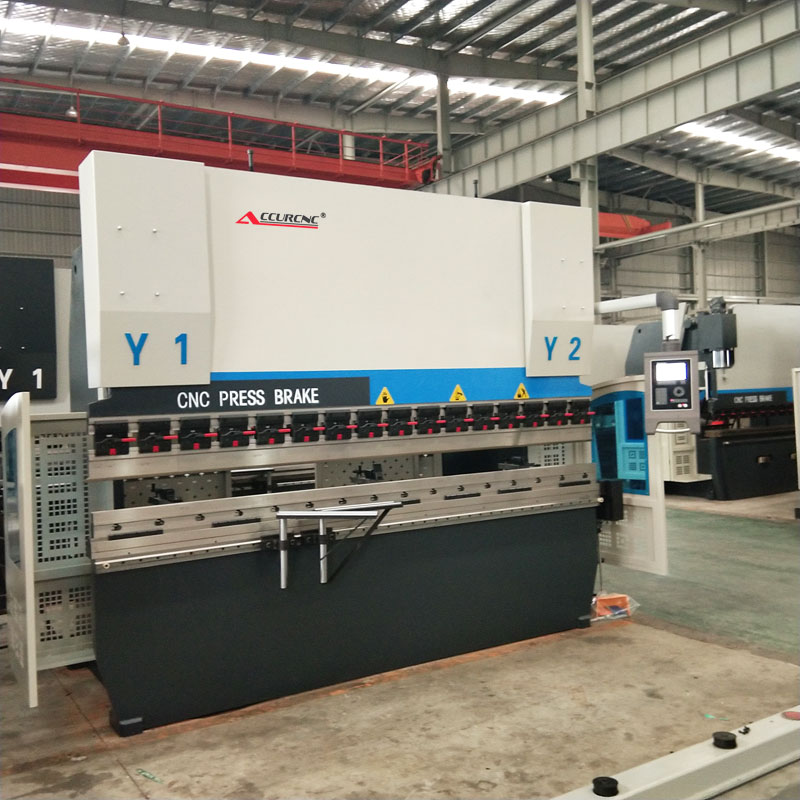

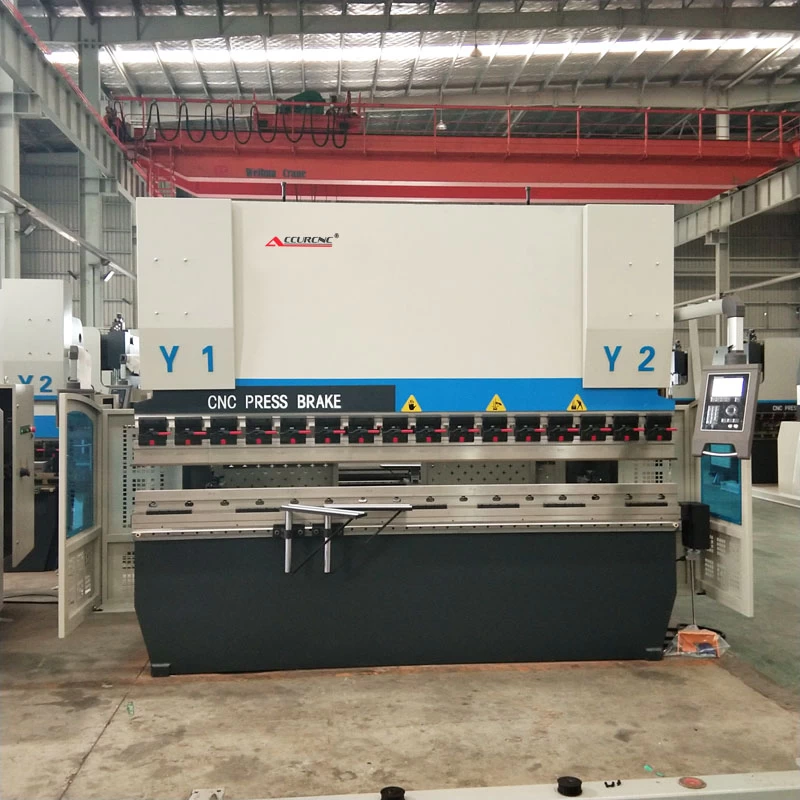

Electric hydraulic CNC press brake with DA52S
Product Introduction
1. The whole machine is designed according to JB/T2257.2-92(China National standard) "plate bending machine technical conditions" and GB/T14349-93 "plate bending machine precision", all the parts of this machine are using computer graphics, computer element analysis, computer aided manufacturing,use CAD, CAE, CAM software for machine structure design, and fully guaranteed the structural strength enough and rigid of each machine component.
2.The whole steel frame welded structure, made the press brake thick, high rigidity, strong shock anti-knock.
3.Allocate breaking that the DELEM company produces bending machine special use numerical control system (or customer specify other shears to fold numerical control system);
4.Rear material(X), smooth piece route or distance of travel(Y) control equal reason computer autocontrol;
5.Rear material adopt the average silk pole and precise ball two kind silk poles;
6. Machine steel plate welded strure, using VSR elimimate internal stress, high mechanical strength and good rigidity.
7.Hydraulic double cylinders on the drive, mechanical block, twisting axis synchronization, smooth and reliable operation, high precision.
Features
1. Hydraulic press brake all Steel Welded, Vibration eliminate stress, high mechanical intensity, good rigidity.Hydraulic upper transmission, steady and reliable.
2. Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization, high precision.
3. Ensure the high control precision, bending accuracy and repositioning accuracy are also reach to the high level.
hydraulic press brake back gauge can be multi-axes controlled.
4. Back gauge distance, upper ram stroke can be adjusted by motor-drive,manual operation micro-adjust equipment, numerical display.
5. Our hydraulic press brake machine worktable full deflection compensation
6. Adopt integrated hydraulic system, more reliable and easy for maintenance.
7. Travel limit protection, full hydraulic press brake machine guarding with safety interlocker.
8. Mechanical synchronous mechanism and the complex compensation are designed so as to raise the workpieces precision.
9. Inch, single mode being designed for the hydraulic press brake machine and reversing and maintain time can be controlled by the time relays
10. Safe fence and the electric interlocker have been designed for the hydraulic press brake machine to ensure the operation safety.
11. Standard punches and dies. Front arm material support. Foot pedal with emergency stop.

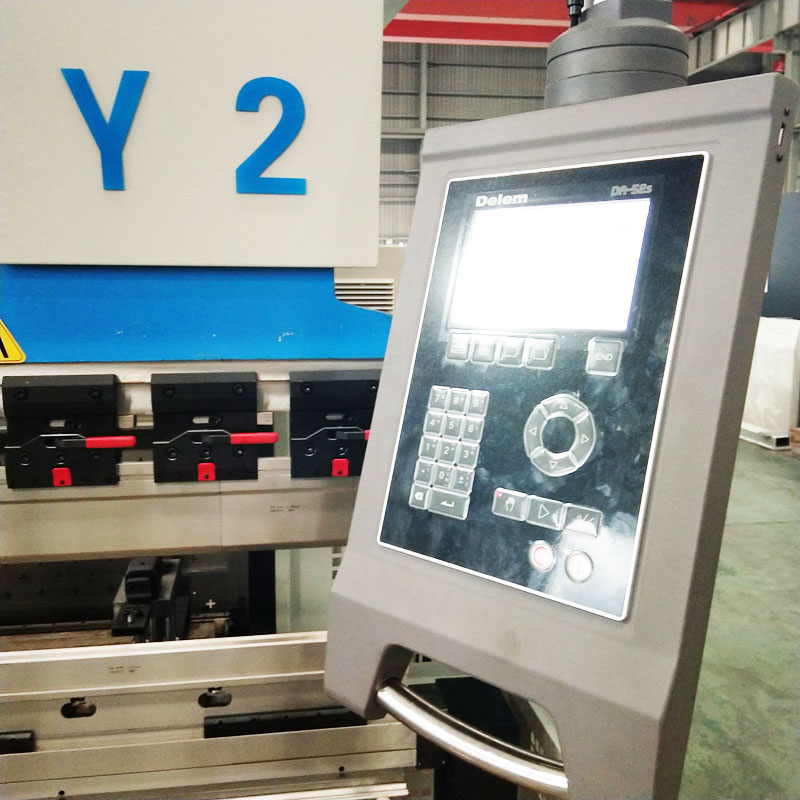

12. Control system for hydraulic press brake: DA52S.
Main components under guaranteed quality or trustable company
1,Motor and electronic system elements are all composed from Siemens or Schneider
2,Dies can be designed under clients’ requirement.
3,Oil pump can be used from China chengjie enterprise who is used in China’s Aircraft industry.Or we can use Germany ECKERLER enterprises.
8,Seal will be from USA Parker or Japan Valqua company.
9,The hydraulic system and valve optional Germany BOSCH company.
4,Security protection equipment: We equipped protect fence to avoid any penetration inside. 5,Foot controller with emergency control button.
