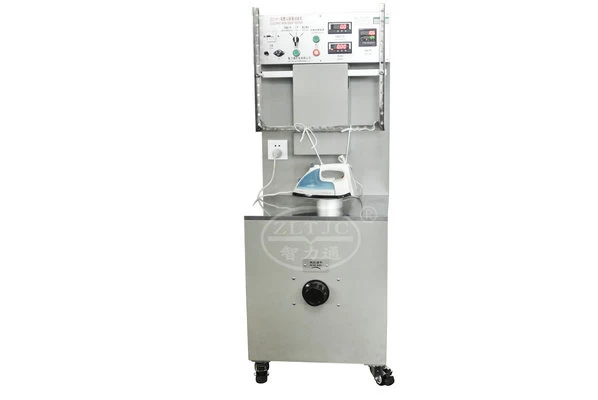

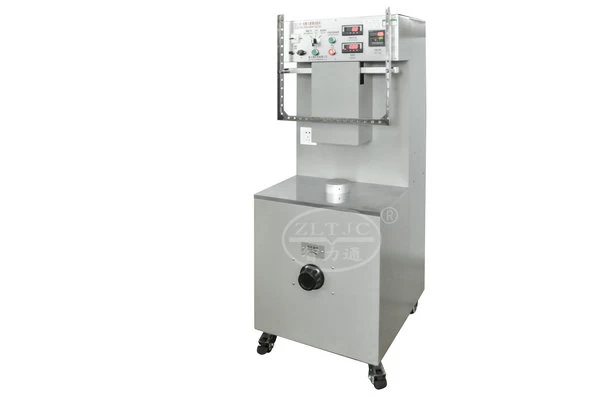

Electric Iron Drop Tester
Product details: Model ZLT-IF1
To determine the mechanical strength of electric irons by repeated drop onto a steel plate according to IEC60335-2-3 clause 21.101.
The electric iron is operated under normal operation at rated power input and, except for cordless irons, the soleplate temperature is maintained under these conditions throughout the test.
Standard Outfit:
1 steel plate, at least 15mm thick, mass at least 15 kg, rigidly supported,
1 lifting device with radial cam for a slow lifting of the specimen for 40 mm, for a sudden release for a free fall and for a rest time on the steel plate of ≈15% of the test duration,
1 gear motor, to drive the lifting device, for 20 drops per minute maximum,
1 falling assembly, with tie-bar for fastening the specimen, with 1 pair of distance pieces 40 mm.
1 switchgear, with main switch, fuses and preset counter to switch off the unit after the preset number of strokes.
●With voltmeter AC 250 V, current meter 15A, fuses and socket-outlet for the specimen, for connection to AC 220V 50Hz, other voltages on request.
●Base≈550 mmΧ600 mm, height≈1380 mm.
