ECO friendly Bag Making Machine
For BIB bag,container air bag, liquid bag, medical sterilization bag macking
● Brief Introduction：
This machine is the latest new bag making machine. It has the characteristics of energy saving and environmental protection. It can not only manufacture bag-in the-box type bags, but also produce air dunnage bags and liquid packing bags.
● Parameters:
Machine function:
|

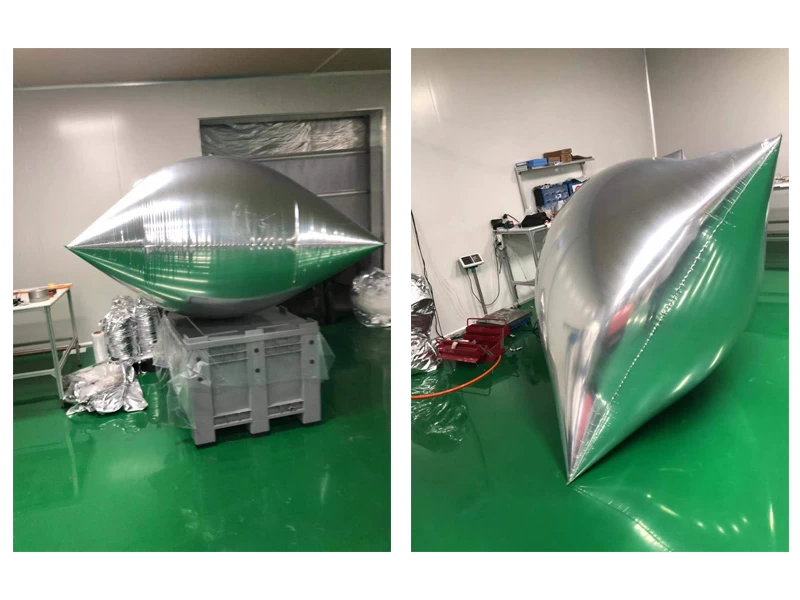

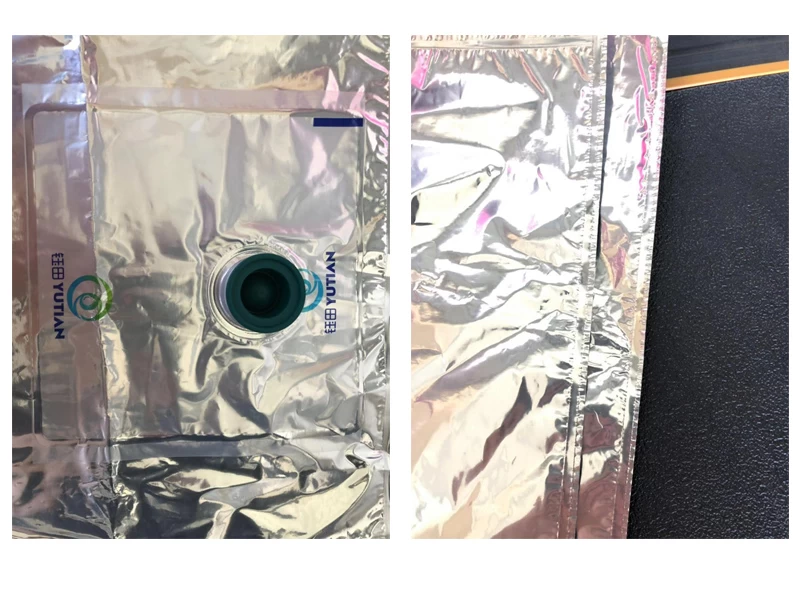

Four-side sealed Bag-in-box, Air Dunnage Bags, Liquid packing Bags
|
Suitable base materials:
|
PLA,PBAT co-extrusion film,Plastic composite film such as BOPP, COPP, PET, PVC, PE, nylon, multi- layer co-extruded film, aluminized composite film, paper-plastic composite film, pure aluminum foil composite film
|
Maximum bag making speed:
|
Mechanical speed 22PCS/Min (depending on bag length, style)
|
Maximum discharge line speed:
|
≤22M/Min (depending on the length and style of the bag)
|
Bag Size:
|
Length: 1050mm N=1, 2,3,4,5,6,7,8 (double delivery)
Width: 1600mm
|
The largest size of the coil:
|
¢1000X1600 (diameter * width)
|
Positioning accuracy:
|
≤±0.3MM
|
Number of heat-sealed cooling knives：
|
11 pieces
|
Temperature control quantity:
|
8 way
|
Temperature setting range:
|
Room temperature ∽300°C
|
Machine power:
|
38KW
|
Dimensions:
|
26000X4100X2700MM (length X width X height)
|
Color:
|
Aluminum alloy color
|
Control System Model:
|
GS Bag Making Machine Control System
|
● The scope of application:
Logistics, liquid packaging

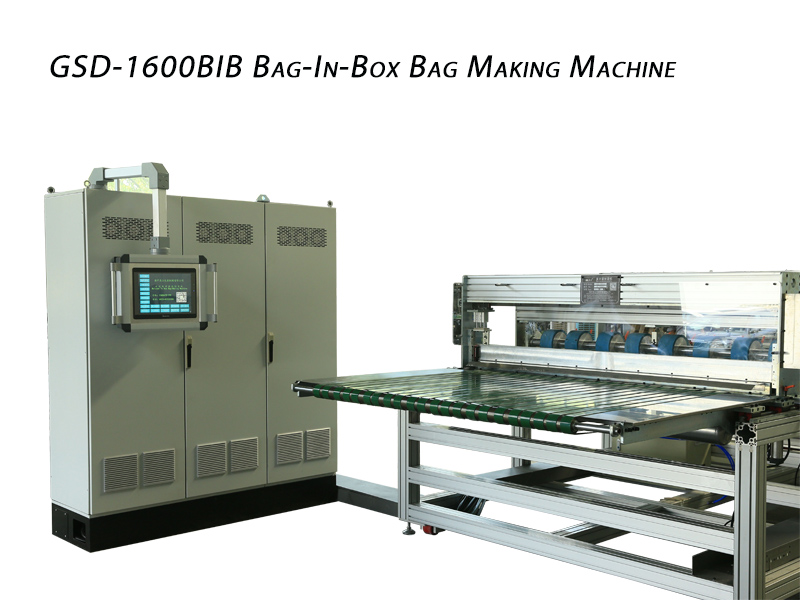

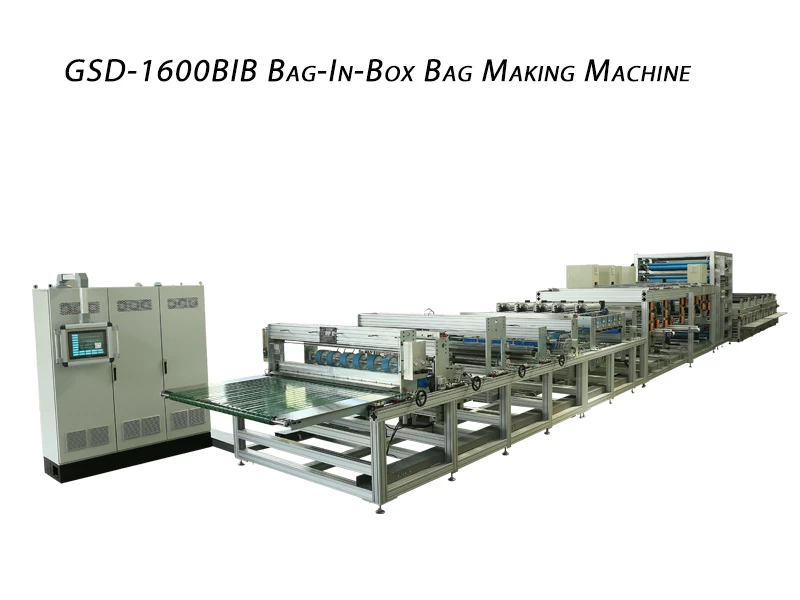

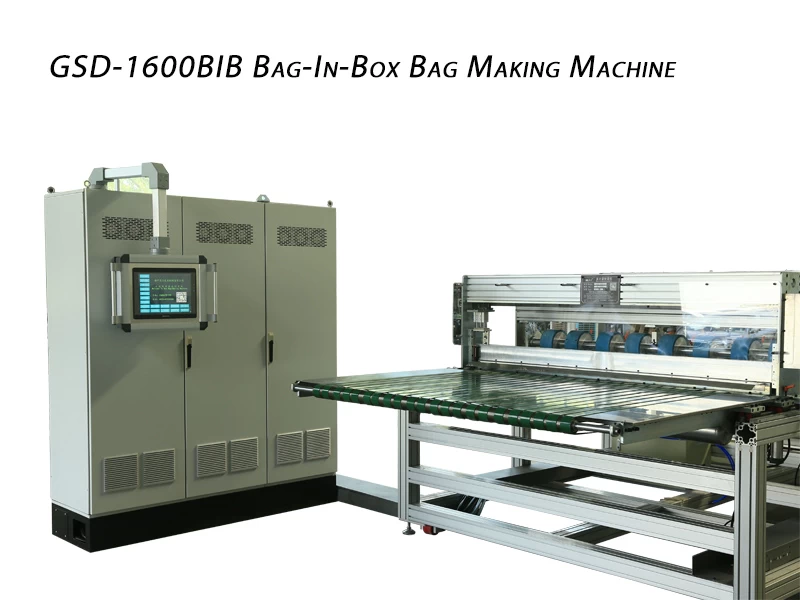

● GSD-1600BIB bag making machine video :
