1. Features
•Truck with small width from 1020-1100mm, turning radius from 1700-1740mm and narrow cabin to ensure trucks can be used in drive- in racks.
•Available in either DC or AC power options.
•For daily maintenance of the battery, you DON’T NEED to hang up the battery box. Simply using a battery handle controller, you can automatically remove and replace the battery box.
•Equipped with two separate floating devices, which enhances stability in terms of structure, reducing weight, and prolonging the working life of the driving wheels.
•Full hydraulic steering system, with integrative design of driving and steering, provides low-effort and flexible power steering.
•Integrated driving and turning systems.
•A fully hydraulic steering system ensures flexible turning, and requires less maintenance.
•Optional high-level video system places a camera in the top skid, allowing the operator enhanced visibility.
•Height selection and height positioning system is a high-level configuration, which with manual and automatic control, for automatic positioning with a keypad, enabling the operator to choose the appropriate lift height (optional).
2. Specification
|
Model
|
|
CQD15M
|
CQD15L
|
|
Power
|
|
battery
|
battery
|
|
Operate type
|
|

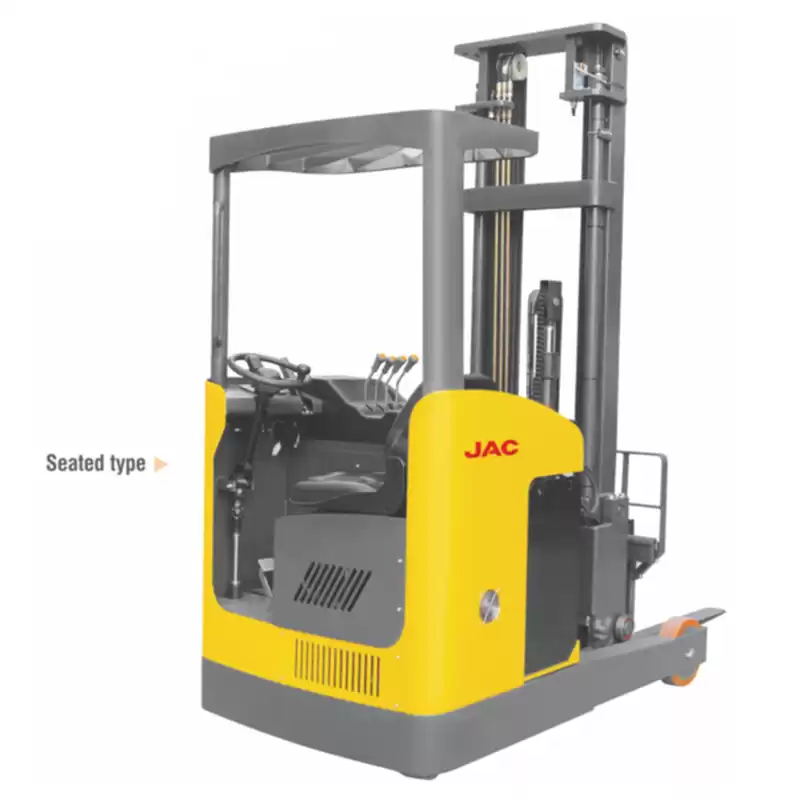

seated
|
standing
|
|
Capacity /rated load
|
Q(kg)
|
1500
|
1500
|
|

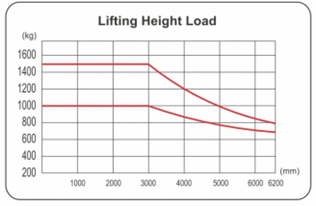

Lift height
|
h3(mm)
|
|
|
|

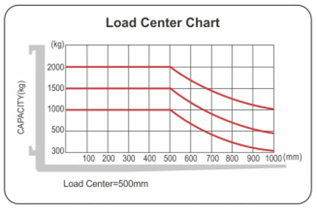

Load centre distance
|
c(mm)
|
500
|
500
|
|
Drive wheel
|
mm
|
Φ280×100
|
Φ280×100
|
|
Fork wheel
|
mm
|
Φ285×80
|
Φ250×80
|
|
Wheels, number front rear(x=driven wheels)
|
|
3,2
|
3,2
|
|
Tilt of mast/fork carriage forkward/backward
|
α,β(Grad)
|
2,3(mast)
~ ~
|
3,5(mast)/3,5(forks)/3,5(forks)
|
|
Service weight
|
kg
|
2400/2800/2900
|
2340/2740/2840
|
|
Free lift
|
h2(mm)
|
~/1700/2100
|
~/1700/2100
|
|
Height,mast lowered
|
h1(mm)
|
2086/2240/2640
|
2086/2240/2640
|
|
Height,mast extended
|
h4(mm)
|
3800/5800/7000
|
3800/5800/7000
|
|
Height of overhead guard(cabin)
|
h6(mm)
|
2114
|
2200
|
|
Seat height/stand height
|
h7(mm)
|
920
|
295
|
|
Height of crura
|
h8(mm)
|
270
|
270
|
|
Overall length
|
l1(mm)
|
2390
|
2360
|
|
Length(barring fork)
|
l2(mm)
|
1850
|
1800
|
|
Overall width
|
b1(mm)
|
1100
|
1020
|
|
Fork dimensions
|
s/e/l(mm)
|
35/100/1070
|
35/100/1070
|
|
Reach distance
|
l4(mm)
|
600
|
600
|
|

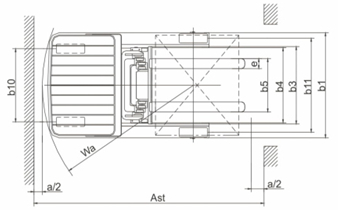

Aisle width for pallets 1000×1200 crossways
|
Ast(mm)
|
2800
|
2800
|
|
Aisle width for pallets 800×1200 lengthways
|
Ast(mm)
|
2850
|
2850
|
|
Turning radius
|
Wa(mm)
|
1740
|
1700
|
|
Travel speed,laden/unladen
|
Km/h
|
7/7.2
|
7/7.2
|
|
Lift speed,laden/unladen
|
m/s
|
0.19/0.2
|
0.19/0.2
|
|
Lowered speed,laden/unladen
|
m/s
|
0.5/0.4
|
0.5/0.4
|
|
Battery voltage,nominal capacity K5
|
V/Ah
|
48/400
|
48/400
|
|
Battery weight
|
kg
|
550
|
550
|
|
Battery dimensions l/w/h
|
mm
|
1092x336x650
|
983x404x630
|
